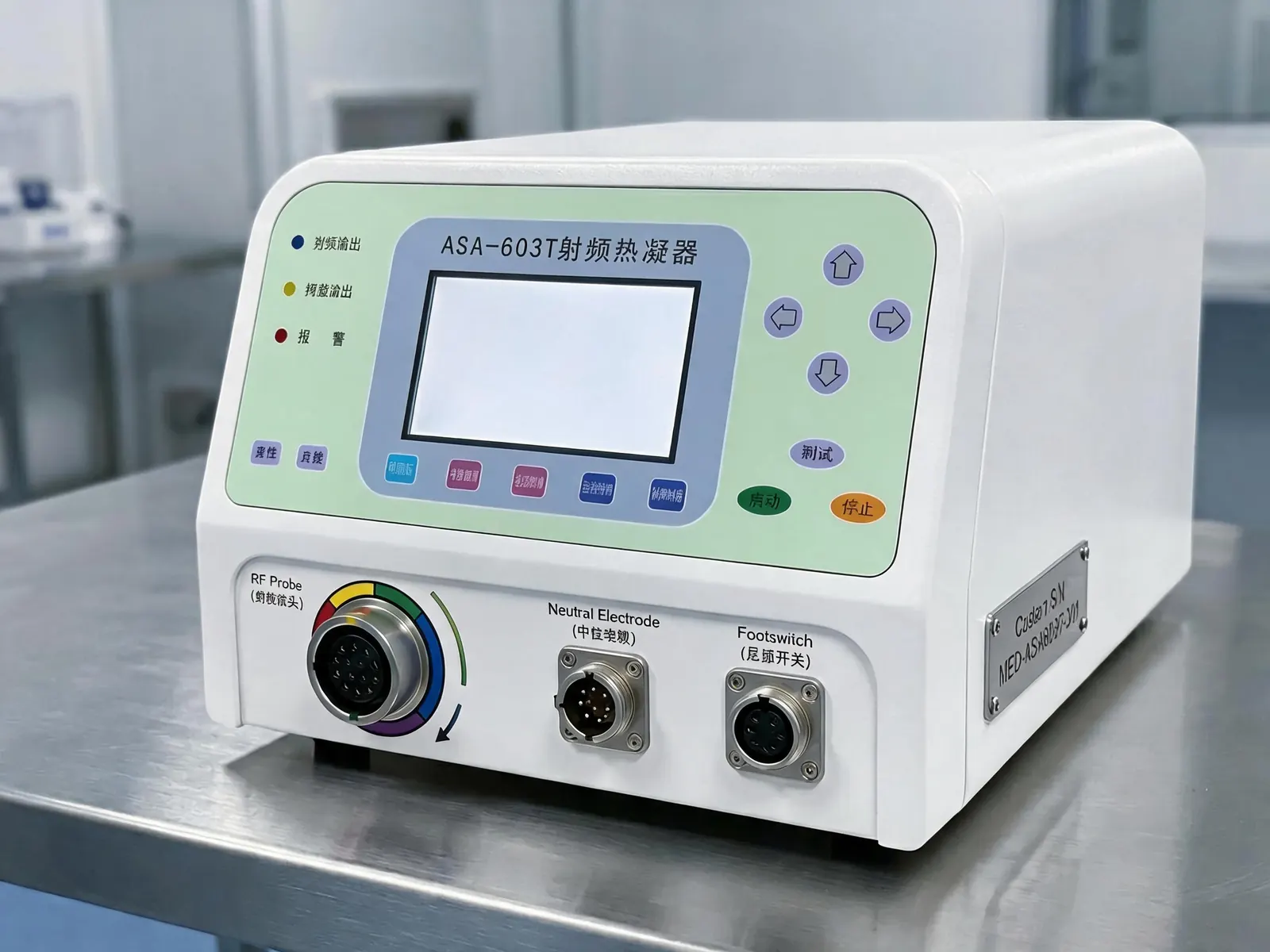

Custom HMI panel system with overlay, keys, display window and connector interfaces

What Is an HMI Panel System?

An HMI panel system is a complete human-machine interface solution that integrates multiple functional components into one system-level interface.

It can include a visual interface, input system, sensing layer, lighting system, sealing structure and optional heating layer. The purpose is to make the equipment interface easier to assemble, easier to test and more stable in actual use.

For OEM buyers, the main risk is not one individual layer. It is whether the overlay, circuit, keys, sensing area, adhesive, housing, connector and control electronics work together after assembly.

Baoshengda System Definition

Baoshengda provides:

  • Human Machine Interface (HMI) systems
  • Membrane switch technology
  • FSR sensing systems
  • Flexible heating systems
  • Graphic overlay systems

HMI Hub Authority for Industry Systems

The HMI Panel Solution page is the central reference point for industry applications. Industrial, medical and automotive pages explain application environments, then return to this hub for system architecture and product-layer decisions.

Industrial HMI Systems

Machine control panels, production line interfaces, industrial instruments and rugged operator controls.

Industrial Automation HMI

Medical HMI Systems

Cleanable medical control panels, sealed keypad areas, diagnostic equipment interfaces and patient-device controls.

Medical Device HMI

Automotive HMI Systems

Dashboard overlays, EV control interfaces, backlit control panels and automotive electronics HMI assemblies.

Automotive HMI

System Architecture

Graphic Overlay LayerPrinted PET, PC, PMMA or other front surface used for icons, windows, dead-front effects and brand appearance.
Membrane Switch LayerTactile or non-tactile circuit layer for button input, tail routing and connector-ready assembly.
Rubber Keypad LayerOptional silicone rubber keypad layer for raised keys, soft touch feel and long-cycle industrial input.
FSR Pressure Sensor LayerOptional force sensing layer for pressure input, threshold detection or tactile feedback applications.
Backlighting LayerLED, LGF or EL backlighting options for symbols, buttons, display windows or low-light operation.
Flexible Heating LayerOptional heating film support for low-temperature operation, medical warming or EV and energy equipment interfaces.
PCB / FPC / Electrical Control LayerElectrical interface review for connector position, signal routing, LED drive, sensor reading and assembly fit.
Adhesive / Sealing StructureBonding, gasketing, tail exit and edge protection design for waterproof or ruggedized product environments.

Technical Capabilities

ModuleOptions / Description
Input SystemMembrane switch, rubber keypad or hybrid input assembly
Sensing SystemFSR pressure sensing and force feedback areas
Display InterfaceGraphic overlay, window design, dead-front display effect and icon printing
BacklightLED, LGF or EL lighting based on brightness, thickness and power requirement
Thermal SystemFlexible heating film integration when the equipment requires local heating
CircuitFPC, PCB, silver printed circuit or hybrid electrical structure
SealingIP65, IP67 or IP68 design support depending on final housing and test method
IntegrationOEM and ODM full system review from drawing to prototype and production

Final structure depends on housing, electronics, cleaning requirement, operating environment, target lifetime and customer assembly method.

Key Advantages

System Integration

  • One-stop HMI system integration
  • Reduce supplier complexity for OEM clients
  • Coordinate overlay, switch, sensor, lighting and sealing details together

Engineering Control

  • Improve system reliability by reviewing the full stack
  • Optimize assembly cost and reduce avoidable sample changes
  • Support electrical and mechanical co-design

Industrial Reliability

  • Waterproof, backlit and ruggedized structures can be reviewed
  • Durable interface design for equipment environments
  • Material and adhesive choices matched to real use conditions

OEM Project Support

  • Custom engineering design support
  • Prototype development and small batch validation
  • Mass production scaling after structure confirmation

Applications

HMI panel systems are used when the equipment interface must combine appearance, input, function and assembly reliability in one front-panel solution.

Industrial Automation Systems

Machine control panels, instruments, terminals, control boxes and rugged operator interfaces.

Industrial Automation HMI

Medical Diagnostic Equipment

Cleanable front panels, sealed keypad areas, display windows and connector-ready interface modules.

Medical Device HMI

Automotive Control Systems

Dashboard overlays, dead-front controls, illuminated buttons, tactile input and automotive-grade assembly support.

Automotive HMI

Smart Home Devices

Compact control panels, appliance interfaces, backlit symbols and integrated keypad overlays.

Communication Equipment

Durable keypads, indicator windows, sealing and front-panel assemblies for electronic systems.

Energy and EV Systems

Interface panels for charging, battery systems, thermal modules and outdoor or semi-outdoor equipment.

Engineering and Customization

Architecture Review

  • System architecture design support
  • Multi-layer integration engineering
  • Electrical and mechanical co-design
  • Prototype development support

Interface Design

  • Key layout, icons and display window review
  • Backlight zone and dead-front effect planning
  • FSR pressure sensing and tactile area design
  • Rubber keypad or membrane switch hybrid options

Assembly Planning

  • Connector, tail exit and FPC or PCB interface review
  • Adhesive, gasket and sealing structure selection
  • Housing fit and mounting surface confirmation
  • Small batch to mass production scaling

Reliability Optimization

  • Environmental reliability optimization
  • Waterproof and cleaning resistance review
  • Thermal layer integration if required
  • Durability target and inspection plan discussion

Quality and Testing

HMI panel system inspection and electrical testing

Testing should match the complete HMI system, not only one printed layer or one button. Baoshengda can plan inspection items around the actual product environment and assembly method.

  • System integration testing
  • Electrical continuity and signal testing
  • Mechanical durability testing
  • Environmental simulation for heat, humidity and vibration
  • Waterproof and sealing verification
  • Life cycle testing
  • Backlight and display window inspection
  • FSR or sensor function verification if used
  • Adhesion, tail and connector inspection
  • RoHS / SGS compliance support where applicable

Design Information Needed for Quotation

For an HMI system project, the first quotation should be based on the full assembly environment. Please send available information before sampling.

  • 2D or 3D drawing, front panel artwork and housing photos
  • Input method, key feel, sensing requirement and backlight requirement
  • Graphic overlay material, window, surface finish and cleaning environment
  • PCB, FPC, connector, tail route and electrical interface details
  • Waterproof, dustproof, vibration, temperature or chemical exposure requirement
  • Assembly method, adhesive surface and enclosure tolerance information
  • Prototype quantity, annual quantity and target lead time

Download HMI Panel Solution Brochure

Request an overview of Baoshengda's HMI panel system architecture, functional layer options, integration support, quality checks and quotation requirements.

Request Product Brochure

FAQ

What is an HMI panel system?

It is a complete human-machine interface integrating multiple functional layers into one system, such as overlay graphics, input, sensing, lighting, sealing and optional heating.

Do you support OEM/ODM?

Yes. Baoshengda supports OEM and ODM system design review, prototype development and mass production for custom HMI panels.

Can it include multiple technologies?

Yes. Membrane switch, rubber keypad, FSR pressure sensor, heating film, backlight, FPC, PCB and overlay technologies can be combined based on the equipment design.

Is it suitable for medical devices?

Yes. It can be used for medical HMI systems that need cleanable overlays, sealed input areas, durable graphics and connector-ready front panel assemblies.

Do you provide system design support?

Yes. We can review the layer stack, electrical interface, mechanical fit, sealing, backlight, sensor integration and production feasibility before sampling.
