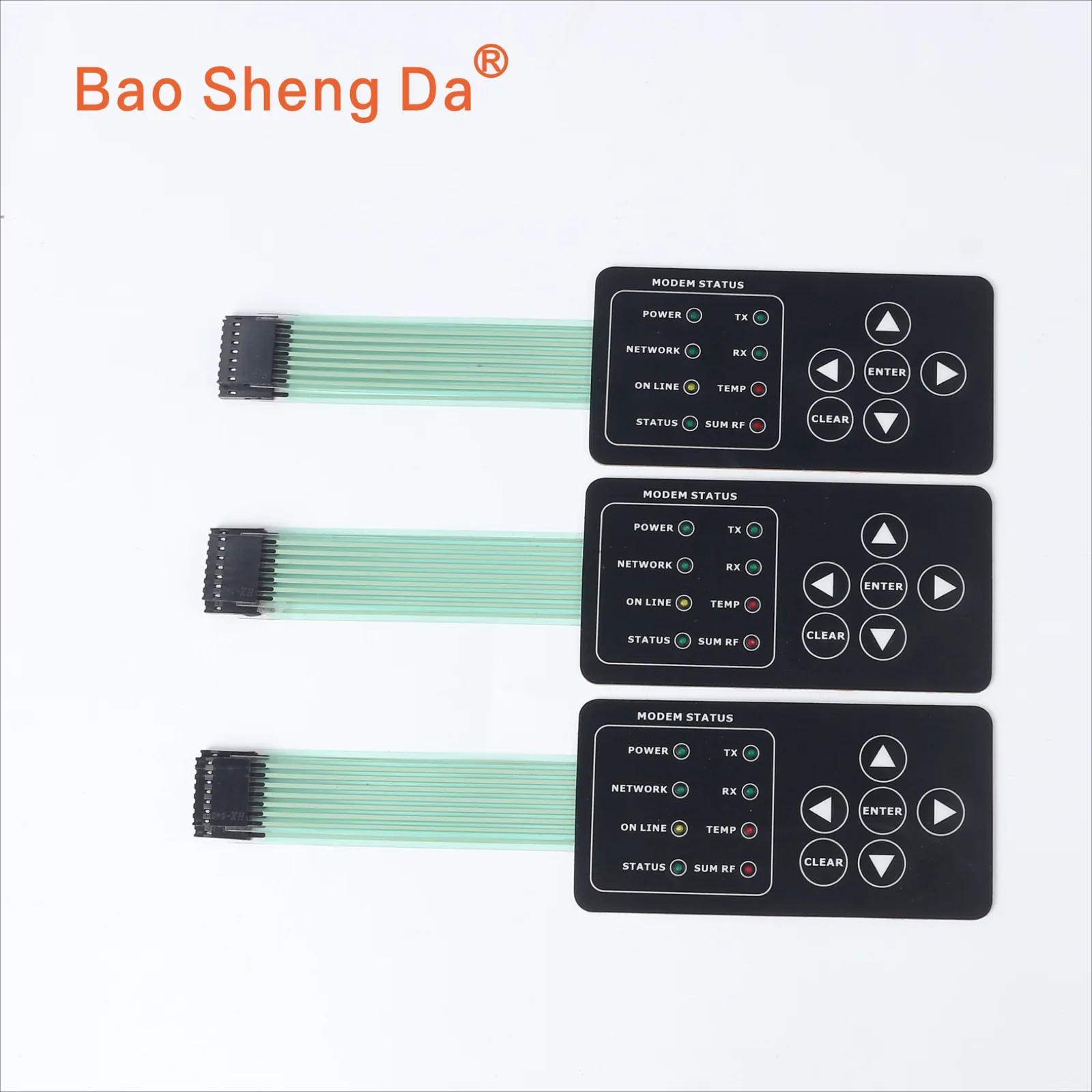

When Does a Backlit Membrane Switch Fit?
Use a backlit membrane switch when fixed keys, legends or status windows must remain findable in low light without turning the whole interface into a touchscreen. The component is useful for repeated controls, service inputs and small indicators beside a display.
It is not a complete HMI, lighting controller or enclosure seal. The buyer should define which zones light together, the viewing distance, available stack depth, supply and driver limits, dimming ownership, housing support and the acceptance condition for the mounted sample.
If the only requirement is a large full-color display, a membrane backlight layer may add no value. If a few fixed controls must stay visible during glare, night work, rain service or gloved operation, the thin printed and tactile structure can be a practical fit.

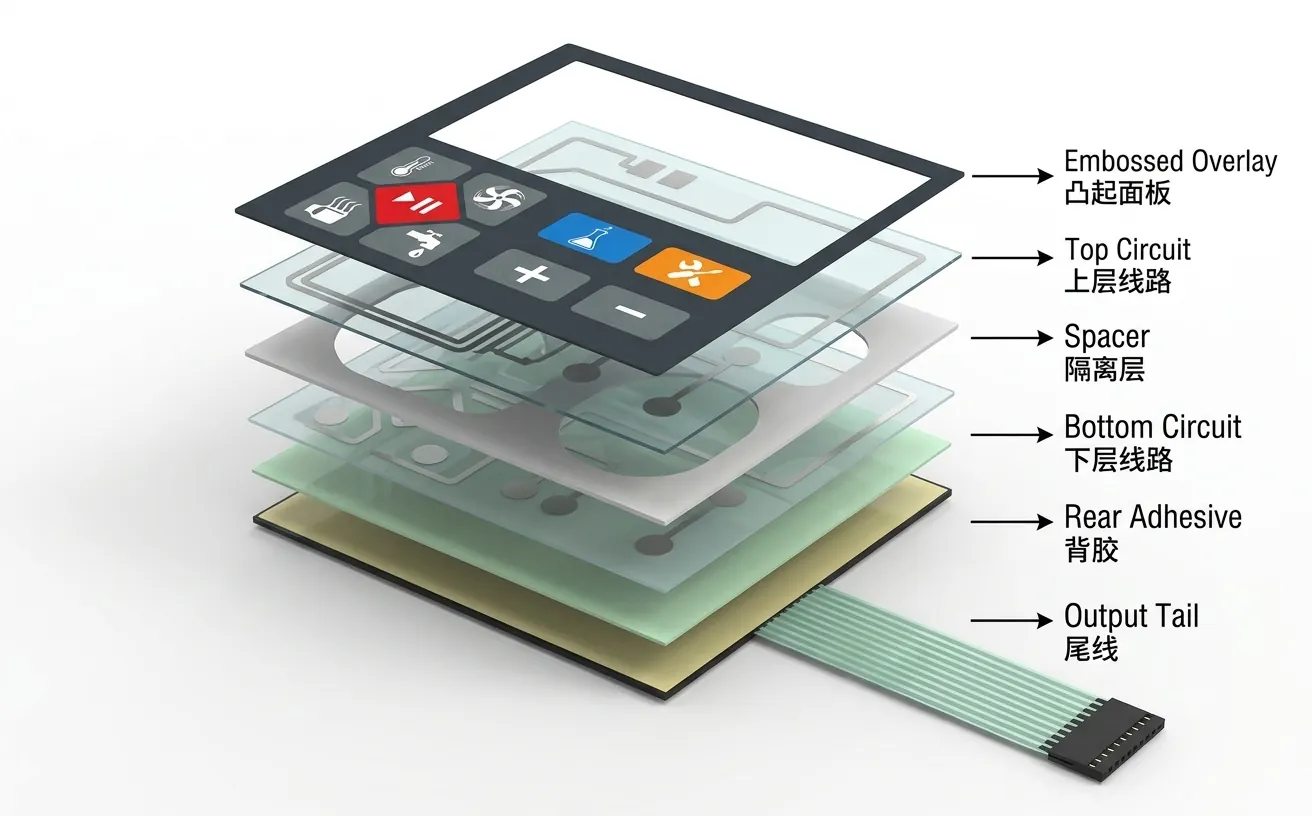

Backlit Membrane Switch Structure
A typical backlit membrane switch can include the following functional layers or structures:
Graphic OverlayThe top visual and touch surface. PET, PC or other suitable films can be printed with icons, symbols, logos, display windows, transparent areas and translucent graphics.
Translucent or Dead-Front Printing LayerTranslucent ink allows light to pass through selected areas. Dead-front printing allows icons or windows to remain hidden when the backlight is off and become visible when illuminated.
Adhesive and Spacer LayerThe adhesive and spacer structure helps control assembly thickness, key travel, bonding stability and light channel layout.
Tactile or Non-Tactile Switch LayerThe switch can be designed with metal domes, tactile feedback or non-tactile key structures depending on the user experience requirements.
Circuit LayerThe circuit can include printed silver/carbon circuits, FPC circuits, PCB integration or LED circuit layouts depending on the electrical design.
Backlighting LayerBacklighting can be designed with LED, LGF, EL or customized light guide structures based on brightness, uniformity, thickness and power requirements.
Rear Adhesive LayerThe rear adhesive bonds the membrane switch assembly to the equipment housing, panel or plastic enclosure.
Backlighting Options
Baoshengda supports different backlighting structures based on product requirements.
LED Backlighting
Suitable for key areas, icons, indicator windows and small lighting zones. LED backlighting provides strong brightness and flexible color options.
LGF Light Guide Film
Suitable for thin designs requiring more uniform light distribution across larger areas. LGF can help guide light from side LEDs to key graphics and icon areas.
EL Backlighting
Can be considered for very thin and uniform illumination requirements. Final suitability depends on project requirements, lifetime targets and electrical design.
Dead-Front Effect
Dead-front graphics remain hidden when the light is off and become visible when illuminated, helping create a clean and high-end HMI appearance.
Multi-Zone Lighting
Different keys, icons or areas can be designed with different lighting zones, colors or brightness levels based on customer requirements.
Which Backlight Structure Fits Your Project?
Buyers usually get better first samples when they define the viewing condition and stack-up before choosing a light source name. The comparison below is a practical starting point for RFQ review.
MethodBest fit and buyer checkpoints
LED backlightingUse when the panel needs stronger brightness, selective icon lighting or multiple status colors. Review hot spots, power limits, icon spacing and light leakage around narrow legends.
LGF light guide filmUse when the stack must stay thin but the lit area needs better spread. Review available depth, LED entry points, diffuser balance and border support around windows.
EL backlightingUse when a softer and more even glow matters more than peak brightness. Review inverter requirements, daylight readability and life expectations before approving the sample.
Dead-front printingUse when icons should stay hidden while the panel is off. Review off-state appearance in daylight, on-state contrast, translucent ink density and display-window balance.
If the panel will be used outdoors or beside a display window, compare the full panel stack under real viewing light instead of approving from a bench photo only.
Sample Approval Checks Buyers Should Confirm Early
Most revision loops come from approving icon artwork before the optical stack and assembly limits are fully reviewed. For a faster engineering discussion, confirm these points before locking the sample:
- Daylight, low-light, night or mixed-light operating condition
- Whether the operator must read full legends or only find key zones
- Dead-front off-state appearance and on-state contrast
- Display-window border, lens reflection and adhesive clearance
- Brightness target and any dimming or color-zone requirement
- Tail routing, connector space and housing support behind the panel
- Glove use, viewing distance and icon size
- Sealing risk if the front panel also needs waterproof construction or frequent cleaning
If your project is already in sample review, send the drawing, lighting zones, housing section and any current readability complaint through the Request Quote form so the backlight method and assembly risks can be reviewed together.
Outdoor and Equipment HMI Readability Decisions
Backlit panels often fail sample review when the light looks acceptable on a desk but becomes weak, uneven or distracting after the panel is mounted into a real housing. Review the assembled condition early if the product will be used in outdoor energy equipment, security terminals, professional cleaning machines, robot charging docks or medical carts.
Use conditionDesign check before sample approval
Peak daylightAnti-glare surface, icon contrast, window reflection and whether dead-front legends remain visible only when needed.
Night operationLED color, dimming, hot spots, light spill around narrow legends and eye comfort at the normal viewing distance.
Sealed equipmentFront adhesive landing, tail exit, gasket path and whether the light guide or LED area conflicts with the enclosure rib.
Service cleaningOverlay texture, chemical wipe exposure, edge lifting risk and whether repeated cleaning reduces icon readability.
Match the visible symptom to the stack review
Mounted-sample symptomReview before changing artwork
Bright point beside one iconLED position, diffuser distance, spacer thickness and local housing depth.
Dark corner or weak legendLight-guide reach, window opacity, adhesive shadow and blocking-ink boundary.
Light leaks into the next functionZone separation, mask density, dome opening and reflective housing surfaces.
Panel looks correct loose but uneven when mountedGasket compression, support ribs, screw bosses, window bezel and adhesive thickness.
For RFQ review, send the artwork, zone map, supply and driver notes, housing section, surface finish target and one photo or drawing of the final operating position.
Technical Specifications
ItemOptions / Description
Product TypeBacklit membrane switch, LED membrane keypad, LGF membrane switch, light guide keypad, backlit HMI panel
Overlay MaterialPET, PC, PMMA or customized materials based on project requirements
Backlight TypeLED, LGF, EL, dead-front lighting or customized backlight structure
Lighting EffectSingle-color, multi-color, multi-zone, icon lighting, key area lighting, display window lighting
Circuit TypeSilver printed circuit, carbon printed circuit, FPC circuit, PCB integration or LED circuit design
Key TypeTactile, non-tactile, metal dome, embossed key, flat key
Surface FinishMatte, glossy, textured, anti-scratch, anti-glare, anti-fingerprint
Printing ProcessReverse screen printing, translucent printing, light-blocking ink, dead-front printing, multi-color printing
Adhesive3M adhesive, industrial adhesive or customized adhesive solution
Waterproof DesignSealed structure and IP-rated design available based on project requirements
ApplicationsMedical devices, industrial control, automotive electronics, outdoor equipment, instruments, security terminals
Certification SupportISO 9001, IATF 16949, ISO 14001; RoHS / SGS material support where applicable
Final specifications depend on the customer's drawing, backlight area, brightness requirement, color requirement, product thickness, circuit design and operating environment.
Customization Options
Baoshengda supports customized backlit membrane switch development according to customer drawings, samples or application requirements.
Graphic and Appearance Customization
- Custom icons, logos, symbols and control markings
- Transparent or translucent display windows
- Dead-front hidden icon effects
- Matte, glossy or textured overlay surface
- Selective embossing and key shaping
- Custom color and printing alignment
Backlighting Customization
- LED backlighting
- LGF light guide film design
- EL backlighting where suitable
- Single-color or multi-color lighting
- Multi-zone lighting design
- Icon, key and display window illumination
- Light-blocking and light-leakage control
- Brightness and uniformity review
Electrical and Functional Customization
- Tactile or non-tactile key design
- Metal dome structure
- Printed circuit, FPC circuit or PCB integration
- Custom connector and tail direction
- Backlight power and circuit layout review
- EMI shielding option based on requirements
Mechanical and Environmental Customization
- Custom outline shape
- Housing fit design
- Adhesive backing selection
- Waterproof edge sealing
- Outdoor or harsh environment protection
- UV resistance and cleaning resistance options
- High and low temperature application support based on project requirements
Applications
Backlit membrane keypads help users operate equipment clearly in dim, dark or variable lighting conditions.
Medical Equipment
Backlit membrane switches are suitable for medical control panels, diagnostic devices, monitoring equipment and rehabilitation equipment where clear operation and easy cleaning are required.
Industrial Control
For industrial controllers, machinery panels, test instruments and automation equipment, backlit keypads improve visibility and operation in low-light working environments.
Automotive Electronics
Backlit membrane switches and HMI panels can be used for vehicle control interfaces, interior switch modules, dashboard-related panels and electronic control systems.
Outdoor Equipment and Energy Terminals
For chargers, outdoor control boxes, security devices and service terminals, backlit membrane keypads help maintain readability during night operation while the front seal, UV exposure and housing support are reviewed together.
Instrumentation and Test Equipment
Backlit keypads provide clear key identification for measuring instruments, laboratory equipment, handheld devices and testing systems.
Security and Access Control
Backlit membrane keypads can be used for access control systems, alarm panels, control terminals and other user interfaces requiring clear nighttime visibility.
Why Choose Baoshengda?
Manufacturing Experience Since 1989Baoshengda has long-term experience in HMI components, membrane switches, graphic overlays, backlight modules and functional film solutions.
Integrated Custom DevelopmentWe support product design review, material selection, backlight structure design, circuit review, sample making and mass production.
Certified Quality SystemOur manufacturing system is supported by ISO 9001, IATF 16949 and ISO 14001 certifications.
Flexible Manufacturing CapabilityWe can support backlit membrane switches, LED membrane keypads, LGF light guide modules, custom graphic overlays, waterproof keypads and integrated HMI panels.
Application-Focused EngineeringWe help review the backlight area, brightness target, light uniformity, power design, overlay transparency, sealing structure and assembly requirements.
Global B2B SupportBaoshengda serves customers across industrial control, medical equipment, automotive electronics, communication devices, security systems, instruments and smart electronic products.
Quality and Testing
Quality control can be planned according to the customer's product requirements and application environment.
Available inspection and testing support includes:
- Appearance inspection
- Dimensional inspection
- Key function testing
- Key life testing
- LED or backlight function testing
- Light uniformity inspection
- Light leakage inspection
- Color and transparency inspection
- Electrical continuity testing
- Adhesion and bonding review
- High and low temperature evaluation where applicable
- Constant temperature and humidity testing where applicable
- Salt spray testing where applicable
- Material compliance support such as RoHS / SGS reports where applicable
For backlit membrane switch projects, we recommend confirming the backlight method, brightness target, power supply, light uniformity, sealing requirement and operating environment at the early design stage.
Design Information Needed for Quotation
To help us provide a faster and more accurate quotation, please send the following information if available:
- 2D drawing or 3D structure file
- Artwork file, icons, logo and color requirements
- Product size and thickness requirements
- Backlight area, lighting zones and operating light condition
- LED, LGF, EL or other backlight preference if any
- Brightness, color and multi-zone lighting requirements
- Available voltage, current limits, driver location and dimming ownership
- Circuit diagram or functional key layout
- Tactile or non-tactile key requirement
- Connector type and tail direction
- Housing section with ribs, bezel, gasket, adhesive land and available stack depth
- Waterproof or sealing requirement
- Application environment, cleaning exposure and outdoor or indoor use condition
- Estimated annual quantity
- Sample or existing product photos
If your design is still in the early stage, you can send us your application idea, artwork or sample photos. Our team can help review the membrane switch structure and backlight feasibility.
Download Backlit Membrane Switch Brochure
Get an overview of Baoshengda's backlit membrane switch structure, LED / LGF / EL lighting options, dead-front effects, material selection, customization capabilities, application scenarios, quality support and quotation requirements.
Download PDF Brochure
FAQ
What backlighting options are available for membrane switches?
Common options include LED backlighting, LGF light guide film, EL backlighting and dead-front lighting effects. The best option depends on the required brightness, uniformity, thickness, power supply and product structure.
Should buyers choose LED, LGF or EL first?
Start with the reading condition, panel thickness, icon area and power limits. LED often fits brighter selective lighting, LGF helps thin panels with better light spread, and EL may suit thin even glow where its electrical tradeoffs are acceptable.
What is an LGF membrane switch?
An LGF membrane switch uses a light guide film to distribute light from LEDs across selected key areas or graphics. It is suitable for thin designs that require more uniform illumination.
What readability checks matter for outdoor backlit panels?
Buyers should check dead-front contrast in daylight, anti-glare surface choice, display-window reflection, light leakage, night glare, edge sealing and whether the assembled panel stays readable after the housing warms up.
Can you make dead-front backlit icons?
Yes. Dead-front printing allows icons or windows to remain hidden when the backlight is off and become visible when illuminated.
Can backlit membrane switches be waterproof?
A sealed front structure can be designed around the buyer's requirements, but the membrane component alone does not establish the equipment ingress rating. The final result depends on the overlay, window, adhesive land, tail exit, gasket, housing and mounted validation.
What information is needed for quotation?
We usually need the drawing, artwork, key layout, backlight area, lighting color, brightness requirement, circuit design, connector type, application environment and estimated quantity.
Can you help optimize the backlight design before sampling?
Yes. We can review lighting area, light uniformity, light leakage control, overlay transparency, circuit structure, power requirements and manufacturing feasibility before prototype development.
What should be sent for an outdoor backlit membrane switch RFQ?
Send the drawing, artwork, lighting zones, surface finish, housing section, connector route, cleaning or outdoor condition, expected quantity and any existing readability complaint.
