Public EV Charger HMI Sourcing: One Front-Panel Supplier or Split Scope?

Use one front-panel supplier when the bezel, printed overlay, protected service keypad, sealing land, tail exit and enclosure datums must move as one controlled revision. Split the scope when the display, certified meter, payment terminal and charger controller are already qualified modules with stable mechanical and electrical interfaces. Before accepting either scope, review an unpowered door mock-up using the buyer-controlled module envelopes.

Name the owner of each shared datum, window, gasket edge, artwork variant, cable route and acceptance test in the RFQ. Any reduction in interface disputes depends on a defined panel package; putting metering, payment, firmware and power electronics behind the same door does not transfer their qualification or compliance responsibilities to the physical-panel supplier.

Assign the front-panel interfaces before quotation

A public charger front can look like one assembly while containing several commercial and compliance boundaries. The visible stack may include a decorative bezel, weather-facing graphic layer, display cover or touch window, service keys, seals, adhesives, fasteners and a flexible circuit. Behind it may sit a separately purchased display, legal meter, payment device, communications hardware and charger controller. Calling all of this the HMI does not tell a supplier what to quote.

Start the drawing package with an ownership matrix. Give each visible or hidden part one design owner, one drawing owner, one assembly owner and one acceptance owner. Then mark the shared features that can invalidate two parts at once. A change to the display opening can affect the overlay artwork, bezel, gasket and display keep-out. A moved service key can affect the printed circuit, tail exit, PCB connector and technician access. A revised door flange can change adhesive width and sealing compression.

If those changes are likely to move together, one interface-package supplier can be useful. The package might cover the printed overlay or bezel, window treatment, membrane service keypad, adhesive or gasket lands, flexible tail, connector and registration to the door. If qualified modules already have frozen mounts and connectors, keep them separate and define their interfaces rather than asking the front-panel supplier to absorb them.

A charger launch exposes several front-panel interfaces

In its product-launch announcement dated 2026-10-22, CNC Electric describes the YCE3 AC charger with a 4.3-inch LED display, RFID activation, scheduled charging and Tuya Wi-Fi connectivity. The release does not disclose the front-stack construction, identify a membrane keypad or establish a Baoshengda supply relationship. These are manufacturer product descriptions, not independent results of a panel qualification test.

The sourcing question is where the physical front stack meets the buyer-owned modules. A display needs a defined viewing opening and mounting envelope. A reader requires its own approved location and integration requirements. A service keypad, if the buyer chooses one, needs a tail route and accessible termination. The product announcement does not provide these drawings. It also does not establish that every charger needs physical service keys or that a printed front layer can validate the reader, display or charging controller.

The earlier CTEK company update dated 2026-09-09 remains background to the original discussion of a market-specific charger and separately controlled display, metering and installer functions. It does not disclose the internal construction of its front panel or identify a component supplier.

Use the available module information to prepare an interface drawing and an unpowered fit review before choosing the physical-assembly supplier. The review should show which interfaces that supplier can build and inspect, which parts the buyer must supply, and which system tests remain outside the panel quotation. A combined panel price cannot resolve an unspecified module opening or service-removal path. The mock-up below is a proposed sourcing check; neither announcement reports this test or supplies its acceptance limits.

Separate mechanical, electrical and qualified-module responsibilities

The first boundary is mechanical registration. If the bezel, overlay, window, keypad and seal all locate from the same door cutout or studs, one supplier can check the complete interface drawing and provide a mounted sample. This reduces the chance that each vendor assumes the other controls the window edge, datum scheme or adhesive width.

The second boundary is electrical ownership. A membrane service keypad can end at a flexible tail and connector. The buyer should define contact side, pitch, pin map, mating part, tail exit, first-bend keep-out and strain relief. The interface supplier can verify continuity and physical fit to the named connector. The charger team still owns input voltage, pull-up or pull-down logic, debounce, diagnostics and the meaning of each command.

The third boundary is qualified-module control. Certified metering, payment security, display electronics, wireless communications and charge-control firmware should remain with their qualified owners unless the contract explicitly transfers those tasks. The front-panel supplier needs their active areas, keep-outs, mounting datums, connector envelopes and service clearances. It does not need vague responsibility for every function visible from the front.

State the supplied parts and exclusions in the quotation

Identify the supplied boundary and each buyer-controlled input beside the unit price and tooling lines. For a front-panel package, ask whether the price includes artwork preparation, window printing or hard coating, overlay or bezel construction, tactile switch layers, adhesive conversion, gasket features, tail stiffener, connector, protective liner, inspection fixture and mounted first-article evidence.

Record what is excluded. Is the display buyer-supplied? Who procures the mating connector? Does the enclosure arrive before the panel sample? Who controls the payment-device opening? Who performs whole-door leak testing? If a meter window has a legal viewing requirement, who approves it? Record these exclusions for comparison of offers against the same interface inputs.

Variant pricing should also be explicit. Separate changes that require only new printing files from changes that require new cutting tools, circuits, embossing, gaskets or inspection fixtures. Ask how old and new revisions will be segregated during a market transition. A supplier-replacement project needs a plan for legacy stock, service spares and the last acceptable old revision, not just a new drawing number.

Review an unpowered door mock-up before agreeing on assembly scope

Use a representative door or front-plate coupon located from the released mounting datums. The buyer should provide the module interface drawings and either dimensionally representative dummies or parts approved for a de-energized fit review. Identify each dummy by the drawing revision and the features it represents. A solid block may check mounting space while saying nothing about a reader's radio performance or a display's touch and optical behavior.

Keep the fit-review record with the assembly drawing and quotation. For each open interface, name the missing input, the party supplying it and whether the offer covers a loose component, a mounted physical package or buyer-run integration. If the actual module differs from the dummy, review the affected interface before using the earlier fit evidence. Do not label an unpowered fit review as completed electrical, environmental or whole-charger approval.

Use the same controlled mock-up inputs when comparing a single package supplier with split suppliers. A combined offer should identify the shared features it accepts, including work by any sub-supplier. Split offers need one named integration owner for the shared door, window and sealing datums. Neither purchasing structure removes the buyer's responsibility to release the module interfaces and the final system requirements.

Approve samples in three controlled stages

Stage one is the loose interface package. Check outline, thickness, window position, artwork registration, key locations, adhesive or gasket geometry, tail length, contact side, stiffener and connector. Verify switch continuity and the agreed force or tactile window on a controlled support. This stage tells you whether the supplier built its own drawing correctly.

Stage two is the mounted door or enclosure. Use production-intent datums, fasteners, surface finish, adhesive preparation, gasket compression and cable route. Inspect window alignment, edge lift, trapped stress, key movement, tail bend and connector access. Run agreed cleaning and environmental checks on the mounted boundary. Do not infer a complete ingress rating from a loose panel.

Stage three is the powered charger. Confirm that every physical service key reaches the intended controller input, the display remains visible through the specified window and service replacement does not disturb qualified modules. The charger owner should run metering, payment, firmware, network, electrical-safety and system-compliance tests. Keep component, mounted-door and powered-system reports separate, so a failure returns to the correct owner.

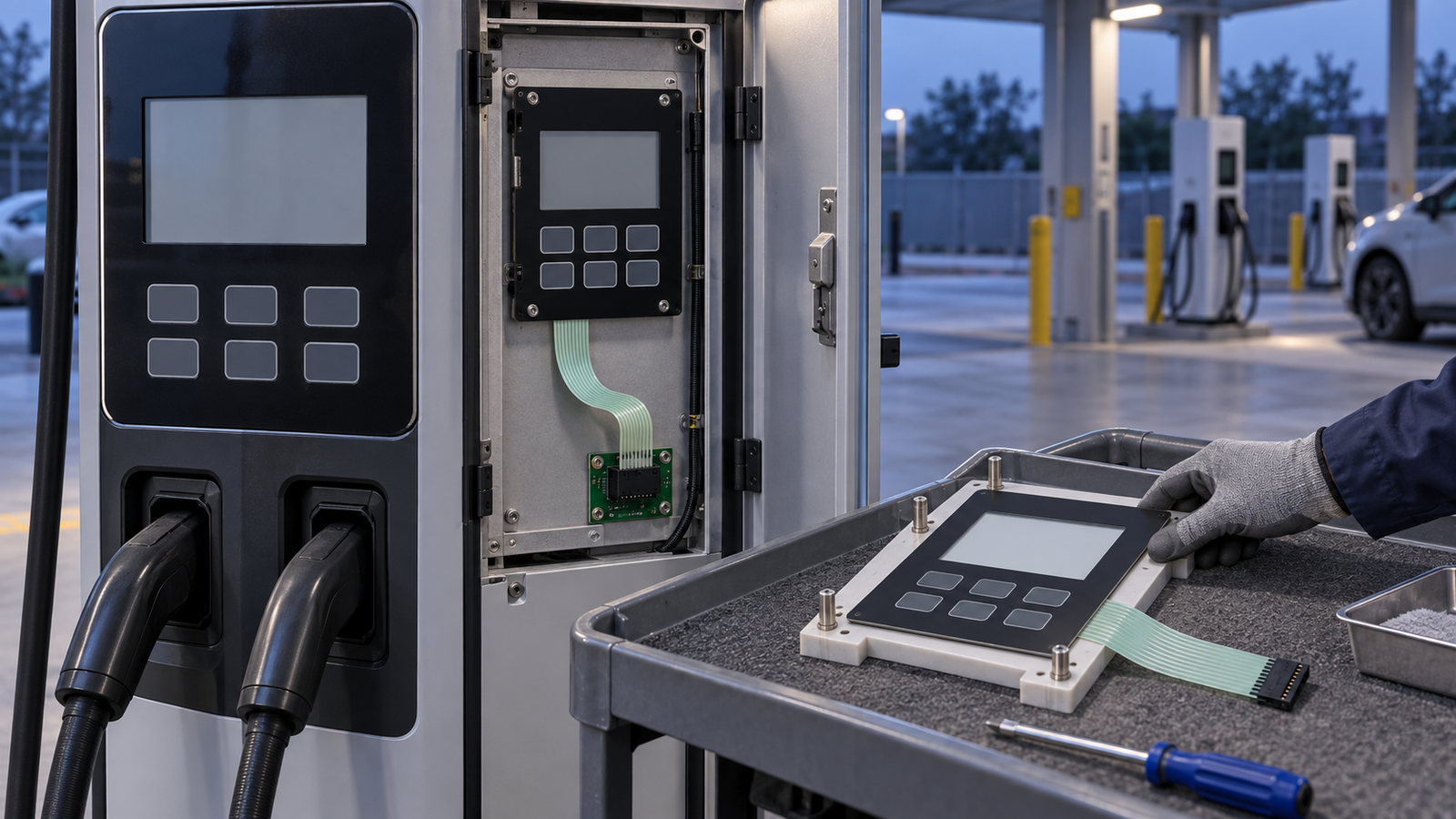

For supplier replacement, compare the approved old and new parts in the same fixture and enclosure. A dimension-by-dimension report is helpful, but it should be linked to practical risks: window registration, adhesive coverage, seal compression, tail route, connector engagement and actuation. Do not accept “equivalent” as evidence without a revision-linked comparison.

Keep the supplier boundary explicit

An interface supplier can review and manufacture a defined bezel, overlay, membrane keypad, adhesive or gasket feature, flexible tail and connector package. It can provide agreed dimensional, visual, continuity and actuation records and can support a mounted sample when the buyer supplies the correct door, display dummy and fixtures.

That supplier does not certify legal metering, payment security, charger communications, software, controller behavior, power electronics, electrical safety, functional safety, whole-enclosure ingress protection or finished-charger compliance. It also cannot approve an unspecified display window, cleaner, outdoor exposure or service process. Those requirements and test owners must come from the charger OEM or the party responsible for the complete system.

Use those component and system boundaries when comparing quotations and approving samples. Each supplier should report on the interfaces it controls; the charger owner retains the requirements and evidence for the finished equipment.

Send one drawing, sample and RFQ handoff

An existing front-panel or open-door photo, a drawing if available, the intended supplier scope and an approximate quantity can start the inquiry. If a module envelope, mounting datum or service-access requirement is unknown, identify that gap. Complete production drawings are not required for the first discussion.

For a firm sample or assembly quotation, develop one revision-controlled package containing:

• the charger door and front-stack section with primary datums, cutouts, studs, flatness and available thickness;
• an ownership matrix for bezel, overlay, window, touch or display module, service keypad, seal, adhesive, tail, connector, meter, payment module and controller;
• display active area, viewing cone, cover-window requirement, keep-out and mounting definition;
• service-key map, actuation target, circuit schematic, pin map, contact side, mating connector and controller input boundary;
• artwork files, language or market variants, color and day-night acceptance, plus rules for artwork-only and construction changes;
• adhesive lands, gasket or compression geometry, drainage, cleaning chemicals, temperature, UV and outdoor exposure assumptions;
• tail route, first-bend keep-out, strain relief, assembly direction and service access;
• prototype and production quantities, tooling ownership, packaging, service-spare horizon and revision transition plan;
• separate loose-component, mounted-door and powered-charger sample plans with pass criteria and named acceptance owners;
• the list of qualified modules that must not be changed and their current interface-control drawings.

Baoshengda can review a buyer-defined HMI panel solution covering the physical front stack, windows, overlay or keypad, sealing lands and flexible interconnect without claiming ownership of the charger's regulated modules. Use the Request Quote page to send the available context and the unresolved interface question. Ask the quotation to state which door, module drawing, dummy or mating part the buyer must supply for the fit review, and which component, mounted-assembly and system records are included or excluded.
