Brownfield HMI Retrofit Quote: Front Panel, Adapter or Full Control Upgrade?

A missing connector pinout does not by itself justify a full HMI upgrade. First establish what the installed panel and controller actually do. If the key functions, electrical interface and enclosure fit are unchanged, a front-panel replacement may be enough. A confirmed mating or signal change needs a separately defined adapter scope; changed machine states or controller requirements need system-level review. Start the enquiry with panel photos, available dimensions, the replacement purpose and quantity. Mark missing interface details as open. Ask for a provisional component scope and a named investigation owner before treating either interchangeability or a full upgrade as settled.

An A3 brownfield-modernization article published August 27, 2026, describes older PLCs, newer robot cells, repaired motors and recent sensors sharing one line. It discusses gradual modernization without necessarily replacing the principal mechanical equipment. That context supports checking each station's needs separately; it does not establish that a replacement panel will work with a legacy PLC.

Choose the smallest truthful retrofit scope

A brownfield line does not need the same intervention at every station. The front panel may be worn while the controller and I/O remain stable. Another station may have a supportable controller but an obsolete connector. A third may need new states, alarms or access rules because the process itself has changed.

Once the interface is known, compare quotations within one of these three scopes. While it is unknown, keep the scope provisional and list the evidence needed to choose it.

An unresolved interface sits before this table, not automatically in its adapter row. Use this decision path:

1. Establish the as-installed baseline. Ask the equipment or controls owner to reconcile a known-good panel, the connector-side map, harness and current controller configuration. Give each missing item an owner and a deliverable.

2. Compare the proposed panel with that baseline. An unchanged contact map and mating interface support a replacement scope, subject to sample checks. A confirmed difference requires a defined conversion. Matching connector position counts or front artwork alone cannot settle this comparison.

3. Review the required machine behavior separately. New states, safety logic, I/O or operating sequence require the qualified controls owner to define the system work. Documentation loss alone is not evidence that those functions must change.

Purchasing can request a provisional component quotation during the investigation. It should identify which assumptions affect the price and which unresolved items prevent final interface or production release.

Read the live machine before reproducing its face

Do not start from the front photograph alone. A used panel tells you where the keys and window were, but it may not show what changed during years of repairs. An old connector can contain reassigned pins. A replacement PLC input card can use different electrical conditions. A field-made harness may no longer match the original drawing.

Build these evidence folders as the scope is resolved. Available photos and an explanation of the replacement need are enough to begin a component discussion; the controlled interface and installed configuration must be established before approval.

**Folder A: operator intent.** Record every visible key, indicator, display region and service legend. For each control, identify the allowed machine states, expected acknowledgement, blocked states and recovery path. Separate a normal stop request from an emergency or safety function owned outside the membrane panel.

**Folder B: physical and electrical handoff.** Record panel outline, display opening, rigid key support, adhesive landing, tail exit, first bend, connector orientation and enclosure closing path. Add a connector-side pinout, contact or circuit map, active electrical condition and buyer-supplied voltage and current limits.

**Folder C: installed configuration.** Record PLC, I/O card, HMI/display board, firmware or program revision, harness and cabinet identifiers. Photograph orientation marks and both halves of the connector after removing customer names, serial numbers and unrelated equipment details.

A conflict between the folders calls for investigation. Only a confirmed interface difference justifies a conversion scope; a missing drawing remains an open evidence item. Resolve each conflict before fixing the relevant quotation assumption or production baseline.

Use a red-flag sheet to stop scope creep

Give every open item a responsible owner and a specific close condition:

• **No controlled pinout:** continuity-test the known-good assembly and connector through an authorized fixture; do not infer pin one from cable direction.
• **Different connector but the same number of positions:** freeze the exact mating family, keying, latch direction and cavity map before quoting an adapter.
• **New PLC or I/O card:** have the controls owner confirm input type, common reference, voltage, current and filtering. The panel supplier should not infer controller compatibility.
• **New alarm or service state:** issue a revised state-and-action definition before artwork approval. A new legend without controller acceptance criteria is incomplete.
• **Changed enclosure or display:** release the new cutout, support, adhesive landing and viewing area instead of scaling an old artwork file.
• **Unknown field repair:** treat the returned sample as evidence, not automatically as the design master. Compare it with drawings, a second known-good unit and the live machine.
• **Safety function on the front face:** identify the validated safety path and owner. A printed STOP legend does not make a normal membrane contact safety rated.

If an open item cannot be closed before the first quotation, price it as a named option with assumptions and required buyer input. List it separately from generic tooling or engineering charges.

Price unknowns as controlled options

Separate the defined component work from interface investigation in the quotation. State the price assumptions and the evidence that would change them.

The base panel price can cover the defined graphic overlay, key construction, circuit, tail, connector or exposed contact, adhesive geometry and agreed inspection. List any reverse engineering, connector identification, adapter harness, interface PCB, enclosure fixture, artwork recreation, on-machine support or additional sample loop separately.

For each option, state its trigger. For example, `adapter harness required only if the installed mating connector differs from drawing revision C` is testable. `Extra engineering if needed` is not. State the deliverable too: an adapter schematic, controlled drawing, sample, inspection record or mounted test result.

Also separate one-time evidence from recurring production checks. A full machine-state test may be needed for approval, but it may not belong in every incoming inspection. Production checks can focus on controlled dimensions, print registration, continuity, contact behavior, tail geometry and connector assembly. The equipment owner retains the system-level regression test for future controller or program changes.

Stage acceptance around the production window

Brownfield work has an additional constraint: the line may have only a short maintenance window. A sample that is electrically plausible but lacks a rollback plan can turn that window into unplanned downtime.

Use four acceptance stages.

1. **Document review.** Close the three evidence folders, red flags, quote scope and owner list before tooling or artwork release.

2. **Bench comparison.** Compare the known-good part and candidate sample for dimensions, artwork, key response, circuit and connector identity. Record differences rather than adjusting the new part informally.

3. **Mounted dry run.** Fit the sample to a production-equivalent enclosure or controlled fixture. Check key support, display alignment, adhesive landing, tail route, connector access and cover closure before connecting it to the machine.

4. **Planned machine window.** Install the candidate under the controls owner's procedure, exercise the approved state list, record accepted and blocked inputs, then restore the known-good part if any result differs. Keep the removed part and rollback tools available until the station returns to the defined production state.

Approval should name the exact machine, controller, program, harness and panel revision range. If only one station was tested, do not declare the panel interchangeable across the entire plant because the cabinets look similar.

Define the component supplier boundary

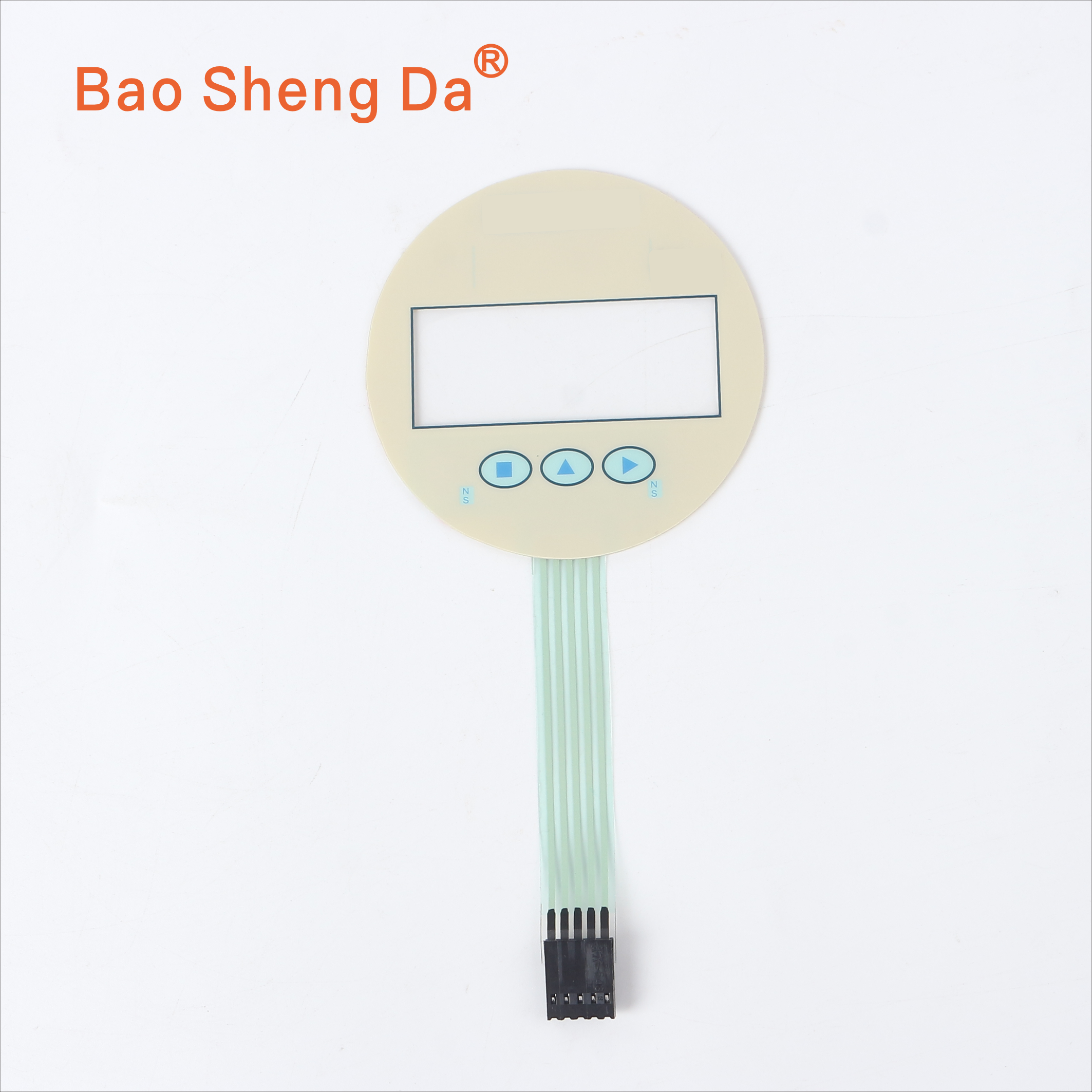

Baoshengda's HMI panel solution guide describes component or coordinated front-panel scopes and review of key layout, display windows, tail routing, mating connectors and housing fit. It accepts available photos and dimensions for an initial enquiry; a complete drawing is not required to start that discussion. The existing cover shows a round panel with a display window, three fixed-key zones and a complete tail ending at a connector housing. It supports the component-form discussion, but shows no mounted cabinet, PLC connection or interchangeability test. The actual circuit, interface and fit still need buyer-controlled evidence and sample approval.

Specify the required overlay, windows, key zones, embossing, tactile stack, spacer, adhesive geometry, printed circuit or FPC, tail, stiffener, connector and any indicator or backlight features. Agree the component inspections against controlled inputs, including dimensions, appearance, print registration, continuity, contact behavior, tail geometry and connector assembly.

The supplier does not own PLC programming, machine states, safety logic, motion control, robot integration, network security, I/O-card selection, adapter electronics, cabinet ingress performance or final line validation unless those services are explicitly contracted to the qualified owner. A component-level continuity result does not prove that the machine accepts the input. A mounted functional result on one revision does not prove every legacy station is compatible.

Put this boundary in the quotation, sample report and change notice. If the controller, harness or state logic changes later, the equipment owner decides whether the approved panel range must be retested.

RFQ handoff for a brownfield HMI

For an initial enquiry, send the panel photos, available dimensions, replacement purpose and estimated quantity through the Request Quote page. Include any available drawing or known-good sample information, with private equipment details removed. Name the missing items; you do not need to resolve the entire cabinet to ask whether the component scope can be reviewed.

For a provisional quotation, record what is assumed and who will investigate the interface. Use the following checklist to build the controlled package for the relevant quotation, sample and release decisions:

• selected scope: front-panel replacement, panel plus adapter, or complete control-interface upgrade;
• machine and cabinet identifiers with the claimed production range;
• front artwork, display area, key IDs, indicator IDs and user-role notes;
• state-and-action list with allowed, blocked, acknowledged and recovery behavior;
• circuit or contact map with connector-side pin numbering and mating-part definition;
• buyer-supplied voltage, current, polarity and common-reference requirements;
• panel outline, cutout, rigid support, adhesive landing, gasket relationship and installed orientation;
• tail exit, first-bend keepout, length, stiffener, connector latch direction, strain relief and cover motion;
• PLC, I/O, display board, firmware or program and harness revisions used for sample approval;
• known-good sample photos and measurements with private equipment details removed;
• red-flag sheet, optional engineering scopes and the owner responsible for closing each item;
• bench, mounted dry-run, machine-window and rollback acceptance criteria;
• prototype quantity, annual quantity range, traceability, packaging and change-control requirements.

Before releasing the production panel, close the interface assumptions, approve the relevant bench and mounted checks, and have the equipment owner accept the machine-window results for the named revision range. Keep investigation, component supply and any adapter or system work separately owned in the final package.
