Energy Storage Alarm Panel Sourcing: Turn Cell Warnings into Service States

An energy storage early-warning model does not define the local cabinet panel. The equipment maker still has to decide which events are advisory, which require service and which actions are permitted at the door. Before sourcing a backlit membrane switch, map every BMS or analytics output to a visible state, a named physical action and a tested recovery path. A fault lamp without that state table can tell a technician that something changed while giving no reliable instruction about what can be acknowledged, viewed, silenced or reset.

The August 22 storage study creates a local-interface question

Diagnosis of abnormal voltage in individual cells and fault trend prediction in energy storage power stations was published on August 22, 2026 in the Journal of Engineering and Applied Science. The original study combines clustering, feature extraction and time-series prediction to locate abnormal cells, diagnose fault types and predict voltage trends. The reported method triggers early warnings against predefined engineering thresholds.

That work does not test a Baoshengda panel, define a cabinet alarm standard or authorize a technician action. Its sourcing consequence is practical: once the control system produces warning information, the equipment team must decide what the local operator can see and do when a network screen, cloud portal or service laptop is unavailable.

Convert analytics outputs into service states

Start with the equipment state table, not the front-panel color palette. Name the source of each state, the severity, whether it is latched, who may act and what confirms the action. Keep predicted risk separate from a confirmed protection trip. A yellow advisory, a red active fault and a communication-loss state should not share one unexplained flash pattern.

Define the smallest physical control set needed at the cabinet. It may include page, acknowledge, silence, back and an access-controlled service action. Reset should appear only if the equipment logic can verify that the cause has cleared and the operator has permission. A printed reset key does not make that transition safe.

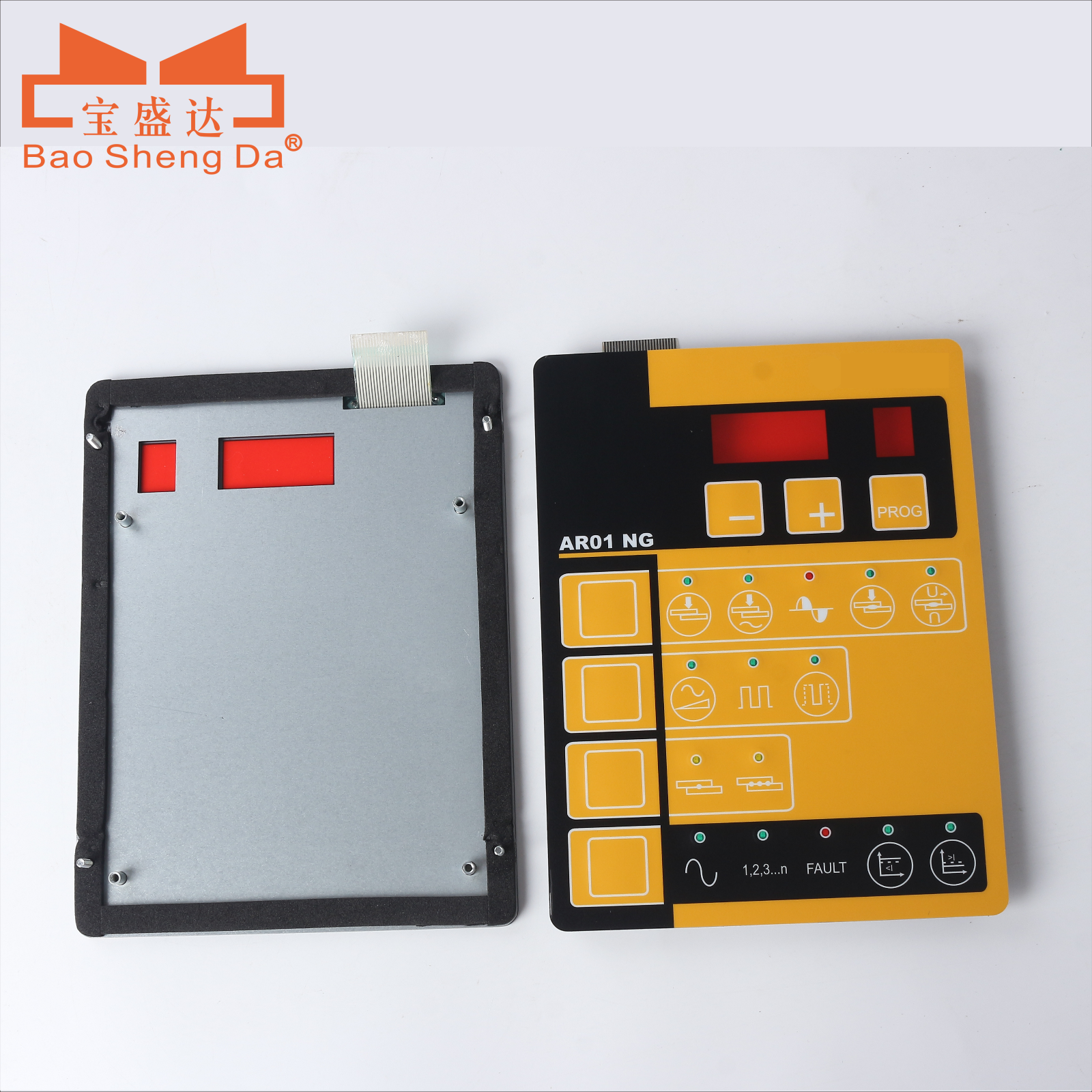

A backlit membrane switch can provide fixed keys, indicator windows, legends, a flexible tail and a connector-ready interface. The BMS, protection system and cabinet controller remain responsible for the real state and response.

Source the panel against a warning decision table

Use a table like this in the drawing review. Replace every example with the buyer's own equipment logic.

Avoid color-only meaning. Use a fixed legend, separate light windows and a controlled flash rule where flashing is required. Confirm whether inactive legends remain readable in daylight or use a dead-front effect. Both choices affect the printed mask and service workflow.

Lock optical, electrical and enclosure details together

The indicator table, front artwork and tail pin map must use the same identifiers. Assign L1, L2 and L3 to named warning windows and K1, K2 and K3 to named actions. Carry those identifiers into the controller I/O list and the mounted acceptance record.

Check light blocking between adjacent windows. A bright green normal LED should not create a halo around a red fault window. Specify the LED location, available voltage and current, window color, mask boundary and housing light well. Test daylight, dim service light and the viewing angle at the installed cabinet height.

The tail exit and connector are part of the service decision. Show the first bend, stiffener orientation, contact side, service loop and connector access after the door closes. If the cabinet is outdoor or exposed to condensation, add the panel edge, tail exit and connector protection to the enclosure test.

Challenge transitions, not only individual lamps

A lamp-by-lamp bench check proves that outputs can turn on. It does not prove that the panel remains truthful during startup, communication loss, fault escalation and recovery. Test complete sequences with the production-intent controller or an approved simulator.

Create an advisory, escalate it to a confirmed fault, remove communications, restore communications and clear the cause through the buyer's defined method. At each step, record the visible state, enabled and blocked keys, audible behavior if any, controller response and event history. Repeat after the panel is mounted and the tail is routed.

Supplier boundary and limitations

Baoshengda can review the membrane-switch construction, graphic overlay, key and indicator layout, backlight windows, adhesive, tail geometry, connector and physical sample evidence for an agreed design. The equipment owner remains responsible for cells, BMS analytics, thresholds, protection and safety logic, thermal management, communication, cybersecurity, cabinet ingress design, service procedures, certification and final system validation.

The cited research is current original context for warning generation. It is not a customer case, component test or proof that a specific panel prevents a storage fault. Do not copy the study's model, thresholds or warning times into a panel specification without equipment-level validation.

Energy storage alarm-panel sourcing checklist

Send one quotation package with:

• BMS and controller state list with source ownership;
• advisory, fault, trip, communication-loss and service priorities;
• acknowledge, silence, page, back, test and reset transitions;
• blocked-action, timeout and recovery behavior;
• front artwork with key, indicator and display-window datums;
• LED colors, electrical drive limits and light-block boundaries;
• key construction, tactile target, glove and viewing conditions;
• tail exit, pin map, contact side, stiffener and connector;
• cabinet bezel, adhesive landing, sealing and condensation path;
• mounted transition and optical acceptance sequence;
• prototype quantity, annual estimate and controlled revision numbers.

When the warning states and physical actions use the same revision, send the panel package for sourcing and sample quotation. The supplier can then quote a service interface that represents the buyer's real storage logic rather than a generic red fault lamp.
