EV Charger Front-Panel Approval: Separate OCPP from Environmental HMI Tests

Do not approve an EV charger front panel from an OCPP interoperability report. Approve it with a separate mounted HMI record that covers local states, key availability, day and night legibility, wet-hand use, overlay edges, enclosure sealing, condensation recovery, tail routing, connector retention and service replacement. The Open Charge Alliance's August 26 Plugfest and Conference Asia recap discusses OCPP testing, certification, security and V2G. Its associated event program also treated an EV Charger Environmental Test as a distinct topic. That separation is useful for sourcing: protocol evidence shows how a charge point communicates; it does not prove that the physical interface survives its housing, weather, optics or maintenance conditions.

Why one charger test report cannot approve the front panel

OCPP evidence and front-panel evidence answer different questions. A charge point can exchange the required messages with a management system while its local interface still has a dim legend, a confusing fault key, an exposed adhesive edge or a tail that is strained when the door closes. The reverse is also true. A well-built keypad does not prove protocol behavior, payment flow, cybersecurity or charger safety.

The OCA event page lists OCPP 2.0.1 and 2.1 test slots and separately lists an EV Charger Environmental Test. The public program does not prescribe a membrane-switch test plan, and it should not be read as certification of any panel. The practical inference is narrower: keep the two evidence packages separate, then join them at defined charger states during mounted sample approval.

A useful approval record names the system owner, charger integrator, enclosure owner and panel supplier. It identifies which sample was tested, which controller and software revision drove it, which enclosure and gasket were installed, and which result belongs to which owner. A single line such as `charger passed testing` is too vague for a second source, engineering change or field replacement.

Split the evidence by owner and failure mode

Start with an evidence matrix before requesting samples. The matrix prevents a protocol pass from being copied into the panel file and prevents a component inspection from being presented as system validation.

Unknown fields should remain open rather than being filled by assumption. The component supplier can quote the known construction and identify missing inputs. The charger owner decides whether the incomplete package is suitable for a prototype only or ready for a production-intent mounted sample.

Exercise the panel through real charger states

The local interface should be checked through the states that a driver, installer or service technician actually sees. Do not validate only the startup screen and one successful charging session. Build the state set from the charger's controlled requirements, then include at least the following kinds of transitions where applicable:

• available or idle, including the normal standby indicator and backlight behavior;
• authorization requested, accepted, rejected or unavailable;
• cable connected but energy transfer not yet started;
• active charging, including the information that must remain readable in daylight and at night;
• paused by the vehicle, charger, backend or site power condition, with the source of the pause kept unambiguous;
• recoverable warning, latched fault and unavailable or service state;
• offline operation or loss of communications, without making a network problem look like a local key failure;
• controlled restart after power recovery, software update or panel replacement.

For each state, record the visible legend or window, indicator color and intensity target, whether each physical key is active, what feedback confirms a press, and what the controller does with an invalid or long press. If one printed key serves different functions by state, the on-screen or indicator feedback must make the change explicit. A continuity test can confirm that a contact closes. It cannot prove that the controller interprets the input correctly or that the operator understands the result.

Include failure injection where the system owner permits it. Disconnect the backend, present a disabled key, simulate a recoverable fault and interrupt power during a non-hazardous test state. The purpose is not to invent safety logic. It is to confirm that local legends, status windows and fixed controls remain consistent with the approved state map.

Build the environmental check around the mounted boundary

A loose overlay or keypad can be inspected for print, dimensions and contact behavior, but the weather boundary exists only after assembly. Adhesive land width, housing flatness, gasket compression, edge clearance, fastener load and the tail exit can change the result. Use a production-intent enclosure or a documented equivalent fixture for environmental sample approval.

Define the condition instead of writing `outdoor test`. State the mounting orientation, expected light direction, wetting or wipe method, cleaning agent, dwell time, recovery time and pass criteria. If temperature cycling or condensation is required, the charger owner or qualified laboratory should define the range, ramp, dwell and electrical state. The panel supplier should not invent these values. After exposure, inspect key response, false input, window clarity, legend change, edge lift, trapped moisture and recovery behavior.

Optics need their own sequence. Review the full artwork in direct daylight, shade, low ambient light and with the installed indicator or backlight source. Check the most difficult states, not only the brightest green status. A red fault window, small symbol or low-duty backlight may be the limiting case. Record the viewing distance and angle used for approval so the production sample is not judged against an informal photograph.

The tail route must be evaluated with the door or fascia in place. Mark the no-bend zone at the panel exit, the intended fold direction, clearance from sharp edges and the connector's mating orientation. Close and reopen the service door while watching for tail twist, rubbing, connector lift and contact-side inversion. A panel that passes on a flat bench can fail after the enclosure traps the tail against a bracket.

Use staged sample approval instead of one final sign-off

A staged plan exposes the cheapest errors first and keeps ownership clear. Four releases are usually more useful than one broad `sample approved` stamp.

**Stage A: artwork and state map.** Confirm the front legend, window geometry, key allocation, indicator logic, revision identifiers and controlled charger states before tooling or printed-circuit release. Freeze which information comes from print, backlight, indicator windows and the charger display.

**Stage B: electrical bench sample.** Verify the contact or matrix map, connector orientation, pin assignment, indicator polarity where applicable, key feedback and controller interpretation. Use the named controller and software revision. Record any inactive or reserved keys rather than treating them as defects.

**Stage C: mounted optical and environmental sample.** Install the intended adhesive, gasket, housing and tail route. Run the state sequence under the defined light, wet-use, cleaning and environmental conditions. Inspect the full edge and connector after recovery.

**Stage D: service swap and rollback.** Replace the known-good panel with the proposed revision using the documented procedure. Confirm startup, local states, connector retention and the tested revision range. Then prove that the technician can identify and reinstall the known-good part if the new sample fails.

Each release should state what remains open. Stage B approval should not silently authorize outdoor deployment, and Stage C approval should not widen the software or connector revision range.

Keep the component supplier boundary explicit

A membrane-interface supplier can manufacture the graphic overlay, printed circuit, spacer, tactile structure, indicator windows, backlight elements, adhesive, flexible tail and connector to controlled drawings. The supplier can provide dimensional and electrical inspection, artwork proofs, material declarations requested by the drawing, traceable samples and observations from agreed component tests.

The charger manufacturer and system owner retain responsibility for OCPP behavior, backend integration, authorization and payment flows, cybersecurity, electrical safety, EMC, charger safety logic, environmental qualification, ingress claims, field-service instructions and system certification. A panel supplier cannot convert a component inspection into evidence for those system functions.

Write this boundary into the RFQ and sample plan. It prevents an attractive front panel or a protocol pass from carrying claims it was never tested to support. It also helps both parties price the real work: component tooling and inspection on one side, mounted system testing and approval on the other.

Drawing, sample and RFQ package

Send one controlled package for the production-intent charger revision. It should contain:

1. front artwork with revision, dimensions, legends, color targets, finish, key zones, windows and indicator locations;

2. charger state and key map showing visible status, enabled inputs, feedback and the owner of each transition;

3. day and night optical criteria, including viewing distance, angle, glare condition and backlight or indicator logic;

4. front and rear outline, enclosure cutout, adhesive land, gasket interface, edge clearance and housing surface requirement;

5. tail exit, finished length, routing direction, bend-free zone, fold details and strain-relief method;

6. connector maker and part number, pitch, contact count, keying, mating orientation and an unambiguous contact-side view;

7. expected wet-use, cleaning, ultraviolet and environmental conditions, with test owner and acceptance criteria identified;

8. sample quantity and staged plan for artwork, bench, mounted environment, charger-state exercise and service swap;

9. panel, controller, software, enclosure and harness revision identifiers plus the intended approval range;

10. prototype and annual quantities, assembly location, packing needs and the evidence required with the quotation.

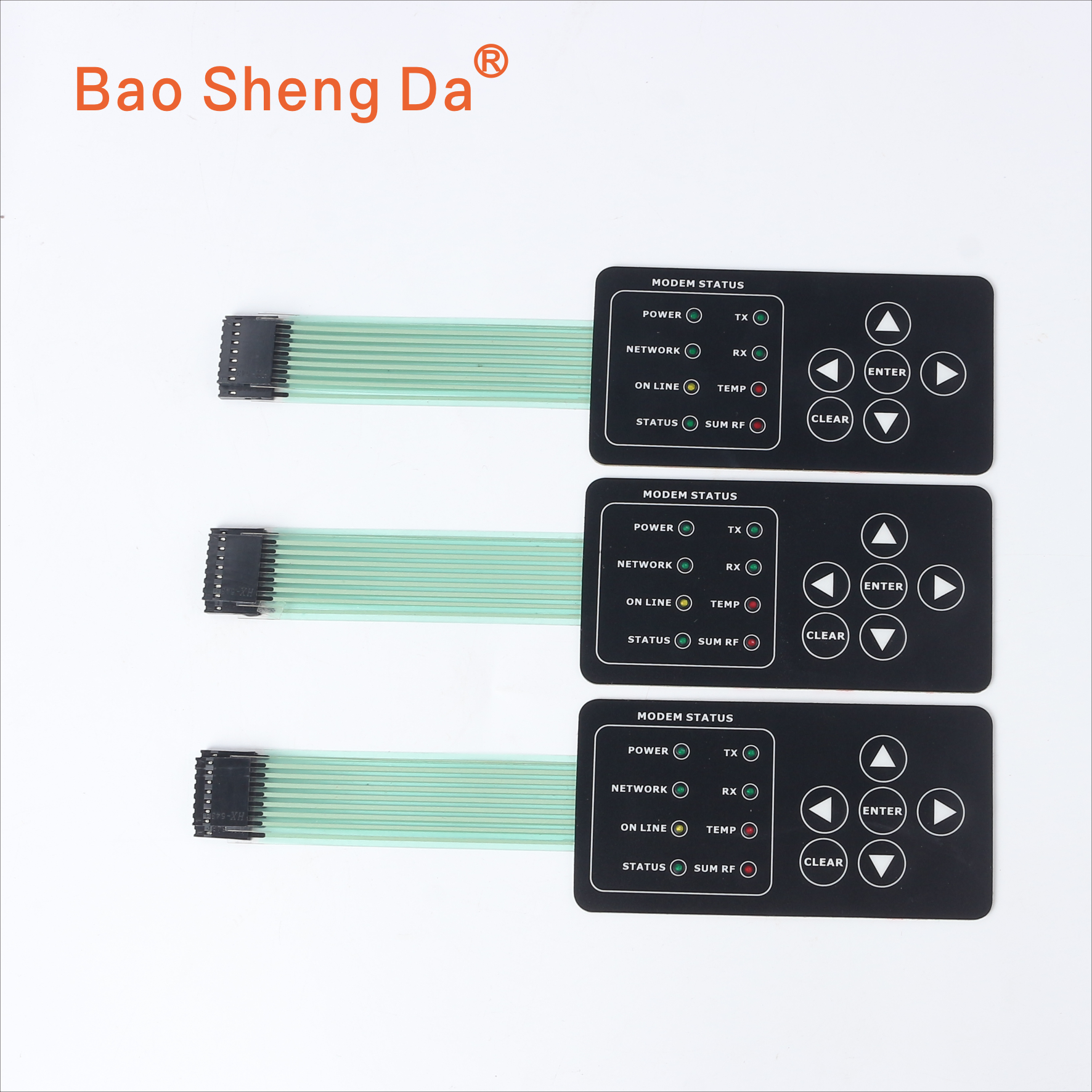

The panels in the cover are generic membrane-interface references. They show status fields, fixed keys, tails and connector housings, but they are not charger parts and do not demonstrate OCPP or environmental performance. Use the backlit membrane switch design and manufacturing page to define the physical key, indicator, backlight, tail and connector package. Then send the controlled drawings, state map and staged acceptance plan through Request a Quote. Ask the quotation to list included component evidence, buyer-supplied fixtures, system-owner tests and every unresolved field before the first production-intent sample is built.
