Why Outdoor Charger Backlit Keypads Show Hot Spots or Dark Zones

Hot spots or dark zones on an outdoor charger keypad usually come from the lighting stack, not from the printed artwork alone. Buyers should review LED position, diffuser distance, light-blocking ink, window opacity, sealing pressure and the real housing depth before approving the first sample. If those details are left until the final build, a keypad can pass a bench function test but look uneven once it is mounted behind a charger front panel.

EV charging infrastructure keeps moving from pilot installations toward more public and semi-public equipment. The International Energy Agency's Global EV Outlook 2026 tracks electric vehicle and charging infrastructure development, while the U.S. Federal Highway Administration's NEVI program keeps charger reliability and user access in the public procurement discussion. For a component buyer, the practical lesson is narrow: the backlit control surface has to stay readable in rain, night service, glare and gloved operation.

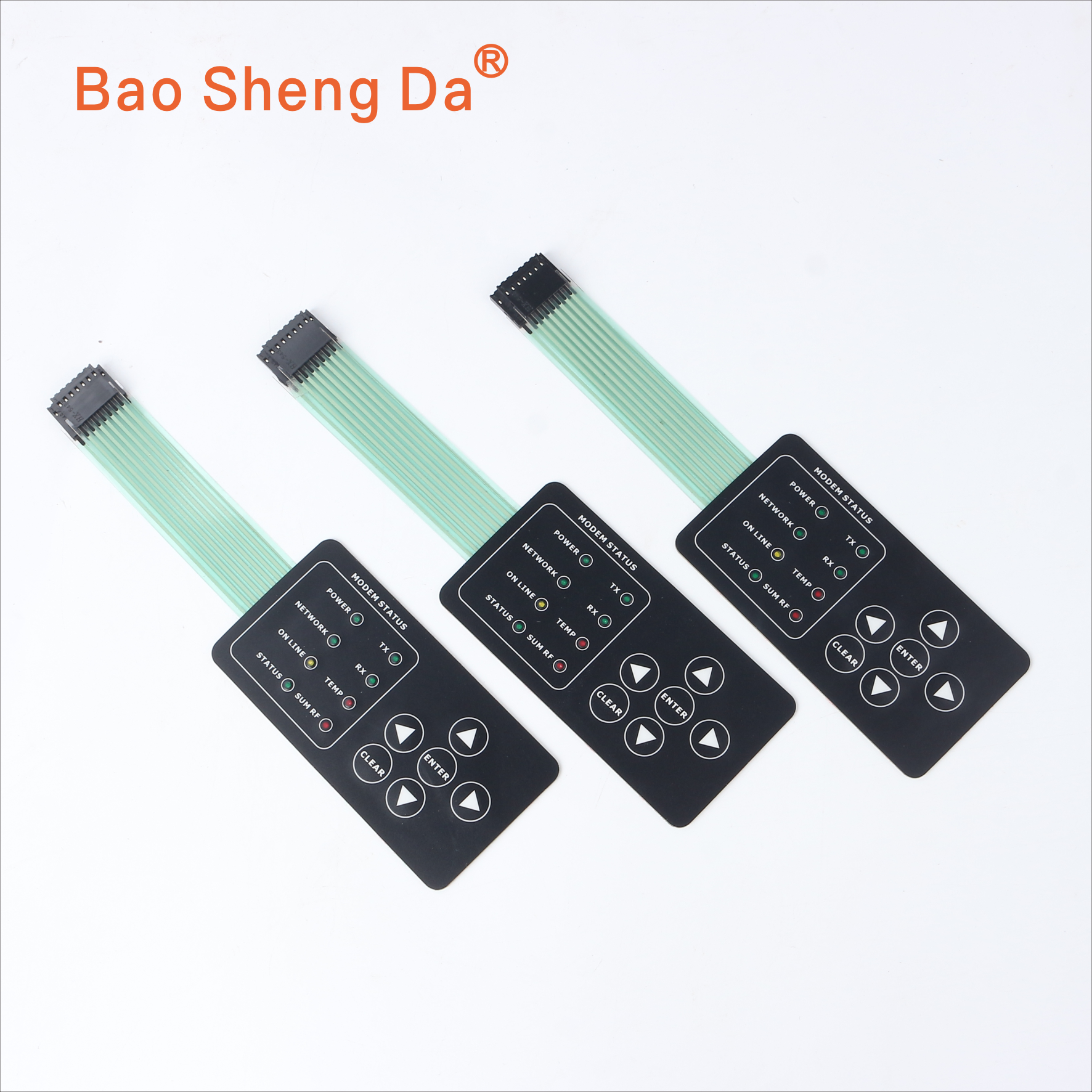

Baoshengda's backlit membrane switch work fits the component-level part of that decision. The factory can review overlay artwork, LED windows, light guide layers, dome or tactile zones, adhesive landings, tail exit and connector routing. The equipment maker still needs to provide the enclosure, expected viewing conditions and lighting target, because the same keypad film can look different after it is installed.

Separate hot spots from dark zones before blaming the artwork

A hot spot is a bright dot or bright patch that appears near an LED or a thin diffuser area. A dark zone is a weak area where light does not reach the legend, icon or status window. The fix is different for each problem. If the team only says the backlight is uneven, the next sample may change the wrong layer.

Ask for sample photos in three states: unmounted on the bench, mounted in the real front housing, and viewed from the normal user angle. Night photos alone can exaggerate bloom. Bright workshop photos alone can hide dark corners. A simple photo set with the same exposure setting is often enough to show whether the issue follows the LED position, the legend window, the adhesive step or the housing shadow.

For outdoor charger controls, also check whether a sealing lip or gasket compresses one side of the keypad more than the other. Local pressure can change the distance between the LED, spacer, diffuser and front film. That small stack-height change may create a bright edge near one key and a dull area near the next key.

Check LED layout, diffuser gap and masking as one stack

Backlit membrane switches are not only printed legends with LEDs underneath. The light path depends on the LED package height, LED distance from each icon, spacer thickness, diffuser material, light-blocking ink, adhesive opening and any housing pocket behind the keypad.

A useful sample review should include these items:

• LED locations marked against every icon, status window and key zone;
• LED color and expected brightness setting during review;
• diffuser or light guide material and its distance from the LED;
• light-blocking ink areas that stop bleed between adjacent icons;
• adhesive openings that must not shadow the window;
• housing pocket depth, ribs, screw bosses and gasket compression areas.

The tradeoff is usually between brightness and uniformity. Moving the LED closer can make one icon easier to see, but it can also create a visible point. Adding diffuser distance can smooth the light, but it may require more housing depth or a brighter LED. That is why the RFQ should not ask for a backlit keypad in general terms. It should describe the visible lighting problem the sample must avoid.

Review legends, color windows and tactile areas under real use conditions

Outdoor charger users do not look at the keypad like an inspector sitting over a light box. They approach from an angle, often with wet hands, gloves, sun glare, rain marks or a dim parking area. A red status window, a green start button and a small icon may need different review criteria.

For each lit area, define whether the buyer cares most about status recognition, button location, brand color, warning visibility or night readability. A status window may need even light across a rectangle. A start key may need the perimeter and tactile zone to remain obvious. An icon near a raised dome may need extra masking so light does not leak into the neighboring symbol.

Cleaning and surface finish also matter. A glossy overlay can make a bright LED dot more noticeable. A matte or textured surface can reduce glare but may reduce apparent sharpness on small legends. If alcohol wiping, outdoor dust or rain exposure is expected, include that condition during sample approval instead of treating it as a later durability issue.

What to send for a troubleshooting RFQ

A backlit keypad troubleshooting RFQ should make the failure visible and measurable enough for engineering review. Send the artwork file, layer stack drawing, LED board or circuit position, diffuser note, housing section, gasket or adhesive die line, connector route and sample photos. If there is an old sample, include one photo with power off and one with power on from the normal viewing distance.

Include these notes in the message:

• which areas are too bright, too dark or bleeding into another icon;
• whether the issue appears before or after installation;
• the viewing angle and distance for approval;
• expected use: night only, daylight backup, rain service or gloved operation;
• any housing ribs, screws or seals close to the lighting area;
• quantity stage: prototype, pilot run, replacement sourcing or mass production.

This evidence lets the supplier separate artwork revision from stack revision. It also prevents a quotation from covering only front printing while ignoring diffuser, LED, spacer and housing interaction.

Decide the next sample around the lighting cause

Do not approve the next sample only because the keypad switches correctly. For an outdoor charger panel, the backlight has to guide the user toward the right action without distracting hot spots, unreadable dark zones or light bleed between functions.

If the problem follows one LED location, review LED distance and diffuser area first. If it follows one window or icon, check printing opacity and masking. If it appears only after mounting, inspect gasket pressure, adhesive opening and housing ribs. If it changes with the viewing angle, review surface finish, legend size and the position of raised tactile zones.

When sending the project through the Request Quote page, attach the photos and mark the lighting concern directly on the drawing. A clear RFQ should tell Baoshengda whether the next sample is meant to improve uniformity, reduce light bleed, keep tactile feedback, protect the seal or fit the existing charger housing.
