Automotive HMI Day/Night Artwork: Approve Each State Separately

Approve automotive HMI day and night appearance as two separate states. A front graphic can look clean under room light yet produce weak legends, bright halos or uneven symbol intensity after the backlight is installed. One artwork PDF and one unmounted sample do not prove both conditions.

Euro NCAP's 2026 protocol changes make HMI placement, clarity and ease of use more explicit, including access to physical buttons for commonly used functions. The official Euro NCAP announcement does not prescribe an overlay ink stack. It does reinforce why control clarity should be treated as a vehicle-level decision rather than a styling detail.

For component sourcing, start by separating what must be readable with the backlight off from what should appear only when illuminated. Baoshengda can review printed overlays, dead-front legends, light-blocking layers, windows, keypad structures and flex-tail interfaces for an automotive HMI component. For projects centered on printed gauge scales, display-window borders, forming and adhesive fit, use the automotive dashboard overlay and instrument-cluster panel page as the component reference. The vehicle maker or Tier 1 still owns the lighting architecture, control allocation, photometric targets, electronics and final vehicle validation.

Give day artwork and night artwork different jobs

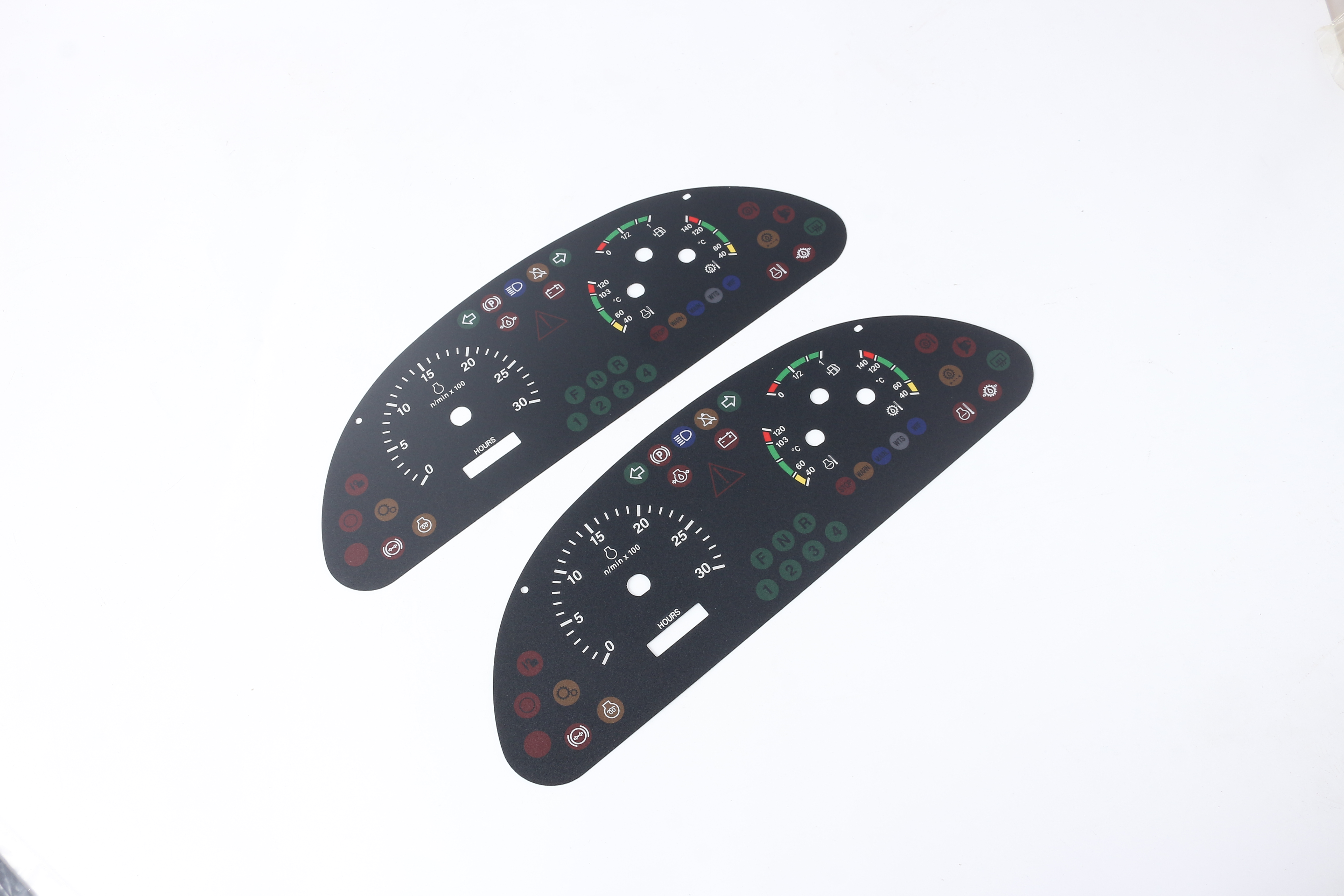

Day artwork defines what the user sees from ambient light. It includes printed scales, permanent labels, surface color, gloss, texture and any symbols that remain visible with the lighting off. Night artwork defines which legends transmit light, their intended color and the areas that must stay dark.

Do not merge those states into a single color rendering. The supplier needs at least two controlled views:

• a day-state artwork layer showing permanent printing and visible windows;
• a night-state legend map showing every transmitting symbol;
• an off-state note for legends intended to disappear into the black surface;
• a color or optical reference for each illuminated group;
• a list of functions that share one light source or dimming channel.

The common failure is approval by appearance alone. A dark red icon may be visible in daylight but transmit too much when illuminated. A white printed scale can look sharp on the bench and still show a halo when the light source sits close to the film.

Define transmission and blocking by zone

A dead-front legend is not simply black ink with a symbol cut out. Its off-state concealment and on-state brightness depend on the full optical stack: front film, translucent color layer, neutral-density or diffusion layer, opaque blocker, adhesive, air gap and the light source below.

Mark each legend as one of three practical zones:

• always visible printing with no light transmission requirement;
• illuminated legend with a defined color and relative brightness target;
• blocked area that must remain dark when adjacent symbols are on.

Keep the blocker geometry tied to the same mechanical datums used for the window, apertures and outer profile. If the blocker shifts toward a legend, one edge becomes dim. If it shifts away, light leaks into the black field. Narrow rings around gauge apertures and tightly spaced warning symbols need special review because small registration changes are easier to see there.

Absolute luminance and color targets must come from the buyer's lighting system and viewing plan. An overlay supplier cannot infer them from a screenshot. If final targets are not frozen, provide a named reference sample and define which symbols may be compared relative to one another.

Review the real LED and housing stack

Backlight performance is created below the overlay. LED spacing, light-guide geometry, diffuser thickness, air gap, housing ribs and local adhesive openings all change the result. A loose faceplate placed on a light table cannot reproduce those conditions.

Ask for an assembled optical sample using the intended LED positions or a representative light guide. Review it at the planned viewing angle and dimming states. Check the brightest and darkest symbols, not only the center of the panel. Closely placed red, amber, green and white legends may also need separate blockers so one channel does not contaminate another.

Housing details belong in the RFQ when they affect light:

• section height from the LED or light guide to the overlay;
• ribs, bosses and apertures below critical symbols;
• adhesive openings and any reflective internal surface;
• display-window edge treatment;
• connector and tail route that constrain the light module;
• intended dimming range and any pulse-width control owned by the buyer.

A practical tradeoff appears when the stack is made thinner. Reducing the light-mixing distance may save package depth, but it can increase hot spots and make blocker registration more sensitive.

Use a sample matrix instead of one beauty photo

The first-sample report should show the same part under repeatable conditions. A useful matrix includes lights off in normal ambient light, lights on in a dark condition, the lowest intended dimming state and a brighter operating state. Add an oblique view to expose halos around windows or printed borders.

For each state, record:

• camera exposure or measurement setup kept consistent across samples;
• which LEDs or channels are active;
• the part revision and ink-stack revision;
• the housing or fixture used;
• the symbol groups that pass, need adjustment or remain a buyer decision;
• any visible light leak near apertures, panel edges or adhesive openings.

Do not approve mixed-color legends from an automatically exposed phone image alone. Auto exposure can make one sample appear uniform by hiding bright and dark differences. The comparison needs either controlled camera settings or the buyer's agreed optical measurement method.

Keep artwork revisions tied to mechanical datums

Optical changes often arrive late. A supplier may adjust a blocker, diffusion patch or legend density without changing the visible front artwork. If all files keep the same revision name, the wrong layer can reach sampling or production.

Use separate revision identifiers for front print, transmission map, blocker layer and mechanical profile. Put a common master datum and orientation mark in every controlled file. Then list which combinations were used for each sample.

The buyer should also define the approval boundary. Baoshengda can confirm the printed part, layer registration, sample construction and supplied evidence. The buyer or Tier 1 must confirm symbol meaning, vehicle integration, driver visibility, dimming behavior, control safety and compliance in the final cabin.

What to send with the RFQ

A useful quotation package contains more than a front-view image. Send vector day artwork, a separate night legend map, blocker and diffusion intent, mechanical profile, window and aperture dimensions, housing sections, light-source layout and the expected sample matrix. Include material preference, surface finish, adhesive construction, quantity and the revision that controls each layer.

When submitting through the Request Quote page, identify one high-risk legend group. For example, mark the closest pair of different-color indicators or the narrowest symbol beside a gauge aperture. That gives the supplier a concrete place to review print registration, blocker clearance and assembled optical evidence before the full artwork is treated as approved.
