Wearable PZT Sensor Arrays Still Need a Defined FSR Load Path

A novel wearable array can detect a swallowing event without defining how force reaches an FSR. A study published on August 15, 2026 reports a heterogeneous epoxy-engineered PZT nanocomposite sensor array for noise-robust health monitoring and swallowing detection. The material result does not specify the actuator, support, preload, sensing-zone map or cable route that an integrated force sensor still needs. Convert the research signal into a mechanical load path before quoting the wearable assembly.

What the August 15 wearable array adds

Heterogeneous epoxy-engineered PZT nanocomposite sensor array for noise-robust health monitoring and swallowing detection was published on August 15, 2026. The study reports a wearable sensor array designed to remain noise-robust while monitoring health signals and detecting swallowing.

The research is not a Baoshengda FSR test and does not provide an actuator, cable, adhesive stack or calibration plan. Its useful consequence is that sensor materials are improving, but a new material does not remove the mechanical questions between the body, the sensing zone and the electronics.

Define where force enters the sensing zone

Start with the application point. A wearable sensor can sit against skin, clothing, a strap, a pad or a handheld device, and each route changes the force path.

Confirm these inputs:

• the surface that applies pressure;
• the actuator shape and area;
• support behind each sensing zone;
• preload from the strap, band, clip or housing;
• whether the sensor measures force, presence or a threshold;
• the expected load range and repeatability;
• motion and bending that can change the baseline.

A swallowing-detection array may use a very different mechanical path from a seated or hand-grip FSR. The buyer should not copy one force range into another application.

Map the zones and cable before calibration

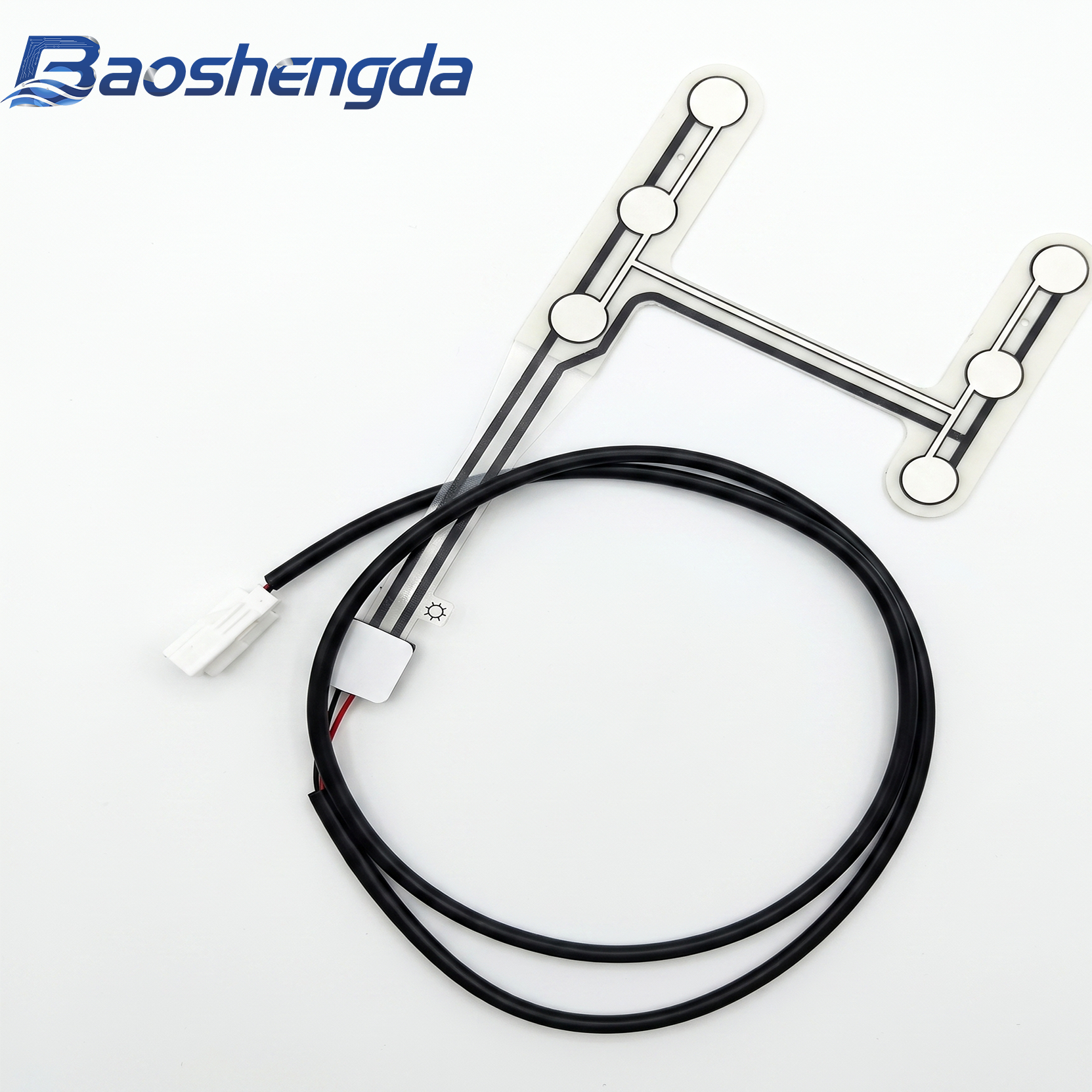

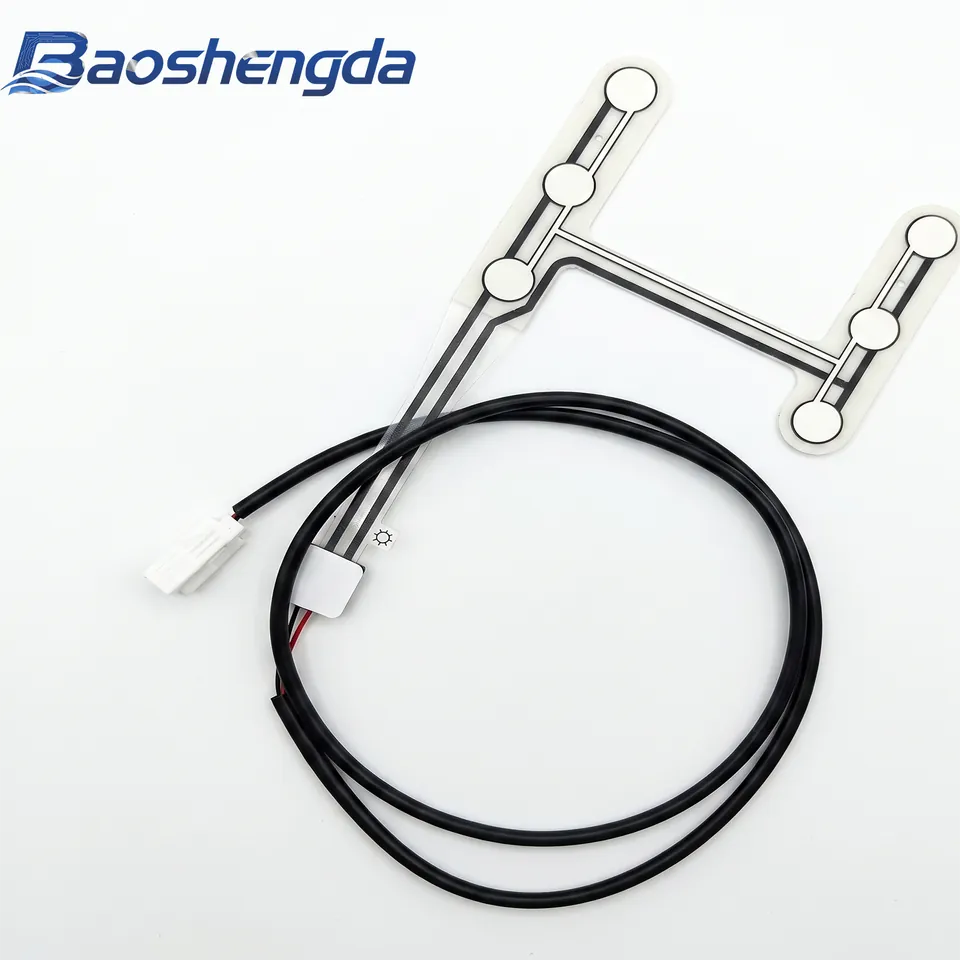

A printed array can show six pads on a flexible film, but the drawing still needs to say which pad detects what. Number each sensing zone, assign its function and keep the same zone numbers in the cable or tail pin map and test plan.

Then define the cable or tail route from the film to the connector, the bend or fold allowance, strain relief, connector pitch and pin direction. A wearable assembly can pull the cable during movement or cleaning, so the route is part of the sensor integration, not a later packaging detail.

Use a load-path decision table

The table below converts the wearable-array result into FSR integration evidence. It is a review tool, not a universal pass and fail standard.

Do not treat the array result as a completed FSR specification. The buyer must fill in the physical stack and acceptance evidence.

Test the mounted wearable stack, not only the film

A loose film on a bench can respond to a finger press and still drift when the strap is tightened, the user moves, or the adhesive lifts. Test the sensor in the intended wearable stack with the production actuator and preload.

Record low, normal and high load readings, repeated cycles, dwell behavior and post-motion baseline. Inspect the cable or tail after repeated movement and cleaning. A FSR pressure sensor review should use the complete stack, not only the sensing film.

Supplier boundary and limitations

The cited study is original wearable-sensor research. It is not a Baoshengda test, a medical-device approval, a safety analysis or evidence that any wearable product is suitable for a clinical function. Baoshengda can review the FSR sensing-zone layout, actuator, support, preload, cable or tail, connector and sample evidence for an agreed design. The buyer remains responsible for the complete wearable system, body-contact safety, clinical or regulatory requirements, calibration, cleaning and final product validation.

Do not copy the PZT material performance into an FSR specification. The sensing technology, force path and product requirements must be defined separately.

Wearable FSR load-path RFQ checklist

Send these items before requesting a firm prototype plan:

• wearable assembly drawing and force application point;
• sensing-zone map with numbered pads and functions;
• actuator shape, area, material and support stack;
• strap, adhesive or preload method;
• expected force range and repeatability target;
• cable or tail route, strain relief and connector or pin map;
• skin contact, cleaning and moisture boundary;
• calibration points, drift test and mounted acceptance limits;
• prototype quantity, production estimate and controlled revision numbers.

When the body-to-sensor load path is documented, send the FSR drawing package for engineering review and request a quote.
