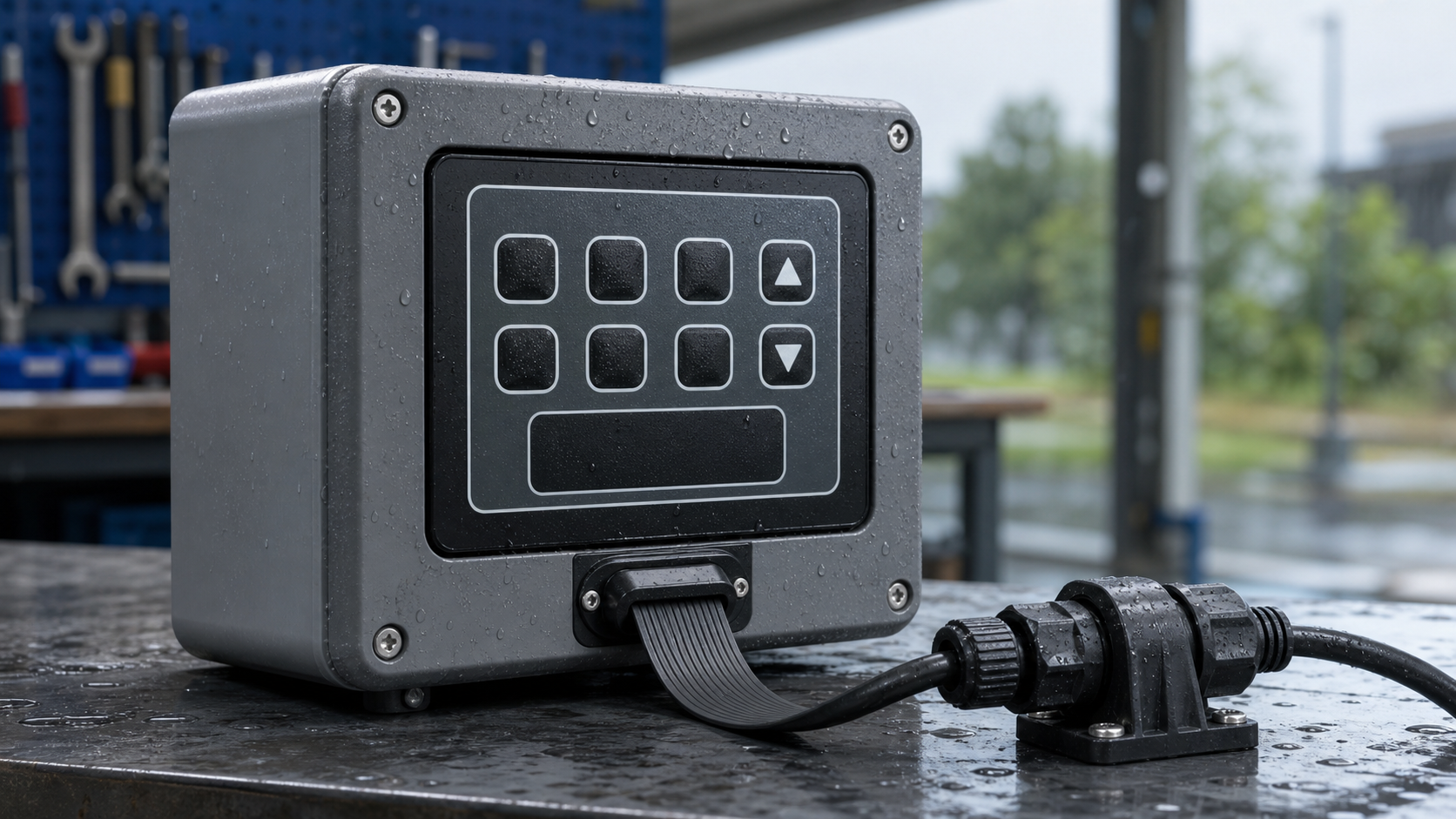

Waterproof Membrane Switch Tail Exit and Connector Sealing Checks for Outdoor HMI Panels

A waterproof membrane switch for outdoor equipment should not be checked only from the front overlay. The buyer should also review where the tail leaves the panel, how the connector is protected, how the cable is fixed, and whether the mounted housing creates a water path toward the circuit.

For a custom outdoor control panel, start the RFQ with the installed condition, not only the flat switch drawing. Baoshengda can review the switch stack, tail route, connector choice, and housing interface for a waterproof membrane switch or a complete HMI panel solution before sampling.

Why the tail exit needs separate review

The front surface may look sealed while the tail exit remains the weak point. Water can reach the circuit from the tail slot, cable bend, connector side, or the gap between the switch adhesive and the housing.

Check these items before approving the first sample:

• Where does the tail exit: bottom, side, rear, or through a housing slot?
• Will rain, cleaning spray, condensation, or standing water reach that exit?
• Is the tail bent too close to the exit point after assembly?
• Does the cable move during service, door opening, vibration, or maintenance?
• Can the tail be protected by gasket, sealant, boot, clamp, or internal routing?

A common sample-stage risk is testing the switch flat on a desk, then finding leakage or tail cracking only after the panel is mounted into the real enclosure.

What should buyers check around the connector

The connector is often outside the sealed printed layers. A waterproof front panel does not automatically make the connector waterproof.

Use this connector review before sample release:

• Confirm whether the connector sits inside a dry enclosure or in an exposed service area.
• Define connector type, pitch, pin count, locking method, and mating cable direction.
• Leave enough room for strain relief so the cable does not pull directly on the tail.
• Avoid sharp housing edges near the tail bend.
• Confirm whether potting, heat shrink, gasket, or a waterproof cable gland is needed.
• Tell the supplier whether the panel will face washdown, outdoor rain, salt mist, alcohol wipe, oil, or only occasional splashing.

Tradeoff: stronger connector protection can add thickness, assembly steps, and inspection points. That is acceptable when the outdoor risk is real, but it should be decided before tooling or adhesive structure is locked.

How to review the mounted water path

A membrane switch sample should be reviewed as part of the installed HMI, not as a loose part only. The water path depends on the housing surface, screw bosses, gasket compression, overlay edge, tail exit, and cable direction.

Ask for or prepare one mounted review condition:

• Place the switch on the real enclosure surface or a same-material test plate.
• Check whether the adhesive has full contact around edges, windows, keys, and the tail opening.
• Look for powder coating texture, molded ribs, screw holes, recesses, or uneven surfaces under the adhesive area.
• Confirm whether the cable points downward, sideways, or upward after installation.
• Review how service technicians will unplug or replace the cable.

If the cable exits upward or sideways, water can collect near the connector. In that case, the design may need a drip loop, internal routing change, or a sealed connector zone.

RFQ checklist for outdoor waterproof HMI panels

Send these details when asking for a quotation or sample review:

• Product application and whether the panel is outdoor, indoor wet, vehicle-mounted, handheld, or fixed equipment.
• Front overlay artwork, switch outline, key positions, window areas, and tail direction.
• Housing drawing or photo showing the mounting surface and tail opening.
• Expected exposure: rain, washdown, condensation, UV, cleaning agent, oil, dust, or temperature cycling.
• Connector type, cable direction, available space, and whether the connector is inside a sealed box.
• Quantity, sample count, target lead time, and any acceptance test the buyer will run.

If the final IP target is important, share the test method and assembled condition. A switch-only test and a finished-equipment test may show different results.

When to change the design before sampling

Change the tail or connector plan before sampling if any of these conditions appear:

• The tail must bend sharply within a few millimeters of the exit.
• The connector will sit where rainwater or cleaning liquid can collect.
• The housing has a rough coating or curved surface under the adhesive seal.
• The cable will be pulled during service or maintenance.
• The drawing does not show the enclosure opening, gasket, or cable space.

For Baoshengda review, send the membrane switch drawing, housing photo, connector requirement, use environment, and sample test plan through the Request Quote form. The useful question is not only whether the switch can be waterproof. It is whether the full mounted HMI keeps water away from the circuit, tail, and connector during real service.
