Why Smart-Bedding Pressure Sensors Fail After Roll Testing

When a smart-bedding pressure sensor passes on a flat bench but drifts, crosses zones or becomes intermittent after integration, inspect the mechanical stack before changing thresholds. Place every sensing zone on a defined support, freeze the route from the active area to the tail, and then prove the array after it is embedded, rolled and reconnected. The most important design decision is where bending is allowed. Keep repeated mattress flex and edge compression away from sensing electrodes, conductor neck-downs and the film-to-tail transition. A custom FSR pressure sensor can provide thin multi-zone force or presence inputs, but the bed structure, electronics and care logic still determine whether those inputs remain useful.

Why smart-bedding integration is a current component question

An original study published on August 6, 2026 reported soft piezoresistive sensors embedded in fabric for smart bedding in aged-care applications. The researchers used silver and carbon inks on a flexible polyurethane substrate, embedded the sensors by hot pressing, and evaluated them with a mattress rollator for durability, sensitivity and robustness. Their system was designed to detect bed presence and falls while using wireless electronics for continuous logging.

The study did not test a Baoshengda FSR, and its materials, process and system results cannot be transferred to another product. It does make one buyer problem concrete: bedding sensors are mechanically integrated parts. The sensing layer, fabric, support, cable route and repeated rolling act together. A loose sensor response cannot establish the behavior of the installed bed assembly.

This application note converts that current signal into a drawing and sample plan for thin-film pressure-sensor arrays. It does not make a medical, fall-detection or patient-monitoring claim.

Divide the bedding surface into mechanical zones before placing sensors

Begin with the pressure event the product must distinguish. Presence detection, position trend, exit detection and local load distribution require different zone geometry and channel count. Do not start by stretching one generic sensor pattern across the available mattress area.

A practical zoning drawing should identify:

• the expected body-contact region and the positions that can move between users;
• the mattress support areas that remain comparatively flat;
• hinge, fold, roll and edge-compression lines;
• seams, quilting, fasteners, foam transitions and removable-cover openings;
• the permitted tail corridor from each sensing zone to the electronics;
• no-sensor and no-trace areas around cutouts, zippers and service access.

A larger zone can tolerate more placement variation, but it provides less local information. Several smaller zones can help locate contact, yet they add routing, connectors and channel-matching work. The correct pattern comes from the decision the equipment must make, not from the maximum number of zones that fit on the film.

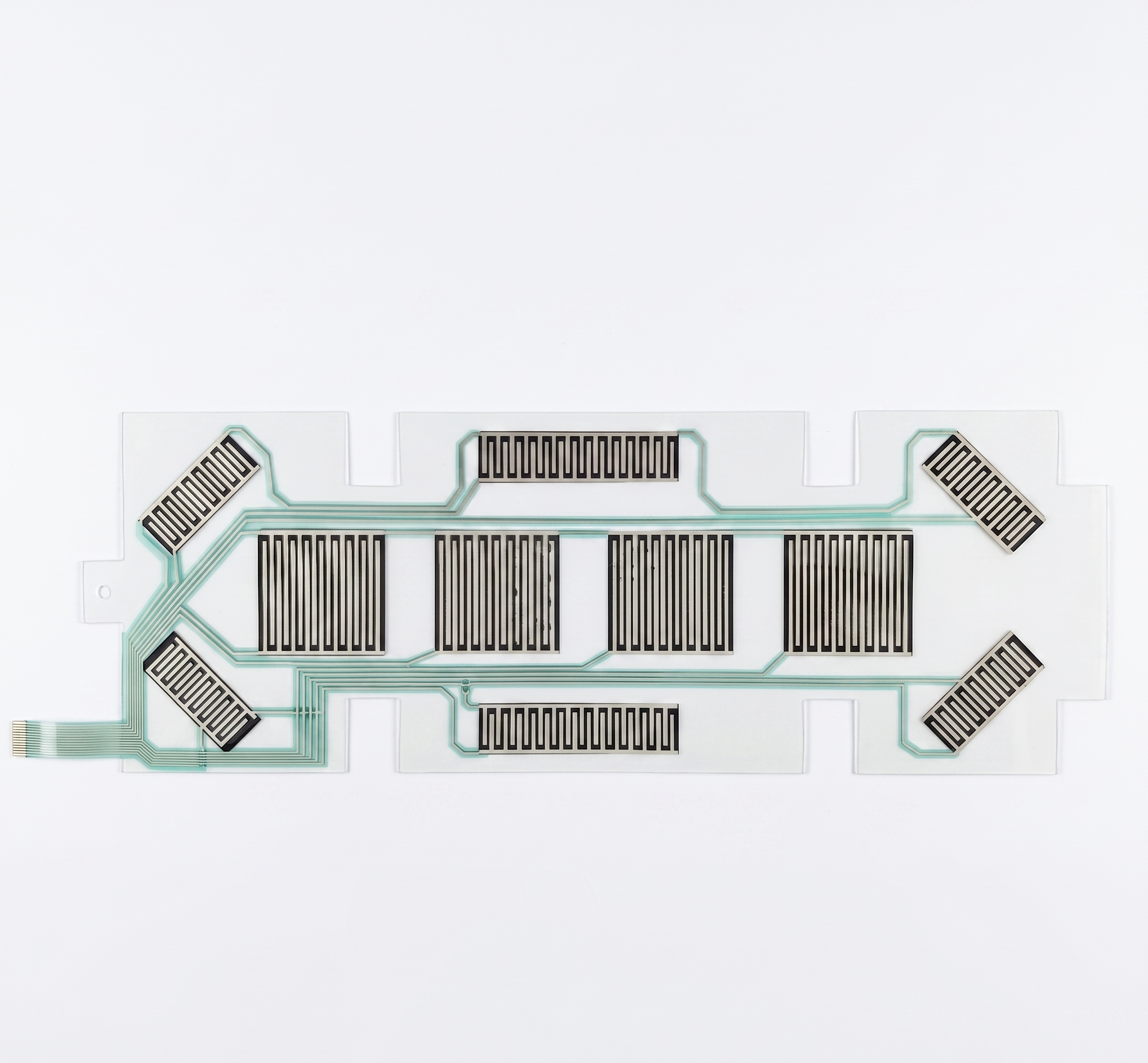

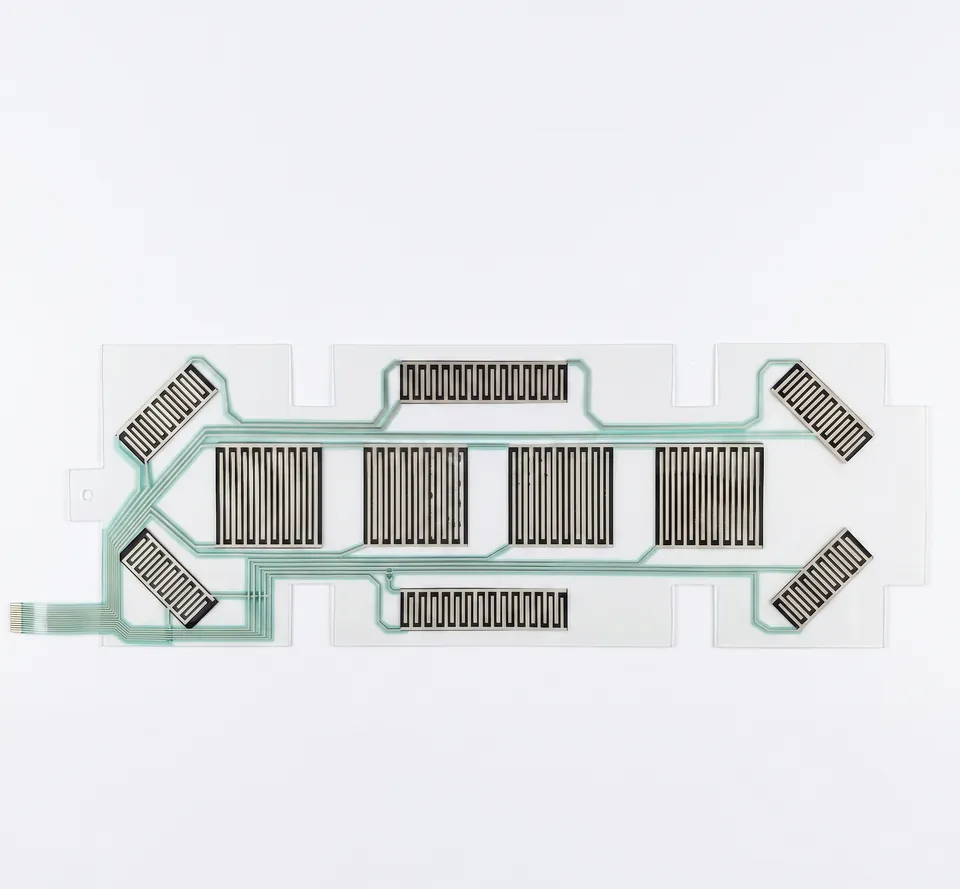

Keep high-strain motion out of the tail transition

The visible tail is not merely leftover film. It carries the signal through the highest-risk handoff between the compliant sensing area and the rest of the assembly. In bedding, that handoff may encounter repeated rolling, cover removal, edge folding and strain from the electronics pocket.

Use the section drawing to separate four regions:

1. **Sensing region:** the defined pressure or force area that must stay supported by the intended bedding stack.

2. **Conductor region:** printed paths that should avoid sharp local bending, hard ribs and seam pressure.

3. **Transition region:** the change from the sensor body to a narrower tail, cable or connector. Keep this region outside the repeated roll line when possible.

4. **Service region:** the controlled loop and connector access used during assembly, cleaning or replacement.

Do not route the tail straight across a mattress edge and assume flexibility solves the problem. A thin film can flex, but a tight fold at one line can concentrate strain. Add a bend keepout from the end of the active or printed structure, show the first permitted bend, and define the minimum route radius from the real stack and supplier review. If the tail passes through fabric, specify the opening edge, strain relief and how the route is prevented from rubbing or twisting.

Control the stack above and below every active zone

A pressure-sensing film reports the load delivered through its actuator and support. In bedding, those functions may be performed by fabric, foam, a laminated pocket or a molded support below the sensor. Any change in thickness, compression set or local wrinkle can change the resting value and the response to occupancy.

Approve the materials and assembly method together. Swapping the fabric, foam, adhesive or support after sensor approval changes the mechanical input. The resulting signal difference should be treated as an assembly revision, not automatically blamed on the sensor electronics.

Prove the array after embedding, rolling and reconnection

The first useful prototype should contain the intended sensor, representative fabric or cover, support, tail route, connector and readout. Record each channel before integration, after embedding and after the cover is installed. Then exercise the assembly using a documented motion that represents its real service.

Include at least these states:

• unloaded on the defined support before embedding;
• integrated but flat, with the tail and connector unsecured;
• integrated with final tail restraint and electronics pocket;
• loaded at the center and boundary of every intended zone;
• loaded between adjacent zones to identify cross-zone response;
• rolled or flexed through the specified route and number of prototype cycles;
• unrolled and allowed to recover for the agreed dwell time;
• disconnected and reconnected using the normal service method;
• checked after the planned cover removal, cleaning or environmental conditioning.

For each step, keep the same supply, divider or conditioning circuit, sample rate and fixture method. Save raw readings as well as processed states. A pass or fail label alone cannot show whether one channel drifted, became intermittent or changed its relationship with adjacent zones.

If the product needs calibrated force, presence, exit or fall decisions, the equipment developer must create and validate that system method. A film-sensor supplier can provide component samples and dimensional or electrical evidence under agreed conditions, but cannot validate the final care decision from a product drawing.

Separate sensor manufacturing from system responsibility

Baoshengda can review the active-zone outline, printed electrode and sensing structure, substrate outline, tail route, connector option, adhesive pattern and sample workmanship against an agreed component specification. The buyer or system integrator owns mattress mechanics, fabric and foam selection, electronics, wireless transmission, algorithms, thresholds, alarm behavior, data handling, cleaning method, user safety, intended use, regulatory work and final product validation.

This boundary matters when a prototype detects occupancy on one bed but behaves differently after the mattress or cover changes. The supplier needs the section stack and mechanical route to reproduce the component conditions. The device team must determine whether the resulting signal is suitable for its application and safety architecture.

Drawing, sample and RFQ checklist

Send the following with a smart-bedding sensor request:

• overall bedding or pad outline with the intended sensing region;
• numbered active zones, zone dimensions and positional tolerances;
• hinge, fold, roll, edge-compression, seam and zipper locations;
• top fabric, foam, support and bonding stack with thicknesses;
• required presence, position or relative-load decision for each zone;
• expected load range, dwell time, recovery interval and actuator or fixture;
• conductor keepouts and the first permitted tail bend;
• tail exit, length, contact side, connector, mating part and service loop;
• readout circuit, supply, sampling method and raw-data format;
• embedding, lamination or pocket assembly sequence;
• prototype flex or roll motion, cycle count and inspection interval;
• baseline, cross-zone, continuity and post-roll acceptance table;
• environmental and cleaning exposure owned by the finished product team;
• sample quantity, production estimate and controlled drawing revision.

When those files are ready, send the controlled package for an FSR engineering quotation. The sample objective should be explicit: preserve zone identity, stable conductors and a serviceable tail after the sensor becomes part of the actual flexible assembly.
