Remote Gateway Membrane Panels Should Show Status Without a Menu

A remote gateway should show power, link, traffic and temperature status without asking a technician to enter the setup menu. Put those indications in one lighted status zone. Keep the arrow, enter and clear keys in a separate command zone. A glance should answer whether the unit is powered, connected or in a fault state before anyone changes a setting.

The International Telecommunication Union reported on July 8, 2026 that Partner2Connect had passed USD 100 billion in connectivity commitments, with digital infrastructure representing the largest share. This is broader background, not a daily hotspot, an installation count or a promise that every project will be delivered. The panel-design checks below stand on their own: when a gateway includes a local service interface, its status and command zones still need a controlled physical layout.

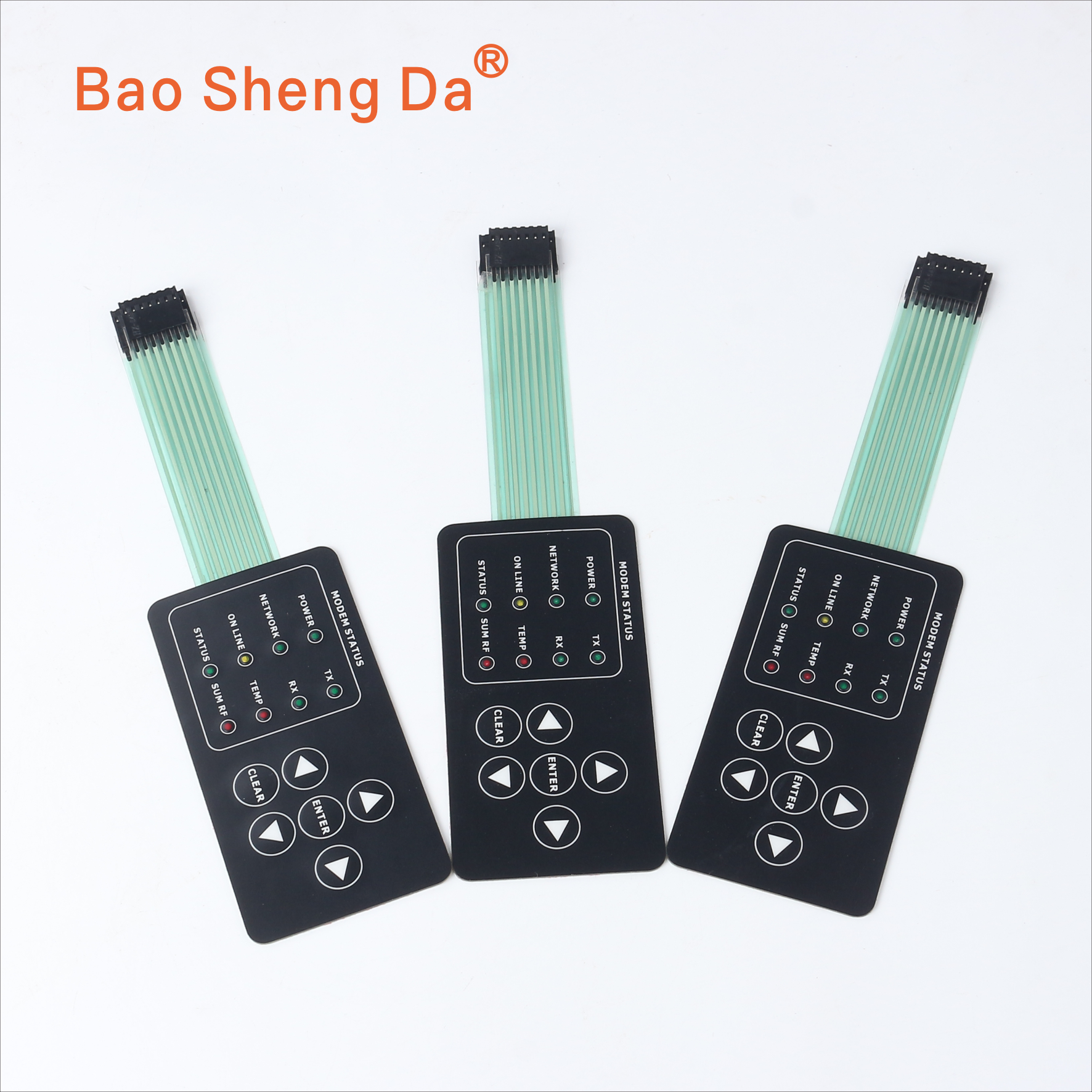

A custom backlit membrane switch can combine indicator windows, printed legends, navigation keys, a flexible circuit tail and a connector-ready interface. The equipment maker still owns the network protocol, alarm logic, LED drive, firmware and final system validation.

Give the technician a status line before a command path

Start with the questions a technician must answer while the enclosure is still closed. Is power present? Has the unit joined the network? Is it receiving or transmitting? Has an over-temperature state been raised? These answers belong in a fixed status field if they are needed before a screen, laptop or remote management session is available.

The navigation group serves a different purpose. Arrow keys move through values or pages. Enter confirms a choice. Clear cancels or returns. Mixing those keys into the status field makes the panel harder to scan and creates artwork ambiguity. A round colored window should not look like a pressable key, and an arrow key should not be mistaken for an activity lamp.

Write the front-panel functional map in two columns during the design review: indications that never accept input, and keys that never serve as status lamps. If a key must also light, state whether the light means the key is available, selected or confirmed. Those three meanings are not interchangeable.

Separate the optical mask from the switch matrix

Indicator windows and keys may share one front panel, but they need different optical and electrical treatment. Each status window needs a defined visible diameter, color state, legend and light-block boundary. The switch keys need a contact map, actuation target and debounce ownership. The printed black mask between windows must remain opaque enough that a green power LED does not brighten the adjacent red temperature window.

One realistic failure appears when the loose overlay looks correct, then the mounted sample shows a green halo around a neighboring alarm aperture. The LED sits too close to the film, a spacer opening is too large, or the light-block print does not extend past the housing light well. The front face then suggests that two states are active even though only one LED is driven.

A dedicated light well or a wider masked border can reduce that bleed, but it consumes space and may increase stack thickness. More status windows also need more driver channels or shared-light logic. The tradeoff is service clarity versus panel area, pin count and control complexity. Detailed diagnostics may still belong in software even when the first-level state remains visible on the panel.

Define what the panel shows while power states change

Do not approve one attractive powered photo and assume the other states will read correctly. Review the panel in a sequence that matches the gateway startup and service process:

• power off in daylight, so printed legends and inactive windows can be distinguished;
• initial power-up, with only the intended boot or power indication active;
• network joined, with link status separated from receive and transmit activity;
• normal traffic, without rapid activity light leaking into nearby windows;
• temperature or other fault state, using the agreed color and flash behavior;
• local setup mode, with the navigation keys readable under the expected service lighting.

The buyer should decide which legends stay visible when unlit and which can use a dead-front effect. A hidden alarm legend may give a clean appearance, but it is harder for a technician to locate before the fault light turns on. A permanently printed legend is easier to find, yet occupies visible space when the system is normal.

Color alone should not carry the complete meaning. Pair the window with a fixed label and confirm the viewing distance, panel angle and ambient light. The gateway maker is responsible for any accessibility requirement and for the truth of the displayed state.

Lock the light-state table to the tail pin map

The artwork, LED assignment and flexible tail cannot be reviewed as separate files. Give every indicator and key a stable identifier. The power window might be L1, network L2 and temperature L6. The arrow keys can use K1 through K4, with separate identifiers for enter and clear. Put those references on the front artwork, circuit drawing, state table and connector pin map.

A common revision error occurs when the front labels change but the tail pin map does not. The sample still lights and the connector still fits, yet the network command drives the temperature window or a navigation key returns the wrong code. A simple continuity test may miss the labeling error unless the operator steps through every named state and key.

Keep the complete tail route visible in the enclosure drawing. Mark its exit side, first bend, stiffener orientation, connector contact side and service loop. If the front panel sits on a removable door, show the door motion and the connector access position. The long tail on a loose sample proves only that a circuit exists; it does not prove that the installed tail avoids a hinge, sharp edge or cable clamp.

Test a mounted sample with deliberate wrong-state checks

Mount the first sample on the intended bezel or a representative fixture. Drive one indicator at a time and photograph the front in daylight and dim service light. Check for bleed around every inactive window. Then drive the planned combinations for boot, connected, traffic and fault states. Press each key while watching both the reported key code and the nearby indicators.

Include deliberate negative checks. Confirm that pressing clear cannot light an unrelated fault window. Disconnect the network input and confirm the link state changes as the equipment specification requires. Raise the simulated temperature input only through the equipment test method approved by the system owner. The membrane panel supplier should not invent a fault threshold or safety response.

Inspect the mounted adhesive border and support behind the key group. A poorly supported corner can change key feel even when the optical field is correct. Recheck the tail after opening and closing the service door. Optical approval, key operation and cable survival belong to the same mounted sample record.

Send one RFQ package that connects states to hardware

Send the front artwork with every indicator window and key identified, plus a state table covering off, boot, connected, traffic, setup and fault conditions. Add the LED color or wavelength target, available voltage and current limits, driver location, flash ownership and any dead-front requirement. Include the key matrix, tactile preference, tail pin map, connector part or pitch, contact side and enclosure section.

Also provide the viewing distance, ambient light range, cleaning method, panel angle, housing surface, sample quantity and annual estimate. If an existing panel is being replaced, mark whether the problem is light bleed, unreadable legends, wrong-state indication, key misregistration, damaged tail or poor connector access.

Use the Request Quote route to send those files. The first sample should have a defined pass condition: every named status window remains optically separate, every navigation key reports the intended code, and the complete tail reaches the connector without crossing the service motion.
