Rack-Mount Battery Heating Film RFQ: Define the Thermal Zone Before the Wattage

A rack-mount battery heating-film RFQ should begin with the thermal zone, not a wattage copied from another enclosure. Mark the surface that must recover, the temperature points that determine a pass, and the maximum temperature allowed at the heater, adhesive, nearby wiring and service surfaces. Then define voltage, resistance or power, sensor position, control method, insulation, mounting pressure, lead exit and the low-temperature test cycle. A supplier can review a custom flexible heating film, but only the equipment owner can define the battery-system limits and final safety logic.

Why a thermal zone is a current rack-mount design question

A same-day research paper assesses thermal-management configurations for rack-mount prismatic LiFePO4 battery packs in photovoltaic energy-storage systems. The authors compare air, aluminium-block, flow-channel and hybrid cooling arrangements using maximum temperature, temperature difference, pressure drop and hot-spot suppression. Their results apply to the studied rack and cooling structures, not to a Baoshengda heating film.

The useful buyer lesson is narrower: thermal performance depends on structure and distribution, not only total power. A custom film may be used for local cold-start assistance, condensation control or a defined enclosure surface, but it does not replace pack cooling, a battery-management system, thermal-runaway protection or the approved charge and discharge limits. A quotation must therefore isolate the film's job from the rest of the thermal architecture.

Draw the functional zone and every competing heat path

Start with a plan view and a section through the proposed mounting area. Shade the exact surface that must warm and identify the component whose operation defines recovery. This could be a protected module face, connector pocket, gasket line, window, sensor zone or service interface. Avoid describing the target as the whole cabinet unless every part genuinely needs the same temperature response.

On the same drawing, mark the paths that can carry heat away: metal rails, thick brackets, frame joints, mounting studs, cooling plates, vents, fans and large cable shields. Mark insulating areas and air gaps as well. A heater bonded to a broad metal plate can spread heat effectively, but the plate may also pull energy away from the point that must recover first. A film placed on plastic may concentrate heat more locally, while the plastic and adhesive impose lower temperature limits.

Keepouts must be dimensional. Include fasteners, stamped ribs, service tools, drainage paths, connector latches, labels, sharp bends and any part that may move during maintenance. State the positional tolerance around each keepout. The electrical trace cannot be treated as spare material that an enclosure team may trim or punch later.

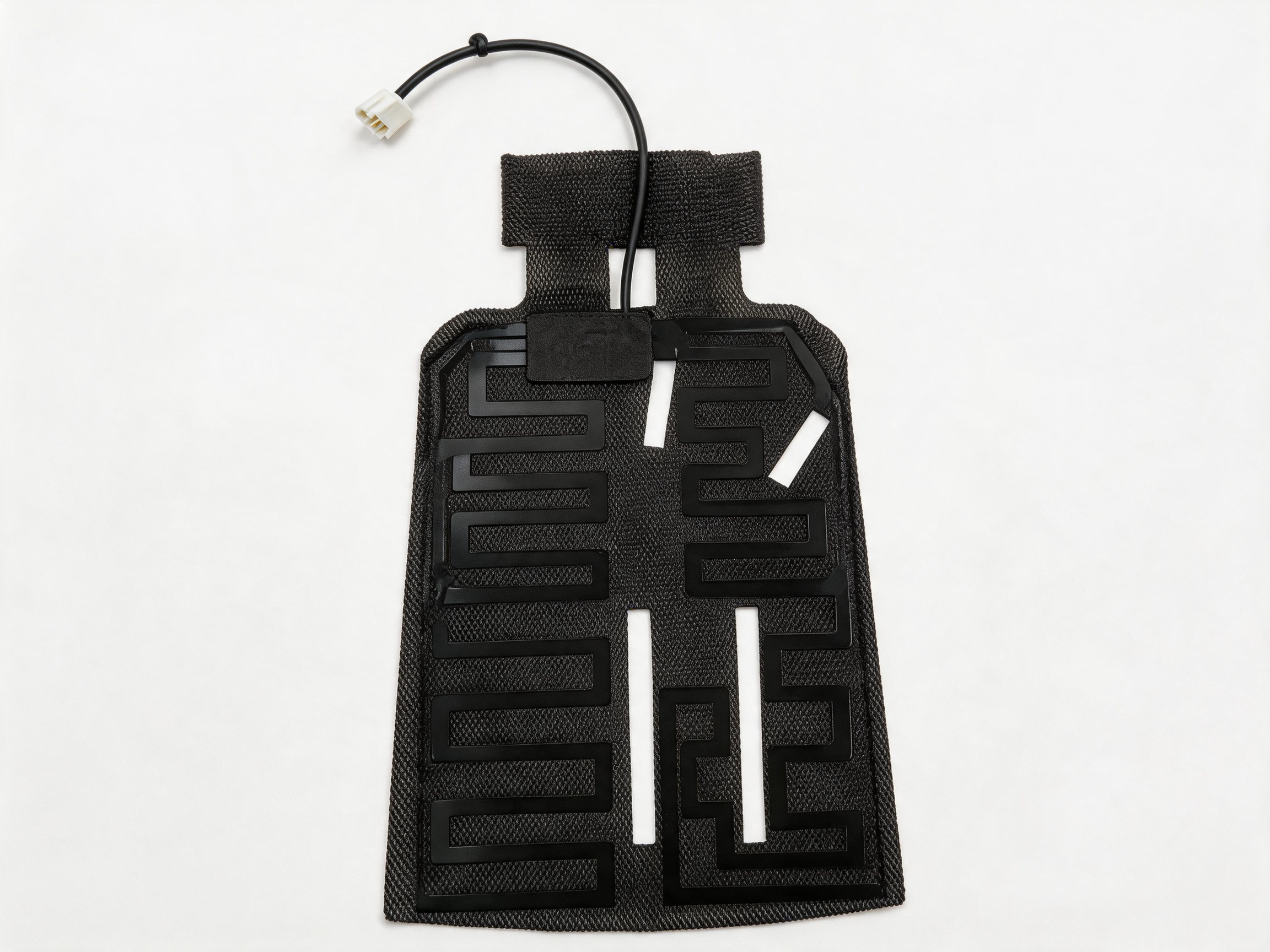

Separate total power from local watt density

Total watts describe electrical input. They do not show where heat enters the structure. Local watt density depends on the active trace area, conductor path, non-heated cutouts and the way the film contacts its mounting surface. Two films with the same outline and total power can create different warm-up times and local temperatures when their active zones or bonded areas differ.

Use a short decision table before approving a quote:

If a keepout revision removes active area, do not automatically preserve total power. The remaining trace may need a different layout, a lower power target, another film outline or more than one controlled zone. Review the temperature distribution again.

Place the sensor around the decision, not convenience

A sensor beside the easiest warm point may stop the heater while the functional cold point remains below its target. A sensor far from the heat path may keep power on after the heater centre, adhesive or adjacent plastic has reached its limit. The drawing should show the sensor relative to the trace, mounting surface, protected component and known heat sinks.

State whether the film uses a local thermostat, an NTC read by the equipment controller, time-limited control or another method. Define the normal shutoff condition, the upper limit and the response to an open sensor, shorted sensor, stuck output or incorrect supply voltage. Baoshengda can review physical sensor integration and lead routing. The buyer remains responsible for control logic, fault handling and system validation.

The power budget also needs a real startup condition. Available voltage may fall when fans, pumps, displays, communication modules or contactors start together. Provide the minimum voltage at the heater terminals during the intended cold-start sequence, not only the nominal power-supply rating. Include the permitted inrush or steady current and whether pulse-width control is planned.

Freeze the mounting stack before sample comparison

A loose heater on a bench proves continuity and resistance. It does not approve the enclosure. The mounting stack should name the cabinet material and finish, adhesive, insulation, pressure layer, protective cover, air gap and nearby component. If a curved or stepped surface is involved, provide the minimum radius and the location of each transition.

The cable joint deserves a separate non-heated support zone. Route the lead away from sharp sheet-metal edges, service doors, fan inlets, drainage paths and moving hardware. Show cable length, exit direction, connector, mating part and strain relief. Do not solve a routing conflict by folding the lead at the heater body during final assembly.

For supplier comparison, keep the fixture, thermocouples, sensor, insulation and power source constant. Otherwise a faster result may come from a different test stack rather than a better heater design. Record the heater resistance before mounting and after the agreed thermal cycles, then inspect the film edge, cable joint, connector and adhesive contact.

Approve the mounted thermal evidence, not a glowing photo

The sample test should answer one defined question: does the installed heater bring the functional zone into its required range within the allowed time without exceeding any local temperature limit? Measure more than the centre. Include the functional cold point, the expected warm point, a keepout bridge or narrow trace region, the terminal area and any user-accessible or adhesive-limited surface.

Run the test from the specified low ambient with the real enclosure or a controlled representative fixture. Use the lowest expected supply condition. Record warm-up time, temperature spread and power. Hold the operating state long enough to evaluate steady-state behavior, then run the required power cycles. If condensation, wind or another environmental condition matters, define it in the protocol rather than adding it after the electrical sample passes.

A sample should fail if the target point recovers on time but another measured point exceeds its limit. It should also fail if the result depends on placing the film outside its allowable tolerance. Repeat at nominal and edge-of-tolerance positions when mounting variation could move a trace toward a fastener, heat sink or sensor.

Supplier boundary and application limitations

Baoshengda can review the film outline, carrier, trace layout, resistance target, adhesive area, lead, connector and physical sensor integration for an agreed sample condition. Baoshengda does not supply a complete rack battery system through this product page and does not set the cell limits, cooling strategy, BMS logic, fire protection or enclosure certification.

Do not transfer temperature or efficiency figures from the cited rack-mount study into a heater-film specification. Its numerical results belong to its battery pack, CFD model and cooling configurations. Your final acceptance must use the actual enclosure, protected component, power supply, sensor, controller and operating limits.

Rack-mount battery heating-film RFQ checklist

Send these items before requesting a firm sample plan:

• enclosure plan and section with the functional heated zone clearly marked;
• target component, cold-start ambient, initial condition and required recovery time;
• minimum and maximum temperatures at every acceptance point;
• mounting surface material, coating, flatness, curvature and allowable placement tolerance;
• heater perimeter, active area, holes, slots, fasteners, ribs, vents and service keepouts;
• adhesive, insulation, cover, air gaps and expected mounting pressure;
• available voltage at cold start, current limit, desired resistance or power and control method;
• sensor type, datum, attachment, cable route, shutoff condition and fault response;
• lead exit, wire length, connector, mating part, pin assignment and strain-relief location;
• environmental exposure, including humidity, condensation, vibration, cleaning or outdoor cycling;
• prototype quantity, production estimate and controlled drawing revision;
• mounted fixture, temperature points, dwell, cycle count and pass or fail table;
• responsibility boundary for battery limits, BMS, cooling, protection, certification and final equipment validation.

When the thermal-zone drawing and power limits are ready, send them for a heating-film engineering quotation. A complete RFQ gives the supplier a testable component target and gives the buyer a fair basis for comparing the first sample with later revisions.
