What Should an Outdoor EV Charger Backlit Membrane Switch RFQ Include?

An outdoor EV charger backlit membrane switch RFQ should connect five things before price discussion: the front icon map, day and night readability, wet or gloved operation, tail and connector routing, and the sample evidence the buyer expects. If those items are missing, the first sample may light up correctly on a bench but fail after it is mounted in the charger housing.

The market context is practical rather than promotional. The IEA's Global EV Outlook 2026 charging chapter reports continued expansion of public charging infrastructure and fast or ultra-fast charging networks. More charger cabinets and outdoor terminals mean more front panels that must stay readable, sealed and serviceable across long use cycles. For a component buyer, the useful question is not whether charging will grow. It is what information a supplier needs to quote a reliable control interface for a specific charger design.

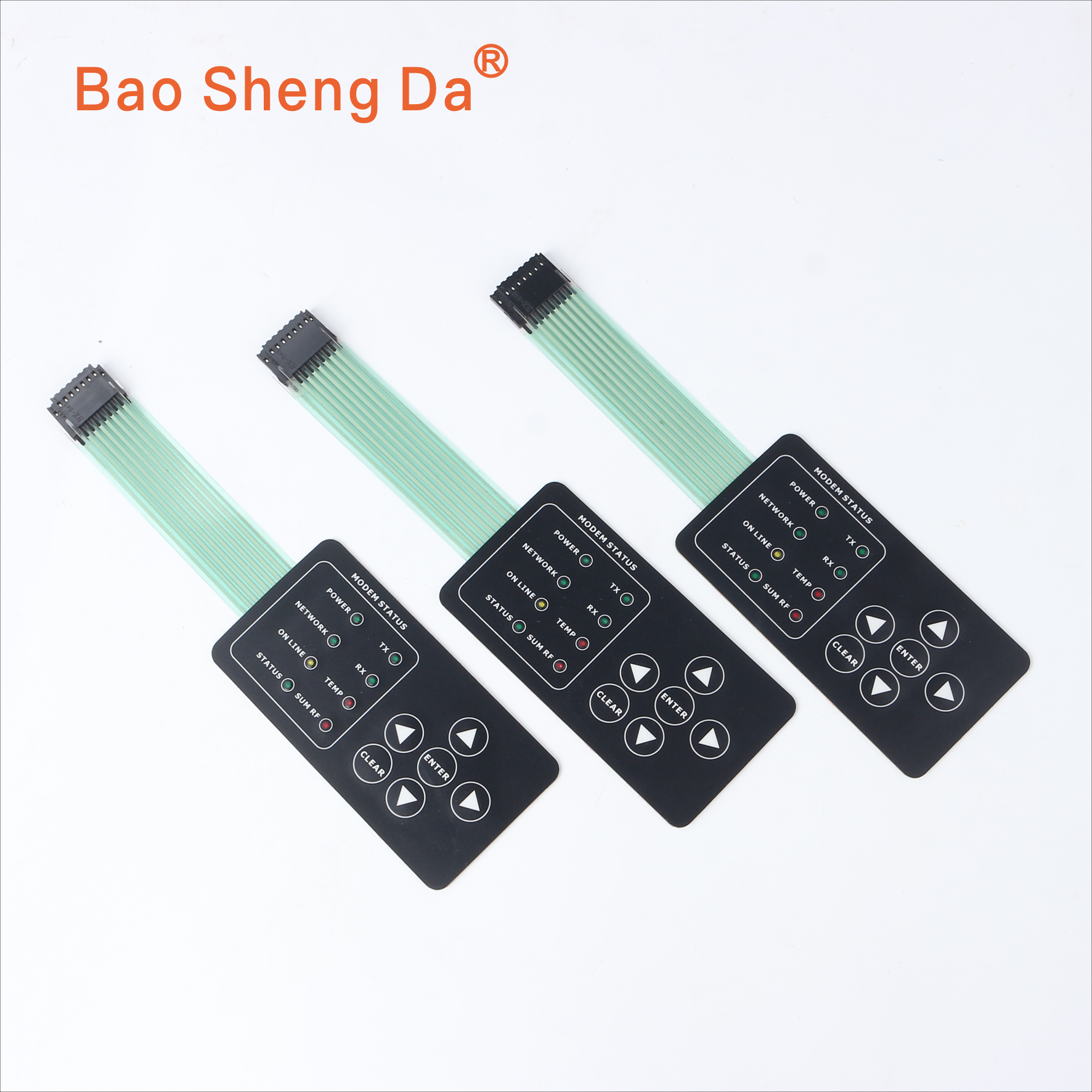

Baoshengda's backlit membrane switch route is relevant when a charger, outdoor payment terminal or service panel needs a thin custom keypad with printed legends, light windows, adhesive mounting, a circuit tail and connector planning. The RFQ should describe that complete part, not only the artwork.

Start with the charger user workflow

A charging terminal may have a large screen, but a backlit membrane switch is still useful when the operator needs a fixed input location, a simple service control or a status area that can be read in low light. Before asking for a quotation, mark which actions belong on the membrane switch and which stay on the display.

Good RFQ notes include:

• whether the keys are for user operation, maintenance, reset, emergency acknowledgement or payment support;
• which legends need to be visible in daylight without illumination;
• which icons or status windows light only under certain conditions;
• whether users may wear gloves or press the panel with wet fingers;
• whether the panel sits beside a screen, card reader, cable holster or service door.

This workflow note changes the structure. A hidden service key, a frequent start button and a small status legend do not need the same embossing, light control or tactile feel.

Define the lighting job before choosing LEDs

A backlit membrane switch can fail visually even when the circuit works. In outdoor charger projects, the lighting job may be night location, dead-front status indication, low-glare confirmation or maintenance readability inside a dim cabinet. Each job leads to different questions about LED placement, diffuser thickness, light-blocking ink and window registration.

Ask the supplier to review:

• which key zones or icons light up together;
• which printed areas must remain dark when adjacent LEDs are on;
• whether the display window or screen bezel can reflect backlight;
• whether the charger needs one brightness level or dimming control;
• whether LED color must match another user-interface element.

The tradeoff is usually light control versus stack height. Extra diffuser or blocking layers can reduce hot spots and light bleed, but they may add thickness, change key feel or require tighter registration. State the acceptable visual result instead of only naming an LED color.

Treat sealing, cleaning and adhesive as one decision

Outdoor charging equipment faces rain, condensation, dust, UV exposure, hand oils and routine cleaning. The front panel does not work alone. Its adhesive edge, gasket area, window cutout and tail exit must fit the charger housing.

A common failure is to approve the printed face and then discover that the adhesive has too little landing area around a window or near a curved enclosure edge. Another failure is a tail route that exits toward a drainage path, hinge, service seam or sharp plastic rib. These problems are avoidable if the RFQ includes the mounting surface, not only the graphic file.

Send the housing material and a photo or drawing of the mounting area. If the charger uses powder-coated metal, textured plastic, glass, acrylic or painted sheet metal, say so. Also state the cleaning method if the front panel may be wiped with alcohol, detergent or outdoor service chemicals.

Specify tail route and connector access early

The flex tail is not a minor detail on a charger front panel. It decides how the keypad reaches the controller board, how the service team replaces the front part, and whether bending stress appears after assembly.

Before sampling, define:

• tail exit side and bend direction;
• tail length from panel edge to connector;
• connector pitch, pin count and contact side;
• stiffener position and insertion direction;
• keep-out zones around ribs, screws, gasket grooves and cable paths;
• whether a service technician can disconnect the part without removing unrelated modules.

If the electronics layout is not frozen, send the current board position and mark the uncertainty. A supplier can still quote a first sample, but the assumption should be written down so the tail does not become the hidden revision after tooling.

Ask for sample evidence that matches outdoor use

A useful first sample should prove more than continuity. For a charger interface, ask for evidence that connects the electrical function to the installed front panel.

The review package can include:

• photos with the panel mounted on the intended housing or a realistic fixture;
• dark-room images showing lit icons, status windows and possible light leak;
• daylight or angled-view photos showing unlit legend readability;
• close-ups of adhesive edges, window openings and tail exit;
• connector mating notes and bend-radius observation after installation;
• a short pass or revise list for key feel, light uniformity and service access.

This evidence helps purchasing and engineering discuss the same sample. It also separates normal production variation from a design issue that should be corrected before quantity orders.

RFQ package for a charger backlit membrane switch

For a faster technical quotation, send a compact but complete package:

• 2D outline drawing with key zones, windows and tolerances;
• artwork file with visible legends, hidden legends and lit areas separated;
• charger housing photo, material and mounting surface description;
• lighting goal for each zone, including color and brightness logic if known;
• tactile or non-tactile key feel, embossing preference and glove-use note;
• sealing, cleaning and outdoor exposure assumptions;
• tail exit side, tail length, connector data and board position;
• sample quantity, target timing and expected annual order range;
• photos of any older panel failure, such as edge lift, water entry, dim icons or cracked tail.

If only part of the design is ready, send that stage clearly. The next useful step is to quote the sample around the real charger housing and service workflow, not to guess from a flat artwork image. Baoshengda can review drawings, light zones, tail routing and mounting information through the Request Quote path when the project team is ready to compare sample options.
