Medical Device Front-Panel RFQ: Define Material Identity Before a PFAS Claim

A medical-device front-panel RFQ should never reduce a material question to one broad “PFAS-free” checkbox. First identify every supplied layer, its exact material designation, where it sits in the finished device, whether it contacts a user or patient, and which party owns the supporting declaration. For a custom graphic overlay, that means separating the face film, printed inks, hard coat, adhesive, release liner, spacer and any flexible circuit. Ask for evidence tied to the released bill of materials and revision. Do not ask a component supplier to turn a category name into a finished-device safety or regulatory conclusion. Start with the graphic overlay and front-panel scope, then define what must be proved at drawing, sample and change-control stages.

What the September 1 FDA update changes for a buyer

The FDA’s PFAS in Medical Devices page, updated September 1, 2026, explains that PFAS is a broad chemical family and that fluoropolymers used in medical devices can have very different structures and functions from smaller PFAS associated with environmental concerns. The agency also states that it regulates finished medical devices, not individual materials in isolation, and evaluates how a material is used and how the device contacts the body.

That is not a blanket approval for a graphic overlay material, and it is not a reason to ignore a buyer’s restricted-substance process. It is a reason to make the sourcing question more precise. A supplier declaration should name the supplied article and the declared material scope. The medical-device manufacturer still has to decide what evidence is appropriate for its finished device, intended use, contact condition and markets.

Map every front-panel layer to its function and owner

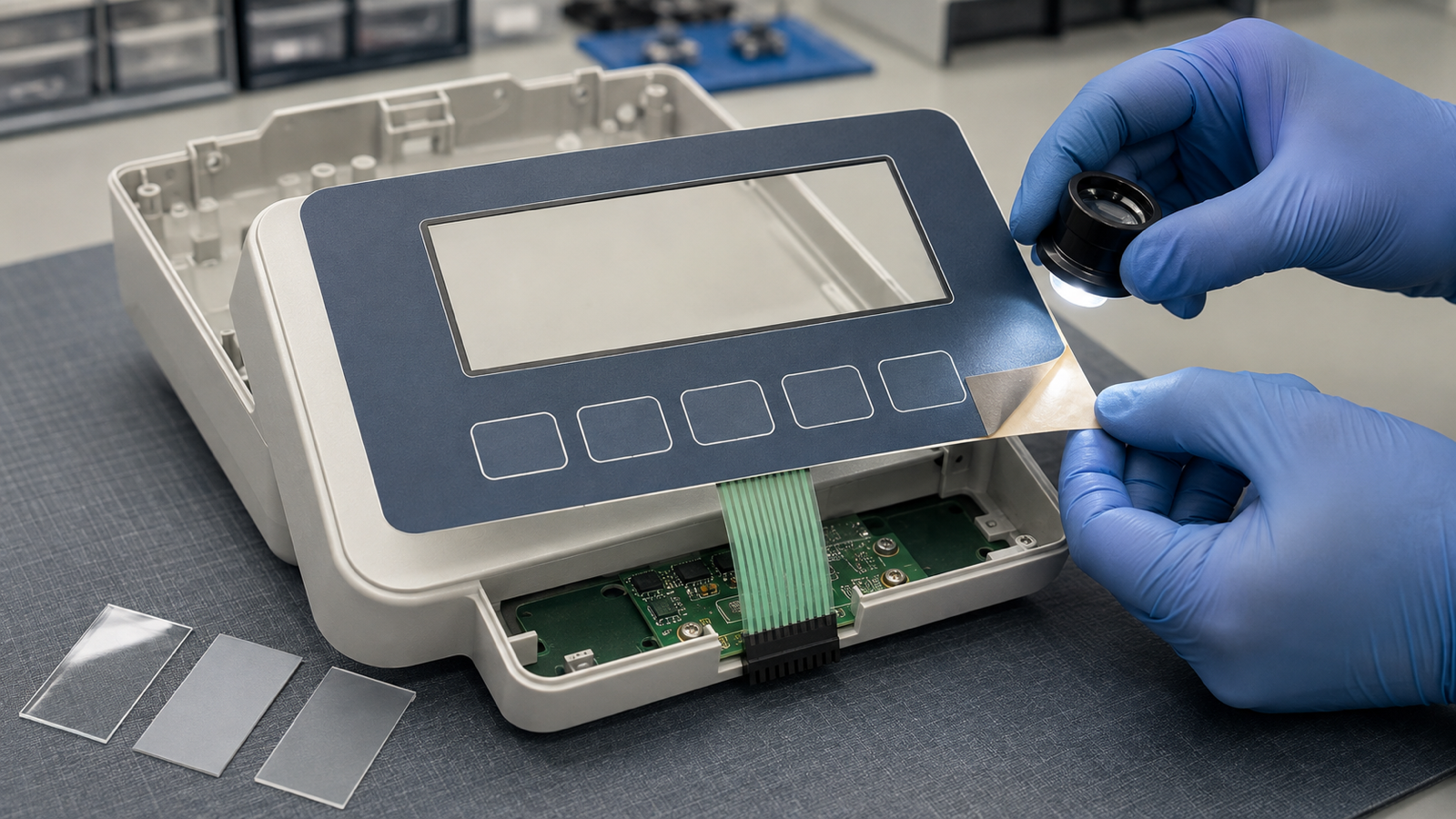

Begin with the released stack, not a generic supplier brochure. A typical custom front assembly may contain a PET or polycarbonate face film, printed color and opaque layers, a clear window, a surface hard coat, pressure-sensitive adhesive, release liner, spacer layers and a flexible tail when the part also contains a switch circuit. Not every RFQ includes every layer, and two parts that look similar may use different adhesive or ink systems.

Give each layer a controlled name. Add supplier, grade or family where disclosure rules permit. State whether the layer remains in the delivered component or is removed during assembly. A release liner protects adhesive during shipment but is not normally part of the installed device. An adhesive, ink or hard coat remains with the front panel. Those differences matter when a buyer asks which substances and upstream declarations are inside the purchased article.

Also mark the functional boundary. The overlay may provide artwork, a window, tactile locations and an adhesive seal. It does not automatically include the display, controller, device enclosure or medical software. If the RFQ combines an overlay with a membrane switch, identify the circuit, tail, connector and backing support separately.

Use an evidence-ownership table instead of a yes-or-no box

The useful answer may be “not declared,” “not intentionally added,” “not known from the available upstream document,” or “outside supplied scope.” These phrases are not interchangeable. Define the wording before quotation so purchasing does not compare suppliers that answered different questions.

Freeze the decision in drawing, sample and change-control stages

At drawing review, lock the overlay perimeter, display window, key zones, printed layers, surface finish, adhesive pattern, tail exit and connector location. Attach a stack table with one line per supplied layer. Give the table its own revision so a later artwork edit does not hide a material change.

At sample review, inspect the actual panel against the drawing. Confirm window clarity, surface texture, print registration, adhesive coverage, edge condition, tail routing and connector fit. Retain the sample lot and the evidence package that belongs to it. A clean visual sample does not identify a chemical family. Material identity comes from controlled purchasing and supplier records, while the sample proves the released construction and workmanship.

At change control, define what requires notice. A change of film grade, hard coat, ink system, adhesive, liner, circuit substrate, connector or manufacturing site may affect different evidence. Do not accept “equivalent” as the whole record. Ask which function, dimension and declaration changed, which stayed the same, and what new sample or document will close the review.

Do not treat a substitute material as equivalent by appearance

Two transparent films can have similar color and thickness but different surface energy, print adhesion, flex behavior, optical haze or cleaning response. Two adhesives can look alike while producing different peel behavior on the approved housing surface. A substitute should therefore be reviewed against the actual component functions, not only against the broad polymer name.

For a front overlay, compare the substitute at minimum for artwork registration, window appearance, texture, formed or embossed areas if present, adhesive landing, edge lift, housing fit and cleaning exposure defined by the device team. If the part contains keys, repeat mounted actuation and release checks. If it contains a flexible circuit, recheck tail bend, insertion depth, continuity and connector retention.

None of these tests identifies PFAS by sight. They answer whether the proposed construction performs like the released component. Chemical or restricted-substance evidence must still come from controlled material and supplier documentation suitable for the buyer’s assessment.

Keep the component-supplier boundary explicit

A front-panel supplier can quote and manufacture the released overlay or membrane-interface package, identify the materials and operations within its supplied scope, provide agreed incoming or final inspection records, and notify the buyer about controlled changes. The supplier should also say when an upstream declaration is unavailable or applies only to one material grade.

The medical-device manufacturer retains the finished-device material assessment, biological and toxicological evaluation where applicable, intended-use decision, patient or user contact classification, cleaning validation, electrical safety, software behavior and regulatory submission. A component declaration does not certify the finished device. The FDA page should be used as current context for asking a better question, not as a shortcut to a compliance claim.

Send a quotation package that can survive revision

Before using the Request Quote page, prepare:

• the controlled front-panel artwork and dimensioned perimeter;
• the display-window active area, border and optical requirement;
• each key zone, embossing or tactile requirement;
• a layer-by-layer stack naming face film, coatings, inks, adhesive, liner, spacer and circuit where applicable;
• the surface finish and cleaning exposure defined by the device team;
• the adhesive landing and approved housing material or representative test coupon;
• the complete tail, contact finish, connector and pin assignment when the assembly includes a switch circuit;
• the exact restricted-substance question and the declaration wording expected from the component supplier;
• the scope of any upstream document, including known exclusions and unknowns;
• drawing, sample, pilot and change-control acceptance evidence;
• quantity, revision, packaging, service-spare and retention requirements;
• the owner of finished-device safety, regulatory and market decisions.

This package lets suppliers quote the same controlled component and exposes evidence gaps before a material claim reaches a drawing note, purchase order or submission file.
