Industrial IoT Interface Supplier Transfer: Freeze FPC Tail and Connector Service Evidence

When an industrial IoT front interface moves to a new supplier, freeze the installed FPC handoff before approving the first replacement sample. The buyer should control the front outline, switch zones, adhesive landing, tail exit, first-bend keepout, stiffener, connector orientation, service pull direction and controller-side pin map. A loose keypad that passes continuity can still fail when the tail folds around a rib, the connector cannot be reached, or the replacement stack changes key feel after mounting. Quote the FPC membrane switch and installed interconnect as one controlled interface, then approve it through fit, electrical and service-access evidence rather than appearance alone.

Commercialization does not close the enclosure handoff

The OE-A symposium page updated August 31, 2026 describes flexible and printed electronics moving toward smart applications, industrial IoT and commercialization across an international value chain. That is useful market context for a supplier-transfer decision, but it does not define any specific enclosure, keypad, FPC construction or acceptance limit.

For a replacement project, commercialization creates a practical sourcing question: can a second supplier reproduce the interface after it is installed, connected and serviced? The risk is rarely limited to the visible artwork. A front film can match the old colors and outline while the tail exits a few millimeters off the usable corridor, the connector points toward a blocked wall, or the first fold concentrates stress beside the reinforced end.

Treat the current industry activity as a reason to improve the handoff, not as proof that a given material or supplier is approved. The durable work is to convert the existing assembly into controlled inputs that purchasing, engineering and quality can evaluate together.

Choose the replacement boundary before redrawing anything

Start by deciding what the new supplier is expected to reproduce. Do not send a photograph and ask for a complete equivalent when the original scope contains several owners.

If the project boundary is not explicit, quotes will not be comparable. One supplier may include a finished connector and mounted fit check while another prices only a printed tail with exposed contacts. A low unit price can therefore hide new tooling, mating parts, assembly labor or enclosure rework.

Preserve three datums through the flexible transition

The most useful transfer drawing relates the visible front to the hidden interconnect. Preserve at least three datums: the panel perimeter or locating feature, the tail centerline at the exit, and the connector contact orientation. These references make it possible to inspect the replacement without copying undocumented tolerances from a worn sample.

The first datum controls how the front sits on the housing. Mark the adhesive landing, display opening and any unsupported recess. A switch dome or embossed key over a cavity may feel different after assembly even if its loose-sample force appears acceptable.

The second datum controls the tail path. Define the exit width, direction, first-bend keepout and clearance to a rib or screw boss. Do not dimension only the overall tail length. A longer tail can still be unusable when its stiffener enters the bend zone or the route requires a reverse fold during assembly.

The third datum controls connection. State the connector-side view, pin-one reference, contact side, pitch, stiffener side and mating part. Photographs help identify open questions, but they do not replace a controlled view. Mirror-image pin assumptions are especially difficult to detect after the tail disappears under a controller board.

Approve a service path, not a loose coupon

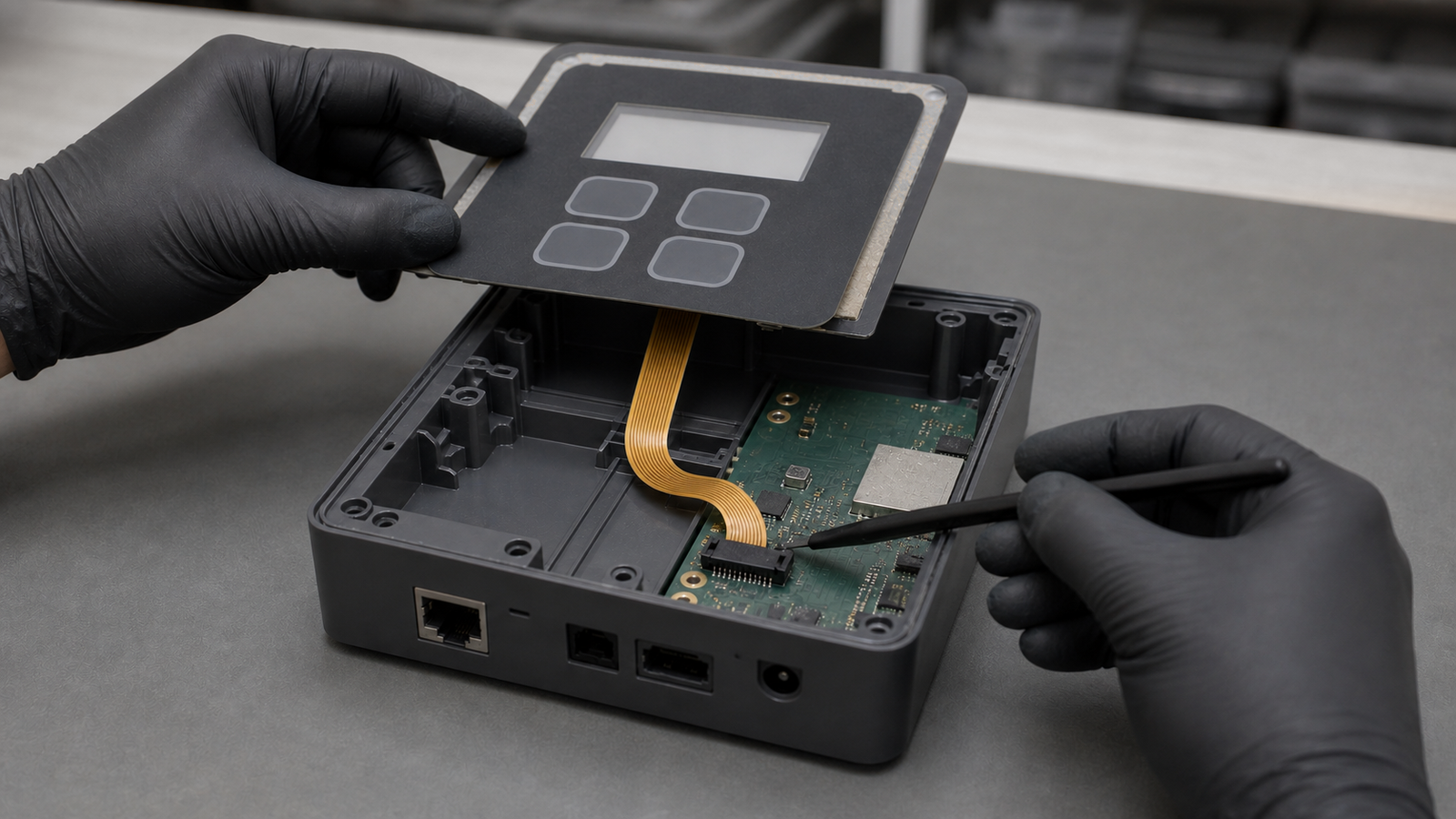

A supplier-replacement sample should follow the same direction used during real assembly and maintenance. Build a simple transparent or open fixture that preserves the actual housing landing, tail corridor and connector position. The buyer should be able to see the tail during installation without claiming the fixture proves final environmental or equipment performance.

Install the panel without pulling the tail as a positioning handle. Confirm that the perimeter lands flat before closing the connector. Route the flex through the intended opening, form only the agreed bend, and verify that the stiffener remains outside the curved zone. Mate the connector using the defined insertion direction and check that the latch or retention feature can be reached by the approved service tool.

Then repeat the removal sequence. A panel that can be assembled once may still be unsuitable for a service spare if a technician must crease the tail, peel the front from the wrong edge or pull the connector by its flex. Record the direction, tool clearance and number of agreed service repetitions. This evidence is more useful than an unsupported claim that the part is drop-in compatible.

Use a staged first-sample evidence sequence

Do not combine every approval question into one final inspection. A staged sequence finds ownership errors before they become tooling disputes.

1. **Document review:** reconcile the old sample, controlled drawing, artwork revision, circuit matrix, connector view and enclosure route. Mark every inferred item as open rather than converting it into a tolerance.

2. **Loose component check:** inspect outline, windows, print, key zones, tail geometry, stiffener, connector and pin continuity. Use the loose sample only for facts that do not depend on housing support.

3. **Mounted fit check:** install the sample in the real housing or representative fixture. Check perimeter seating, display registration, key response, tail clearance and connector reach.

4. **Service-access check:** remove and reinstall the sample through the specified path. Inspect the first bend, reinforced end, contact area, latch access and any adhesive edge disturbed by service.

5. **Electrical handoff check:** confirm each key at the connector-side pin reference before observing the controller input. A correct controller response does not replace the pin-level record, and pin continuity does not prove the software action.

6. **Controlled master release:** identify the accepted drawing, artwork, circuit, connector, material stack and mounted sample. Define how future revisions and service spares will be compared.

Keep results separated. If appearance passes but connector access fails, record that failure against the installed-service boundary. Do not reject or approve the entire sample with one ambiguous pass label.

What the interface supplier can and cannot prove

An FPC membrane-switch supplier can review and manufacture the graphic layers, tactile or non-tactile switch stack, adhesive, printed circuit, flexible tail, stiffener and specified connector. The supplier can provide agreed dimensional, appearance, continuity, contact, termination and sample-build evidence. When the buyer supplies the enclosure or fixture, the supplier can also support a defined mounted-fit review.

The component supplier cannot infer controller pin ownership from a photograph, certify machine safety, validate network or cloud behavior, approve firmware, define maintenance authorization, or release the finished industrial IoT device. The supplier also cannot prove lifetime, chemical resistance, ingress protection or service-cycle performance unless the buyer defines the materials, exposure, assembly and test method and the quotation includes that scope.

This boundary should appear in the quotation. It prevents a replacement FPC from being blamed for a blocked connector or controller state that was never included, and it prevents a continuity report from being presented as whole-device validation.

Drawing, sample and RFQ checklist

Before using the Request Quote page, prepare one controlled package:

• approved front artwork, visible windows, key identifiers and revision history;
• panel outline, locating datums, housing opening, adhesive landing and unsupported areas;
• material and surface requirements that are already decided, with open alternatives clearly marked;
• circuit or contact matrix, connector-side pin numbering, contact side, pitch, stiffener and mating-part definition;
• tail exit position, route corridor, first-bend keepout, fold direction and strain-relief ownership;
• enclosure ribs, bosses, board position, connector access and assembly sequence;
• service removal direction, permitted tools, replacement frequency and whether adhesive is renewed;
• loose, mounted, service-access and electrical acceptance methods with pass criteria;
• prototype quantity, production quantity, spare-part plan and controlled master requirements;
• named owners for enclosure, controller logic, firmware, safety, network functions and final equipment validation.

Ask each supplier to state exclusions against the same list. The goal is not to reproduce undocumented history. It is to release a replacement interface whose visible front, flexible transition and connector handoff are all controlled before the first sample is treated as equivalent.
