Home-Use Medical Device FPC Membrane Switches: Keep Controls Serviceable

A home-use medical device control pad should be planned as a serviceable input part, not only as a thin printed face. If the front keys, FPC tail, connector access and cleaning exposure are decided late, the first sample can look tidy on the bench but become difficult to assemble, wipe or replace after the enclosure is frozen. For small monitors, therapy controllers and caregiver-operated accessories, the safer first decision is to define where the physical controls sit and how the tail can be reached without stressing the switch stack.

The market hook is practical rather than speculative. The FDA's Digital Health Center of Excellence maintains a public page for medical devices that incorporate sensor-based digital health technology. More home and wearable device projects mean more compact housings where screens, sensors, battery doors and user inputs compete for space. Baoshengda does not supply the complete medical device or decide the device claim, but its FPC membrane switch work can support the low-profile physical input, tail route, contact area and sample evidence for that component.

Start with the user action, not the switch outline

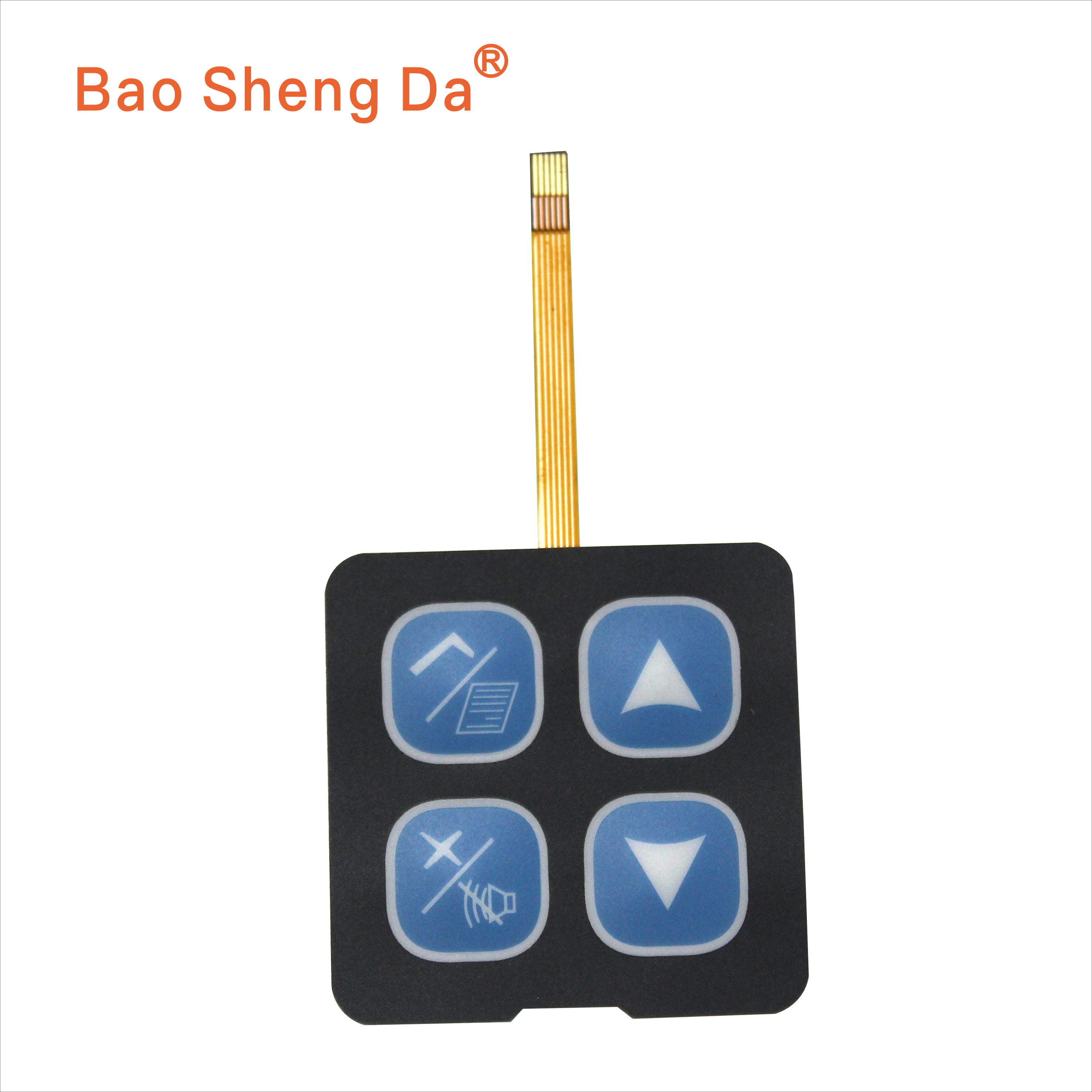

The same four-key control face can serve different jobs. A patient may press an up key to adjust a setting. A caregiver may silence an alert. A technician may need a hidden service input during inspection. Those actions do not create the same design requirement.

Before the keypad outline is fixed, mark each key by user role, press frequency and failure risk. A frequently used key may need stronger tactile feedback and a larger landing area. A service-only key may need separation from normal user controls. If the device is used by older users or gloved caregivers, small icons and shallow domes may pass a drawing review but fail in daily operation.

This early map also decides whether the keypad should sit beside a display, below a display window or on a separate sealed area. Moving the input later can force a tighter tail bend, a weaker adhesive edge or a connector position that the assembly team cannot reach cleanly.

Keep the FPC tail out of the squeeze zone

The FPC tail is often the part that makes a compact medical control possible. It saves height compared with loose wiring and can route through a narrow slot to a PCB or ZIF connector. That advantage disappears if the tail is bent sharply at the housing wall or trapped under a screw boss, gasket rib or battery cover.

Ask the mechanical team to show the tail path in the enclosure section. The drawing should include bend direction, free length, strain relief, connector side, insertion direction and any adhesive or gasket nearby. If the PCB is removed during service, note whether the tail must be unplugged first or can stay attached.

The tradeoff is between compactness and service margin. A short direct tail reduces empty space, but it gives the assembler less room to insert the contact end. A longer tail can improve access, but it may need a controlled fold, retainer or clearance pocket so it does not rub against moving covers or sharp plastic edges.

Treat cleaning as a stack issue

Home-use medical equipment may be wiped by different people with different pressure. The front film, printed ink, spacer, adhesive, dome or contact layer, tail exit and housing edge all respond as a stack. A clean front surface is not enough if wiping pressure starts an edge lift near the tail slot.

Define the cleaning condition before sampling. State the wipe type, expected frequency, whether liquid can reach the side edge, and whether the keys must still be found by touch after repeated wiping. If the device has a display window near the keypad, separate the window clarity requirement from the keypad feel requirement. A surface that reduces glare may not suit small legends or a clear display window.

For the sample review, ask for photos after the keypad is mounted in the real housing or a printed fixture. A loose keypad can hide the gasket pressure, connector angle and housing shadow that create problems after assembly.

Decide what must be replaceable

Some home-use devices are expected to be serviced as a complete front module. Others may replace only the overlay, keypad, PCB or cable. The FPC membrane switch design should follow that service plan.

If the keypad is not meant to be replaced separately, the RFQ can focus on stable adhesive, tail durability and repeatable assembly. If replacement is expected, the design needs a reachable connector, controlled peel direction, enough tail length for handling and a front edge that does not damage the housing when removed.

There is a limitation. A thin FPC membrane switch can reduce housing height and simplify routing, but it is not a sealed system by itself. The OEM still needs to define the enclosure seal, cleaning protocol, electrical safety requirement and final device verification. The component supplier can only prepare the switch sample against the inputs provided.

What to send before the first sample

A useful RFQ package should connect the medical-device use case to the component drawing. Send the front artwork, key function map, housing section, PCB or connector position, tail exit direction, cleaning exposure, expected press feel, sample quantity and any photos of the existing device front. If the project is a redesign, mark which issue is being corrected: weak tactile feedback, edge lift, hard assembly, connector damage or poor readability.

Ask for the sample evidence in the same language. Useful evidence may include a front-view photo, tail-route photo, contact-end detail, mounted fit photo, adhesive edge review and a short note on the layer stack used for the sample. This keeps the first sample tied to the real enclosure instead of becoming only a cosmetic front label.

When the drawing package is ready, send the artwork, enclosure section, tail-route requirement and planned quantity through Baoshengda's Request Quote page. The useful first question is whether the FPC membrane switch can stay thin, sealed and serviceable in the housing the buyer already plans to build.
