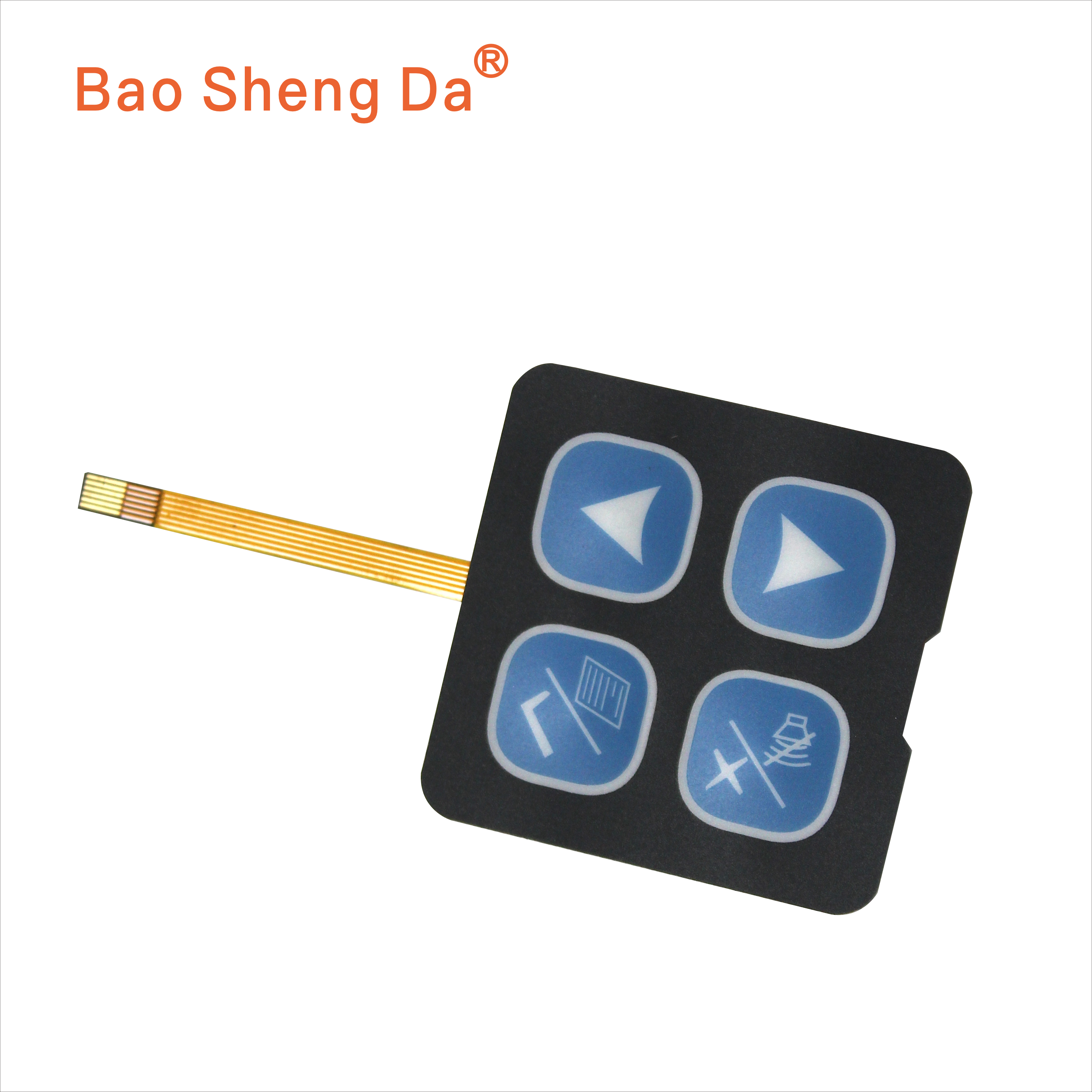

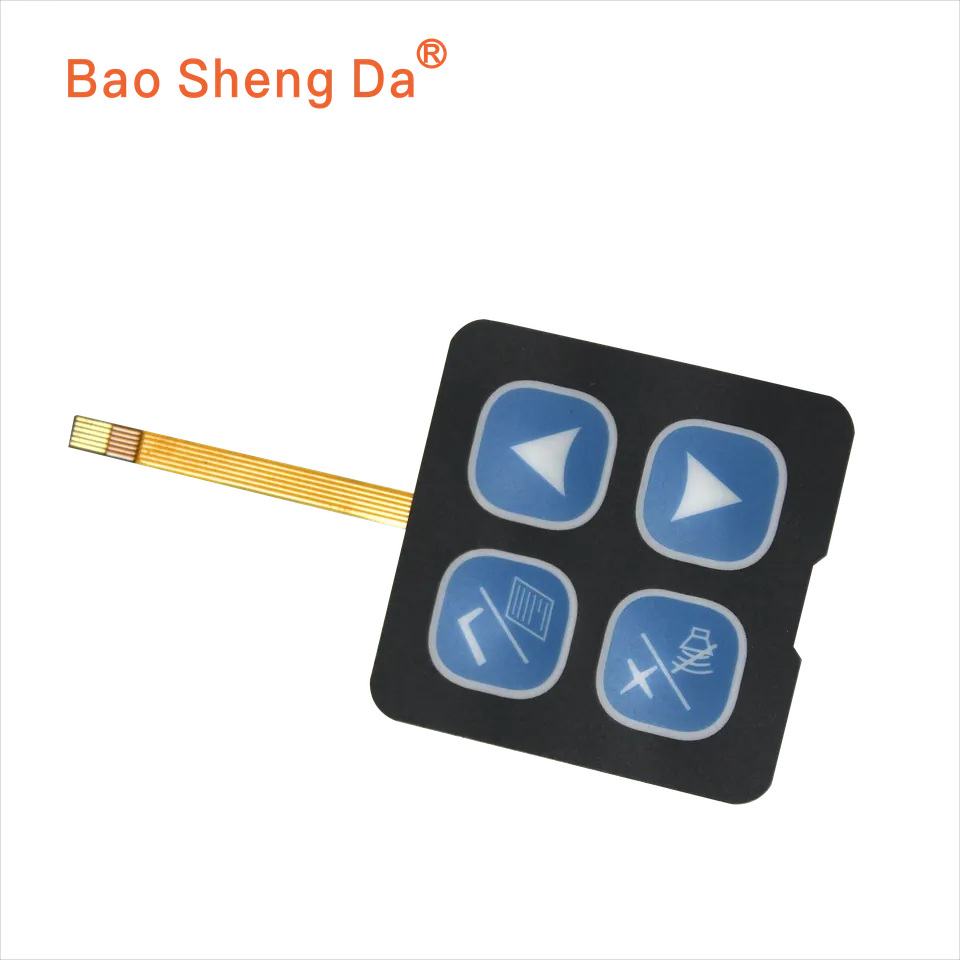

A material that survives 5000 flat bends is not the same as a tail that survives the enclosure route. A study published on August 12, 2026 reports that an ultrathin flexible composite film retained stable shielding performance after 5000 bending cycles and water immersion. A buyer can see that number and approve an FPC sample after a loose coupon test, while the installed tail still crosses a rib, boss, adhesive edge, service loop or connector pocket. Approve the mounted route, not the material coupon.
What the August 12 bend study shows and does not show
Mechanically Robust and Flexible Polyurethane / Liquid Metal Film with 5000-Bend Stability for Electromagnetic Interference Shielding was published on August 12, 2026. The researchers fabricated an ultrathin polyurethane and liquid-metal composite and reported stable electromagnetic shielding after 5000 bending cycles and water immersion, with elongation at break above 350 percent.
The study does not test a Baoshengda FPC membrane switch, an enclosure tail, a stiffener, a connector or a repeated housing closure. Its useful warning is narrower: a free material coupon can pass many controlled bends while the installed tail fails at a mechanical boundary that the coupon never sees.
Why a coupon bend is different from an installed tail route
A flat bending machine applies a controlled radius and direction to an unsupported film. Inside a product, the tail meets several extra conditions:
- a rib, screw boss or PCB edge can pinch the tail;
- a service loop can tighten when the housing closes;
- the connector can pull the tail at an angle;
- a sharp fold can concentrate stress at the first bend;
- the tail can rub on a hinge, cable or moving cover;
- the panel adhesive can lift at the tail exit after repeated use.
A material result does not remove those conditions. The sample protocol must load the FPC the way the assembled equipment will load it.
Freeze the bend geometry and supports before sampling
Start from the housing, not from the artwork. Mark the tail exit point, the first permitted bend and the path to the connector.
Then define:
- minimum bend radius and bend direction;
- service-loop length and where slack is allowed;
- stiffener location, thickness and contact exposure;
- connector pitch, pin count and mating angle;
- strain relief or cable clamp position;
- clearance to ribs, bosses, covers and moving parts;
- repeated insertion and removal count if service requires it.
A FPC membrane switch review should compare these inputs against the physical sample before artwork and pin mapping are frozen.
Use a bend-route decision table
The table below converts a coupon result into installed-route evidence. It is a review tool, not a universal pass and fail standard.
| Coupon or design signal | Installed FPC question | Required sample evidence |
|---|---|---|
| 5000 flat bend cycles | What is the installed bend radius and direction? | Housing section and actual tail route |
| Stable after water immersion | Can liquid reach the tail exit or connector? | Mounted splash or environmental condition |
| Elongation above 350 percent | Is the tail ever pulled in service? | Strain-relief and connector retention test |
| Free film test | Does the coupon include the panel and adhesive edge? | Complete mounted FPC sample |
| No connector in the study | Does the connector mate at an angle? | Connector insertion and re-mate cycle evidence |
Do not copy the 5000-cycle value into the FPC specification. The buyer must define the bend count, radius, direction, support and failure limit for the installed design.
Test the mounted tail, not only the loose circuit
The FPC should be attached to the intended housing or a controlled representative fixture. Use the same adhesive landing, ribs, fasteners, tail exit and connector position as production. Bend the tail through the real route, close the housing repeatedly, re-mate the connector, and inspect the contact fingers and tail transition before and after the sequence.
Measure continuity during motion or after each stage as agreed. Optical inspection should target cracking, flaking, dome lift, tail creasing and exposed-contact damage. A final bench continuity reading alone can miss an intermittent path that opens only after closure.
Supplier boundary and limitations
The cited study is original flexible-film research. It is not a Baoshengda test, a guarantee of FPC performance, or evidence that any enclosure route is safe. Baoshengda can review the FPC construction, key and dome layout, tail geometry, stiffener, exposed contacts, artwork and physical sample evidence for an agreed design. The buyer remains responsible for the housing route, connector system, cable management, final product validation and equipment-level approval.
Do not transfer the shielding-film substrate, 5000-cycle result or elongation value into a Baoshengda product specification.
FPC mounted-bend RFQ checklist
Send these items before requesting a firm prototype plan:
- FPC panel and tail drawing with datum and revision number;
- housing section with rib, boss, cover and connector positions;
- tail exit, first bend, service loop and minimum bend radius;
- stiffener, exposed-contact and connector or pin-map requirements;
- repeated closure, bend and connector re-mate counts;
- continuity measurement points, timing and failure limits;
- post-test optical inspection requirements;
- prototype quantity, production estimate and controlled revision numbers;
- buyer-owned responsibility statement for complete-equipment validation.
When the installed route and failure limits are defined, send the FPC membrane switch package for engineering review and request a sample quotation.
