FPC Membrane Switch Tail Crease: Rework or Resample?

A line across an FPC membrane-switch tail is not automatically a failed sample. It may be a broad formed bend that stays within the planned route, a surface mark from handling, or a sharp crease that has concentrated strain in the copper and cover film. The decision should come from geometry, electrical evidence and the real housing route, not from appearance alone.

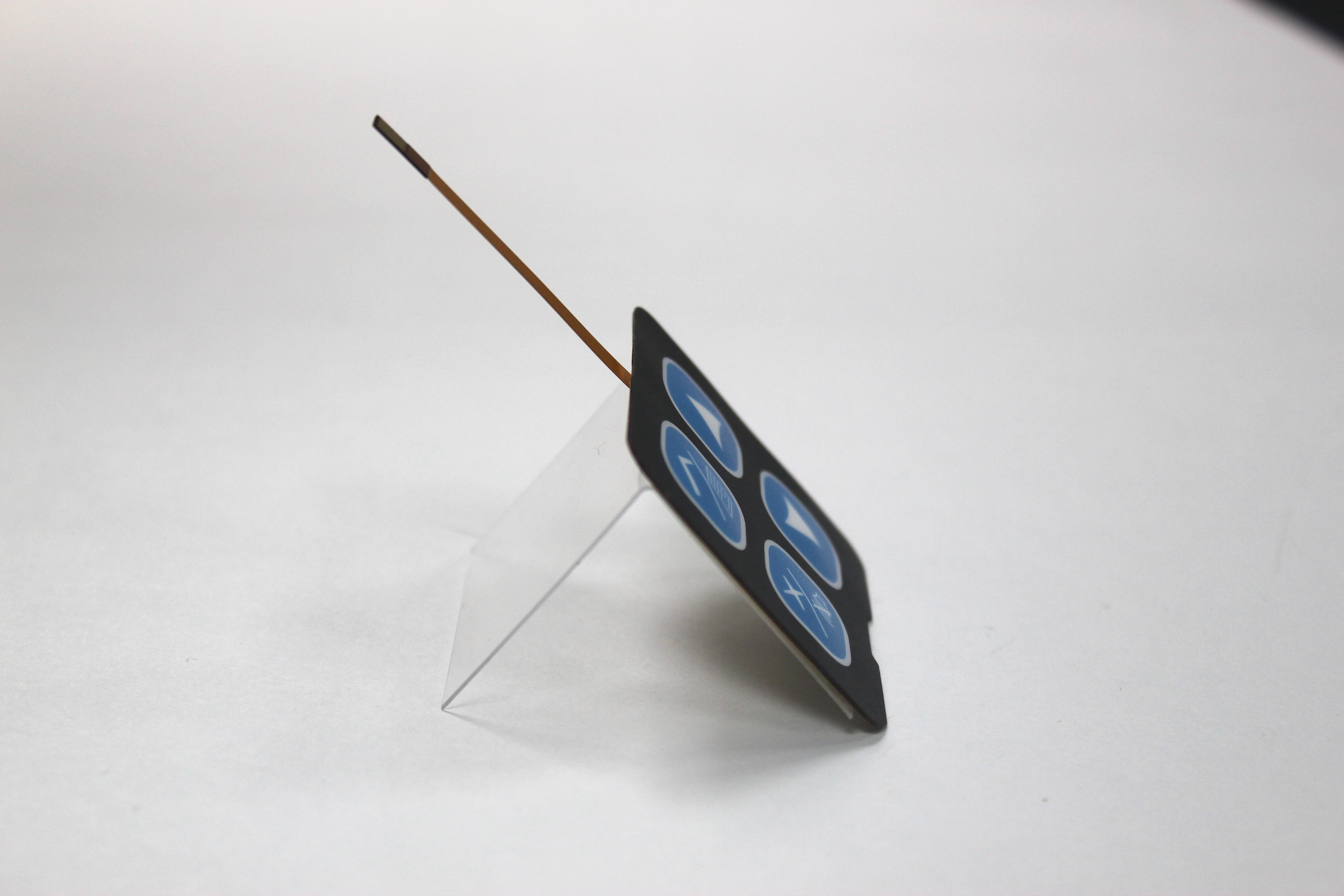

Review the complete FPC membrane switch from the panel exit to the exposed contacts. A tail that passes a flat continuity check can still fail after it is folded into a narrow slot, pulled sideways during connector insertion or reopened during service.

First decide whether the line is a bend or a crease

A formed bend changes direction over a visible radius. The inner surface compresses gradually and the outer surface stretches gradually. When the tail is released, it may retain some shape, but the transition should not collapse into one knife-like line.

A crease is more concentrated. Look for whitening, a cracked cover layer, a ridge that can be felt with a fingertip, wrinkling beside one conductor, exposed copper or a line that closes sharply when the tail is moved. Inspect both faces under angled light. Do not flex the suspect area repeatedly just to make the damage easier to see.

Record the distance from the panel edge, stiffener edge and contact fingers to the mark. Those datums determine whether a rework can move the bend into a permitted zone or whether the damaged location is fixed by the housing.

Map the suspect point onto the installed tail route

A loose sample does not show the final risk. Put the tail path on the enclosure section drawing. Mark the panel edge, housing slot, first supported bend, connector entry, stiffener and service loop. Then place the suspect line on that same drawing.

The highest-risk locations are often the first hard edge after the panel, the end of a stiffener and the point where an installer pushes the tail into a connector. A broad bend in a free span may be acceptable for a static assembly. The same bend can become a sharp fold when a cover presses it against a square slot.

Check whether the tail will move after assembly. A one-time static route and a service door that opens hundreds of times need different evidence. If movement is expected, define the moving length and keep the bend away from the panel transition, exposed contacts and stiffener edge. The equipment maker owns the motion profile and final life requirement.

Use electrical tests that expose intermittent damage

A simple pass or fail continuity reading is not enough. Measure the suspect tail in the flat state, at the planned installed bend and while it is held in the representative connector position. Use the approved fixture so the tail is not bent tighter by hand during the test.

Check every circuit, including any common return, shield or LED supply path. Record resistance rather than only a green indicator. A damaged conductor may remain continuous but show a repeatable resistance jump when the bend is loaded. Compare the suspect sample with an unmarked sample from the same revision when possible.

Watch for these failure patterns:

• one circuit opens only at the installed angle;
• resistance changes when the tail is moved sideways near the housing slot;
• several adjacent circuits change together, suggesting a common fold line;
• continuity is stable, but the exposed fingers no longer sit square in the connector;
• the mark grows after one controlled assembly and removal cycle.

Stop the test if copper becomes visible, the cover film splits or the tail cannot hold the intended radius without collapsing. More cycling would add damage rather than useful approval evidence.

Decide among accept, controlled rework and resample

Accept the sample only when the mark is outside a critical transition, the installed route preserves the specified radius, every circuit stays stable in the representative fixture and the mark does not progress during the agreed assembly check. Photograph the accepted condition and keep the measurement record with the sample revision.

Controlled rework may be reasonable when the tail is electrically sound and the problem comes from routing, not material damage. Examples include adding a smooth guide, increasing slot radius, changing the connector approach or moving a restraint so it does not force a hard fold. The rework should not add tape over a crack and call the defect repaired.

Request a new sample when the cover layer is cracked, copper is exposed, a conductor changes resistance with position, the crease lies at an unavoidable bend, the stiffener is misplaced or the housing cannot provide the required route. A new sample is also the cleaner decision when rework would change the intended stack enough that the result no longer represents production.

There is a tradeoff. Reworking a routing fixture can save a structurally sound sample and reveal an enclosure problem early. Approving a damaged tail to save schedule can hide an intermittent failure until the panel is bonded and difficult to replace.

Control handling before the next sample arrives

Prevent the same mark from returning. Ship and store the tail flat or around an approved support, not folded under the keypad. Use a release liner or carrier that protects the exposed contacts. Mark a no-fold zone around the panel transition and stiffener edge on the packing and assembly instruction.

At the workstation, define where the operator may hold the tail, how the contact end enters the connector and which tool, if any, guides it through the slot. A tail should not be pulled by its exposed fingers or pressed against a metal edge. Keep adhesive liner removal separate from connector handling so the loose tail does not stick to the wrong surface.

If the panel is bonded before connection, confirm that the installer still has enough access to align and lock the tail without twisting it. If connection happens first, confirm that panel placement does not pull the tail against the connector latch.

Send an RFQ package that fixes the bend location

For a useful sample review, send the FPC outline, layer or stack requirement, copper thickness if known, tail width, conductor count, connector model, contact side, exposed-finger length and stiffener details. Add the enclosure section with slot dimensions, edge radius, first bend location, service movement and assembly sequence.

Include full-tail photos from both faces, a close view of the suspect line under angled light and resistance records in flat and installed positions. State whether the mark appeared during shipping, unpacking, fixture assembly, connector insertion or housing closure.

Use the Request Quote route to send the drawing set, sample quantity and expected production quantity. The approval record should end with one clear outcome: the marked tail is accepted against defined evidence, the route is changed and retested, or a revised sample is built before production release.
