Approve an FPC membrane switch tail only after it has been inserted into the specified ZIF connector, routed through the intended enclosure, and checked again after the housing closes. A loose keypad can pass continuity while the assembled unit leaves the tail partly seated, pulls against the latch, or forces the first bend onto the stiffener edge. The sample record should show connector part number, contact side, insertion position, latch state, service-loop path, enclosure clearance, and pin-by-pin results before and after closing. If field service requires reconnection, include the intended insertion-cycle check instead of assuming a one-time bench test covers it.

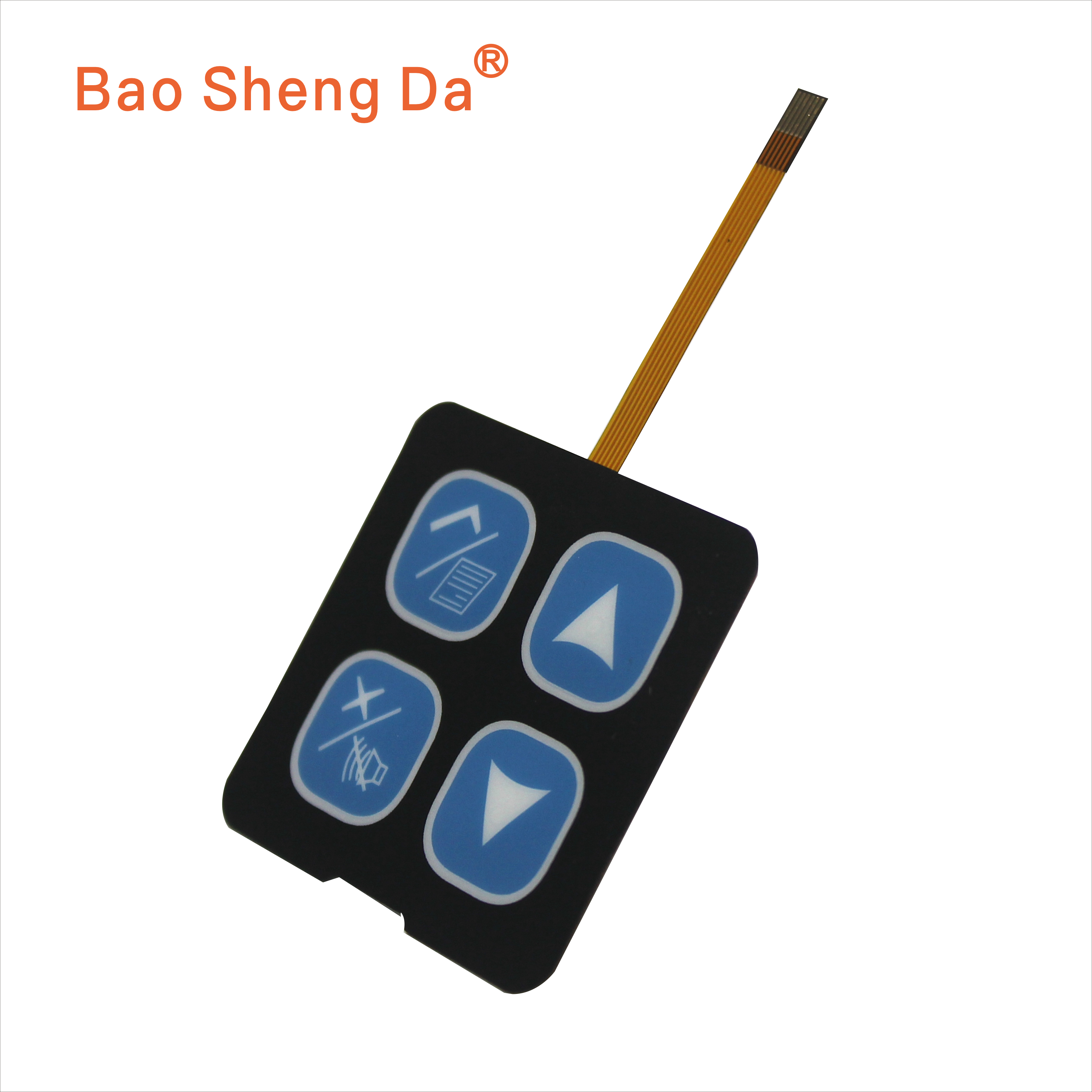

The front panel, FPC tail and PCB connector form one assembled interface. A buyer reviewing a custom FPC membrane switch should therefore approve the connection in the real mechanical stack, not from the keypad drawing alone.
Why a loose continuity check is incomplete
Continuity on a flat bench confirms that conductive paths exist at that moment. It does not prove that the tail reaches the connector without side load, that the contact fingers face the correct direction, or that the latch remains fully closed when the rear cover is fitted.
Three assembly problems often remain hidden. First, the tail can be inserted to a visually plausible position without reaching the connector's full contact zone. Second, a short service loop can pull the tail backward as the PCB or cover moves into place. Third, the enclosure can press the tail against a rib, screw boss or sharp board edge and concentrate the bend beside the stiffener.
The initial electrical result may still be good. The intermittent open appears later when the unit is handled, the cable is moved during service, or the enclosure is opened and closed again. Sample approval should reproduce the assembly action that creates the risk.
Freeze the actual connector and assembly sequence
Record the connector manufacturer and part number before the supplier locks the tail end. Pin count and pitch are not enough. Two connectors with the same nominal pitch can differ in contact side, insertion depth, latch travel, housing entry and permitted tail thickness.
The sample instruction should identify which part moves during assembly. Does the operator bond the keypad first and then route the tail to a fixed PCB? Is the PCB installed first and the tail inserted through a narrow service opening? Does the rear cover move the PCB during closing? These sequences create different pull directions and different space for opening the latch.
Mark a non-electrical insertion witness reference on the sample instruction or inspection photo. The reference can show whether the tail reached the intended position before the latch closed. Do not add ink or an adhesive label to the contact area itself. Confirm the acceptable witness location with the connector owner and the assembly team.
What each sample observation should decide
| Observation | What it may indicate | Next buyer action |
|---|---|---|
| Tail reaches the witness position and the latch closes without resistance | Basic insertion geometry is plausible | Record the assembled state, then close the enclosure and recheck |
| Latch closes but the witness position is short | Tail may not have reached the intended contact zone | Stop approval and compare insertion depth, stiffener edge and connector entry |
| Tail shifts when the cover is lowered | Service loop, PCB movement or exit location is adding tension | Change the route or support before repeating the electrical check |
| Continuity changes when the rear cable is moved lightly | Connection or tail route may be sensitive to handling | Inspect seating, pin contact and the first bend; do not approve by panel operation alone |
| Tail surface is marked beside a rib or screw boss | Enclosure contact is defining an uncontrolled bend point | Add clearance or a controlled support surface and rebuild the mounted sample |
| Reconnection is difficult during planned service | Access, latch reach or tail handling method is unsuitable | Revise the service procedure or mechanical layout before production release |
The table is a diagnostic guide, not a universal pass/fail specification. Pull force, movement amount, insertion cycles and electrical limits must come from the connector data, equipment requirements and buyer's validation plan.
Recheck after the enclosure is fully closed
Photograph the tail route before closing if it will become hidden. The photo should show the panel exit, first bend, service loop, connector entry and nearby ribs or fasteners. A single close-up of the contact fingers does not document the mechanical path.
After closing the housing, operate every keypad circuit and repeat the agreed pin-by-pin test. If the product has LEDs or a shared return, include those lines in the same record rather than checking only the four visible keys. Then reopen the enclosure and inspect whether the tail moved, the latch lifted, the service loop tightened or a new crease appeared.
Do not use an unspecified hand tug as a retention test. A pull applied in the wrong direction can damage the sample or produce a result that cannot be repeated. If retention force matters, define the direction, fixture, connector state and acceptance value from the connector or equipment requirement. For a serviceable product, also state how many disconnect-and-reconnect operations the sample must represent. For a one-time factory assembly, avoid unnecessary cycling that does not match the real use case.
Keep the supplier boundary explicit
The membrane switch supplier can control the tail outline, conductor pattern, exposed contact length, contact side, stiffener material and position, finished tail thickness, panel exit and agreed inspection evidence. Those items should match the released tail drawing.
The PCB owner controls the connector footprint, board orientation, pin assignment and often the connector purchase specification. The enclosure designer controls clearance, ribs, cover motion and the space available for latch access. The assembler controls insertion method and handling. The equipment owner sets final electrical, environmental, vibration, service and life acceptance.
Approval becomes unreliable when one party is asked to guarantee the whole connection without receiving the mating connector, housing geometry or assembly sequence. State each owner in the sample plan, then close any gap before production tooling or material release.
Send a mounted-sample package with the RFQ
A useful RFQ package for this approval question includes:
- FPC membrane switch outline and stack drawing, including tail exit location;
- ZIF connector manufacturer, part number, datasheet and PCB orientation;
- pin map with an unambiguous viewing direction and pin-one reference;
- tail width, pitch, contact side, exposed finger length, stiffener length and finished insertion thickness;
- enclosure section or 3D view showing the PCB, cover, ribs, fasteners and tail service loop;
- assembly sequence, including when the keypad is bonded and when the latch is operated;
- expected one-time assembly or service reconnection duty;
- electrical checks required before closing, after closing and after reopening;
- buyer-defined retention, movement, environmental or life limits when they apply;
- sample quantity and which units may be opened for inspection.
Send these inputs through the Request Quote form with the drawing package. The next useful decision is not whether the loose tail looks correct. It is whether the specified connector, mounted route and closed enclosure produce the same electrical result without moving the latch or loading the first bend.
