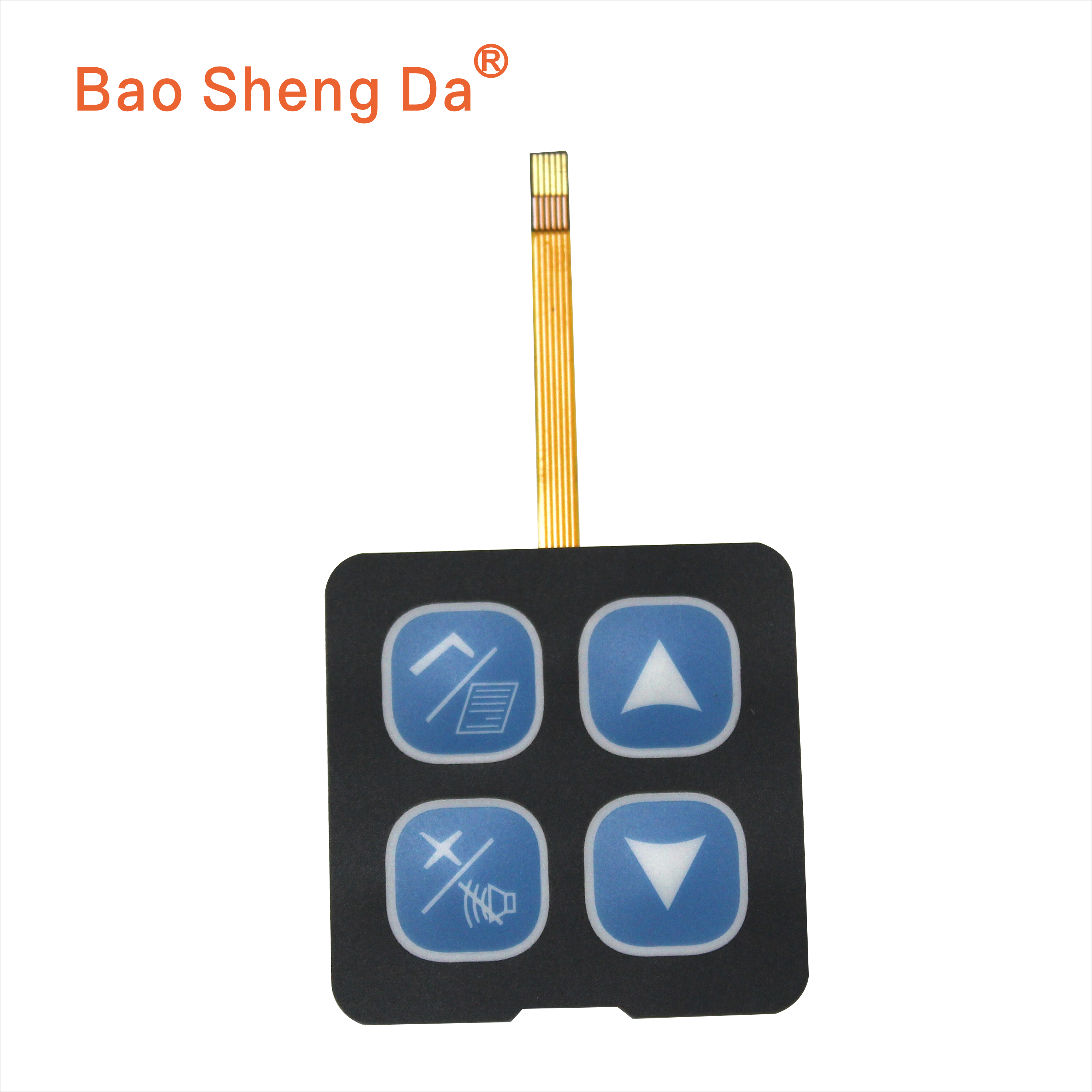

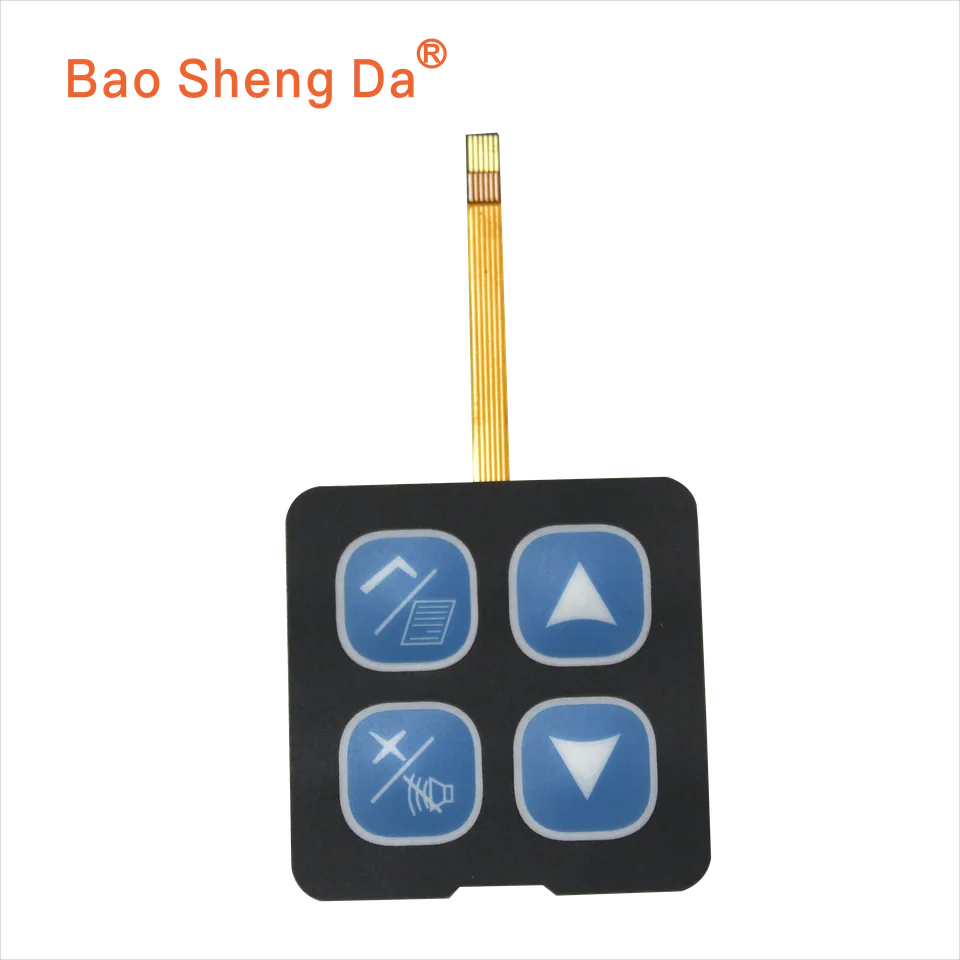

An FPC membrane switch can pass continuity on a bench and still fail on the first drop, vibration run or connector re-mate. Continuity only reports whether a path is electrically connected at the moment of measurement. It does not prove that a trace survived stress, that the bond stayed attached, that the tail transition will keep flexing, or that the exposed contacts will remain seated. Before approving a sample for a handheld tool, robot control, portable medical device or another moving product, add a mounted shock and tail-cycle protocol.
Why a continuity pass misses shock damage
Continuity is a useful go/no-go check, but it is not a stress test. The probe measures one completed circuit at one instant. It does not load the part the way the installed equipment will load it.
Three common results create false confidence:
- A trace can crack partway through and still pass continuity while the separated edges happen to touch.
- Flaking or peeling can begin near the panel edge or tail transition while the remaining contact area still reads closed.
- A connector contact can sit properly on the bench, then move when the latch, cable loop or housing wall is displaced after mounting.
A buyer should record the continuity threshold, probe points and equipment state. Without those controls, a pass can hide an intermittent path that only opens under displacement.
What the August 13 impact study shows
Performance of printed circuit structures fabricated with hybrid additive manufacturing technologies for high-impact applications was published on August 13, 2026 in the Journal of Failure Analysis and Prevention. The original study used aluminum alloy substrates made by additive friction stir deposition and applied cyclic shock loads of 35 kg. The authors reported trace cracking, flaking, peeling and hardware ejection. Some traces maintained continuity within a 20% tolerance across all ten cycles.
That study did not test a Baoshengda FPC membrane switch. Its substrate, manufacturing route and exact load level are not the construction described in this article. The useful warning is narrower: impact can damage a conductor while another path or another measurement still looks healthy. A buyer should not copy the 35 kg figure into an FPC test. The equipment owner must define the real drop, shock, vibration and abuse profile for the installed assembly.
Which FPC structures fail first
Ask the buyer to identify the most likely damage sites before selecting a sample. The common FPC membrane switch failure chain starts at mechanical boundaries.
| Failure path | Why bench continuity can miss it | Required sample evidence |
|---|---|---|
| Trace crack | Separated edges can still touch at rest | Microscope inspection before and after the buyer's impact test |
| Flaking or peeling | A partial bond can still carry a closed circuit | Controlled bond inspection at the tail transition and exposed edges |
| Dome separation | A key can still press once while the dome loses its permanent bond | Repeated key actuation plus inspection after stress |
| Tail transition | The tail is held flat on a bench, not flexed as installed | Mounted flex cycles with the agreed bend radius and strain relief |
| Exposed contact | The contact sits once and is not re-mated | Repeated insertion, retention and pull-out evidence |
| Connector latch | A seated latch can look closed but release after vibration | Latch engagement and retention check after the stress sequence |
The table is a review tool, not a universal pass and fail standard. The buyer should replace each row with the actual product geometry, connector and service condition.
Use one decision table for the sample protocol
A stress test without a decision rule is only a demonstration. For each failure path, define the input, the number of repetitions, the measurement timing and the acceptance limit.
A workable sample protocol separates these questions:
- Which shock direction, pulse, duration and mounting surface apply?
- How many vibration sweeps or random-vibration minutes apply to the installed panel?
- What is the minimum bend radius and number of flex cycles for the tail?
- How many connector insertion and removal cycles must pass?
- Is continuity measured during motion, after each stage, or only at the end?
- What resistance change or open-circuit time is a failure?
- What optical evidence is required for cracking, flaking, peeling, dome lift or contact damage?
Measure before, during and after the stress stage. A final continuity pass alone can miss the intermittent behavior the buyer is trying to prevent.
Run a mounted test, not only a bench test
The FPC should be attached to the intended housing or a controlled representative fixture. Loose-product tests can miss the load path that reaches the tail after the panel is bonded, the housing closes, or the connector is pulled by its cable.
The mounted sequence should include:
- the same adhesive, landing, ribs, fasteners and tail exit as the production design;
- a service loop or cable clamp in the position shown in the drawing;
- the real connector mating direction and the exact pin map;
- repeated key actuation before and after the stress stage;
- continuity and resistance readings at the agreed probe points;
- visual inspection of the tail transition, contact fingers and dome bond;
- retained sample, photos, video and signed pass or fail records.
If the supplier can only review the loose FPC, say so in the quotation. The buyer remains responsible for testing the part in the complete equipment and for the impact and vibration levels that only the equipment design can define.
Supplier boundary and application limitations
Baoshengda can review the FPC membrane switch construction, key and dome layout, tail geometry, stiffener, exposed contacts, artwork and physical sample evidence for an agreed design. The equipment owner remains responsible for the shock and vibration profile, mounting fixture, connector system, cable routing, safety requirements, final product validation and any certification decision.
The cited research is original failure-analysis context. It is not a Baoshengda test, a guarantee of FPC performance, or a customer case. Do not transfer its additive-manufacturing substrate result or its 35 kg load level into a Baoshengda product specification.
FPC shock-survival RFQ checklist
Send these items before requesting a firm prototype plan:
- installed shock, drop and vibration profile with direction, duration and mounting surface;
- representative housing section, adhesive landing, ribs, fasteners and tail exit;
- tail route, minimum bend radius, bend cycle count and strain-relief method;
- connector part number, mating direction, pin assignment and insertion cycles;
- key, dome, overlay and exposed-contact construction details;
- continuity measurement points, threshold and sampling timing;
- post-stress optical inspection requirements;
- prototype quantity, production estimate and controlled revision identifiers;
- buyer-owned responsibility statement for complete-equipment validation.
When the test profile, drawing package and failure limits are defined, send the FPC membrane switch package for engineering review and request a sample quotation. A pass that survives the mounted stress sequence is much stronger evidence than a bench continuity reading alone.
