Flexible Heating Film for Outdoor Energy Cabinets: Where to Place Heat First

Energy and charging equipment is moving into more outdoor cabinets, roadside boxes and distributed power sites. The buyer problem is not simply how to add a heater. The first decision is where a small, flexible heating film should be placed so the right surface recovers from cold soak or condensation without warming the whole enclosure.

The current market signal is real. The IEA's Global EV Outlook 2026 tracks electric vehicle deployment, charging infrastructure and battery demand as connected parts of the same growth path. For component buyers, that trend turns into practical questions inside cabinets, chargers, outdoor displays and auxiliary power housings: which window, gasket area, sensor pocket or electronics zone needs controlled heat first?

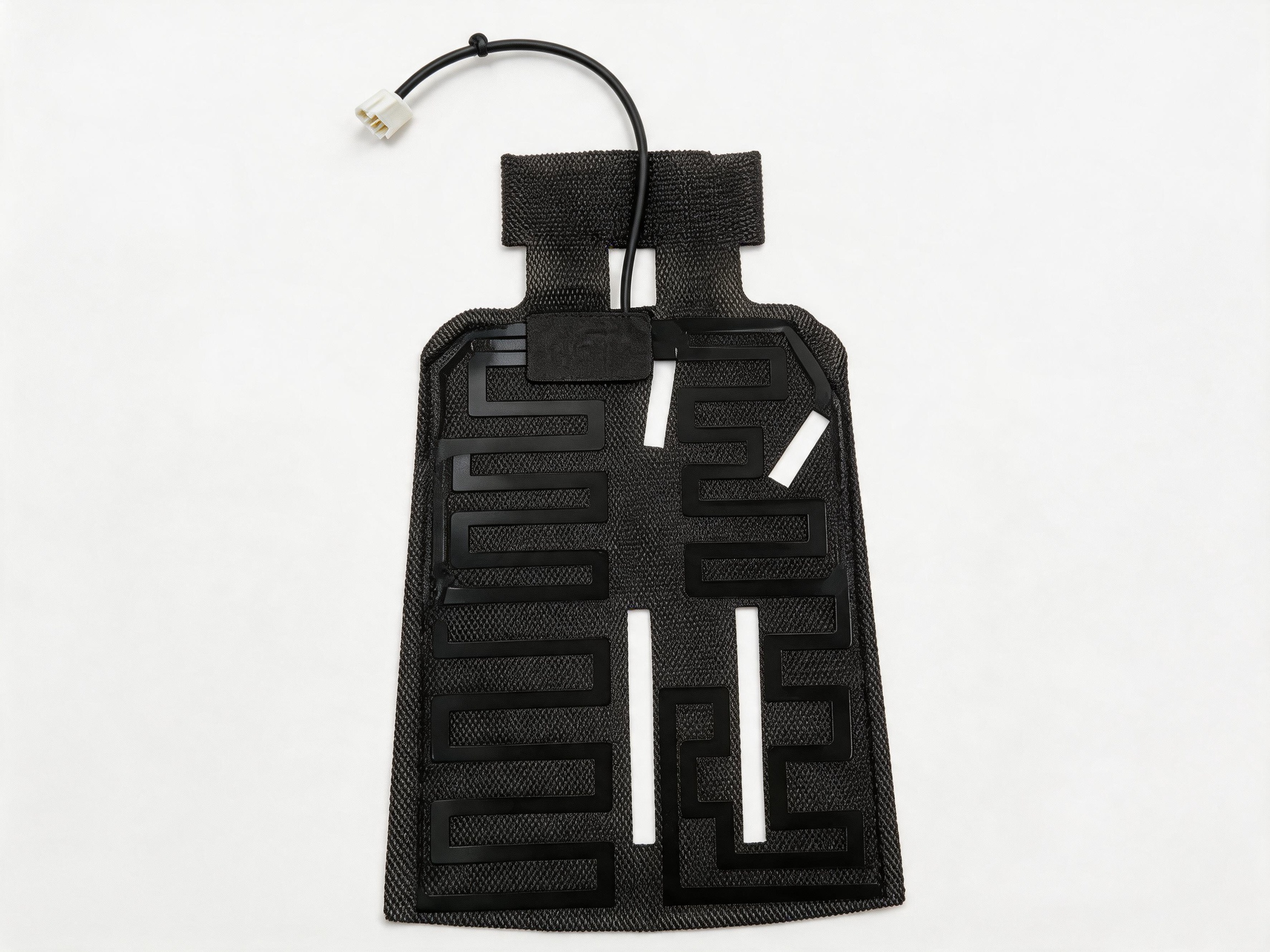

Baoshengda's flexible heating film page is the right route when a project needs a thin heater pattern, custom outline, lead-wire position and sample discussion for an equipment housing. The heater is a component, not a complete thermal system, so the RFQ should describe the surface and control target rather than ask for a generic wattage.

Start with the cold surface, not the cabinet size

A large outdoor cabinet may have only one zone that creates the service problem. It may be a small display window that fogs after a cold night, a latch area that holds moisture, a pressure-balancing vent, a battery-monitoring pocket, or a sensor window that must recover before the equipment starts its first shift. If the drawing only says "add heater inside cabinet," the sample can become too large, too slow or hard to control.

For a flexible heating film, the useful review starts with a marked surface area. Show the part that must reach a usable condition, the material behind it, the air gap, the mounting method and any nearby gasket. A heater behind a plastic window behaves differently from one bonded to metal, glass, painted sheet metal or a molded cover. The heat path and adhesive surface are part of the design, not an afterthought.

Decide whether the job is defogging, cold-start help or freeze prevention

These three jobs look similar on a purchase request, but they lead to different sample decisions. A defogging heater may need an even trace pattern near the window edge and a sensor that stops heat before a visible hot spot appears. A cold-start heater may need faster response on a small protected area near electronics. Freeze prevention may need a wider area, but lower surface intensity and a safer wire exit.

The tradeoff is speed versus temperature uniformity. A narrow high-power path can recover one line quickly, but it may leave cold corners, stress an adhesive layer, or create a local mark on a plastic window. A wider, lower-power layout is gentler and easier to control, but it may need more area and more time. Buyers should tell the supplier which failure hurts the product most: unclear visibility, delayed start, moisture on a connector, or icing around a service point.

Place the sensor where the decision is made

A flexible heating film sample should not be approved by touch feel alone. The control sensor must read a point that represents the actual risk. If the sensor sits near the warmest trace, the controller may stop early while the window corner or gasket groove remains cold. If the sensor sits too far away, the film may overheat the center area before the controller reacts.

For cabinet and outdoor terminal projects, ask for a sample map that shows the heater trace, lead-wire exit, sensor position and the protected surface in one view. Keep enough distance from screws, ribs, metal brackets and sharp housing edges. If the film bends around a corner or passes through a narrow slot, confirm the minimum bend area and whether the lead-wire joint needs a strain-relief pocket.

Watch the adhesive and cable route in wet service

The heater pattern is only one part of the component. Adhesive landing, cable routing and sealing decide whether the first sample can survive assembly. A common failure is a clean heater film placed on a surface that is not flat, not clean enough, or interrupted by a rib. Another failure is a lead wire that exits toward a gasket, hinge, drainage path or service door. The heater may pass an electrical test but fail after vibration, moisture or repeated opening.

Ask for the material stack before tooling: film carrier, conductor pattern, insulation, adhesive, lead-wire joint and connector choice. If the equipment sees cleaning spray, condensation or outdoor cycling, define which side faces moisture and whether the cable joint is inside a protected cavity. Do not use a thicker film as the default fix. Extra thickness can improve handling, but it can also change fit, reduce bend tolerance or lift an edge near a seal.

What to send for a useful heating film RFQ

A supplier can quote more accurately when the request explains the thermal job and the mechanical boundary together. Send these items with the first inquiry:

• cabinet or cover drawing with the heated surface marked;
• material of the surface, such as plastic, glass, coated metal or aluminum;
• target job: defogging, cold-start help, condensation recovery or freeze prevention;
• available voltage, control method and sensor position if already selected;
• maximum film outline, keep-out zones, screw bosses, ribs and gasket line;
• wire exit direction, connector need and cable length;
• expected low-temperature condition and whether the part sees rain, spray or cleaning;
• sample quantity, test fixture plan and production quantity range.

If the project is still early, send the enclosure photo and mark the problem surface. That is often enough to discuss a first outline, lead position and sample test plan before final drawings are frozen.

A practical sample test for cabinet buyers

Test the sample in a representative housing, not only on a bench. Cool the housing, power the film at the intended voltage, record the time to reach the usable condition, then check the corners, adhesive edge, lead-wire joint and nearby gasket. After the warm-up, inspect whether condensation returns first at an unheated corner or near a cable exit.

The sample should pass three practical conditions: the target surface recovers in the required time, no local area overheats or marks the cover, and the cable path can be assembled without pulling the joint. If those points are not known yet, keep the first RFQ as an engineering sample request rather than a production order. Baoshengda can review the film outline, lead direction and surface constraints when buyers send drawings or photos through the Request Quote route.
