EV Charger Keypad RFQ: Define Feedback States Before the Key Layout

An EV charger keypad RFQ needs a command-to-feedback state map before artwork approval. For every physical key, define when the command is available, what the user sees after a valid press, how rejection or delay appears, and which controller owns that response. Then send the lighting zones, tail and connector drawing, pin assignment, housing section and mounted acceptance table. A custom backlit membrane switch can provide fixed keys and status windows, but it cannot repair an undefined charger workflow.

Why charging context belongs in the keypad brief

A study published on August 12 analyzed 202 EV charging events from 21 participants. The researchers examined state of charge, charging location, time of day, charging rate and emotional state. Lower state of charge was associated with choosing a higher charging rate and with more negative emotion before charging. Charging rate itself was not a significant predictor of post-charging emotion. The authors point to range prediction and charging availability information as meaningful parts of human-centered charging design.

Those findings belong to the studied participants and events. They do not prescribe a Baoshengda keypad or prove that one panel layout fits every charger. The useful component-level consequence is narrower: a buyer should define which session information is visible before asking a supplier to freeze keys, indicator windows and backlight zones. If the interface does not tell the user whether a command is available, accepted or still pending, changing key artwork later will not solve the state ambiguity.

Build the state map before naming the keys

Start with charger states, not icons. A typical project may include unavailable, ready, authorization pending, connector detected, charging, paused, complete, fault and service states. Your real list may differ. Mark which states belong to the public user flow, which are service-only, and which must never be controlled by the membrane keypad.

For each physical key, answer four questions:

• In which states is the key active?
• What immediate local feedback follows a valid press?
• What appears if the command is blocked, delayed or rejected?
• Which device decides the result: the keypad circuit, charger controller, payment platform or safety controller?

A START legend is incomplete if the user can press it before authentication but the panel gives no indication that authorization is pending. A STOP key is also incomplete if it shares the same appearance for a normal session end and a controller fault. The state map should separate command availability from final process outcome.

Use a short decision table in the RFQ:

Do not copy colors or flash patterns from an unrelated charger. Accessibility, local rules, payment behavior and the installed display may change the correct choice. The table is a drawing-control tool, not a universal charger standard.

Separate physical feedback from software confirmation

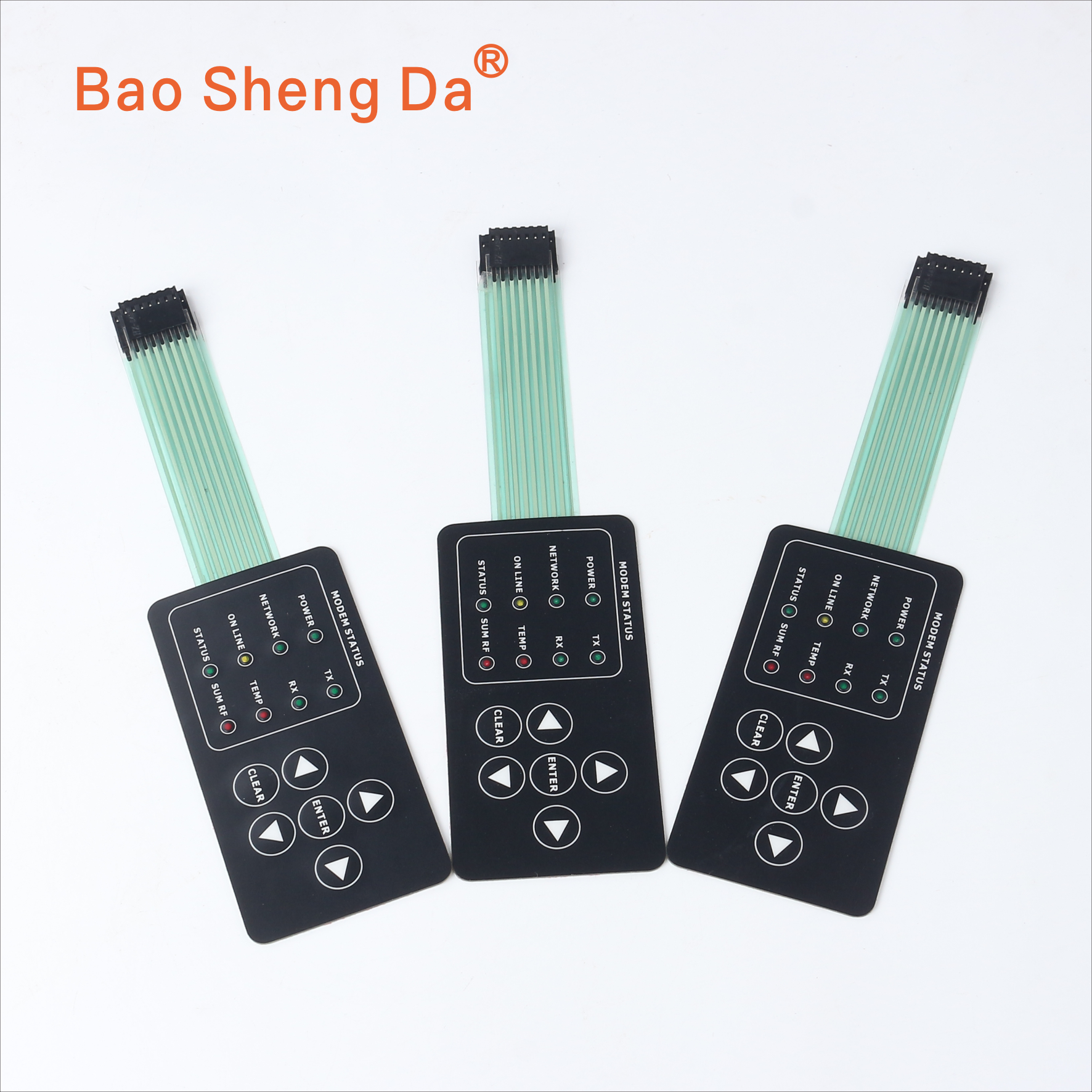

A membrane keypad can provide tactile keys, printed legends, transparent indicator windows, backlighting, a flexible circuit tail and an electrical connector. It may also carry LEDs when that construction is agreed. It does not know whether a payment was approved, the connector is locked, power is flowing or a receipt is complete unless the charger controller drives the corresponding signal.

The RFQ should therefore assign each response to one channel:

• tactile response from the key or metal dome;
• local light in the keypad or adjacent front panel;
• text or graphics on the charger display;
• an audible response controlled by the equipment;
• a remote or software record that is not represented by the keypad alone.

Avoid making one small lamp carry several unrelated meanings unless every pattern is documented and tested. If a light means ready when steady, authorization pending when flashing slowly and fault when flashing quickly, the timing ranges, startup behavior and loss-of-communication state need to be controlled. The electrical interface must state who supplies power, the voltage and current limits, the polarity or pin assignment, and whether the controller switches the high side, low side or another agreed circuit.

Group keys by risk and frequency

Frequent public controls should not be mixed visually with maintenance or reset functions. Use spacing, embossing, shape, color and backlight allocation to create a physical hierarchy. A glove-ready outdoor key may need a larger active zone and more separation than a protected service key behind a door. The housing opening and adhesive land must support that geometry.

Keep emergency and legally required safety functions outside an ordinary keypad assumption unless the full equipment architecture explicitly permits the construction and has been validated by the responsible system team. A printed red area does not turn a membrane key into an emergency-stop device. Likewise, a service reset should not be placed where a public user can trigger it while trying to navigate or cancel a session.

The drawing should identify each key datum, active area, emboss type, target tactile range, overlay material and finish. If the charger has a screen, show the distance between the keypad and display so reviewers can see whether the same arrow, color or status wording could be interpreted two ways.

Translate the state map into lighting and circuit evidence

After the state table is approved, convert it into a lighting-zone and pin map. Number every key, indicator and common circuit. Match those numbers across artwork, circuit drawing, connector view and controller I/O list. State the connector viewing direction so the pin order cannot reverse between the supplier drawing and the PCB drawing.

For backlit areas, define the inactive appearance as carefully as the illuminated appearance. A status icon that remains faintly visible may be acceptable for one design and misleading for a dead-front design. Specify which legends must remain readable in direct daylight without illumination, which appear only when active, and what level of adjacent-zone light leakage is acceptable.

The housing package should include the front opening, adhesive landing, ribs, fasteners, display bezel, drainage path and tail exit. Mark where the flex tail may bend and where it must remain flat. Include connector part number, mating orientation, insertion access, cable service loop and strain-relief method. A correct state map can still fail at assembly if the tail is folded over a rib or the connector cannot be reached after the cabinet closes.

Approve transitions on the mounted sample

Bench continuity proves that contacts close. It does not prove the charger interface. Test the membrane keypad after it is bonded to the intended housing or a controlled representative fixture, connected to the target controller or a documented simulator, and viewed under the agreed lighting conditions.

The sample protocol should include:

• one test for every allowed key and state combination;
• blocked or ignored presses in states where a command must not run;
• acknowledgement timing for valid, delayed and rejected commands;
• startup, restart, communication-loss and power-recovery appearances;
• rapid repeated presses, long presses and simultaneous-key behavior where relevant;
• daylight, night, wet-hand or glove conditions named in the specification;
• backlight uniformity, inactive icon visibility and adjacent-zone light leakage;
• continuity and pin checks before and after mounting;
• tail retention, connector seating and service access after the enclosure closes.

Record expected and observed results in the same state table. A video can help reviewers understand transitions, but it should not replace measured electrical checks, controlled photos and signed pass or fail records. If firmware changes a timing rule or reassigns a status output, update the state-table revision before repeating approval.

Supplier boundary and application limitations

Baoshengda can review the overlay, key geometry, embossing, dome or tactile construction, backlight zones, printed circuit, tail, connector and physical sample evidence for an agreed design. The charger owner remains responsible for payment logic, range prediction, charging availability data, cybersecurity, software states, power-electronics behavior, emergency functions, regulatory compliance and final equipment validation.

Do not transfer emotional-response results or charging-rate relationships from the cited research into a product performance claim. The paper provides current context for why pre-session information matters. Your charger state machine, controller I/O, user research, accessibility needs and market requirements must define the actual interface.

EV charger keypad RFQ checklist

Send these items before requesting a firm design review or prototype plan:

• controlled front artwork with key, window and indicator datums;
• complete charger state list and state-transition diagram;
• command-to-feedback table for valid, delayed, blocked and rejected presses;
• ownership of each response across keypad, controller, display, sounder and software;
• key active areas, embossing, tactile target and glove or wet-use requirement;
• backlight zones, colors, inactive appearance, brightness control and light-leak limit;
• circuit schematic, I/O levels, voltage, current, polarity and pin assignment;
• tail exit, length, bend zone, stiffener, connector and mating-part details;
• housing section, adhesive landing, ribs, fasteners, drainage and service access;
• environmental exposure, cleaning method and operating temperature range;
• prototype quantity, production estimate and controlled revision identifiers;
• mounted transition test, electrical checks and pass or fail table;
• responsibility boundary for software, payment, safety, certification and final charger approval.

When the state table, artwork and electrical handoff are controlled, send the package for a keypad engineering quotation. That evidence lets the supplier quote a physical interface that can be tested against the charger's intended behavior rather than interpreted from labels alone.
