Can an FSR Confirm a Robot Grasp by Itself?

No. An FSR can confirm that a defined contact zone crossed a force-related threshold, but it cannot by itself prove that a robot gripper, clamp or perching hand is securely attached. Grip validation belongs to the complete mechanism: sensor placement, opposing contacts, contact-pad geometry, preload, signal conditioning, control logic and an independent stability check. For an initial enquiry, send a contact sketch or photos, the event you need to detect and the estimated quantity. Mark unknown dimensions or circuit details as open. The quotation and sample plan can then separate the sensor's job from the controller's grasp decision.

Why contact is only one layer of grasp evidence

A study published in npj Robotics on August 22, 2026, Aerial tactile perching via an anthropomorphic hand with embodied soft tactile receptors, used distributed binary capacitive tactile sensors in a compliant aerial-robot hand. Contact signals helped the system refine alignment, while grasp stability was assessed before the robot finalized its perch.

The researchers did not test a Baoshengda FSR, and their hardware, controller and results are not specifications for another robot. A contact signal can tell the controller that one area has been touched. Secure attachment also depends on where other contacts occur, whether the mechanism is seated, whether load remains stable and whether movement or slip appears after actuation.

Before ordering a sample, define what the drawing means by "grip confirmed." The supplier needs to know whether that means first touch, minimum squeeze, opposing-side contact, stable hold, no slip or a controller-approved state.

Write the requirement as an evidence register

A short evidence register prevents one threshold from carrying several unsupported meanings. Each row should name the claim, the signal that supports it and the missing proof that the rest of the robot must supply.

The terms in the left column should match firmware state names and sample records. Avoid using one label such as "OK" for every stage. A test technician should be able to tell which row failed without reverse-engineering the controller.

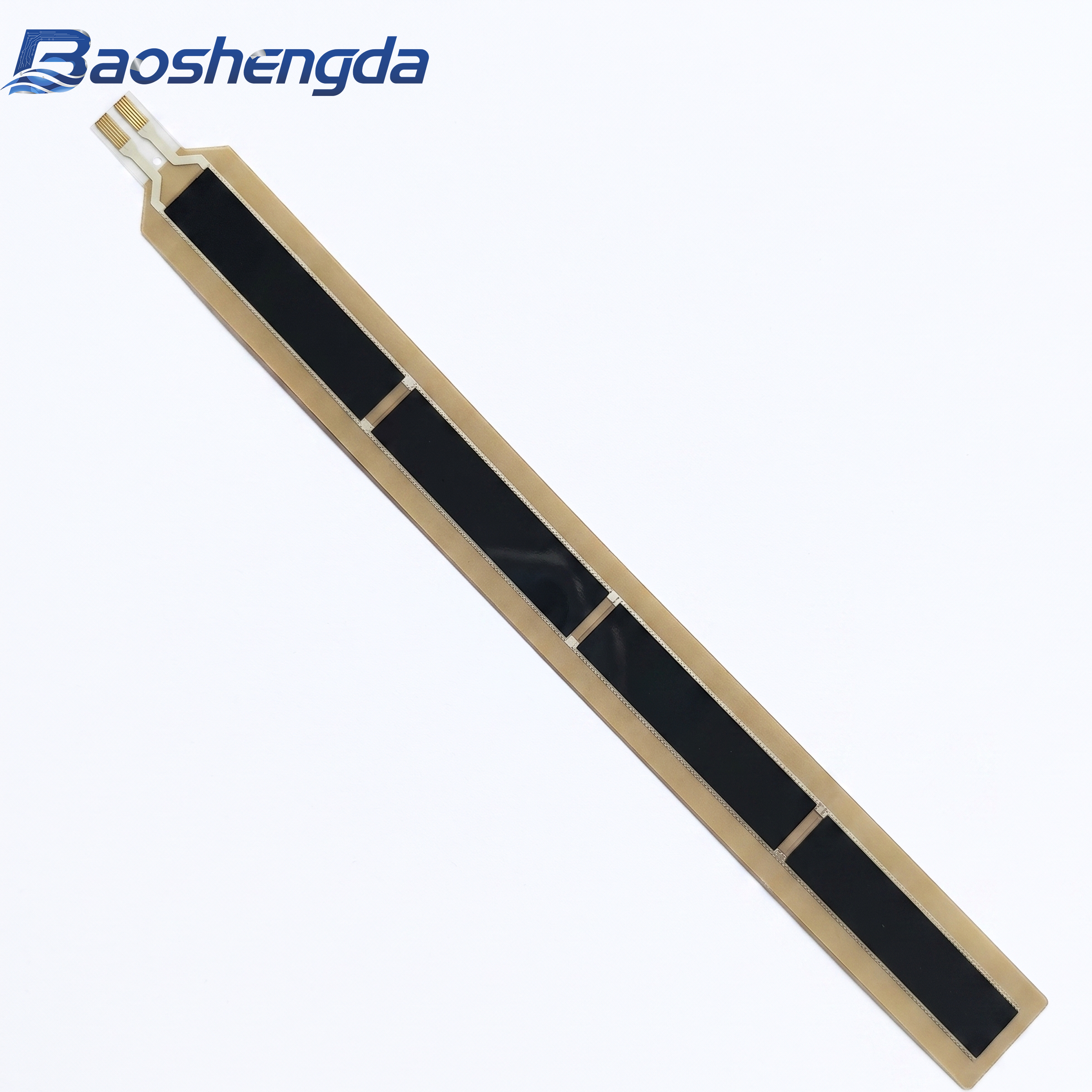

A thin custom FSR pressure sensor can contribute relative contact and force-threshold evidence when the active area, contact pad, circuit and acceptance bands are controlled. Baoshengda's product guide asks buyers to define those conditions before sampling. The cover shows a component example with four distinct zones, a complete strip and exposed tail contacts; it does not show a mounted robot or a grasp test. Neither that photograph nor the cited capacitive-sensor research establishes the holding force or safety of a proposed FSR-equipped gripper. The system designer must select and validate the independent grasp check.

Keep corroboration independent after first contact

Once first contact is detected, the next check should not merely repeat the same signal under a different name. For an opposing-contact state, require the intended zones or fingers to respond. Check seating with mechanism position, a hard-stop condition or another defined state. To assess stable hold, challenge the assembly with the real load direction and look for movement or slip.

The corroborating evidence depends on the equipment. It may come from motor position, encoder position, actuator pressure, structural force, motion sensing, a controlled pull test or another method chosen by the robot designer. One FSR reading that stays above a threshold is insufficient evidence of final stability.

Use separate press and release bands when the application needs a clean state transition. A single threshold can chatter around the boundary as the contact settles. Define the timing rule as well: immediate contact, a settled value after a stated interval and a release state after unloading are different observations.

Challenge false-positive grip states

Build the sample test around ways the controller could be wrong. A centered press is only the starting condition.

Test partial contact on one side, edge contact near the active-area boundary, a tilted object, one missing opposing zone and a mechanical obstruction before full seating. Hold the intended load long enough to observe settling, then introduce the permitted motion or disturbance. Release slowly to see whether the signal returns through the expected band.

Also move the tail and connector through their installed route while the contact surface remains unloaded. Tail strain, a tight service loop or a housing rib can preload the film and imitate a contact shift. Repeat the contact sequence after the cover layer, adhesive, pad and cable restraint are installed.

For a multi-zone strip, keep channel identities separate through the prototype stage. Combining channels too early can hide which contact disappeared or which area stayed loaded after release. The final control logic may combine them, but the sample record should preserve the raw zone evidence.

Record the mounted boundary conditions

An FSR result is meaningful only with its mechanical and electrical boundary conditions. Record the active-area position from the housing or finger datum, the contact-pad footprint, material, hardness, travel and allowed offset. State the support surface, adhesive, cover layer, mechanical stop and assembly preload.

Record the electrical setup: supply, divider or amplifier, ADC range, sampling rate, filtering, press band, working band, release band and timing. Save unloaded and loaded traces for every channel with the fixture revision. If firmware thresholds change, treat the change as a controlled sample variable rather than silently reusing the earlier approval.

The acceptance sequence should progress from unloaded assembly to intended contact, partial contact, full seating, stable hold, controlled disturbance and release. Photograph or identify the fixture position at each step. This evidence is more useful than a single resistance value because it shows how the component behaves inside the decision chain.

Component boundary and limitations

A component supplier can review the pressure-sensing pattern, active zones, layer stack concept, flexible tail, contact termination and physical sample evidence for an agreed design. The buyer remains responsible for the robot hand, contact-pad material, mechanics, opposing surfaces, host circuit, sampling, filtering, state logic, functional safety and final equipment validation.

FSR output is affected by the installed contact area, load path, preload, time under load, temperature, circuit and sample variation. A resistance or voltage threshold from a loose bench setup is not automatically valid in the assembled gripper. Nor should a contact threshold be advertised as a rated holding force unless the complete mechanism and test method support that claim.

The August 2026 study concerns its own capacitive tactile architecture and robot. Its results do not specify the performance of the FSR component discussed here.

What to send before every design detail is fixed

Start the robot contact-sensor enquiry with a contact sketch or clear photos, the event you want to detect and an estimated prototype quantity. Show where the film would sit, which surface presses it and where its tail could exit. If you know the expected load range or circuit, include it; otherwise identify that item as undecided. A complete mounted test report is a later sample-approval input, not something you must produce to explain the application.

Baoshengda can review the proposed sensing pattern, active zones, tail and termination against the information supplied. The review needs to distinguish what can be quoted from what remains an assumption. It does not release the robot's mechanics, control logic or safety function.

Keep undecided items visible in the quotation. For example, a tail outline reviewed without a defined mating connector cannot settle the final termination. Likewise, an agreed contact band in a bench circuit remains an assumption until the mounted sample is checked with the intended pad, support and readout.

When a sample fails, send the zone identity, unloaded and loaded traces, fixture revision and the failed step. A shift after tail routing calls for a review of the installed strain and preload. A missed opposing contact requires the contact map and mechanism position. A stable FSR reading with visible slip needs a mechanism and grasp-validation review; simply relabeling that reading as "grip confirmed" does not resolve the failure.

Use the same zone and revision identifiers in the enquiry, sample report and release record. That lets the supplier address the sensing-component issue without confusing it with acceptance of the complete robot.
