If a battery storage cabinet warms the internal air but condensation still appears on a window, door seam, terminal area or other cold surface, asking for more heater wattage is not the first quotation decision. The buyer should identify the coldest surface, record the temperature and humidity condition at which moisture forms, and show how heat can reach that zone. A useful heater RFQ then defines the heated area, mounting contact, voltage, control ownership, lead exit, connector, keep-outs and acceptance test. This separates a local flexible-heater requirement from enclosure HVAC, insulation, drainage, battery thermal management and fire-safety decisions that belong to the cabinet system designer.
A warmer cabinet can still keep one surface below the moisture limit
Battery storage activity remains commercially relevant. In its 25 August reliability outlook, the Australian Energy Market Operator said the improved outlook was supported by record volumes of new generation and storage entering the grid, while continued investment is still required. That is useful market context for component buyers, but it is not technical proof that any particular cabinet needs a flexible heater. Condensation risk must be demonstrated at the enclosure and surface level.
Moisture forms on a surface when that surface becomes cold enough relative to the water vapor in the nearby air. A cabinet temperature sensor mounted in a warm central air pocket can therefore report an acceptable value while a metal door, glazing edge, cable entry, terminal shield or poorly coupled corner remains colder. Increasing heater power without locating that surface may warm the wrong volume, create a local hot spot or demand a larger power supply without removing the original wet zone.
For troubleshooting, start with three records from the failing unit or chamber test: the air temperature and relative humidity near the wet zone, the actual surface temperature at the first visible moisture point, and the sequence of door opening, cold soak, energization and airflow. The RFQ should state whether the objective is condensation prevention, post-event drying, freeze protection or general cabinet warming. These are different duties.
Locate the cold surface before selecting heater geometry
Mark the first-condensation zone on a cabinet drawing or on privacy-safe photographs with all customer marks removed. Do not send an unannotated image and ask the heater supplier to infer the thermal path. Identify the material and thickness of the receiving surface, the available flat contact area, nearby gaskets, display windows, cable ducts, vents, terminal covers and service clearances.
The proposed heater location should have a believable heat path to the cold surface. A heater bonded to an internal panel may help a nearby door region if the contact and conductive path are defined. The same heater suspended in free air or placed behind a thick insulating layer can produce a very different result. If air circulation is expected to distribute heat, the cabinet designer should provide fan state, airflow restrictions and failure behavior rather than treating the film heater as a complete air-handling solution.
A useful diagnostic drawing distinguishes four zones:
1. the surface where moisture first appears;
2. the area where a heater can be attached or mechanically retained;
3. thermal keep-outs around cells, wiring, plastics, adhesives, displays and service parts;
4. the lead and connector route to the controlled power point.
That drawing gives the heater supplier enough information to discuss element geometry and manufacturability without exposing confidential cabinet geometry beyond what is needed.
Convert the dew-risk map into component evidence
A quotation should connect each observed symptom to an input and a sample check. The following table is a practical evidence map, not a cabinet-level thermal guarantee.
| Observed condition | Evidence to send | Heater RFQ decision | Sample acceptance evidence |
|---|---|---|---|
| Moisture begins at one door or window edge | Surface temperature, local humidity, cold-soak sequence and marked first-wet zone | Local heated footprint and distance from gasket or window keep-outs | Repeat the same cold-soak and humidity sequence with surface sensors at the original wet point |
| Cabinet air warms but the metal surface remains cold | Air and surface temperature traces, mounting material and thickness | Contact method, heater position and allowable interface layers | Compare the target surface response, not only free-air temperature |
| One area dries while another stays wet | Photos or zone map with timestamps and airflow state | Split-zone, longer-strip or revised placement evaluation | Confirm all named risk zones remain above the agreed surface criterion during the test window |
| Lead or connector conflicts with service access | Enclosure drawing, cable route, bend direction and service envelope | Tail exit, lead length, strain relief and connector orientation | Fit the sample with the door, cover and service parts in their normal positions |
| Surface overshoots after moisture clears | Voltage tolerance, control method, sensor location and duty cycle | Resistance and power input must be reviewed with controller behavior | Test maximum surface temperature under the defined supply and control fault assumptions |
Do not reduce the request to watts alone. Include nominal and tolerance voltage, available current, target resistance or allowed power range, heated length and width, unheated border, thickness limit, lead construction, connector requirement, attachment method and expected operating cycle. If the buyer has not chosen a power value, provide the environmental evidence and system limits so the quotation can identify open decisions rather than hide them.
Make heat transfer and keep-outs visible in the drawing
A flexible heating element can follow a narrow strip or shaped region, but the active trace cannot be treated as if it can cross every hole, bend and termination without consequence. The drawing should show the active heating zone separately from the outline, mounting land, holes, cutouts, unheated transition, lead joint and connector. Add datums that relate the heater to the receiving surface, not only dimensions measured from an artwork border.
Specify the surface finish and attachment method. Pressure-sensitive adhesive, mechanical clamping and a loose retained pocket create different contact conditions. If adhesive is proposed, state the substrate, cleaning method, expected temperature range, curvature and whether removal for service is required. If the receiving surface has ribs, welds, fasteners or paint texture, show them. A flat sample bonded to a laboratory plate does not prove contact on the actual cabinet part.
Keep-outs need measurable boundaries. Name the minimum separation from seals, foam, cell modules, plastic bosses, wire bundles, display windows, sensors and drainage paths. A buyer who requires a fold or bend should provide the bend location, direction, radius and whether the part is bent once during assembly or moves in service. The supplier can then review the element and conductor route instead of assuming a benign installation.
Separate heater control from the heating element
The component RFQ must say who owns temperature sensing, humidity or dew-point logic, switching, over-temperature protection and fault response. A custom resistive heater does not decide when it should energize. It also does not replace cabinet ventilation, insulation, drainage, a BMS, HVAC controls, a certified protective device or the system safety analysis.
Send the controller's output type, switching frequency if relevant, supply tolerance, sensor type and sensor location. State the normal duty cycle and the abnormal conditions that the cabinet designer wants evaluated, such as a stuck-on output, lost fan, disconnected sensor or blocked vent. The component supplier can use these inputs to review resistance, leads, connector loading and sample construction. Approval of the control strategy remains with the system owner and the relevant qualified parties.
If multiple heaters share one circuit, provide the series or parallel arrangement and harness responsibility. Do not quote each strip at nominal voltage and later connect the assembly in a way that changes the voltage across each element. Connector pinout, polarity if used by the system, wire gauge, lead length and strain relief should be frozen before the sample is treated as electrically representative.
Recreate condensation instead of checking free-air temperature
A bench check that confirms resistance and surface warmth is useful, but it does not close a condensation complaint. The sample plan should reproduce the conditions that created the risk. Record starting temperature, humidity, cold-soak duration, cabinet load state, door-open interval, heater delay, airflow and measurement positions. Use surface sensors at the original wet point, at the heater contact zone and near sensitive keep-outs.
Define the pass criterion before the test. It might be no visible moisture during a stated chamber sequence, a minimum margin between the named surface temperature and the measured dew point, or a drying time after an agreed door-open event. The cabinet designer should select and approve that criterion. Also define the maximum allowed surface temperature at the heater, receiving panel and adjacent materials.
Inspect the sample after the environmental sequence. Check adhesion or retention, discoloration, warping, insulation damage, lead movement, connector seating and electrical resistance. Then repeat the enclosure assembly to confirm that the lead route and heater edge do not interfere with a gasket, cover or service operation. A single warm-up trace without post-test inspection is incomplete RFQ evidence.
State what the heater supplier can and cannot approve

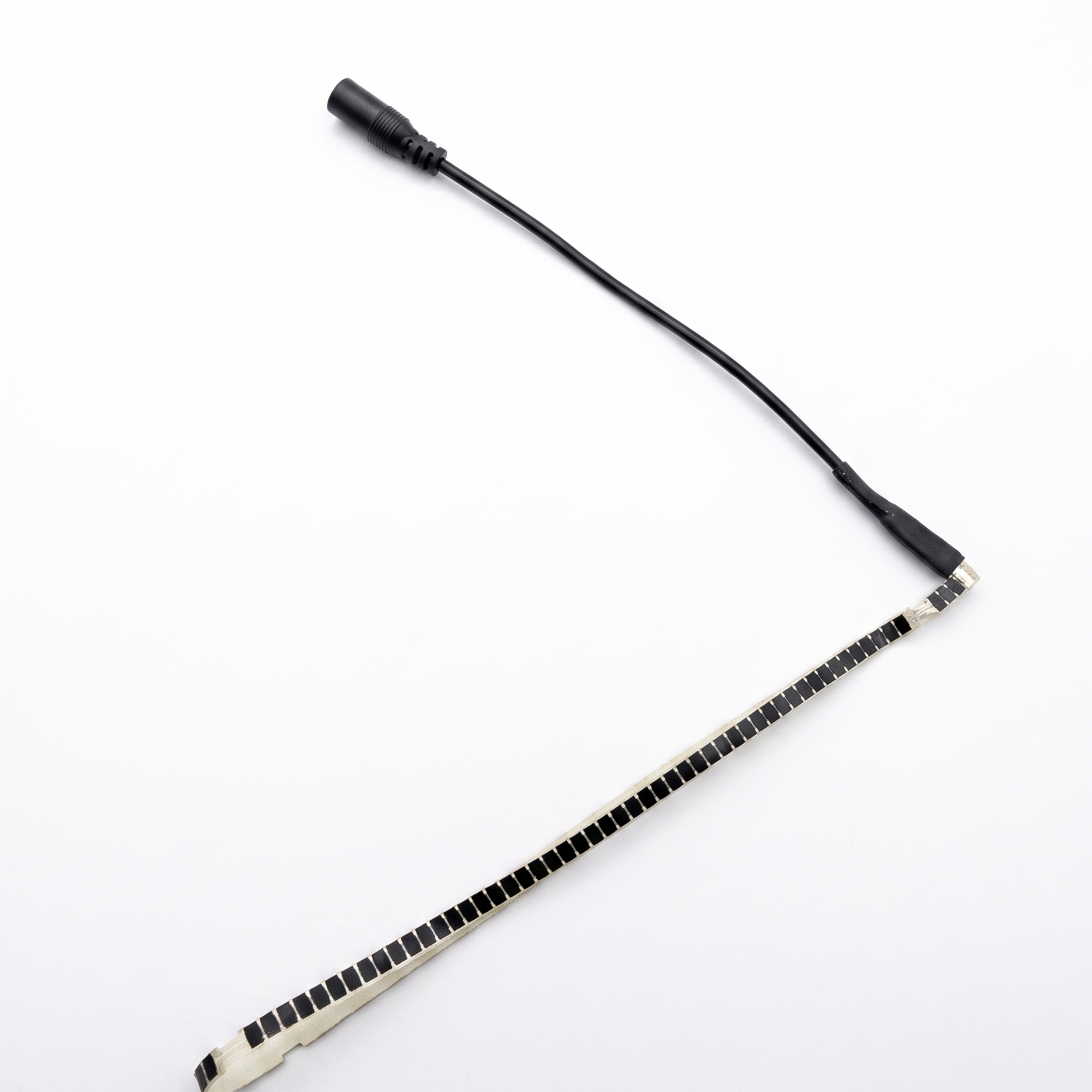

Baoshengda can review a custom heater element or flexible heating film for outline, active-zone layout, resistance target, leads, connector, attachment details and component sample evidence when the buyer supplies controlled inputs. The quotation can identify manufacturing questions, tolerances and the test evidence expected from the component sample.
The boundary is equally important. Baoshengda does not approve the complete battery thermal system, cell heating strategy, cabinet HVAC, BMS logic, dew-point controller, drainage, insulation, fire protection, electrical protection, enclosure certification or site-level energy-storage performance. Those decisions require the cabinet owner, system integrator and relevant safety or compliance specialists. The public AEMO update provides deployment context only and does not validate a heater design, cabinet architecture or safety claim.
Send a troubleshooting RFQ that closes the unknowns
For a useful drawing and sample review, send:
- the exact symptom, first-wet location and whether the duty is prevention, drying, freeze protection or general warming;
- environmental sequence with air temperature, relative humidity, cold-soak time, door state, airflow and cabinet load condition;
- surface temperature evidence at the wet zone and proposed heater location;
- controlled receiving-surface drawing with material, thickness, finish, curvature, ribs, holes and mounting contact;
- heater outline, active zone, unheated border, cutouts, datums, keep-outs, lead exit and connector envelope;
- nominal voltage and tolerance, available current, control output, sensor ownership, duty cycle and fault assumptions;
- lead material, gauge, length, strain relief, connector part requirement and harness responsibility;
- attachment or retention method, assembly cleaning process and service-removal requirement;
- prototype quantity, annual quantity range, revision level and named golden-unit status;
- chamber sequence, measurement positions, pass criteria, maximum temperatures and post-test inspection plan.
Review the available custom flexible heating film for localized cabinet surfaces before freezing the component drawing. When the evidence package is ready, request a component review and quotation with the controlled drawings and test conditions. The goal is not simply to add heat. It is to place a manufacturable heater where the cabinet has a demonstrated cold-surface risk and to verify it under the condition that produced the problem.
