Size a battery-cabinet window around the required view and the equipment maker's input plan. A view-only front or an approved touchscreen arrangement may not require membrane keys. Where a service task calls for physical inputs, reserve a supported key zone. Confirm required access when a screen is unavailable, then review the display opening, printed border, bonding area and key support on the same drawing revision.
Integrated controls still need a defined front-panel layout
In its microgrid integrated switchboard announcement of 2026-10-29, Siemens describes a factory-integrated package combining power distribution, protection, automation and microgrid control. The announced US-market solution uses SICAM A8000 to monitor and control utility connections, generators, battery storage and solar assets. Siemens also describes transitions between grid-connected and island operation and role-based access control.
Those are system-level features of the announced equipment. The release does not specify a membrane overlay, a display-window dimension or a separate physical service key. It supplies no evidence that Baoshengda makes components for that system. For a cabinet buyer, the front drawing needs to match the chosen display, housing and operator tasks.
A preconfigured controller package cannot settle whether a window border will cover the display bezel or whether the narrow strip beside a key has enough supported bonding area. Treat those as drawing and mounted-sample questions for the chosen cabinet configuration. If a display or housing changes during integration, identify the affected physical interfaces before carrying the old overlay approval forward.
The IEA battery storage review remains background on deployment in 2025, including its predominantly utility-scale additions. It does not prescribe this cabinet's front-panel layout or validate an overlay assembly.
Baoshengda can review a custom graphic overlay and film panel for window geometry, printed borders, key legends, adhesive land and, when required, an integrated membrane-switch tail. The cabinet manufacturer is responsible for the battery system, electrical protection, control logic, enclosure rating, display electronics and final safety validation.
Allocate the required inputs
A display supplier may define an active area, cover-lens outline and viewing cone. Those dimensions do not say where a service technician will acknowledge an alarm, step through a menu or return to a safe screen. Map those actions before enlarging the transparent window.
List each action in one of three groups:
- view only, such as state of charge, temperature status or alarm text;
- routine input, such as page navigation or local acknowledgement;
- protected service input, such as setup, reset or maintenance access controlled by the cabinet manufacturer.
If every input belongs on the touchscreen and the operating environment supports that choice, one large window may be reasonable. If a technician needs a tactile command while wearing gloves or while the display is unavailable, reserve a separate key zone. Do not draw a printed circle and call it a key. Physical actuation needs a defined switch structure below the overlay, an actuation target, circuit route and connector plan.
Compare the layout with the actual service task
| Layout under review | Condition the equipment owner must confirm | Physical evidence before approval |
|---|---|---|
| Large view-only or touchscreen window | No local input is required, or the agreed touchscreen commands remain usable under the specified glove, access and screen-availability conditions | Display outline, visible opening, opaque border and bonding area checked on the mounted stack |
| Display window with separate service keys | The defined task needs a physical input and the receiving controller accepts it under the equipment procedure | Key centers, switch structure, backing support, circuit and tail defined alongside the window |
| Existing overlay with a changed display or housing | The old interface approval still applies to the changed configuration | Compare bezel coverage, bonding area and key support; document any new sample evidence |
These are review conditions, not an instruction to put reset or isolation functions on a membrane key. The equipment maker assigns the functions and validates their behavior. The component drawing should show the resulting physical requirements.
Window size, bonding and light blocking
A larger window provides more display area and can reduce the number of printed legends on the front. It also removes space that might otherwise carry an opaque border, adhesive landing or isolated service keys. The effect becomes more important near corners, housing ribs and display cutouts.
The window boundary should be controlled from the same housing datum as the outer die cut. Define the display active area, the non-active bezel and the visible opening separately. A clear opening that follows only the active pixels can expose the display edge or leave an uneven border after assembly. A window that follows the full cover lens may leave too little printed area for light blocking or bonding.
Material and finish are also tied to the decision. A gloss window can support display clarity but may show glare and scratches. A textured front can reduce visible fingerprints, yet the texture should not be assumed to continue across the optical window. Hard-coat, chemical resistance and any anti-glare requirement must be matched to the buyer's actual cleaning method and viewing conditions.
Keep key zones outside the optical boundary
Separate service keys are easier to identify when the printed border, key centers and housing support are not competing with the display opening. Leave enough opaque space to distinguish the two functions. If the key domes or actuators sit too close to the window edge, local pressing can flex the window area or load the adhesive bridge between them.
For an integrated membrane interface, the key centers need to align with the circuit contacts and any metal dome or embossed feature. The flex tail then needs a path that does not pull on the window corner or cross a sharp housing edge. Specify the tail exit, first bend, stiffener if used and connector orientation before the front artwork is frozen.
Separate physical keys add stack-up, circuit and sample-validation work. They also give the buyer a defined tactile interface that can be tested independently of the display image. A large touch-only window keeps the front visually simple, but it moves input availability, glove response and fallback behavior into the display system. The equipment maker needs to settle those input requirements before artwork approval.
Review the mounted stack
A loose overlay can look correct on a light table and still fail on the cabinet. Ask for a mounted sample using the intended housing finish, display cover, adhesive geometry and key support. Review the display off and on, then operate every service key from the expected approach angle.
The sample plan should include:
- window registration to the display active area and bezel;
- uniform opaque border width around the opening;
- adhesive contact around window corners and between window and key zones;
- key position, tactile response and legend alignment;
- glare, surface marks and cleaning residue under the buyer's conditions;
- tail clearance, first bend and connector access after the panel is installed.
Condensation, ultraviolet exposure, dust and cleaning chemistry may matter for outdoor or semi-outdoor cabinets, but no single material label proves the finished assembly. Define the actual exposure and the pass criteria. The enclosure and final mounted panel must be validated together by the equipment maker.
Freeze artwork only after the housing references agree
Keep separate controlled layers for the outer profile, transparent window, opaque border, printed legends, key centers and adhesive die line. Put the same master datum and orientation mark on each layer. If the project includes a membrane circuit, add the contact centers, tail exit and connector drawing to the same revision package.
Record the display, housing, overlay, adhesive and circuit revisions used for the approved sample. For a proposed change, identify the affected interface, the person responsible for checking it and the evidence needed to close the change. A changed display outline can affect both bezel coverage and the bonding strip. Moving a key can also change its backing support and circuit position. Recheck those affected areas on the intended mounted stack. There is no universal border width or key-to-window spacing supplied by this guide.
A late display or housing revision can change the bezel while the overlay artwork keeps its old window. Moving a service key without moving its contact creates a similar mismatch. Revision control should show which display, housing, overlay, adhesive and circuit files were used for every sample.
Send the decision evidence with the RFQ
An initial inquiry can start with an available panel photo or drawing, the cabinet use, an approximate quantity and the unresolved window or key question. Missing CAD or an adhesive die line can be listed as open information. Before sample approval, agree on the display and bezel drawing, housing section, adhesive boundary, material and finish. Add the operating location, cleaning method, exposure, glove use and required appearance with the display off.
If physical keys are required, include key functions, center positions, actuation preference, circuit interface, tail route, connector and expected quantity. Mark one high-risk area, such as the narrow adhesive bridge between the window and the closest key. Then use the Request Quote page to ask for a mounted sample plan that checks that exact area before the front layout is released.

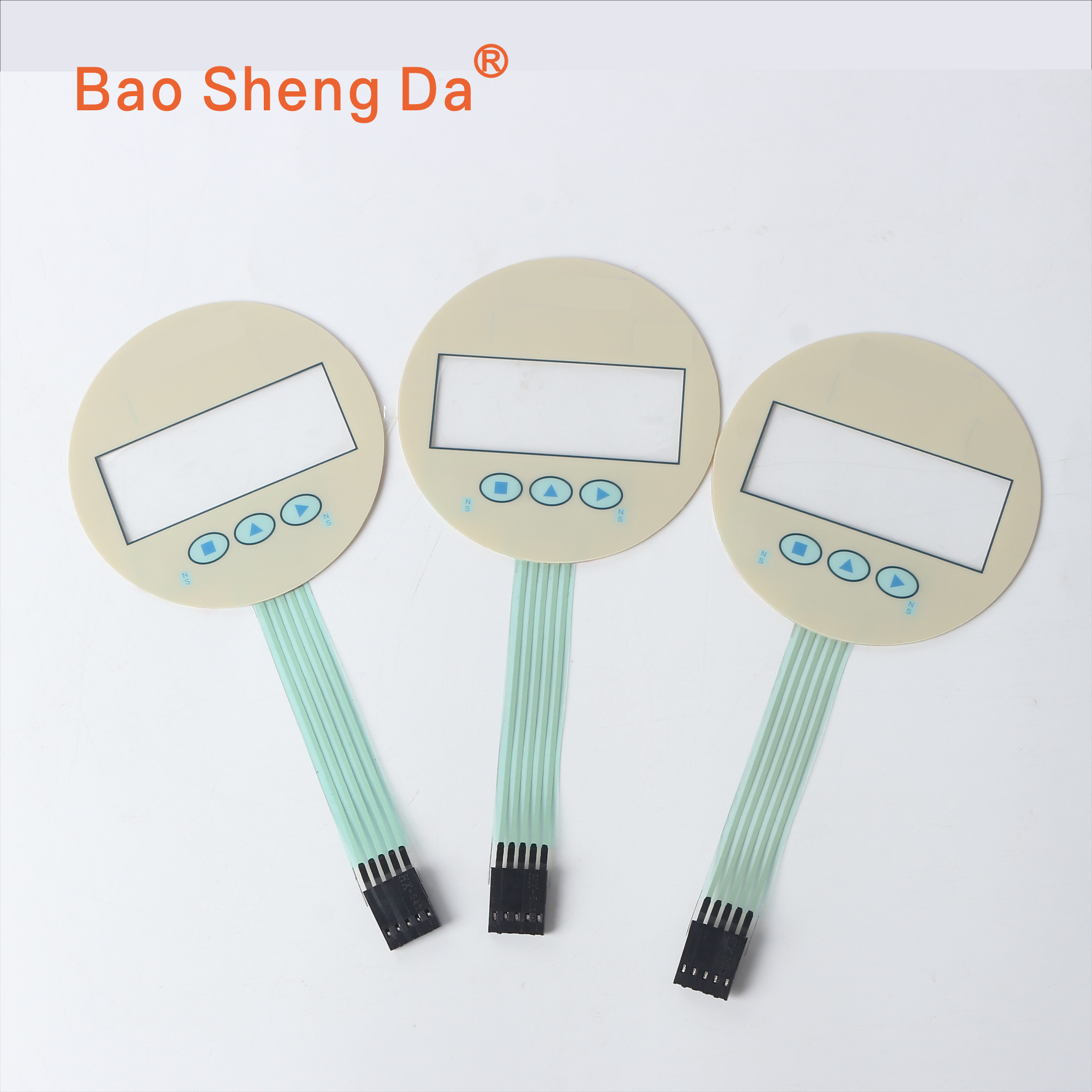

The unchanged product photograph shows three loose round panel samples with display-window areas, separate printed key zones, full tails and connectors. It illustrates the physical allocation; it is not an installed battery cabinet or a measurement of bonding strength, key force or optical performance.
