Battery Cabinet Heating Film Inputs for Cold-Start Recovery

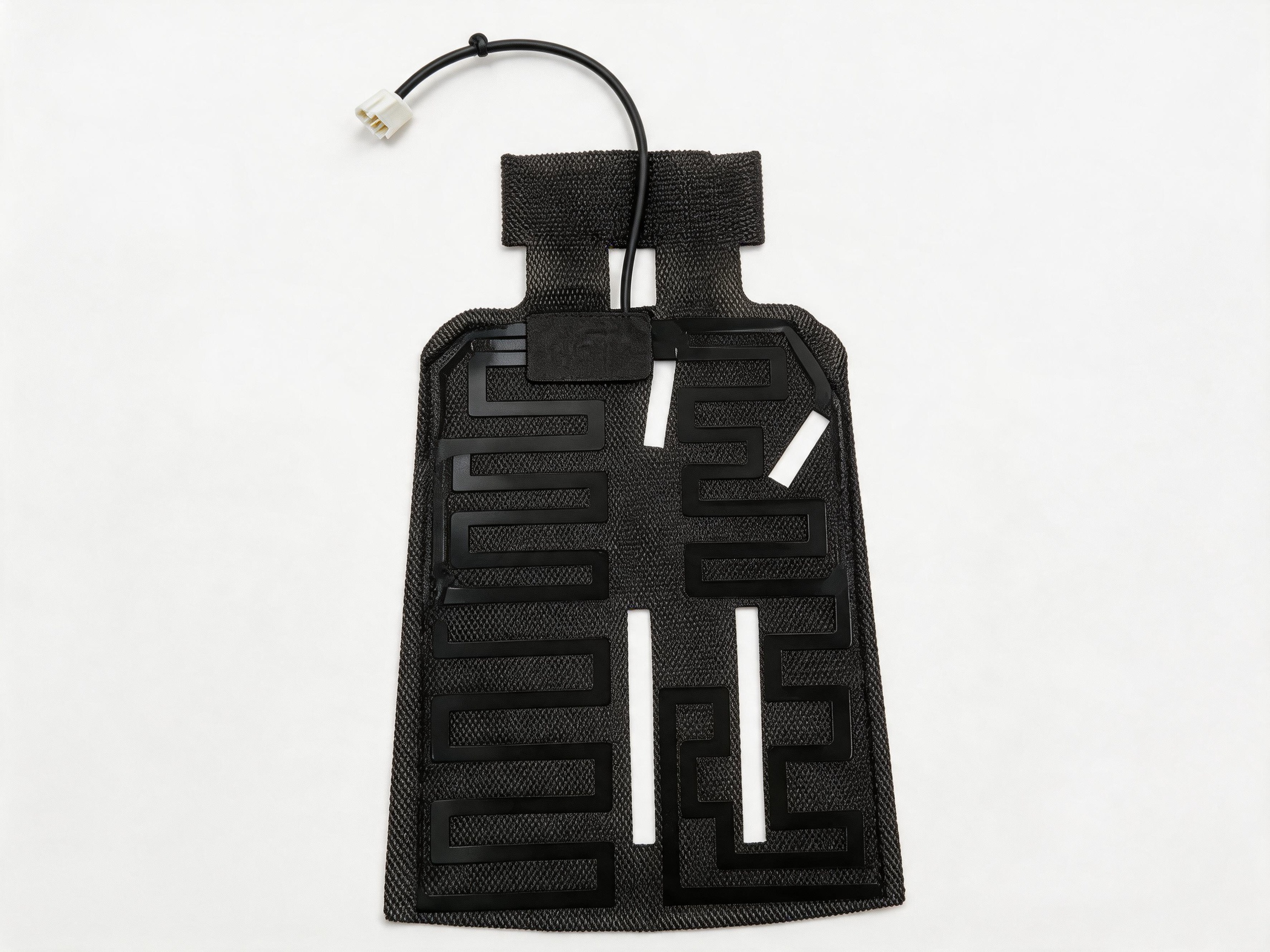

If a battery cabinet or UPS enclosure has a cold-start problem, do not begin with a generic heater size. Begin with the one area that must recover first: a battery module face, connector pocket, display window, sensor location, gasket path or service zone. A flexible heating film can help only when the heated area, power input, sensor position, insulation and lead exit are defined around that cold point.

The market signal is current, but the buyer decision is still component-level. The IEA Global Energy Review 2026 describes battery storage as a fast-growing power technology and also notes growth in battery-based UPS capacity for data centres. Baoshengda does not supply battery cells, battery racks or complete UPS systems. The relevant question for an enclosure or equipment team is narrower: where should a custom flexible heating film sit so the local part recovers safely and predictably in low-temperature service?

Start with the cold point, not the cabinet size

A heating film works well when it is assigned to a defined function. In a battery or energy cabinet, that function may be warming a local module before startup, keeping condensation away from a window, reducing cold stiffness near a seal, or helping a sensor area return to its normal range. These are different jobs. A large heater placed far from the problem can waste power while the critical point stays cold.

For early design review, mark the cold point on a drawing or photo. Show the nearby material, air gap, metal bracket, plastic cover, cable route and any surface that users or service technicians may touch. If the heated surface is a metal plate, heat may spread quickly but also pull energy away from the target. If it is a plastic cover or painted panel, adhesive choice and surface temperature limits become more important.

A useful first question is simple: after power is applied, which part must be usable first, and how will the team know it has recovered?

Define voltage, watt density and control method together

Battery and UPS cabinet teams often ask for a heater by voltage and outline size. That is not enough for sampling. The film pattern, resistance, watt density, insulation stack and sensor feedback all affect whether the heater warms the intended part or creates a local hot spot.

Send the safe supply voltage available in the cabinet, the preferred connector area, target surface temperature range, expected ambient low point and the control method. Some projects use a thermostat or temperature sensor near the heated area. Others rely on a controller elsewhere in the enclosure. The second approach can be acceptable, but only if the distance between the sensor and heater is understood.

The tradeoff is response speed versus thermal margin. Higher power can shorten recovery time, but it also increases the risk of overheating nearby plastic, adhesive, foam, gasket material or cable insulation. Lower power gives more margin, but the cabinet may remain outside its operating window for too long. The RFQ should therefore ask for a reviewed heating layout, not just a flat film quotation.

Check the mounting surface before locking the film outline

A flexible heater can follow a panel, bracket or curved surface, but it still needs a stable mounting condition. Surface texture, coating, ribs, screw bosses, weld lines and condensation paths can all change the adhesive decision. If the heater crosses a step or sharp edge, the film may lift during thermal cycling. If the cable exit is bent too close to the heater body, the lead can pull on the connection area.

Before tooling, provide:

• a cabinet section or product photo showing the mounting surface;
• the planned heated area and any no-heat zones;
• material of the panel, such as aluminum, steel, painted metal, ABS or PC;
• adhesive or mechanical retention preference;
• lead exit direction, bend space, connector location and service access;
• any insulation pad, foam, gasket or protective cover near the heater.

The failure mode to avoid is not only electrical. A heater can pass a bench power test and still fail in the cabinet because moisture reaches the edge, the lead is strained during assembly, or the heated area is placed under a screw boss that changes contact pressure.

Keep condensation and service access in the same drawing

Cold cabinets can create two different concerns. One is cold-start recovery for a component. The other is condensation around windows, seals, connectors or service panels. A heating film selected for one concern may not solve the other unless placement is planned.

If the goal is condensation control, show the likely moisture path. A heater hidden behind a thick bracket may not warm the window edge or seal line fast enough. If the goal is battery or UPS module recovery, keep the film near the functional surface and avoid routing the lead through a wet pocket. The drawing should also show how a technician will replace or inspect the part. A heater that cannot be reached without damaging the cable may create service risk later.

This is why the buyer should send the cabinet layout and not only ask for a material datasheet. The layout lets the supplier review heated area, lead strain, connector choice and insulation together.

What to send before asking for a heating-film sample

A practical RFQ package should let the supplier understand the thermal job and the assembly risk. Include:

• target application, such as battery cabinet, UPS module area, outdoor control box or energy-storage service panel;
• lowest expected ambient temperature and the required recovery condition;
• heated area dimensions, shape, cutouts and no-heat zones;
• available voltage, target power range or maximum current limit;
• preferred sensor or thermostat position, if known;
• mounting surface material, coating and flatness;
• adhesive, insulation and protective cover requirements;
• lead length, exit side, connector style and service-access constraint;
• sample quantity, production quantity and any internal test condition.

If the exact watt density is not decided, send the cabinet evidence first. Baoshengda can review flexible heating film shape, trace layout, lead exit and mounting requirements through the Request Quote route, then identify which details should be confirmed before the first sample is made.
