Keep Battery Cabinet Heater Traces Clear of Cutouts and Fasteners

Keep the heating trace away from battery-cabinet fasteners, ventilation slots, folded seams and removable service hardware. A flexible heater can follow an irregular outline, but its electrical path cannot be treated as spare material that the enclosure team may trim or punch later. Freeze the no-heat zones first, then calculate the resistance pattern that fits around them.

The IEA Global Energy Review 2026 battery-storage chapter reports that 108 GW of battery storage capacity was deployed worldwide in 2025, with about 80 percent of new capacity at utility scale. These are completed 2025 deployment figures, not a forecast. The growth signal matters at component level because more cabinet designs create more mounting surfaces, cable routes and cold points that must be defined before a custom heater can be quoted.

Baoshengda can review a custom flexible heating film for a specified surface, voltage, resistance pattern, lead exit and sensor plan. The film does not control cabinet safety, battery temperature, charging logic or fire protection. Those functions remain with the system designer and the approved control architecture.

Map keepouts before calculating the trace

Start with a flat view of the real mounting surface. Mark screw heads, washers, threaded inserts, drainage paths, ribs, vents, sharp bends, labels, sensors and any cover that a technician may remove. Add the tolerance around each item, not only its nominal outline. A screw that lands beside a trace in CAD can overlap it after hole-position, film-placement and housing tolerances accumulate.

Classify each marked area. A hard no-heat zone must contain no active trace. A no-adhesive zone may still allow an insulated section to pass if the stack is supported elsewhere. A service keepout needs enough room for a tool, connector latch or cable movement. Using those three labels prevents one large blank area from hiding different engineering reasons.

The tradeoff appears immediately. Wider keepouts protect the heater from hardware and movement, but reduce the area available for the electrical path. Recovering the same total power in less active area can raise local watt density. The answer may be a larger heater outline, lower total power, another trace layout or more than one heater zone. It should not be a trace squeezed between two cutout edges without margin.

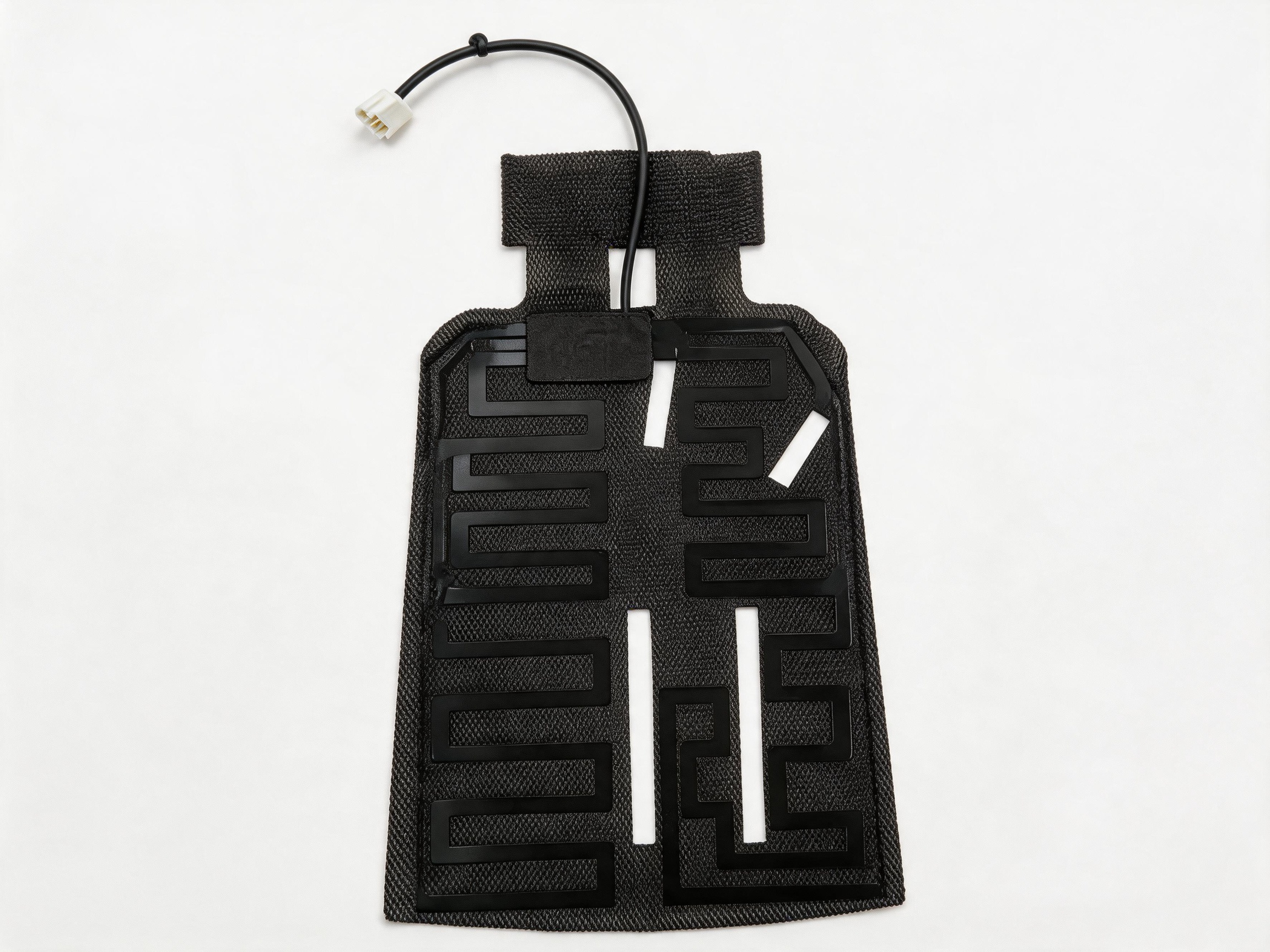

Treat every cutout as a new thermal edge

An internal slot does more than remove material. It creates two fresh edges where adhesive coverage, insulation and heat spreading change. A narrow bridge between cutouts can run warmer than a broad section because it has less surrounding material and less contact area to conduct heat into the cabinet wall.

Show the minimum trace-to-cutout clearance on the heater drawing and keep the trace turn radius compatible with the process. Avoid pointed inside corners when the carrier, adhesive or conductor could concentrate stress there. If the enclosure has a stamped burr or raised insert, add a protective clearance rather than expecting the film to conform over it.

A larger cutout may simplify assembly around a bracket, yet it can leave the cold point outside the useful heated area. A smaller cutout improves coverage but may make placement sensitive to housing tolerances. Review the actual stack section: cabinet wall, surface finish, adhesive, heater layers, insulation or cover, nearby air gap and the part that must recover from cold. Cabinet area alone does not tell you where the heat will go.

Route the lead for service, not just assembly

The power lead and terminal area deserve their own keepout. Place the exit where the cable can reach its connector without crossing a removable panel, hinge path, fan inlet or sharp sheet-metal edge. Add strain relief outside the active trace area and leave room to disconnect the plug without pulling on the film.

Lead location can compete with thermal placement. The shortest cable route may put the terminal near the coldest or wettest pocket. Moving the terminal away may require a longer unheated lead section or a different heater orientation. State which requirement wins and show it on the drawing. Do not let the installer decide by folding the lead during final assembly.

If a temperature sensor is part of the control plan, mark its contact area and cable route separately. A sensor placed over a trace can report a local hot spot rather than the temperature of the protected component. A sensor placed far from the heat path can make the controller continue heating after the critical area is already warm. Baoshengda can review physical integration, but the buyer must define the sensing logic, limits and fault response.

Choose coverage and watt density together

Do not preserve a wattage target after the usable heater area changes unless the thermal review supports it. Total power, active area, supply voltage, resistance, mounting surface and insulation work as one set. Two films with the same watts can produce different surface temperatures when one has tight trace spacing near cutouts and the other spreads the path over a larger bonded area.

Ask for an electrical drawing that shows the trace route and terminal scheme, then compare it with the mechanical keepout layer. Where the path narrows, review trace spacing, conductor width and local bonding. Where a broad area contains no trace, decide whether that is an intentional service zone or an accidental cold strip.

Separate zones can help when two cabinet regions have different recovery targets or when a large fixed obstacle divides the mounting surface. They add wires, connector positions, controller outputs and test records. A single zone is simpler, but it cannot independently limit heat on one side. Use the fewest zones that can meet the measured thermal requirement.

Prove the layout on the mounted surface

A free-air heater sample is useful for continuity and resistance, not for approving cabinet temperature. Bond the prototype to the specified surface finish with the planned adhesive, cable restraint, insulation and cover. Install the actual fasteners and brackets. Then run the agreed cold-start cycle with temperature measurements at the functional cold point, near cutout bridges, beside the terminal and at the warmest expected location.

Include a tolerance trial. Shift the film within the allowed placement window and confirm that no trace, terminal pad or cable enters a hardware keepout. Repeat the cycle after a service operation that removes and reinstalls the nearby cover. Inspect for edge lift, cable strain, abrasion, trapped air and a changed sensor reading.

The sample should answer a specific question: does the mounted heater recover the required location within the allowed time while every cutout, fastener and service path remains clear? It should not be approved from a single center-point temperature or a photograph of an unmounted film.

Send a heater map, not only a cabinet outline

Prepare one controlled package with the mounting-surface drawing, heater perimeter, all no-heat and no-adhesive zones, cutout dimensions, positional tolerances, trace clearance, voltage, target resistance or power, cold-start condition, duty cycle, sensor location, lead length, connector and strain-relief point. Add the intended surface material, finish, adhesive, insulation and the highest and lowest ambient conditions.

Attach the acceptance plan for the mounted sample. Name the temperature points, recovery time, allowable spread, placement tolerance and service sequence. If a bracket or screw is likely to change, flag it instead of hiding it inside a generic keepout.

Use the Request Quote page to send that heater map and thermal target. The first review should settle the mechanical keepouts and electrical route together. That prevents a late cabinet revision from turning a safe trace margin into a punched conductor or a concentrated hot strip.
