Automotive HMI Night Sample: Can Camera Photos Approve Backlit Legends?

Use camera photographs to screen a backlit automotive HMI sample, not to approve it. Freeze the panel build, drive current or PWM setting, ambient light, dimming state, viewing angle and camera exposure before comparing samples. Pair the images with direct visual review and agreed measurements at the same legend points. A camera can make a weak symbol look bright, suppress an edge halo or shift apparent color. If these conditions are not recorded, repeat the day-night evidence before sample signoff or quotation comparison. The supplier and buyer should approve a repeatable evidence package, not the most flattering photograph.

A night photograph changes the evidence before the panel changes

Automatic exposure, high dynamic range processing, white balance, sharpening and noise reduction can change the apparent uniformity of a backlit legend. Two photographs of the same part may show different brightness, color and edge leakage. Two different parts may look similar after the cameras compensate for them.

That makes uncontrolled images useful for finding obvious problems, but weak as release evidence. A wide shot can confirm that the intended zones illuminate. A close view can flag a dark corner, a bright edge or light leaking through an opaque border. Neither view is comparable until the capture conditions and the electrical drive are stated.

Ask for the original files rather than screenshots pasted into a slide. Record whether the camera was in manual mode and keep exposure time, aperture, ISO, white balance, focus distance and image processing fixed. State the viewing distance and angle. Photograph a neutral reference card in the same setup if the buyer uses photographs to discuss apparent color. Do not use that card as a substitute for a specified instrument or buyer-approved master sample.

The September 10 display announcement raises a separate integration question

A Himax September 10 automotive-display symposium announcement describes current automotive display and 3D sensing technologies for vehicle interfaces. It is a useful market signal that display-rich cabins still create integration decisions around what the driver sees in bright and dark conditions.

The announcement does not disclose physical keys, a membrane switch, the construction shown here, or any Baoshengda supply relationship. It also does not prove that a specific vehicle program uses a separate backlit overlay. The durable buyer question is narrower: when a physical control panel sits beside or around a display, what evidence makes its night legends comparable enough for sample approval?

Keep the news context separate from the release decision. Display innovation does not change the basic need to control the light source, printed mask, diffuser, assembly stack and observation conditions of the physical interface.

Freeze the conditions that make two samples comparable

Start with one identified sample build. Record the overlay revision, printed mask or opaque layer, light-guide or diffuser revision, LED or light-source build, adhesive and spacer stack, circuit revision, tail and connector. A photograph cannot reveal whether an unrecorded layer changed.

Then freeze the drive condition. State current, voltage or PWM frequency and duty cycle as applicable, including the dimming state used for the photograph. Use the same powered fixture and connector orientation for all samples. Allow the agreed stabilization time before inspection. If the panel has multiple illumination states, identify each state and photograph only the zones expected to be active.

Finally, freeze the environment. Record ambient illuminance or the defined dark-room condition, viewing angle, viewing distance and observer position. If day appearance and night appearance both matter, inspect them as separate conditions. A legend that looks uniform in darkness may have weak printed contrast in daylight. A dark dead-front window may conceal an indicator when off yet show haloing when lit.

Which defect belongs to which layer?

A useful night-sample review links the observed symptom to the next check instead of asking the supplier to make the photograph look better.

This table is a diagnosis aid, not a universal acceptance specification. The buyer should set the relevant viewing positions, measurement method and limits for the actual program.

Photographs can screen; approval needs repeatable evidence

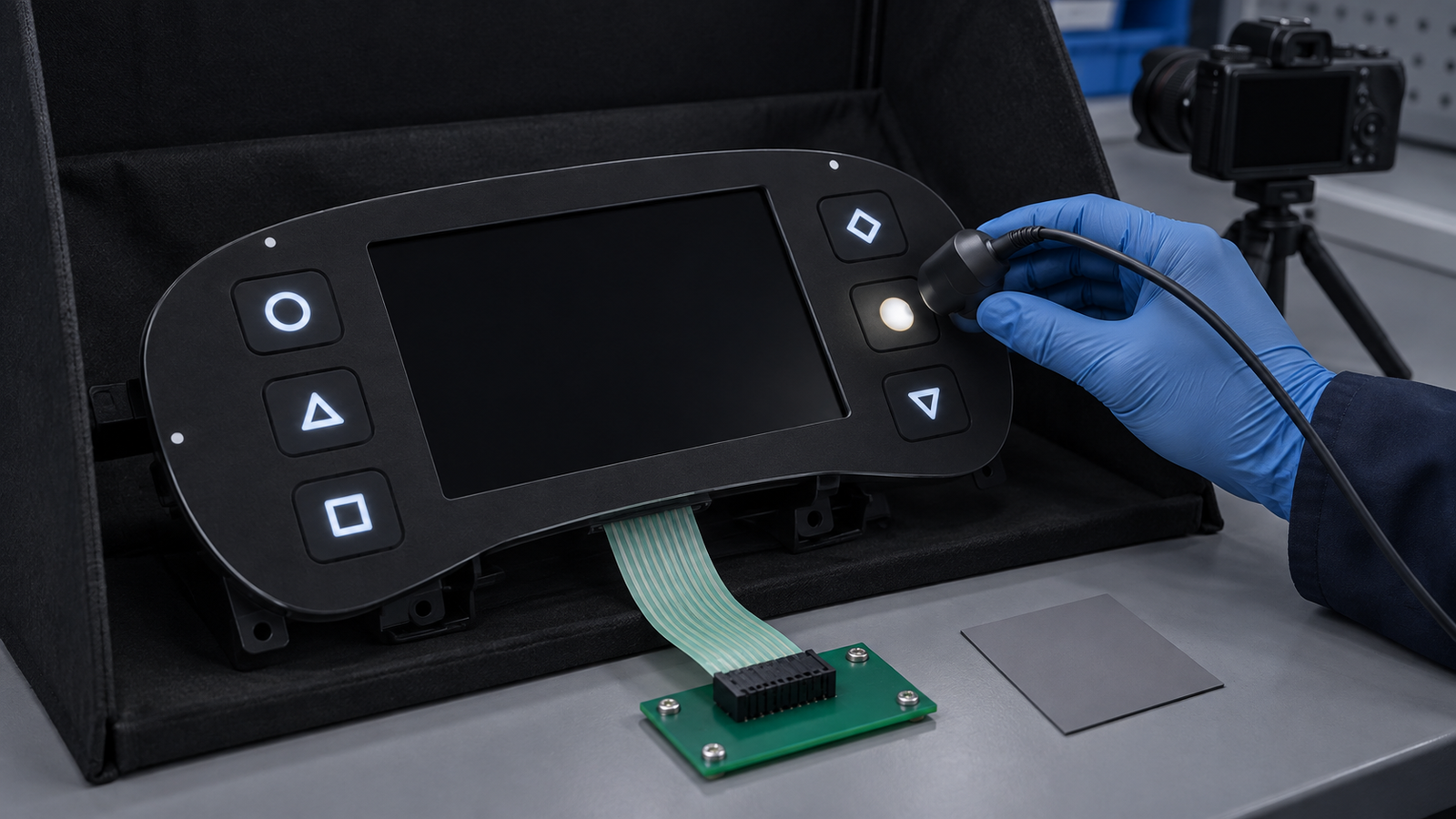

Use photographs as the first layer of evidence. They are fast, easy to annotate and useful for comparing where a defect appears. Require a full-panel frame and detailed frames at the same distance and exposure. Keep the panel edges, tail and connector visible in at least one assembly view so the sample identity and connection are not ambiguous.

Add direct visual review under the agreed ambient conditions. Human observers can notice uneven transitions or edge leakage that a processed photograph suppresses. Record who reviewed the sample, which revision was viewed and which condition was used. Do not write only “looks good.”

Add measurement where the decision needs it. The drawing or sample plan should define the points, instrument, fixture, drive, ambient condition, stabilization, viewing geometry and calculation method. Measurements at a few points do not automatically prove complete visual uniformity, so relate the numeric record to the full-panel visual review.

A practical approval record states one of three outcomes: accepted for the defined condition, rejected with the visible location and suspected layer, or conditional pending a controlled change and repeat sample. Do not mix samples, exposures or drive states in a single comparison board.

What the interface supplier can prepare

A supplier of a custom automotive HMI overlay and membrane control interface can review buyer-supplied artwork, legend windows, opaque masks, adhesive openings, diffuser or light-guide integration, keypad stack, tail, contact side, connector and pin map. It can manufacture the released component and prepare agreed visual, dimensional, continuity and component-level illumination evidence using the defined fixture and conditions.

The component supplier does not automatically own the vehicle dimming strategy, LED driver design, software state logic, display calibration, driver eye box, complete-console thermal behavior, EMC, functional safety, human-factors acceptance or regulatory compliance. It also cannot turn uncontrolled photographs into measurement proof. Those responsibilities require the relevant system owners, requirements and representative vehicle or console validation.

If the buyer supplies only a preferred photograph without the drive and capture conditions, the supplier can quote a discovery or sample-alignment step, but should not promise that production parts will reproduce the photograph on every camera or display.

Send a compact day-night sample package

Before using the Request Quote page, send the information that makes the comparison repeatable:

• front artwork and legend-window drawing with revision identifiers and stable panel datums;
• lit and unlit state map, including which legends or indicators are active in each state;
• overlay, mask, diffuser or light-guide, adhesive, spacer and circuit-stack definition;
• light-source ownership, part reference when buyer-supplied, drive current or PWM condition and dimming states;
• target ambient conditions, viewing distance, angles and any required driver-eye positions;
• manual camera settings, capture distance, file format and required full-panel and detail views;
• measurement points, instrument, stabilization time, calculation method and buyer-defined limits when measurements are required;
• visual defect language for hot spots, halos, weak legends, pinholes, color mismatch and off-state show-through;
• tail exit, bend keepout, contact side, connector, pin-one view, mating fixture and continuity requirements;
• enclosure or bezel sample, compression stack and mounting datums when assembly affects the light path;
• master sample or approved reference, sample quantity, revision-control rule and acceptance owners;
• separate responsibilities for component evidence, electronics drive, software states and complete-vehicle validation.

This package lets the supplier quote the correct optical, printing, circuit, connector and evidence scope. It also prevents a bright camera image from closing a sample decision that has not yet been defined.
