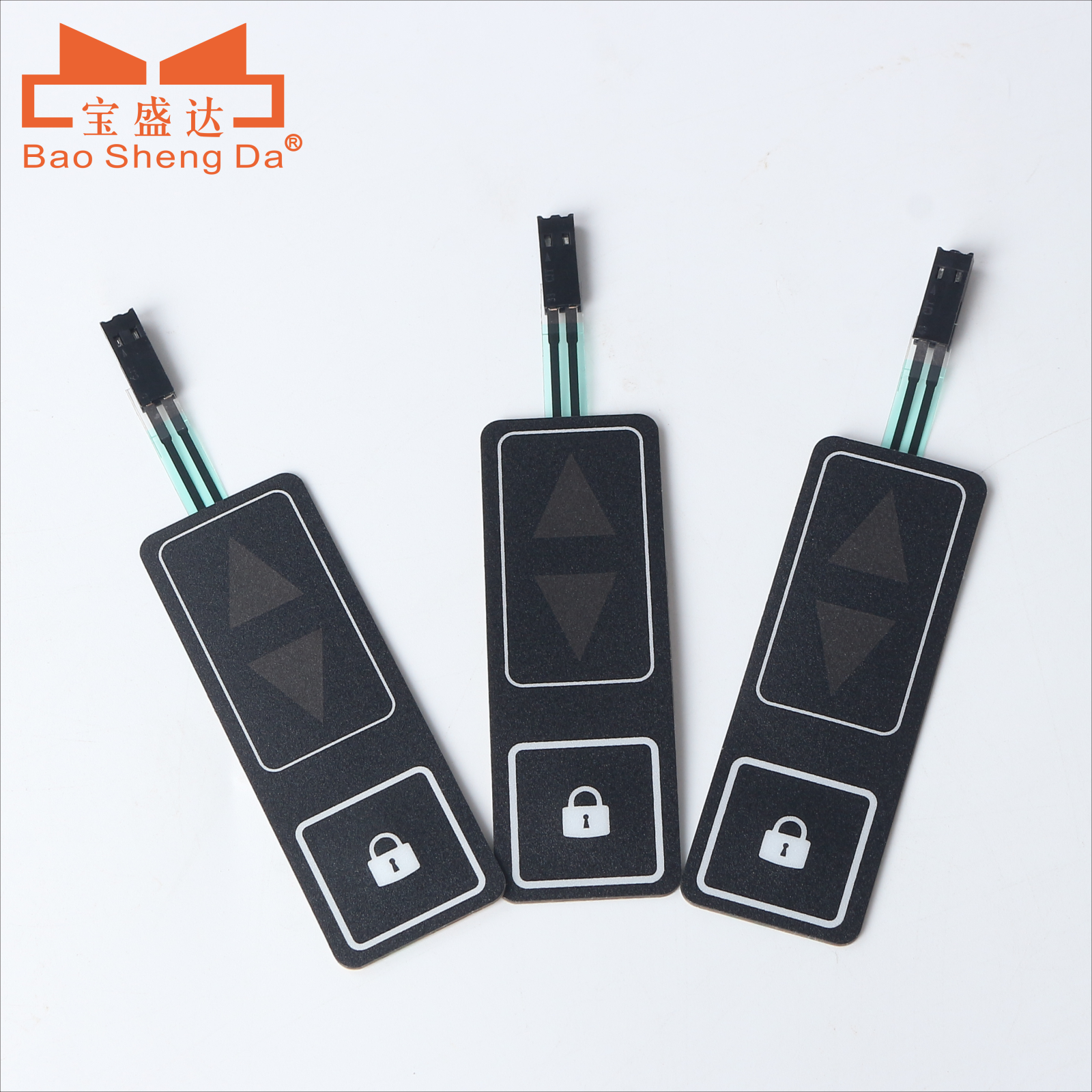

Automotive Door Controls: Separate Window Motion from Locking

A window-direction command and a door-lock command should not share one ambiguous touch region. In a dark cabin or during a short glance, the user needs to find motion and security functions by position, shape and feedback. On a compact door module, separate physical zones make that distinction visible before software state or screen content is considered.

Euro NCAP's official announcement on 2026 protocol changes was published on 26 November 2025 and took effect in 2026. It is background context rather than a daily market signal. The updated assessment introduces HMI review for the placement, clarity and ease of use of essential controls, including the availability of physical buttons for commonly used functions. It does not prescribe a window-switch construction. It provides a documented human-factors context for reviewing whether a repeated door command is easy to locate and operate.

For a component RFQ, Baoshengda can review an automotive HMI control face, switch circuit, flexible tail and connector around the buyer's housing. The vehicle maker or Tier 1 remains responsible for function allocation, lock behavior, motor control, anti-pinch logic, illumination targets, electrical protection and vehicle-level validation.

Trace the hand path on the real door trim

Start with the installed armrest or door-panel section, not a centered artwork rectangle. Mark the normal reach from the seated position, the approach angle of the finger and any trim edge that limits access. A key can be large enough on the drawing but still hard to identify when it sits behind a raised bezel or too close to the door pull.

Window motion is usually a directional action. Locking is a state-changing action. The user should not need to interpret the same flat zone differently according to a screen mode. Keep the motion pair together and give the lock command a separate boundary that can be located without sliding across the window keys.

The control count creates a tradeoff. One long combined area saves face space and can simplify the housing opening, but it gives fewer physical landmarks. More distinct zones improve location and command separation, yet require more circuit contacts, artwork spacing, rear support and validation records. Decide from the hand path and command risk rather than from a styling target alone.

Separate direction from security before drawing icons

Define the function map first. For each zone, state the user action, electrical contact, controller input and expected state response. Do not let the arrow artwork become the only record of which contact raises or lowers a window.

A practical control map can use this split:

• Upper direction zone: one motion direction, one bounded key, one circuit reference and one connector pin.
• Lower direction zone: the opposing motion direction, its own contact and no mirrored pin assignment.
• Locking zone: a separate key area, stable function reference and defined state feedback owned by the vehicle system.

Direction symbols must follow the installed orientation. A correct flat sample can become wrong after the panel is rotated inside left-hand and right-hand door trims. Put an installation arrow, vehicle-side reference or unambiguous datum on the controlled drawing. Then number the contacts from one declared connector view. Mirrored drawings and mirrored pin tables are a common route to a sample that moves the window opposite to the legend.

Lock state also needs an ownership boundary. The membrane control can provide an input and a printed or illuminated legend, but it does not decide whether one press locks all doors, disables another switch or changes behavior with vehicle speed. Those rules belong in the buyer's controller specification.

Support the long key field from behind

A narrow door control often places several key zones along one long strip. The overlay and circuit may look uniform while the mounted feel changes from top to bottom because the housing support is uneven. A screw boss, open cavity, rib or cable channel behind one end can change travel and tactile response.

Show the rear support surface, spacer openings, dome or contact locations, adhesive lands and any gap below the active zones. Keep the first tail bend outside the loaded key area. If the tail is pulled sideways during assembly, it can lift one edge or preload the nearest contact.

The sample failure is specific: the upper direction key feels crisp on the bench, the lower direction key becomes soft after the module is clipped into the trim, and the locking key needs extra force because its rear support sits over a cavity. The cure is not heavier printing or a larger icon. The housing section and switch stack must be reviewed together.

If the module is non-tactile, define how the user receives confirmation. That may come from travel, an audible response, an illuminated state or the vehicle system. Do not promise feedback from the membrane component when the confirmation is produced elsewhere.

Test command mapping under cabin conditions

A continuity test proves that contacts close. It does not prove that the user finds the right control or that the controller reads the intended command. Mount the sample in the representative door trim and operate it from the normal seated reach. Include the actual connector orientation and the production-intent tail route.

Review at least these conditions:

• daylight and low cabin light;
• bare finger and any defined glove condition;
• dry surface and the buyer's permitted cleaning residue condition;
• repeated up and down commands without accidental lock actuation;
• lock operation without brushing a direction key;
• door closing or representative vibration followed by another functional check;
• tail, connector and edge inspection after the module is removed and reinstalled.

If backlighting is required, record the off-state icon, lit-state symbol, color, bleed boundary and dimming ownership. A bright padlock legend beside weak direction arrows can change which zone attracts the eye. Optical review is useful, but it should not replace the physical separation and command-map test.

Make the RFQ package follow the hand path

Send the installed door-trim view, control outline, key-zone map, section through the rear support, left-hand or right-hand orientation, surface finish, tactile construction, tail exit, connector part number, pin table and controller interface notes. Add the expected cleaning method, cabin temperature range, glove use, lighting state and sample validation boundary.

Mark every item as fixed, provisional or owned by the vehicle system. For example, the switch supplier can review the printed key boundary and contact-to-pin map, while the buyer owns one-touch motion, anti-pinch response, central locking logic and final vehicle acceptance.

When using the Request Quote page, attach one annotated hand-path view and one connector-view pin table. Ask the first mounted sample to prove three things: the finger can distinguish motion from locking, each key reaches the intended tail pin, and the complete module fits without changing key feel. That evidence is more useful than approving a loose black panel from a front photo.
