Warehouse Robot HMI Spares: Prove Interchangeability Before the Quote

Do not approve one warehouse-robot HMI as a fleet spare because its outline and artwork match. Approve it only after a controlled compatibility matrix ties the panel revision to the contact map, tail, connector keying, pin assignment, controller or firmware range, enclosure datum and field-swap result. An August 26 Association for Advancing Automation interview reports that Robust AI has deployed its 100th Carter unit and now supports robots that are part of daily operations. At that scale, a spare must be interchangeable across the stated unit range and recoverable after a mismatch, not merely similar on a bench.

What a 100-unit deployment changes for replacement parts

The A3 interview describes a move from isolated demonstrations to a growing installed fleet. It also discusses 24/7 support, late-night service calls and the infrastructure needed to move from 100 units toward much larger deployments. Those details matter to a component buyer because the cost of an ambiguous spare grows with every installed revision.

The source is about robot deployment, not membrane panels. The durable purchasing lesson is narrower: once equipment becomes part of daily operations, the replacement interface needs a defined fleet identity. A spare that fits unit 100 but not unit 37 can create a longer outage than having no spare, especially when both parts carry similar artwork.

Treat the HMI spare pool as controlled service inventory. Each approved panel should state which unit family and revision range it can replace, which controller or firmware combinations were tested by the robot OEM or fleet owner, and what rollback part remains available if the field swap fails.

Build a fleet compatibility matrix before buying spares

Start with the installed population, not with the supplier's newest drawing. Group robots by the evidence that can change panel interchangeability. Do not assume that a shared model name proves the same circuit, tail or controller behavior.

The matrix can be short, but it must have an owner and revision. If a row is unknown, label it unknown and block fleet-wide approval. Do not fill missing controller compatibility with a supplier assumption.

Run three swap scenarios, not one continuity check

A bench continuity test is useful for screening, but it does not prove fleet interchangeability. Use at least three mounted scenarios and record the installed unit, outgoing panel revision, incoming spare revision, controller or firmware reference, result and rollback outcome.

### 1. Same revision and same unit family

Install the spare in a robot that matches the sample's documented configuration. Check every fixed key, indicator or backlight circuit, connector retention, tail clearance and enclosure landing. Verify both the requested action and the system feedback. A key press without the expected acknowledgement is not a pass.

### 2. Older installed unit with the proposed common spare

Choose the oldest configuration that the common spare is intended to cover. This is where mirrored pinouts, changed contact maps, different connector keying and revised controller behavior usually become visible. If the sample is only approved for newer units, state that boundary on the spare identity rather than widening approval by assumption.

### 3. Controlled mismatch and rollback

Define what technicians do when the new part does not behave as expected. Stop the swap, record the unit and part revisions, reinstall the known-good panel, confirm recovery and quarantine the unverified spare. A successful rollback is evidence that the field procedure protects uptime; it is not evidence that the rejected spare is interchangeable.

Quarantine a spare when identity evidence is incomplete

Do not release a panel to the fleet pool when any of these conditions remains unresolved:

• the front artwork revision is known but the circuit revision is not;
• the connector housing is visible but the maker, part number or keyed orientation is missing;
• the pin table does not say whether it is viewed from the cable side or mating side;
• the sample passed on one robot but the intended unit range includes older configurations;
• tail routing requires a fold or bend that was not present during sample approval;
• the controller accepted a command but the expected indicator, acknowledgement or recovery state was not checked;
• the replacement has no lot, revision or approved-range label that a field technician can read.

Quarantine does not automatically mean the part is defective. It means the evidence is too weak to treat that part as interchangeable service inventory. The next action may be a drawing clarification, a second sample, a connector correction or a narrower approval range.

Keep the panel supplier boundary explicit

An HMI supplier can manufacture the graphic overlay, spacer, circuit layer, tactile structure, tail and connector to controlled documents. The supplier can also provide dimensional reports, contact or resistance checks, artwork proofs, material records and sample traceability when those items are included in the purchase requirement.

The robot OEM, system integrator or fleet owner retains responsibility for controller compatibility, firmware interpretation, machine safety, functional validation, field-change authorization and rollback. A panel sample must not be presented as proof that a robot is safe to operate. Its approval evidence covers the physical and electrical interface defined in the drawing and test plan.

This boundary should appear in the purchase record. It prevents a component report from being misread as system validation and tells both sides which missing evidence must come from the equipment owner.

RFQ package for a fleet spare pool

For a replacement or second-source quotation, send a controlled package rather than a loose photo set. Include:

1. front artwork with revision, colors, legends, windows and indicator locations;

2. front and rear outline dimensions, enclosure opening, landing datum and allowed edge clearances;

3. installed robot families, unit or serial ranges and existing panel revision groups using privacy-safe internal identifiers;

4. contact or matrix map tied to every key and indicator circuit;

5. tail exit position, finished length, bend-free zone and routing constraints;

6. connector maker, part number, pitch, contact count, keying and a clearly labeled pin view;

7. adhesive, surface, cleaning agent, temperature and service-exposure requirements that can be supported by the drawing;

8. tactile, embossing, backlight, indicator and cosmetic acceptance requirements;

9. sample quantity and the three mounted swap scenarios, including the rollback record;

10. spare label format, lot traceability, approved unit range, annual demand and packaging or storage requirements.

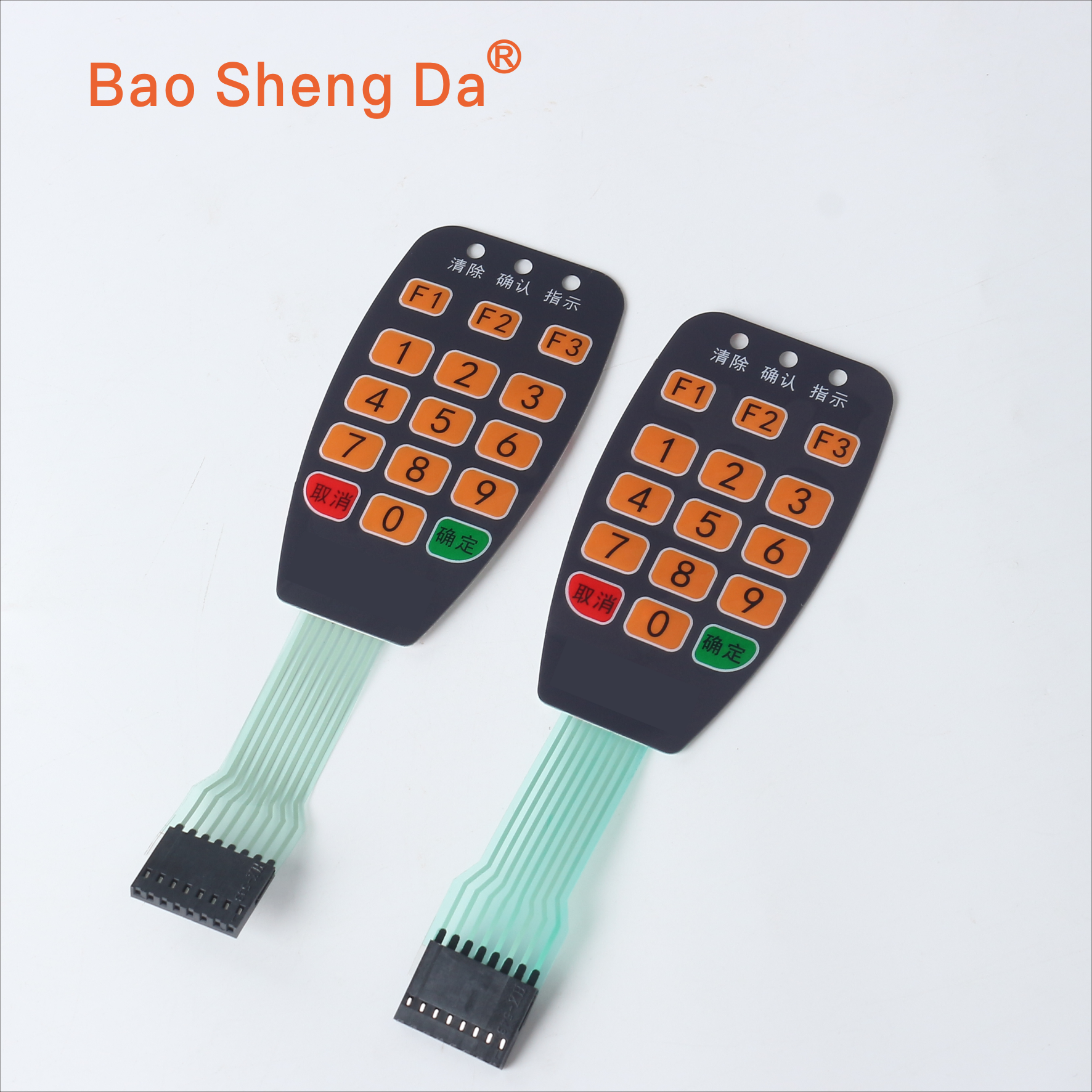

The two similar panel assemblies in the cover are a product reference for comparison and termination review, not evidence of an installed robot model. Use the industrial automation HMI design and manufacturing page to organize panel, tail and enclosure requirements. Then submit the controlled compatibility matrix and sample plan through Request a Quote. A quotation can be meaningful only when the supplier knows whether the requested part is one exact replacement or a common spare intended for several fleet revisions.
