Soft-Robot Membrane Switch Mounting Starts with a Strain Map

A membrane switch for a soft robot should be positioned from the device's strain map, not added after the enclosure artwork is finished. Put the keypad on a rigid or strain-neutral carrier whenever possible, keep its adhesive edge outside the active bending or contraction zone, and route the tail through a controlled transition with relief. If the switch must cross a moving surface, the RFQ needs the expected curvature, strain direction, cycle profile, temperature, actuator heat, mounting substrate, tail bend and sample fixture. Those inputs determine whether a flat switch stack can remain bonded and electrically stable after the robot moves.

On August 24, 2026, npj Flexible Electronics published research on a multicolor electrochromic actuator for biomimetic skin-muscle coupling. The reported device combines a thermoresponsive elastomer, a mesh heater and independently addressed color layers, so one thin surface can contract and show visual states. That research is not evidence that a membrane switch was used in the device. It is a useful packaging signal: soft robotic surfaces can move, heat and communicate, while a fixed service input still needs its own mechanical and electrical boundary.

A buyer considering custom membrane switches for a soft robot, wearable mechanism or deformable equipment panel should therefore start with the mounting and routing map. Artwork comes after the stable zone is defined.

Draw the motion and heat boundary before the keypad outline

The first drawing should mark more than the visible product shape. It should identify where the device bends, stretches, contracts, heats, twists and transfers load into a rigid frame. The membrane switch outline, adhesive landing area and tail transition can then be placed against that map.

A keypad mounted partly on a stable carrier and partly on an active surface may see several different failures:

• the overlay wrinkles and changes the key feel;
• the adhesive edge lifts where local curvature reverses;
• a spacer or dome area is compressed by the device's own motion;
• the circuit tail creases at the carrier edge;
• repeated movement works a terminal loose even though the flat sample passed continuity;
• nearby actuator heat changes the adhesive response or printed surface appearance.

Do not reduce this map to one bend radius. A surface may bend in two directions, contract locally and warm during the same operating sequence. Mark the normal state, the maximum expected state and the transition path between them.

Assign each command to a stable operating zone

Command duty decides where the fixed module belongs. A service key used during setup has a different reach, feedback and exposure profile from a frequent user command. A safety-related function also needs a system-level decision that a component supplier cannot make alone.

A membrane switch must not be assumed to satisfy an emergency-stop requirement because it has a red icon or a separate key. The equipment designer owns the safety function, required architecture and validation.

Choose the face stack and adhesive for the real carrier

The moving skin may be the most visible part of the robot, but the membrane switch bonds to a specific carrier. State whether that carrier is coated metal, molded plastic, a composite plate or another finished surface. Include texture, flatness, edge geometry, cleaning method and the area available for adhesive around each key zone.

The face material, print stack, embossing and adhesive should be reviewed together. A thicker or more deeply embossed face may improve tactile separation, but it can also change local stiffness. A large adhesive cutout may free a key area while leaving too little bond width near the module edge. A clear or backlit zone may need tighter registration than an opaque fixed legend.

Test coupons are useful for screening material combinations. They do not replace a mounted sample when the real carrier has curvature, heat or repeated motion.

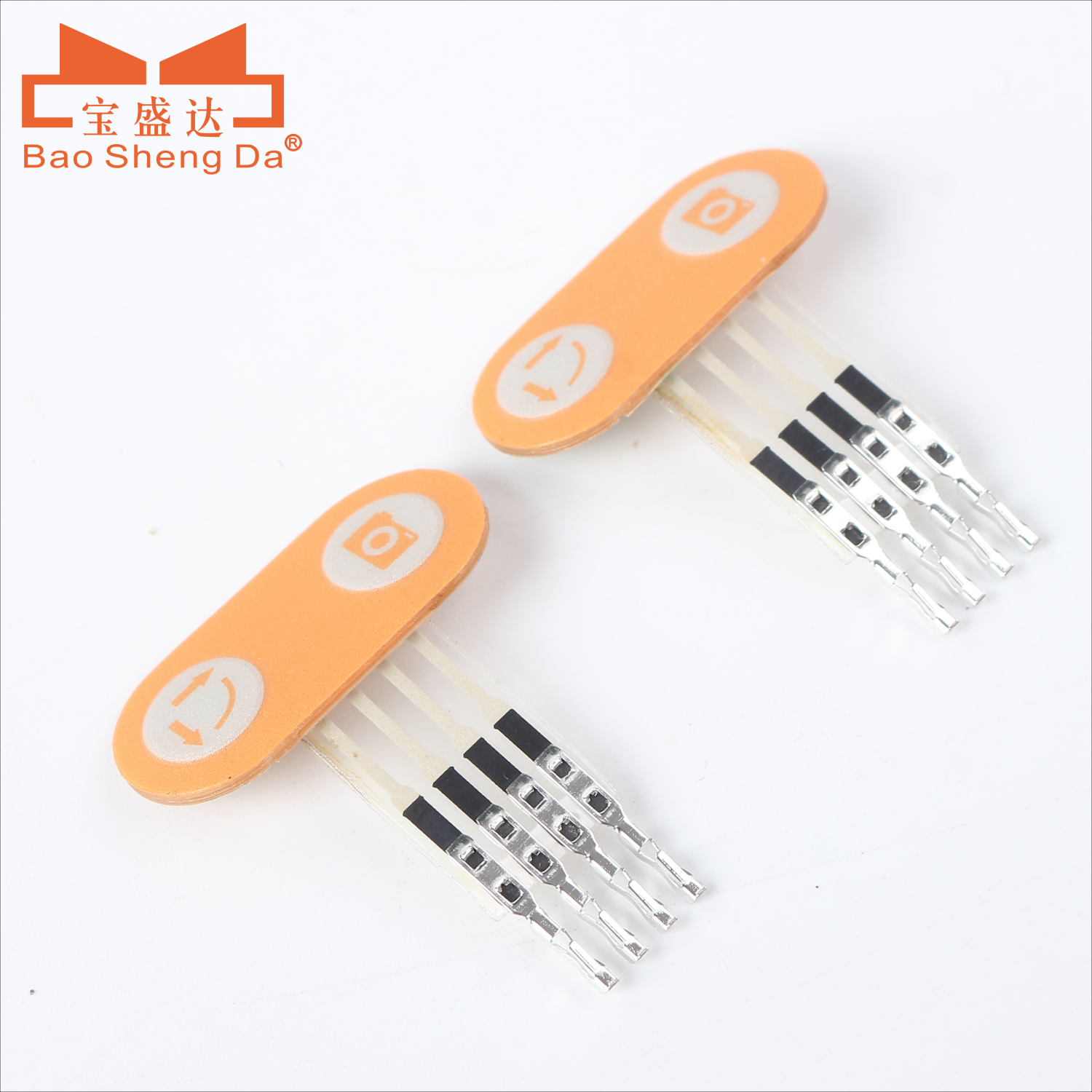

Route the flex tail through a controlled transition

The tail needs its own movement budget. Keep the active key area stable, then decide where the flexible circuit leaves the module, where it is supported and where movement is allowed. A short tail that exits directly into a moving joint can be less reliable than a longer route with a defined service loop and strain relief.

The drawing should show:

• tail exit side and conductor direction;
• fixed, transition and free-movement zones;
• bend direction and the nearest carrier edge;
• clearance from heater leads, pneumatic lines, fasteners and sharp ribs;
• terminal type, mating direction and service access;
• the point where the harness or board takes over strain relief.

Do not approve only the terminal style. The connection can be correct while its location creates a fatigue point after assembly.

Use a mounted sample to close the decision

A useful sample review reproduces the carrier, tail exit and device movement closely enough to expose the real risks. Start with a baseline visual and electrical record, run the agreed movement and temperature sequence, then inspect the same points again.

The review can include:

• key response and tactile consistency in the neutral position and at the allowed device states;
• overlay flatness, edge lift and adhesive witness marks;
• tail continuity before, during and after the movement sequence;
• conductor and terminal inspection at the controlled transition;
• legend readability in the device's powered and unpowered states;
• photos of the mounted module from the same angles before and after the cycle.

A flat bench press proves that a key can close a circuit. It does not prove that the mounted module will stay flat, bonded and connected beside an active soft surface.

Keep the supplier boundary explicit

A membrane switch supplier can review the printed face, key construction, spacer, adhesive pattern, flexible circuit, tail, terminal and manufacturing drawing. The supplier can also build samples to an agreed fixture and record the requested component evidence.

The supplier does not validate the electrochromic actuator, heater control, pneumatic or motor system, robot software, clinical performance, safety architecture or final-device compliance unless those items are covered by a separate verified scope. The equipment owner must define the operating states, strain map, temperature exposure, hazard controls and acceptance criteria.

This boundary prevents a clean component sample from being treated as proof of the complete robot.

Drawing and RFQ checklist

Send enough information to connect the fixed keypad to the moving device:

• soft surface, rigid carrier and strain-neutral zone boundaries;
• normal and maximum curvature, strain direction and movement sequence;
• local temperature range and distance from heaters or hot surfaces;
• keypad outline, key functions, legend artwork and any window or light zones;
• carrier material, coating, texture, flatness and available adhesive land;
• tactile or non-tactile preference and any embossing constraints;
• tail exit, supported transition, free length, terminal and mating direction;
• cleaning, moisture, dust and handling conditions;
• mounted fixture drawing and sample movement plan;
• prototype quantity, expected production quantity and controlled drawing revision.

If the strain map is not final, label the unknown zones instead of hiding them. Baoshengda can review the membrane switch stack, mounting surface, tail route and sample inputs through the Request Quote path, while the robot designer retains responsibility for the moving actuator and final system validation.
