Service Robot HMI Panels: Keep Field-Service Inputs Separate

A service robot does not need every operator action on the main touchscreen. If the robot has a service door, charging dock, cleaning cycle, fault reset or maintenance mode, a separate compact HMI panel can make the action easier to find, easier to seal and easier to replace. The decision should be made before the enclosure drawing is frozen, because the display window, touch area, adhesive landing, tail exit and connector access all depend on the same front-panel layout.

The current market signal is not only a forecast. The International Federation of Robotics reported in its World Robotics 2025 service robots release that transportation and logistics was the largest professional service-robot application class by units sold in 2024. That points to more mobile robots, indoor transport platforms and field-service points where technicians need predictable local controls. It does not mean Baoshengda supplies the robot or its control system. It does make the component-level HMI question more practical for buyers.

Baoshengda's industrial automation HMI work can support custom front panels, touch or membrane key zones, display windows, graphic overlays, adhesive mounting, FPC tails and connector planning. The useful sourcing question is where the small interface should sit in the robot workflow, not how many icons can be printed on one panel.

Where the separate service panel earns its place

A mobile robot may already have a screen, app or fleet-management dashboard. The small local HMI still matters when the action must be available without login, network access or a deep software menu. Good examples include power confirmation, dock release, manual jog, cleaning start, fault acknowledgement, battery service, mode selection or a protected maintenance reset.

Before drawing the panel, write the use case in one sentence:

• Who presses it: operator, cleaner, technician, warehouse staff or service partner?
• When is it used: normal shift, fault recovery, washdown, charging, battery swap or software update?
• Is the robot moving, parked, docked or opened for service?
• Does the user wear gloves, hold a tool or work under low light?
• Should the action be possible without touching the main screen?

This step avoids a common mistake. A buyer may ask for a thin decorative overlay, while the real need is a service input that can be found quickly when the robot is stopped beside a rack, a corridor wall or a cleaning station.

Match the input stack to the robot state

The right HMI stack changes with the robot's operating state. A flat touch area may be suitable for a protected service menu, status selection or wash-friendly front surface. A tactile membrane key or rubber key may be safer when the user needs confirmation through gloves. A small display window helps when the robot must show a state, error code or local prompt beside the input area.

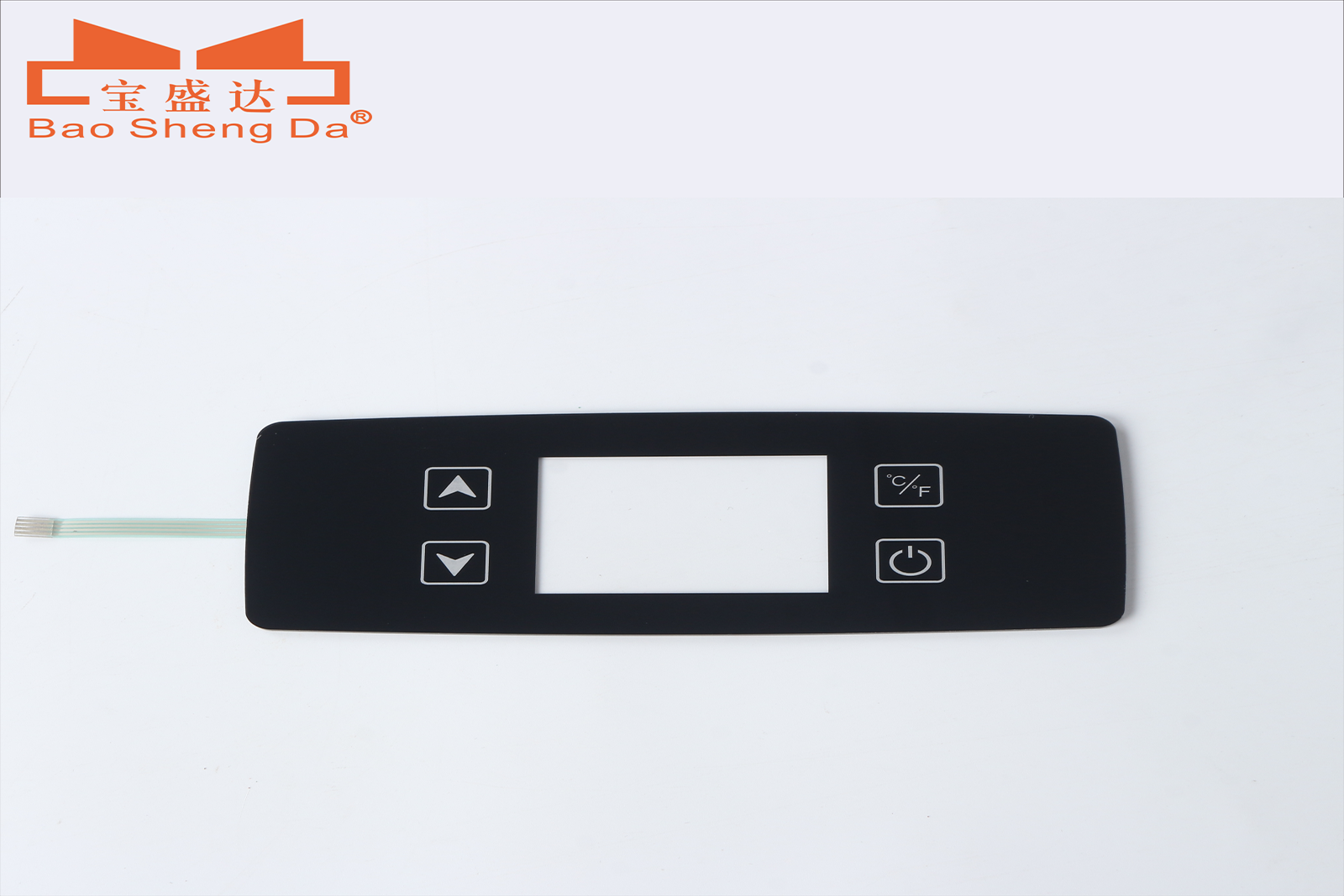

For a service-robot HMI sample, define these layers together:

• front film: PET, PC or other overlay material with the required finish;
• input method: touch key, membrane switch, tactile dome or molded key;
• window: clear, tinted, matte, dead-front or backlit area;
• adhesive: perimeter bond, inner support around the window and relief near the tail exit;
• rear circuit: FPC tail, connector pitch, stiffener side and service loop;
• enclosure fit: cutout radius, gasket line, screw bosses and nearby cable paths.

The tradeoff is direct. A flat touch panel is easier to wipe and can look cleaner on a robot shell, but it may give less tactile confidence in a hurried service action. A raised or tactile key can be easier to find by feel, but it needs more attention to key travel, surface wear and housing clearance.

Protect the flex tail before the robot starts moving

Field failures often start behind the visible panel. A mobile robot vibrates, docks, turns, bumps small thresholds and may be opened repeatedly for service. If the flex tail exits through a sharp edge or sits under a service cover, the first sample can pass an electrical check and still fail after installation.

Mark the tail route on the enclosure drawing. Show the exit side, bend radius, stiffener direction, connector position and any clamp or tape location. If the panel is mounted near a removable cover, send the service-motion path as well. A tail that is safe when the cover is open may be pinched when the cover slides shut.

Cleaning exposure also belongs in the tail discussion. Professional cleaning robots and warehouse robots may see alcohol wipes, detergent mist, floor dust or occasional splashes. The front surface, window edge and tail exit should be reviewed as one sealing path rather than three separate items.

Keep service states simple

A small HMI panel should not copy the main user interface. It should reduce decisions at the robot, especially for field service. Too many icons, colors or hidden functions increase artwork risk and sample-review time. A better first sample usually proves a few fixed states: power, fault, reset, start, dock release, manual direction or maintenance mode.

Use clear priority rules:

• put emergency or safety-related actions outside the decorative icon group;
• separate frequent shift actions from technician-only actions;
• avoid relying on tiny legends if the panel may be used in low light;
• confirm whether the window needs optical clarity, diffusion or dead-front hiding;
• decide which icons must remain visible when power is off;
• define what the operator should feel or see after pressing the input.

The limitation is also important. A component supplier can help with the panel stack, circuit tail, overlay, adhesive and connector details. The robot maker still owns safety logic, software state, firmware response and system validation. Keeping that boundary clear makes the RFQ faster and prevents unrealistic claims in the sample brief.

What to send for a service-robot HMI RFQ

A useful RFQ package connects the robot workflow to the physical part. Send the robot location photo or enclosure CAD, panel outline, visible area, display-window size, key or touch-zone map, tail exit side, connector target, expected cleaning method, glove-use note, operating temperature, sample quantity and annual estimate. If the robot has a service door, charging dock or removable cover, include that movement path.

For Baoshengda review, also mark the acceptance criteria. Tell us whether the sample must prove wipe-down resistance, window fit, touch response, tactile confirmation, tail bend safety, connector access or replacement time. That allows the quotation discussion to route through the Request Quote page with the right drawing package instead of a generic front-panel request.

The next practical step is to choose the service action first, then design the compact HMI around that action. A clear local input can reduce technician guesswork without turning the robot shell into a crowded control board.
