Robot Operator Panel Troubleshooting: Prove the Key Contact Before Replacing the Keypad

A robot that ignores a panel key after a software, controller or program change does not automatically need a new keypad. Before requesting a replacement quote, prove three separate links: the physical key closes its intended contact, the tail and connector deliver that contact to the assigned input, and the controller permits the requested action in the current state. Replace the custom membrane switch only when component evidence points to the panel or interconnect. If continuity and input observation pass, keep the keypad out of the fault claim and let the robot integrator diagnose program, permission, resume and safety behavior.

Repeatable physical HMI tests reveal the missing record

In its touch-panel testing article dated 2026-10-06, SABO describes testing real HMI hardware with a robot arm, simulated sensor inputs and camera observation of the display. The described method exercises physical operator actions and retains evidence for the test steps. It complements unit, integration and hardware-in-the-loop tests. SABO also describes reporting a shifted control position as a finding instead of automatically compensating for it. These are the service provider's statements about its touch-HMI method, not an independent result for a membrane keypad.

After an update, compare the physical input and its outcome under recorded conditions. Repeating an on-screen action without that record leaves the failed link unresolved. A screen image alone cannot show whether a membrane contact closed, how the connector delivered the event or whether release occurred. A short intermittent event may also disappear between the controller's recorded observations. The buyer risk is replacing a keypad after an unexplained failed action, or accepting a single passing press as proof that the fault has gone. Missing evidence needs another controlled observation, not a guessed defective part.

For a membrane-keypad investigation, pair a defined press and release with the contact reading, assigned controller input and permitted display or state outcome. The equipment integrator chooses a non-motion diagnostic arrangement, recording method and timing appropriate to the suspected symptom. No robot test service, automated rig or particular camera is required to make an initial replacement enquiry. Another technician should be able to repeat the case and identify the failed link. An automated test that silently relocates the actuation point would not establish comparability for a fixed physical key either.

The older Universal Robots PolyScope X 10.14 release notes, released August 27, 2026, remain background: they describe external-input background logic and manufacturer-specific control behavior. Neither source identifies Baoshengda as a supplier or proves keypad compatibility. The robot integrator still owns command permission and safety validation.

Prove the physical key without relying on the robot response

Start with power isolated according to the equipment owner's service procedure. The component check should not require the robot to move. Use the released circuit drawing or an approved golden sample to identify the two conductors associated with the suspect key. Measure the open state, press the key through the normal overlay and support stack, and record the closed-state result. Repeat enough times to expose intermittent behavior rather than accepting one successful press.

Test at more than one point when the assembly allows it. A pass directly on the membrane tail shows that the contact and printed circuit path operate. A pass at the harness or controller-side connector also includes the mating interface. A difference between those results points to the connector, harness, crimp, contamination or retention rather than the printed key itself. Record probe points and connector orientation on a privacy-safe diagram so another technician can reproduce the check.

A loose keypad can pass while a housing boss, warped bezel, adhesive void or unsupported key zone changes travel after assembly. Check the suspect key in the normal enclosure with the specified backing support, gasket, fasteners and tail bend. If the symptom appears only after tightening the housing, the RFQ needs mechanical stack evidence, not just a new artwork file.

Reconcile the contact with the controller input

After the physical circuit is understood, observe the assigned input without asking the robot to execute motion. The robot or machine integrator should confirm that the expected input changes when the key is pressed, that no second input changes unintentionally, and that the signal returns cleanly when released. Use the system's approved diagnostic method; do not infer an input from a screen animation that may be generated by application logic.

A contact-to-input record should include the key function ID, circuit net, connector pin, controller input name, normal level, pressed level and any debounce or filtering owned by the controller. This record becomes the bridge between a membrane-switch drawing and the software configuration. It also prevents a replacement keypad from being copied visually while the pin assignment or common conductor differs.

If the contact passes at the tail but not at the controller input, inspect the connector seating, pin damage, strain relief, tail insertion depth and harness continuity. If the controller input changes correctly, the component has completed its electrical task. The next question belongs to command authority and state logic.

Capture one replayable press-and-release case

Give the suspect key a stable function ID and record its circuit net, connector pin and assigned controller input. Record whether the panel is loose or mounted. Keep the panel and housing revisions, tail route, probe points and approved controller configuration with the results. Describe the press location, normal overlay support and release, using the agreed method rather than changing finger pressure until a run passes.

For each attempt, record the starting device state, the physical actuation and release, the observed contact result, controller input transitions and allowed display or diagnostic response. A shared time reference or a recorded common event should let the integrator compare the observations. Mark a reading as missing if the capture cannot resolve it; a missing transition is not an observed open contact. A photograph of the final screen state cannot establish the timing of a press-and-release event.

Repeat the failing sequence and the approved reference sequence with the same setup. Retain both successes and failures. If a contact event is present but the input is absent, investigate the interconnect and the controller's observation method. If the assigned input arrives but the command is refused, keep that state result with the controls owner. Avoid assigning the keypad a defect merely because two unsynchronized records look different.

When firmware, filtering, mounting or fixture changes, label the new configuration and retain the old result. Do not close the original intermittent failure on a pass from a different capture method. Agree the repeat count and acceptance conditions with the owner; no universal timing limit or cycle count is implied here.

Use a fault-isolation table before opening the RFQ

The table is not a remote safety assessment. Its purpose is to stop a component supplier, system integrator and buyer from using the same symptom to mean three different failures.

Keep resume and stop-state logic outside the membrane drawing

A membrane key provides a physical input. It does not decide whether the robot is allowed to start, resume, power on, leave a protective stop or move toward a programmed position. Those decisions can depend on application logic, mode, permissions, interlocks, safety functions, diagnostics and manufacturer-specific behavior. The equipment owner and qualified integrator remain responsible for them.

Do not label a key 'safety' in the RFQ merely because it appears next to an important command. If a function is safety-related, the system team must define the required architecture, device type, validation and failure response. A standard membrane contact, its color or its tactile feel does not establish that role. The component supplier can manufacture the released physical interface and report component-level tests, but cannot approve robot motion or safety performance from a keypad sample.

When an update changes prompts or resume behavior, preserve the before-and-after application revision, controller configuration and state sequence. That record helps the integrator diagnose the change without asking the keypad supplier to reproduce proprietary robot logic.

Build the replacement drawing from interfaces, not a photograph

A useful replacement drawing starts with the panel perimeter and mounting datums, then connects each physical feature to an electrical definition. Include the display-window opening and tolerance, active and non-active key zones, surface finish, legend artwork, adhesive boundary, housing support, gasket or sealing land, tail exit, bend direction, connector part, contact orientation and pin assignment. Mark keep-outs around fasteners, ribs and the display bezel.

For an existing panel, provide an approved part or a privacy-safe dimensional inspection when the original drawing is unavailable. A front photograph cannot reveal the circuit common, spacer openings, dome construction, adhesive pattern or tail conductor order. Do not ask a new supplier to copy a customer-marked photograph as the released master. Remove confidential geometry that is not needed and provide only the controlled interface evidence required for quotation.

Revision control should separate artwork, mechanical stack and electrical circuit. A legend change does not authorize a pin-map change. A connector substitution does not automatically fit the same housing or harness. Name the approved golden unit and record how it was identified without publishing customer information.

Approve a sample in three evidence stages

First, inspect the loose component. Check perimeter, window, print, key registration, tail length, connector orientation and continuity for every key. Compare the circuit to the released key-to-pin table.

Second, install the sample in the representative housing. Check surface support, key travel, tactile consistency, edge lift, tail strain, bend clearance, connector access and retention. Repeat the suspect-key continuity check in the mounted state.

Third, let the equipment integrator perform the controlled system test. Verify that each physical key changes only its assigned input, that a release returns the input cleanly, and that the application handles every state according to the equipment owner's approved test plan. Component approval and robot-level approval should be recorded separately so a software result does not hide a physical defect, and a good keypad does not become evidence that the robot logic is safe.

Send an RFQ that closes the actual unknowns

Before using the Request Quote page, include:

• the controlled front artwork and dimensioned perimeter with mounting datums;
• the display window, key zones, adhesive or gasket boundaries and housing support section;
• the circuit schematic or key-to-net table, connector part, pin assignment and contact orientation;
• the full tail geometry, exit direction, bend area, insertion depth and strain-relief requirement;
• the observed fault matrix, including loose, mounted, tail-side and controller-side results;
• the controller input observation and synchronized press-and-release record for the suspect key, with confidential program details removed;
• the expected tactile response and any approved key-force comparison method;
• the required quantity, revision, service-spare need and approved golden-sample status;
• the loose-component, mounted-panel and integrated-system acceptance owners;
• a written boundary that keeps robot permissions, resume behavior, motion and safety validation with the equipment integrator.

Send the smallest repeatable failure case with the contact and input evidence. Ask the response to identify the component or interconnect scope it can review, the open measurement conditions and the controls question that remains with the integrator.

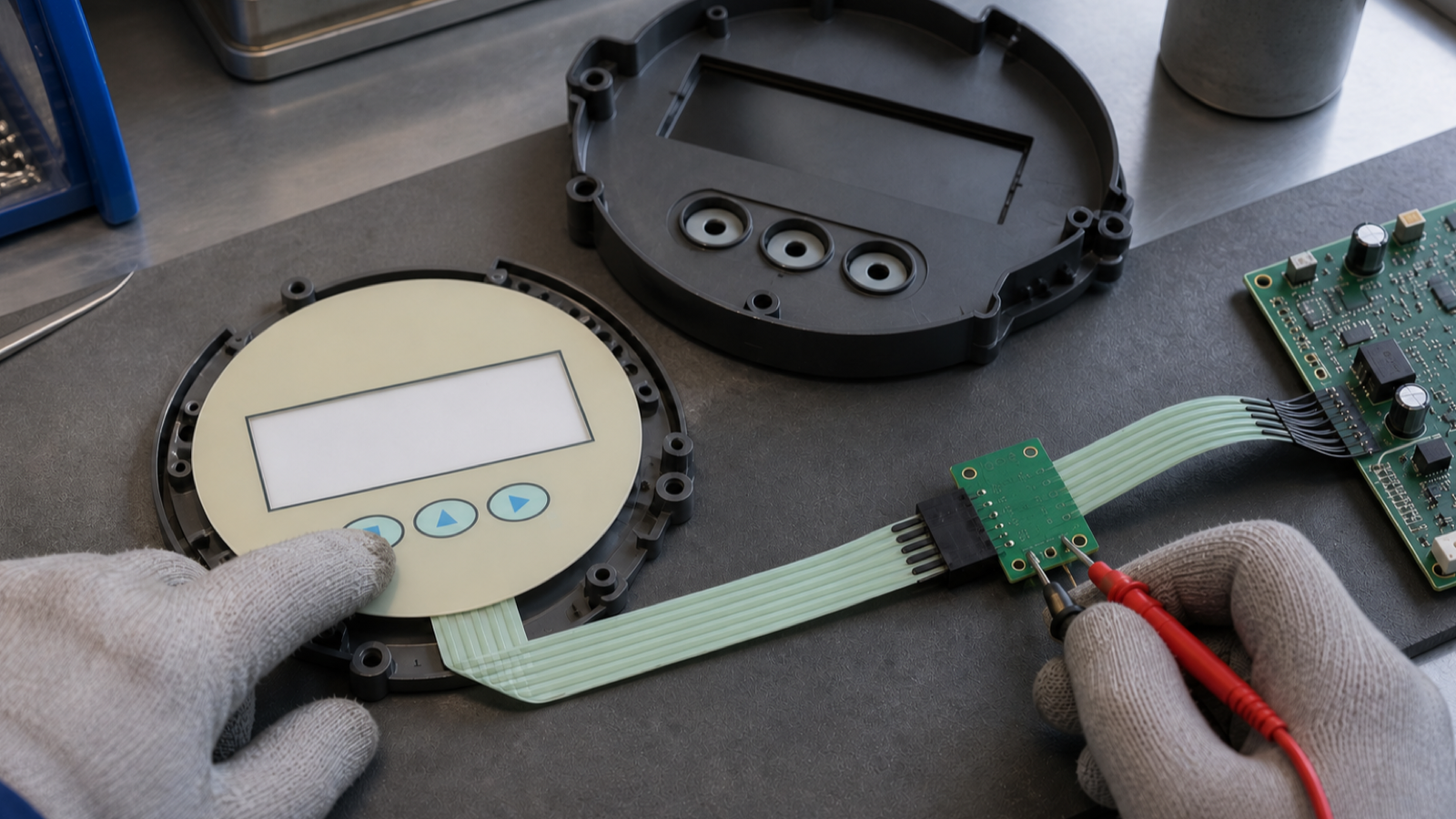

The retained generated cover illustrates a generic membrane-keypad bench check with a flexible tail and test adapter. The partly shown controller board is context only. The image contains no readable measurement result and is not a photograph of an actual robot test, customer system or approved circuit.
