Robot-Assisted EV Charging: Keep a Manual Override and Status Panel

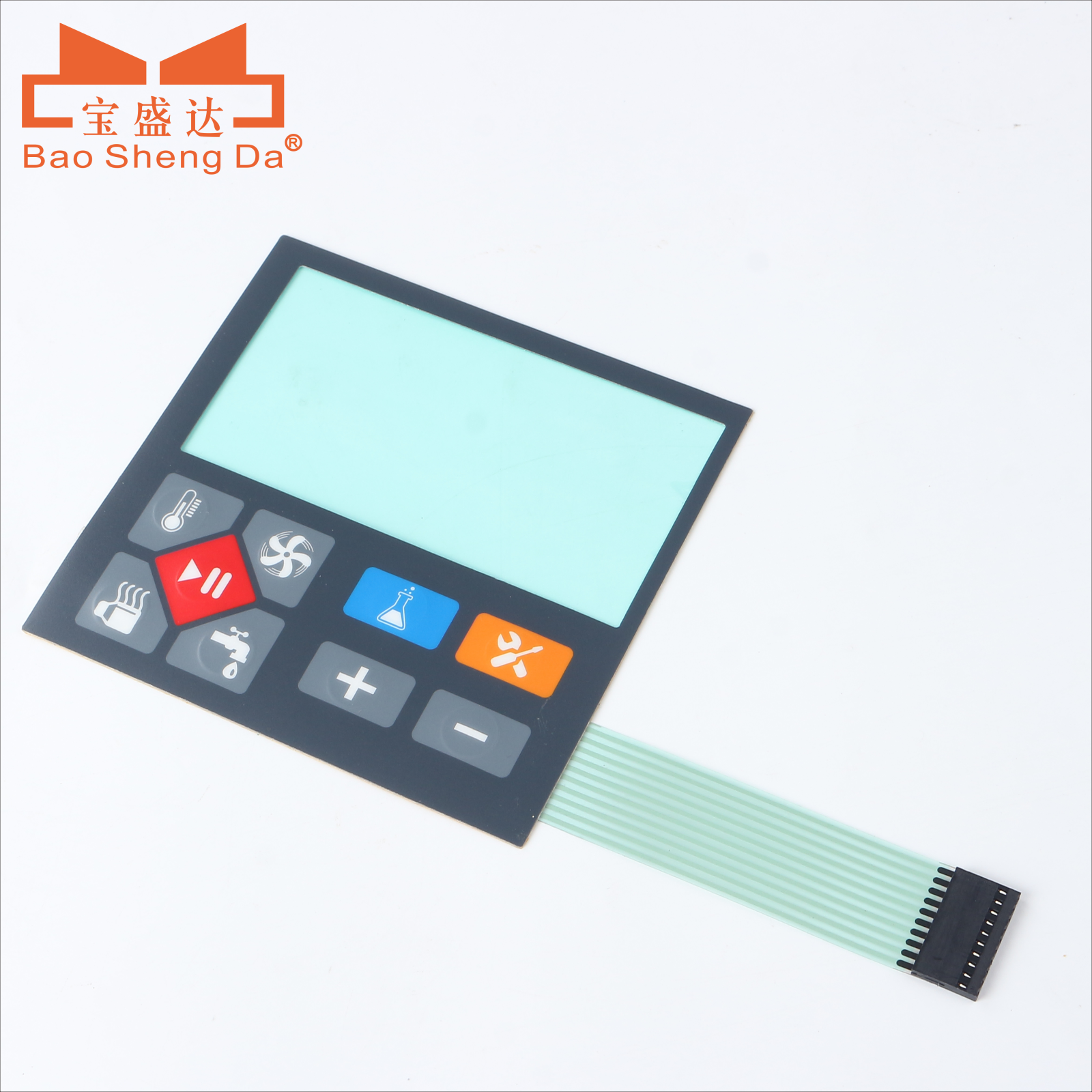

Robot-assisted EV charging can remove many manual steps, but it does not remove the need for a readable local handoff. When a robot is aligning, paused, obstructed, or unable to release, someone must see the state and know which physical action is safe. A fixed membrane keypad with separate mode, stop, status and service functions can make that handoff readable. The panel should not be treated as a robot controller. It should expose a small, agreed set of physical actions that the robot and charger system can accept.

Why automated charging still needs a local handoff

Automation removes a task, not the responsibility boundary. A robot can move the connector, but the user still needs to know whether the session is safe to approach, why the robot is waiting, and who will recover the process after an obstruction or failed release.

Three handoff states commonly create confusion:

• The robot is moving, but the panel shows a generic charging or ready state.
• The robot stops, but no local control explains whether it is paused for safety, user input or a fault.
• The connector has not released, and the user cannot tell whether a physical retry or a service reset is appropriate.

A status lamp alone is not enough unless every pattern is documented and tied to the controller. The physical keypad should make the action boundary visible instead of asking the user to read the robot motion from a distance.

What the August 13 study adds

User expectations and operator strategies in robot-based electric vehicle charging was published on August 13, 2026 in Energies. The original research surveyed user requirements, modeled realistic charging behavior and evaluated operational strategies for mobile charging-robot fleets. The authors point out that the effectiveness of robot-based charging depends on user behavior, temporal demand patterns and well-designed interaction and pricing mechanisms.

The study does not test a Baoshengda keypad or prescribe a button layout. Its useful component-level signal is narrower: the operator experience is part of the charging-robot design, so the physical interface should be defined from the actual handoff states rather than copied from a generic charger keypad.

Separate robot mode from manual control

Before choosing legends, separate these authorities:

• automatic mode, where the robot owns the charging sequence;
• manual mode, where an approved operator owns a defined local action;
• paused or waiting, where neither should start motion;
• release or retry, where the connector can be removed or reattempted;
• fault or service, where the action belongs to a technician or service tool.

A membrane keypad can carry the physical keys and lamps, but it does not decide which state is active. The robot controller, charger controller and safety system own those decisions. The panel is the local representation and the agreed input surface, not the source of authority.

Use one simple phrase for each mode and keep it visible. Avoid making a single lamp carry ready, charging, paused and fault unless every color, flash rate and startup pattern is controlled and tested.

Use one decision table for the physical panel

A clear handoff needs a small decision table before artwork approval:

The table is a drawing-control tool, not a universal charging-robot standard. Your robot architecture, connector mechanism and local safety rules must define the real states.

Keep safety functions outside the keypad assumption

Do not let a printed red area become an emergency-stop claim. An emergency stop, safety interlock or power disconnect belongs to the equipment-level safety architecture and the responsible engineering team. A membrane keypad can carry a physical stop request that the controller interprets, but the panel does not make that function safe by itself.

Separate public controls from service controls. A public user should not trigger a maintenance reset while trying to cancel or release the robot. Use physical position, restricted access, distinct color and a second confirmation where the workflow requires it.

The drawing should identify every key datum, active area, emboss type, tactile target, lamp opening and connector tail route. If a display is present, show the distance and relationship between the screen text and the physical key so reviewers can see whether the same arrow, color or status word has two meanings.

Test handoff with the real controller

Bench continuity proves that contacts close. It does not prove that the robot accepts the command. Test the panel after it is mounted in the intended housing or a controlled representative fixture, connected to the target controller or documented simulator.

The mounted sequence should include:

• every allowed mode, stop, retry and recovery transition;
• blocked commands in states where the action must not run;
• startup, restart, communication-loss and power-recovery appearances;
• repeated presses, long presses and simultaneous-key behavior where relevant;
• daylight, glove, wet-hand and viewing-distance conditions from the specification;
• lamp and display consistency with the controller state;
• continuity and pin checks before and after mounting;
• tail retention, connector seating and service access after the enclosure closes.

Record expected and observed results in the same state table. If the robot firmware changes a timing rule or reassigns a status output, update the state-table revision before repeating approval.

Supplier boundary and application limitations

Baoshengda can review the custom membrane switch construction, key geometry, legends, embossing, tactile or non-tactile structure, status windows, lighting, flexible circuit, tail, connector and physical sample evidence for an agreed design. The equipment owner remains responsible for robot motion, charging electronics, connector mechanism, software states, payment, safety interlocks, cybersecurity, regulatory compliance and final charging-system validation.

The cited research is current context for why interaction design matters. It is not a Baoshengda test, a customer case or a product-performance claim. Do not transfer its survey findings, fleet simulations or pricing outcomes into a keypad specification.

Robot-assisted charging RFQ checklist

Send these items before requesting a firm prototype plan:

• complete robot and charger state list with ownership for each state;
• manual override, stop, release and retry sequences;
• command-to-feedback table for valid, blocked, delayed and recovered actions;
• key active areas, embossing, tactile target and glove or wet-use requirement;
• status lamp and display text ownership, colors, flash patterns and timing;
• circuit schematic, I/O levels, voltage, current, polarity and pin assignment;
• tail exit, length, bend zone, stiffener, connector and mating-part details;
• housing section, adhesive landing, ribs, fasteners and service access;
• environmental exposure, cleaning method and operating temperature range;
• prototype quantity, production estimate and controlled revision identifiers;
• mounted transition test, electrical checks and pass or fail table;
• responsibility boundary for robot, charger, payment, safety and final validation.

When the handoff states, artwork and electrical interface are controlled, send the package for a custom membrane switch engineering review and request a sample quotation. That evidence lets the supplier quote a physical panel that can be tested against the robot's real behavior rather than interpreted from button labels alone.
