Remanufacturing Workcell HMI: Separate Disposition from Motion

When a remanufacturing workcell asks an operator to judge an incoming part, keep the disposition choice separate from machine motion. Accept, rework, quarantine and reject are process decisions. Start, pause, jog and cycle stop control equipment movement. Do not hide both groups in one changing screen menu, and do not present a thin membrane key as a safety-rated emergency stop. A clearer HMI gives the operator one visible decision path while the machine builder retains control of interlocks, safety logic and final validation.

This buyer question is timely. An original remanufacturing automation analysis submitted on August 5, 2026 describes how variable and uncertain end-of-life products keep human expertise inside inspection, sorting, disassembly, repair, reassembly and test. It also discusses real-time human-robot task allocation, operator guidance and safety evaluation. The paper does not specify a membrane switch. The component-level inference is that a workcell handling uncertain parts needs a physical operator interface that distinguishes a material decision from a motion command.

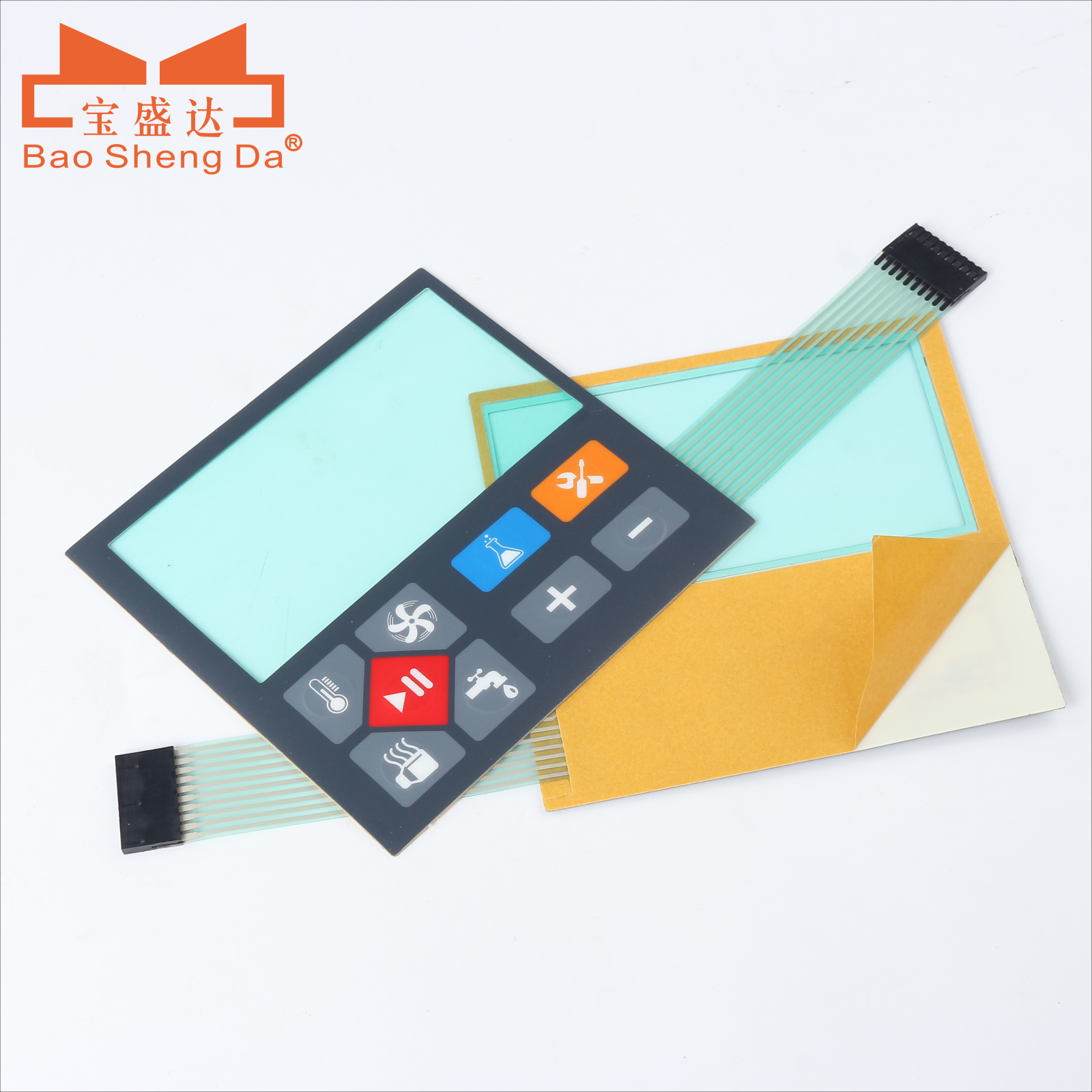

A custom industrial automation HMI can combine a display window, dedicated tactile keys, printed legends, indicator windows, a flexible circuit tail and a connector-ready front interface. The machine builder still owns the PLC, robot controller, risk assessment, emergency-stop circuit and software state model.

Turn the workcell workflow into a key map

Start with the workpiece state, not the available panel area. A returned motor, battery module or electronic assembly may arrive with damage, contamination, missing records or an unexpected revision. The operator may need to inspect it, request another test, choose a recovery route or hand control back to an automated sequence.

Write each decision as a state transition before drawing an icon. If the key changes where the part goes, it is a disposition function. If the key changes what the machine does now, it is a motion or cycle function. If it changes the interface only, it is navigation. Mixing these groups creates avoidable ambiguity during abnormal work.

The table is a design starting point, not a safety standard. The required hardware and confirmation sequence depend on the machine risk assessment, applicable standards and the controller architecture.

Separate disposition from motion by position and feel

Do not rely on color alone. A red printed key can still be pressed by mistake if it sits inside a row of routine keys with the same size, travel and spacing. Use position, grouping, legend, shape and tactile response together.

A practical layout places the display and navigation keys in one zone, disposition choices in a second zone, and ordinary motion commands in a third. Leave visible space between the groups. If an operator can press the panel while watching a robot or fixture rather than the key face, give the most frequent authorized actions a consistent location and a distinct tactile response.

The artwork revision should identify every active area with a stable code such as D1 for disposition, M1 for motion and N1 for navigation. Carry those codes into the circuit drawing, connector pin map, software input list and sample test sheet. A color change in the artwork must not silently change the electrical assignment.

If the operator wears gloves, check the minimum center-to-center spacing and the raised key profile on the mounted panel. If liquids, dust or metal debris are present, review the perimeter adhesive, display-window edge and tail exit as one sealing path. A clean front face does not prove the installed assembly is sealed.

Decide what stays on screen and what gets a fixed key

A screen is useful when the part condition creates many possible instructions. It can show the inspection result, current route, work order and confirmation prompt. Fixed keys are useful for actions that must remain findable when the screen content changes or when the operator is moving between inspection and machine control.

Use a dedicated key when the action is frequent, time-sensitive, permitted in a clearly defined machine state and difficult to locate reliably in a menu. Keep it on screen when the action is rare, requires detailed context or must present a confirmation record before execution. A hybrid panel can use a display for the variable work instruction and a small set of tactile keys for navigation, acknowledgement and authorized cycle commands.

Define the inactive state as carefully as the active state. Can a disposition key be pressed while the guard is open? Does a pause key remain available during manual inspection? What does the operator see after a rejected part is removed? The membrane panel can report an electrical input, but the controller must decide whether that input is accepted in the current state.

Draw the safety and supplier boundary before sampling

A custom membrane switch or overlay is part of the operator interface, not the complete safety control system. Baoshengda can review the front-film material, printed legends, tactile dome or embossed key structure, display and indicator windows, adhesive landing, spacer openings, circuit tail, connector and sample workmanship.

The equipment maker or system integrator remains responsible for functional safety, emergency stopping, guards, enabling devices, interlocks, safe speed, robot mode selection, software permissions, alarm logic and final machine validation. If the risk assessment requires a safety-rated device, show that separate device in the enclosure drawing so the membrane panel does not visually compete with it.

This boundary also applies to AI-assisted instructions. A model-generated suggestion should not become a machine command merely because it appears on the display. The controller architecture must define who approves the instruction, which state permits execution and what happens when sensor evidence conflicts with the suggestion. The front panel should make that approval boundary visible rather than hiding it behind a single confirm button.

Prove the HMI on a mounted workcell sample

Approve the first sample on the real housing or a representative fixture. A loose panel cannot prove glove access, display readability, key spacing, tail clearance or the relationship to guards and external safety controls.

Run a state-based test instead of pressing every key in random order:

• present a normal part and confirm that the accepted route is visible before the cycle starts;
• present a nonconforming part and confirm that rework, quarantine and reject cannot be confused;
• disable a disposition action in the controller and confirm the panel state does not imply that it remains available;
• move through manual, setup and automatic modes and record which motion keys are enabled;
• press each key while logging the reported input code and the displayed response;
• operate the panel with the expected glove and viewing angle;
• open the service cover and confirm that the tail, stiffener and connector remain clear of motion and sharp edges;
• repeat the key and display checks after the planned cleaning and environmental exposure.

Photograph the mounted sample in each important state. Record the artwork revision, circuit revision, firmware build and enclosure revision together. If one item changes, decide which tests must be repeated rather than treating the prior approval as universal.

Send an RFQ package that links workflow to hardware

The most useful RFQ starts with a one-page workcell state map. Show inspection, disposition, manual intervention, automated motion and fault recovery. Mark which actions need dedicated keys, which stay on the display and which belong to separate safety hardware.

Then send:

• front artwork with active-area codes and inactive legends;
• panel outline, display opening, bezel and adhesive landing dimensions;
• key function list, tactile preference, glove note and expected press frequency;
• indicator color, light-block and dead-front requirements;
• circuit schematic or matrix, tail exit, connector, pitch, contact side and stiffener direction;
• controller input voltage and current limits without asking the front-panel supplier to invent the PLC logic;
• cleaning agents, dust, oil, humidity, temperature and vibration exposure;
• sample quantity, annual estimate and mounted acceptance test;
• photos or CAD showing guards, service doors, external emergency stop and cable route.

Use the Request Quote page to send the drawing set. The quotation should state what Baoshengda supplies, what the machine builder supplies and which mounted tests release the sample. That makes the physical interface easier to review without overstating what a membrane panel can control.
