A battery pack can run longer at minus 30 degrees Celsius while the control panel still fails on condensation, a pinched tail or a leaking connector. A study published on August 18, 2026 characterizes an outdoor IoT battery pack and reports low-temperature runtime evidence. That evidence does not approve the waterproof membrane switch in the same enclosure. Validate the panel sealing path separately.
What the August 18 battery study adds
Battery Pack for IoT Devices in a Harsh Outdoor Environment was published on August 18, 2026. The study documents a LiFePO4 battery-pack prototype and compares runtime with a reference pack at -30, 8 and 25 degrees Celsius.
The authors also state that protection trip points and fuel-gauge accuracy were not experimentally verified. The work is reproducible design documentation with preliminary low-temperature runtime evidence, not a fully monitored and protected pack. That boundary matters for the panel: battery behavior cannot stand in for the sealing and mechanical behavior of the interface.
Why battery runtime is a different test from panel sealing
Runtime measures how long the battery can keep the electronics active. It does not measure whether moisture reaches the keypad, whether the tail is pinched when the housing closes, or whether the connector remains dry after thermal cycling.
A low-temperature test can improve confidence in the battery while leaving these panel questions open:
- condensation forms on the overlay or display window;
- water follows the housing edge into the tail exit;
- a connector seal shifts as the enclosure contracts;
- the adhesive edge lifts after temperature cycling;
- key actuation changes when cold or wet.
Each risk needs its own mounted sample evidence.
Freeze the outdoor sealing path
Start from the housing and define where liquid can enter. Mark the front face, edge, tail exit and connector. Then define the sealing method for each path.

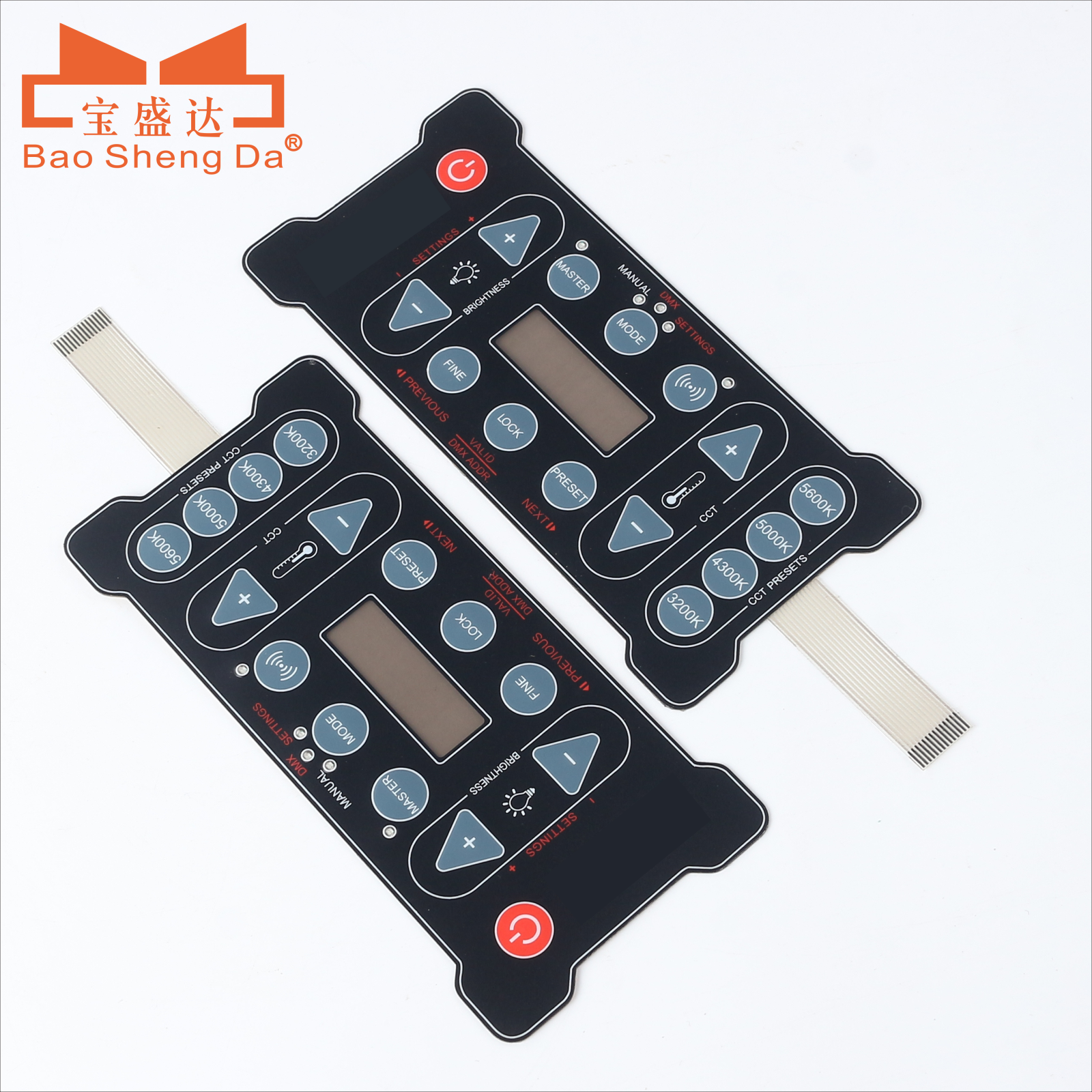

For the front panel, confirm overlay edge, adhesive land, display window and any emboss or key opening. For the tail, define exit position, first bend, service loop, gasket or strain relief, connector orientation and whether the mating area can drain if liquid enters the service space.
A waterproof membrane switch review should compare the panel to the real housing, not a flat coupon.
Use an outdoor-validation decision table
The table below converts the battery result into panel evidence. It is a review tool, not a universal pass and fail standard.
| Outdoor-system signal | Waterproof panel question | Required evidence |
|---|---|---|
| Battery runs at -30 C | Does the panel key still actuate correctly? | Cold-cycled mounted key test |
| Condensation after warming | Does moisture enter or stay on the display? | Visual and continuity check after cycling |
| Tail exits through the housing | Is the exit sealed and not pinched? | Tail exit, bend and strain-relief evidence |
| Connector sits near a wet path | Is the connector protected or drainable? | Connector orientation and ingress test |
| Battery protection not verified | Does the panel approval depend on battery success? | No: separate panel pass and fail criteria |
Do not combine the two approvals. A battery runtime pass can hide a control-panel failure that appears later in service.
Test the mounted panel through temperature and moisture
Use the production-intent housing and sealing materials. Cycle or soak the assembly through the agreed temperature and moisture sequence, then inspect the display, key feel, adhesive edge, tail and connector. Record continuity before and after.
The buyer must define whether water exposure is splash, immersion, condensation or cleaning. The panel evidence should match that exposure. Do not infer an ingress result from the battery test log.
Supplier boundary and limitations
The cited study is original battery-pack research. It is not a Baoshengda test, a waterproof certification, or evidence that any control panel is sealed. Baoshengda can review the waterproof membrane switch construction, overlay, adhesive, tail exit, connector and sample evidence for an agreed design. The buyer remains responsible for the complete enclosure, sealing system, temperature and moisture test, connector protection and final product validation.
Do not copy the battery runtime difference into a panel specification. The panel acceptance limits must come from the buyer's environmental requirements.
Outdoor waterproof HMI RFQ checklist
Send these items before requesting a firm prototype plan:
- outdoor housing and panel drawing with sealing path;
- required IP or liquid-exposure condition;
- display window, key and overlay requirements;
- tail exit, bend route, strain relief and connector or pin map;
- temperature and condensation test plan;
- splash, immersion, icing or cleaning path;
- mounted sample evidence and failure limits;
- prototype quantity, production estimate and controlled revision numbers;
- buyer-owned responsibility statement for enclosure validation.
When the battery and panel tests are separated, send the waterproof membrane switch package for engineering review and request a sample quotation.
