A medical robot HMI should not send start, pause and safety-stop functions through one undifferentiated membrane keypad path. For an RFQ, identify which input is a normal operator request, which interruption is controlled by software or sensors, and which stop function requires safety-rated hardware outside the membrane panel. The FDA's August 19, 2026 authorization announcement for a robotic blood-draw device makes the distinction visible: a patient or supervisor presses a button to start, while excessive motion can cause automatic detachment and stop, and additional sensors can pause the procedure and alert the supervisor. The component quote should preserve that separation in keys, indicators, circuit pins, enclosure placement and mounted acceptance evidence.
Three verbs that must not share one input path
Start, pause and stop can look like three adjacent legends on the front film, but they do not carry the same system responsibility. A start key is normally a request. The controller checks whether the device is in an allowed state before acting. A pause can be a controlled interruption that keeps the system ready for a defined recovery. A protective stop can demand an independent path, different hardware and separate validation according to the device risk analysis.
The FDA announcement is useful because its workflow contains several distinct triggers. A person presses a button to start the procedure. Patient movement can lead to automatic needle detachment and stop. Other onboard sensors can pause the procedure and alert a trained supervisor. The announcement does not specify a membrane switch, control-panel construction or safety architecture. It does show why a buyer should not ask one keypad contact to prove every layer.
Before artwork, give each visible function a stable identifier and one owner. A legend such as PAUSE should state whether it sends a normal controller input, acknowledges an already-paused state or requests a recovery screen. A STOP legend should state whether it is only a controlled stop request or points the user to a separate safety-rated device. Color alone is not enough to define the path.
Turn the procedure into an ownership map
Map the expected sequence before comparing suppliers. Begin with who can act, what state must be present and what evidence follows the action. Then connect the operator layer to controller and electrical definitions.
| Function or state | Trigger and owner | Membrane HMI evidence | System evidence outside the panel quote |
|---|---|---|---|
| Start request | Patient or trained supervisor, only in an allowed state defined by the controller | Key identifier, legend, tactile construction, contact channel, tail conductor and connector pin | Preconditions, authorization, motion sequence and accepted or rejected response |
| Controlled pause | Operator request or controller logic | Separate key or indicator if specified, circuit mapping and visible feedback path | Paused-state logic, retained energy, recovery rule and software verification |
| Sensor interruption | Motion or another monitored condition owned by the system | Indicator window or message opening driven by the controller | Sensor threshold, diagnostic coverage, timing and protective response |
| Safety stop | Separate protective function selected by the risk analysis | Only a label or adjacent reference if the normal panel is not safety rated | Safety-rated device, independent circuit, required reset and validation evidence |
| Supervisor alert | Controller-generated state requiring trained review | Dedicated status window, icon, light path or display opening | Alert priority, remote notification, escalation and response procedure |
| Cleaning or service state | Trained service user | Service key, sealed front surface, cleaning-compatible artwork and connector access | Maintenance lockout, safe access, cleaning procedure and release to use |
A quotation should not leave the last column blank. If the buyer has not decided the system owner, mark the item open and keep it out of production approval. Otherwise a panel supplier may price a visible key while the integrator assumes that the same key includes controller logic, diagnostics and safety validation.
Design for supervisor visibility, not only key count
A medical robot can have few fixed keys and still need a carefully divided front interface. The critical question is whether a supervisor can see the current state before choosing the next permitted action. Group keys by normal operation, controlled interruption and service rather than filling an available rectangle.
Keep the start request separated from reset or recovery by position, shape, spacing or guarded access where the risk analysis calls for it. If pause and stop have different consequences, their legends and feedback must not look interchangeable. A display window or indicator set should distinguish at least the states the buyer expects the panel to present, such as ready, request received, procedure active, paused, sensor interruption, supervisor action required and service unavailable.
The enclosure drawing matters as much as the artwork. Define rigid support below tactile areas, flat adhesive landing, window registration, tail exit, first-bend keepout and connector service direction. A key placed over an unsupported recess can feel acceptable in a loose sample and fail after assembly. A tail routed beside a moving mechanism or cleaning-fluid path can turn an electrically correct design into a service problem.
Cleaning must be specified from the real workflow. State the agent, concentration if controlled by the owner, wipe material, contact time, frequency and whether the panel is cleaned while installed. The panel supplier can review film, print and adhesive compatibility against those inputs. It cannot infer the cleaning process from the word medical.
Run a mounted interruption drill before approval
Do not approve the HMI only from a cosmetic sample and continuity report. Use an authorized test fixture or controlled robot test mode that does not expose a person to the operating hazard. Write the expected input channel and visible response before pressing a key.
1. Confirm the system is in the agreed safe test state and show the initial ready indication.
2. Press the start-request key once. Verify the intended controller input, the accepted or rejected response and the corresponding visible state.
3. Present the approved simulated condition for a controlled pause. Confirm that the panel reports the controller's paused state and that unrelated keys remain unavailable where required.
4. Present the approved simulated sensor interruption. Check that its indication differs from a normal operator pause and that the supervisor-response path is visible.
5. Exercise any separate protective stop through the authorized safety test procedure, not by treating the membrane keypad as the safety device.
6. Verify that reset or recovery requires the intended state and user role. A visual message disappearing is not proof that the robot is safe to resume.
7. After the sequence, inspect window alignment, key feel, adhesive edges, tail bend, connector seating and service access.
Record the fixture, software revision, panel revision, connector view and pass criteria. This links component evidence to the mounted system without asking a loose keypad to validate the robot.
What can the membrane HMI supplier prove?

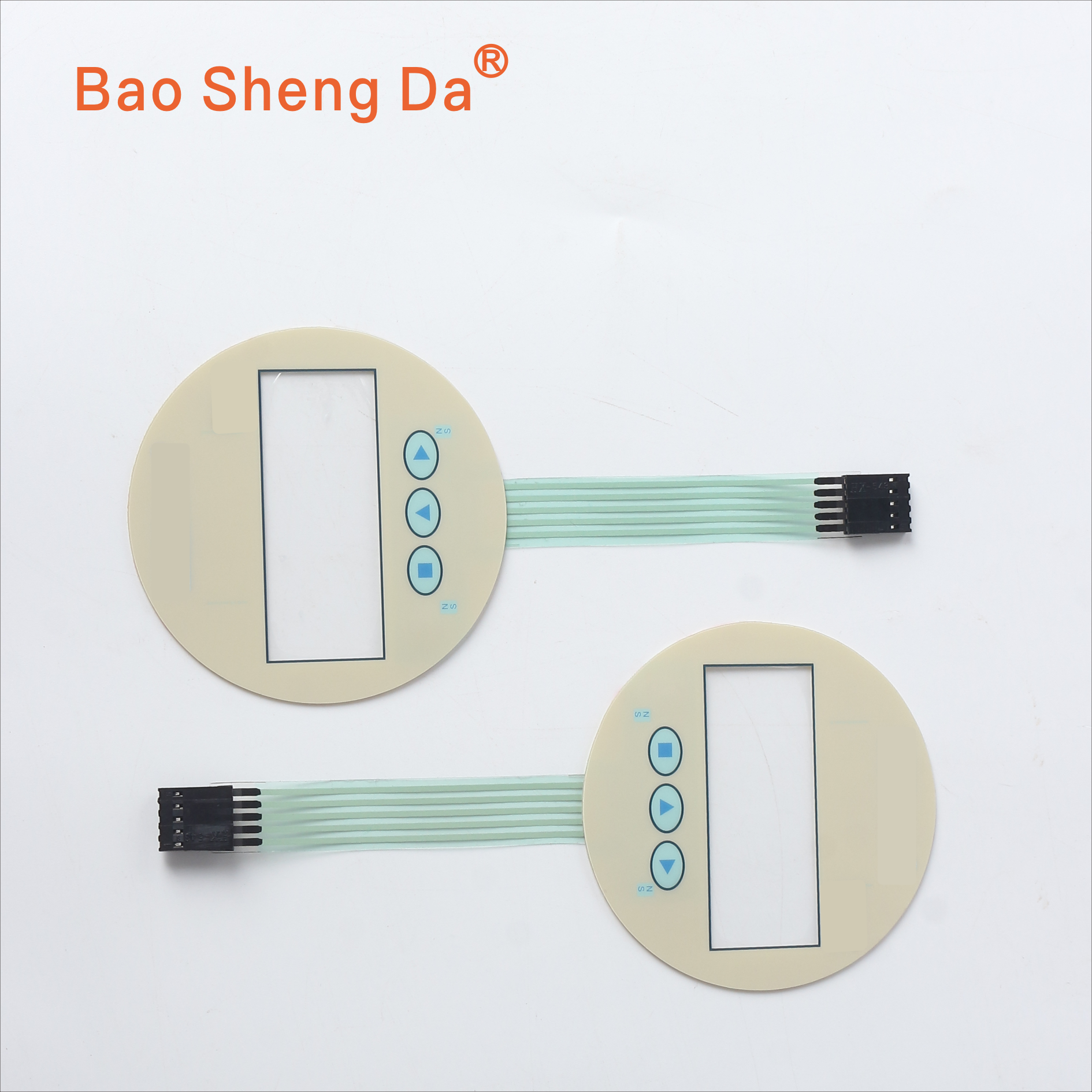

A membrane HMI supplier can manufacture the graphic overlay, fixed key zones, embossing, tactile stack, spacers, adhesive, printed circuit, flexible tail, connector, display window and specified indicator or backlight paths. The supplier can inspect agreed dimensions, appearance, print registration, continuity, contact behavior, tail geometry, connector assembly and component-level lighting attributes.
The supplier cannot decide whether the robot is safe to start, validate patient detection, set motion thresholds, approve automatic detachment, verify software diagnostics, authorize recovery, establish the clinical cleaning procedure or complete the medical-device risk assessment. A normal membrane key marked STOP is not automatically a safety-rated control. Safety hardware, controller logic, sensors, software, clinical workflow and final installed-system acceptance remain with the device owner and its authorized engineering, safety, quality and regulatory teams.
This boundary should appear in the quotation, sample plan and acceptance report. It protects the buyer from a component that fits mechanically but reports the wrong command, and it prevents component evidence from being mistaken for whole-device validation.
RFQ packet for a medical robot control panel
For a medical device HMI with fixed keys, display windows and a flexible tail quotation, send one controlled package rather than separate artwork and pinout emails:
- front artwork with stable identifiers for every key, legend, window and indicator;
- the command and ownership map for start, pause, controlled stop, protective stop, sensor interruption, alert, reset, recovery and service states;
- circuit or contact matrix with connector-side pin numbering, mating definition, voltage, current and polarity supplied by the buyer;
- panel outline, display opening, enclosure cutout, rigid support, adhesive landing, installed orientation and edge clearance;
- tail exit, first-bend keepout, stiffener or connector, strain relief, moving-part clearance and service direction;
- film, finish, embossing, tactile reference, indicator color and viewing conditions;
- actual cleaner, wipe method, exposure frequency, temperature, moisture and glove conditions;
- mounted test sequence, observable pass criteria, sample quantity, production quantity and controlled revision identifiers;
- a separate owner list for robot motion, sensors, safety circuit, software, clinical workflow, cleaning validation and regulatory approval.
Mark undecided requirements instead of asking a supplier to infer them. The supplier can then separate defined production scope from open engineering work, and purchasing can compare quotations against the same responsibility boundary. When the command map, drawing and mounted test are ready, submit them through the Request Quote page for an engineering review.
