Medical Monitor Keypad Replacement: Lock Revisions Before the RFQ

A medical monitor membrane keypad should not become a common service spare until its artwork, display window, enabled keys, circuit, tail and connector are tied to supported hardware, software and user-manual revisions. An FDA recall record posted August 27 says a monitoring software update could interrupt monitoring and reset alarm settings; the corrective action called for alternative monitoring and a manual addendum. The record concerns software, not a keypad defect. Its sourcing lesson is revision discipline: a replacement supplier can reproduce the physical interface, but the device owner must prove that every key, legend and window still matches released system behavior before approving the spare.

Open the quote with a stop-or-proceed gate

A matching front face is enough to start identification. It is not enough to release tooling or declare a common spare. Put the request into one of three conditions before the supplier prices production parts.

**Proceed to a controlled reproduction quote** when the buyer has a released drawing, approved artwork, contact or matrix map, tail and connector definition, enclosure datums, supported revision range and a traceable golden sample. The quote can name the known construction and the evidence expected from the first article.

**Proceed only as a reverse-engineering study** when the buyer has a physical unit but no controlled drawing or uncertain electrical identity. The output should be a measured proposal, open-question list and verification plan. It must not be labelled a drop-in replacement.

**Stop the replacement release** when the hardware or software revision is unknown, the keypad behavior differs between devices, the connector orientation cannot be confirmed, or the available unit may already contain a field modification. Pricing an inspection study is still possible, but a production-spare promise is not.

This gate separates two costs that are often mixed together: manufacturing a known membrane keypad and engineering an unknown service replacement. It also prevents a low initial price from hiding the work required to reconstruct revision history.

Read three revision layers before redrawing the keypad

The FDA record names several software versions and a controlled manual addendum. That is relevant because a service keypad sits at the boundary between physical construction, software-defined behavior and user instructions. The device owner should read all three layers together.

The **physical layer** covers the panel outline, display and indicator windows, printed legends, key zones, tactile construction, circuit pattern, tail exit, connector and adhesive interface. These are the items a membrane-keypad supplier can reproduce and inspect against controlled documents.

The **behavior layer** covers which keys are active in each mode, how a short or long press is interpreted, what visual or audible response follows and which functions changed between controller or software revisions. Identical copper contacts do not prove identical behavior. A key may remain electrically present while software disables it, changes its timing or assigns a different service function.

The **instruction layer** covers the approved user manual, maintenance procedure, labeling and revision-specific service action. A supplier should not infer these instructions from an old front panel. If a manual addendum or software correction changes the maintenance sequence, the device owner must decide whether artwork, service labels or acceptance tests also need revision.

Use a single revision tuple in every file name and report: device hardware, controller or software, keypad artwork, circuit, connector or harness, enclosure and user document. If any element is unknown, mark it unknown. Do not replace it with `same as sample` unless the sample identity is traceable.

Put every candidate spare into a release ledger

The ledger below keeps quotation status separate from common-spare approval. It should be completed by the device owner, service team and component supplier together.

A narrow release is acceptable. For example, the buyer may approve the new keypad only for one hardware and software combination while other units remain on the original spare. What is not acceptable is expanding the approval range because the part number or front color appears unchanged.

Compare a golden unit before making the first article

The golden unit should be a controlled, functional assembly, not the cleanest part found in a service bin. Record its device source, keypad revision, condition and reason for approval without exposing confidential device data to parties that do not need it. Photograph the front, rear, tail exit and connector orientation with a scale or datum reference.

Compare the new supplier's drawing against the golden unit in a fixed order:

1. register the outer profile, display window and indicator openings to the enclosure and underlying display or light sources;

2. compare every legend, symbol, color target, surface finish and protective-film boundary to the controlled artwork rather than a camera image;

3. verify key-center positions, tactile zones, spacer openings and the contact or matrix map;

4. confirm tail exit, finished length, conductor side, bend-free zone and connector orientation from both front and rear references;

5. check adhesive landing, housing flatness, edge clearance and any gasket interface on the actual enclosure;

6. inspect the golden unit for wear, discoloration, repair adhesive or deformed domes so field damage is not copied into the new specification.

If the drawing and golden unit disagree, stop and assign ownership. The drawing may be obsolete, the sample may be field-modified, or the service stock may contain mixed revisions. Reproducing the discrepancy without a disposition creates a new uncontrolled revision.

Approve the replacement inside a maintenance window

A first article should pass more than continuity. Plan a controlled maintenance window with a known-good replacement path and the device owner's approved monitoring or safety procedure. The component supplier does not define clinical continuity or alarm behavior.

Start with bench identity. Confirm the contact map, connector orientation, resistance or contact result required by the drawing and any indicator circuit. Then install the keypad into the production-intent housing with the intended adhesive, gasket, display and tail route. Run the device owner's approved local key and display sequence for the named hardware and software tuple. Record enabled, disabled and ignored inputs without inventing new functions.

Repeat the check after the actual cleaning or wipe condition specified by the buyer. Inspect window clarity, legend change, key response, edge lift and tail or connector movement. A loose-panel wipe does not prove mounted edge sealing, and a mounted cleaning check does not establish a medical-device cleaning claim beyond the defined condition.

Finish with rollback. Remove the proposed spare, reinstall the known-good part and confirm that the service team can return the device to its released state. Quarantine the new part if the connector, key behavior, display registration or artwork does not match. The report should identify the failed revision tuple instead of labelling the entire product family good or bad.

Supplier boundary and unsupported assumptions

A custom membrane-switch supplier can reproduce controlled artwork, overlay construction, tactile structure, printed circuit, tail and connector. The supplier can provide dimensional inspection, artwork proofs, contact or resistance results requested by the drawing, material declarations, traceable samples and observations from agreed component tests. Reverse-engineering work can measure an available sample and document uncertainty, but it cannot recover hidden software intent.

The medical-device manufacturer and system owner retain responsibility for software updates, monitoring continuity, alarm settings, clinical workflow, alternative monitoring, user manuals, service instructions, risk management, cleaning validation, electrical safety, EMC and system release. The panel supplier cannot decide that one keypad revision is safe across software versions and cannot turn a component report into device validation.

Put these limits into the purchase record. If the buyer wants a common spare, the approved revision range and mounted swap evidence must come from the system owner. If only physical reproduction is in scope, the quotation should say so and identify every unresolved behavior or document dependency.

RFQ dossier for a medical monitor service keypad

Send a controlled package that lets the supplier quote known manufacturing work separately from investigation and system-owner testing:

• front artwork with revision, outline, display and indicator windows, legends, colors, finish and key locations;
• supported device hardware, controller or software and user-document revision range;
• key-function and state map showing enabled, disabled, reserved, short-press and long-press behavior where applicable;
• circuit or matrix map tied to each key and indicator connection;
• rear outline, adhesive landing, enclosure cutout, display datum, edge clearance and gasket interface;
• tail exit, finished length, bend-free zone, conductor side, routing direction and strain relief;
• connector maker and part number, pitch, contact count, keying, mating orientation and contact-side view;
• overlay, adhesive, tactile and environmental requirements supported by the drawing;
• actual cleaning agent, concentration, wipe method, dwell, frequency and mounted acceptance criteria;
• controlled golden sample identity and front, rear, tail and connector comparison views;
• first-article quantity, bench checks, mounted service-swap scenarios, rollback rule and release owner;
• prototype quantity, annual demand, packing requirement and the exact revision range requested as a common spare.

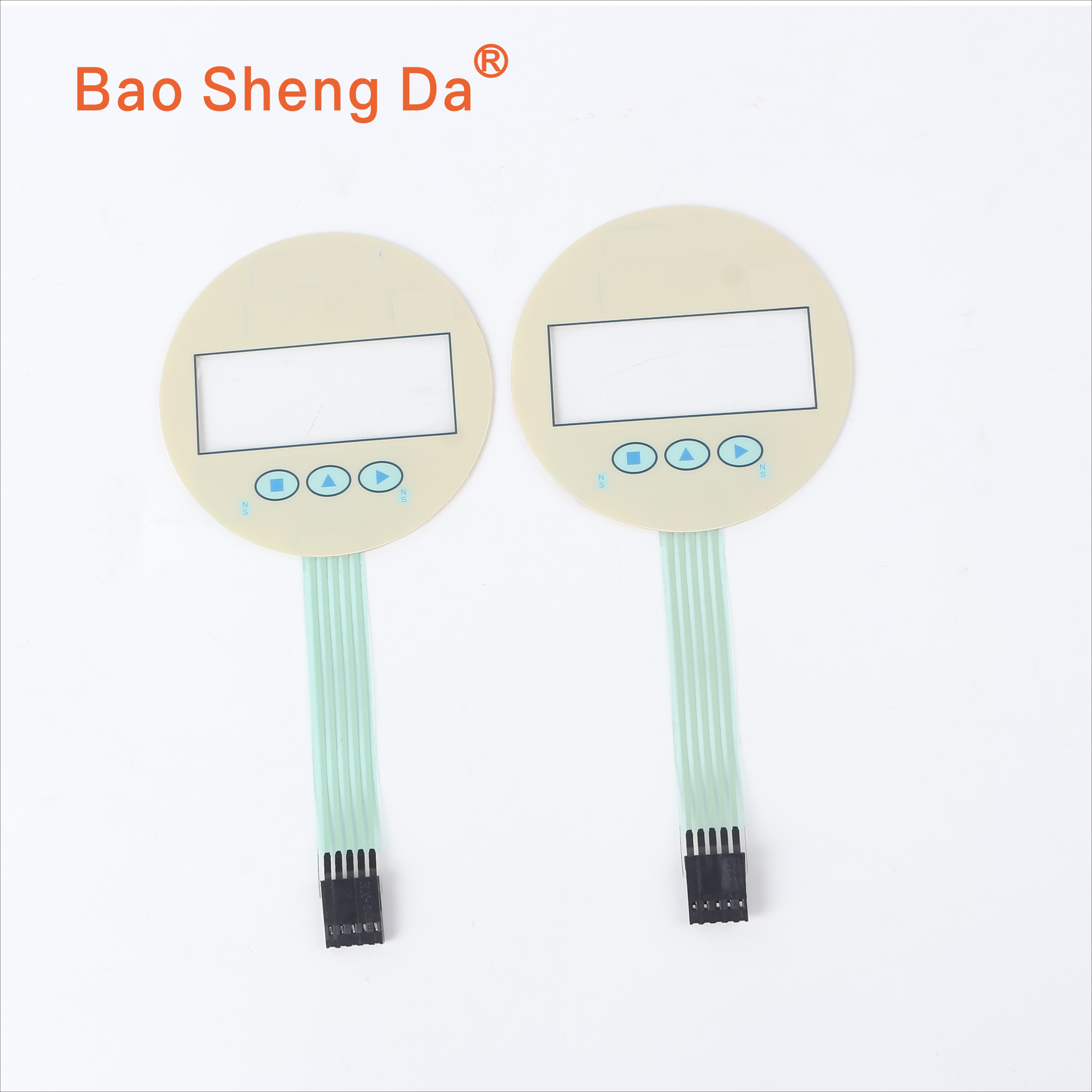

The two assemblies in the cover are generic membrane-control references. They are not parts from the monitoring system in the FDA record and do not reproduce its software or alarm behavior. Use the custom membrane switch design and manufacturing page to organize the artwork, tactile, circuit, tail and connector scope. Then send the revision tuple, golden-sample evidence and maintenance-window plan through Request a Quote. Ask the quotation to separate known production requirements, reverse-engineering work, buyer-supplied evidence and system-owner approval tasks before a replacement keypad is released.
