Assign a medical HMI key to a user role and a control station before approving its position or legend. Identify who may request the action, where the request is allowed, which device state permits it and what feedback confirms acceptance. When several panels can address the same equipment, include the inactive panel’s response and the return of control. An electrical contact closure alone cannot verify those system decisions.
Multiple control locations in current equipment
GE HealthCare’s Allia Celeo announcement, published on 2026-11-01, describes clinicians adjusting gantry and table positions from multiple locations. It also describes personalized controls and layouts. That makes control location a concrete design variable alongside the person using the interface.
The release is a current equipment example, not a disclosure of membrane-switch construction or a Baoshengda customer relationship. Its multi-location positioning description does not establish how competing commands are resolved. GE describes the system as CE marked and 510(k) pending in the United States, where it is not available for sale. None of that status applies to a component discussed here.
A role-only drawing can leave two panels looking equally available when the controller permits an action at only one of them. If a press does not produce clear feedback, the operator may repeat it or move to another station without understanding which input was accepted.
For an OEM developing its own interface, the purchasing consequence is a more complete sample brief. The front-panel supplier needs to know which functions require fixed legends, separate key zones or indicator windows. The device team needs to define when those features mean that an action is available. The table below is a proposed review format, not a description of GE’s controls or a claim that a sample has passed.
Record the role, station and response together
Give each panel a station identifier and each key a stable function identifier. For every permitted task, record the active station, allowed input, expected contact path, controller acknowledgement, refused-input feedback and the condition for returning control. Agree those states with the equipment owner before approving the artwork.
| Review case | Information the device team must define | Component or mounted-sample evidence |
|---|---|---|
| Normal task at the permitted station | User role, device state, allowed action and acknowledgement | Key ID, contact map, legend and the indicated permission state |
| Same request at another station | Whether the input is permitted, refused or handled another way | The pressed key and displayed response, without assuming that electrical closure means acceptance |
| Setup or service access | Authorized role, entry condition and visibility to other stations | Distinct key zone or access feature, controlled artwork and feedback window |
| Return to normal operation | Who restores control, required checks and the resulting indication | Identified panel, controller and software revisions with the observed return-of-control result |
This table is for ordinary interface allocation. Emergency stops, protective functions and treatment interruption need the device manufacturer’s own safety design and validation. Do not make a stop function unavailable merely to fit a station-permission scheme. Review the actual function and applicable requirements separately.
Keep resting, pressed and released electrical states in the component test plan. A matrix circuit, shared common or auxiliary indicator needs its own expected paths and conditions. Controller software interprets a valid input. The membrane supplier checks the agreed contact behavior. Use separate records when those tests have different owners.

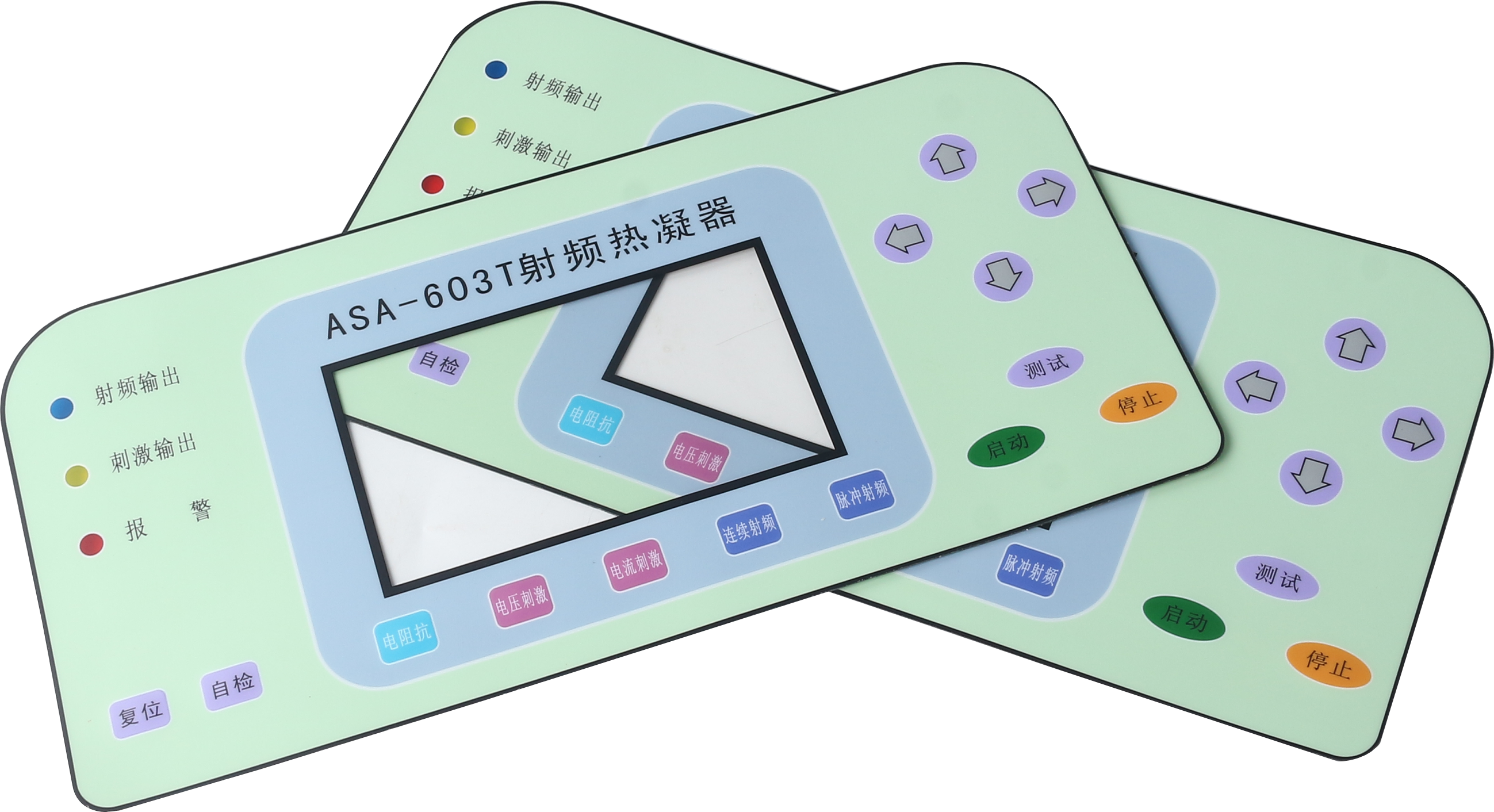

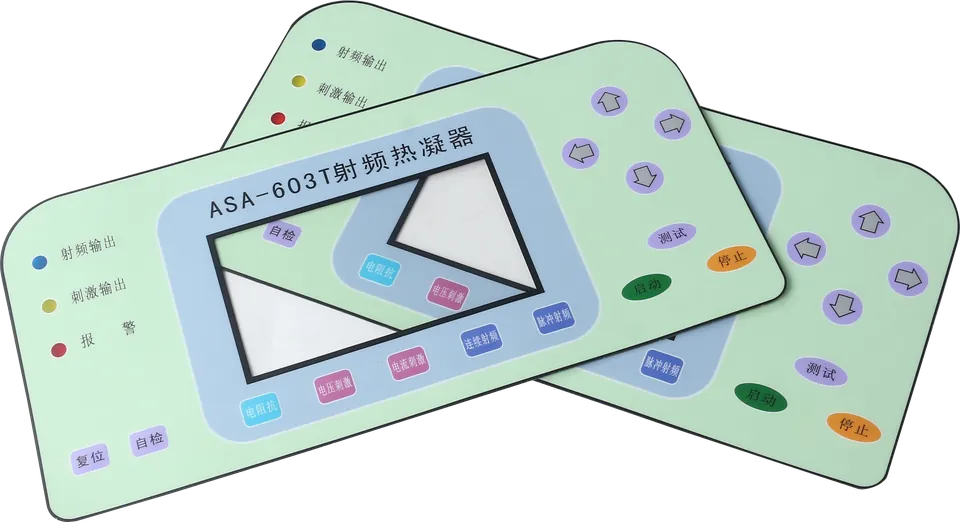

Keep access and feedback visible in the physical stack
Group routine actions so that the intended user can find them while reading the display. A setup or service function may need a protected menu, separate connector or another deliberate access step selected by the device maker. A long press or key combination is not automatically a suitable protection method.
Use more than color to distinguish actions. Position, spacing, legend, shape and feedback can support the distinction when lighting or color perception varies. A printed window can reserve space for a permission indicator, but it does not establish that the indicator is powered, visible or driven by the right controller state.
On the same controlled drawing set, identify the display opening, key zones, active press areas, indicator windows, support, adhesive lands, sealing perimeter, tail exit and connector view. A large printed key does not necessarily have a large contact area. Agree the dome or contact position, backing and housing clearance for the actual construction.
The retained FDA human-factors considerations provide background on users, use environments and interfaces. The FDA town hall held on July 22, 2026 discussed a risk-based framework for submission information. These older references are background, not a new keypad specification or this article’s current industry signal.
Cleaning also affects the layout. A recess around a protected key or an exposed overlay edge can change the surface that must be cleaned. Ask the equipment owner to specify the agent, wipe method and edge conditions before selecting film, coating or adhesive. A wipeable component face does not prove complete-device ingress performance or reprocessing suitability.
Check the handover on an identified mounted sample
Use a buyer-approved isolated interface fixture or controlled equipment test arrangement. This is a component-review plan, not a procedure for moving medical equipment or delivering treatment.
For each agreed scenario, record the intended action, station used, key pressed, electrical result, controller response and visible feedback. Include a request from an inactive station and the return from setup or service mode. If the display is obscured, identify how the user is expected to recognize the current permission state. Do not substitute a photograph of a lit indicator for the recorded sequence.
Run representative tasks with users appropriate to the device’s intended use. Check the actual viewing angle, lighting, gloves and reach constraints where relevant. Record confusion or repeated presses as observations to resolve, without treating one successful demonstration as validation of every user or condition.
Keep panel artwork, enclosure, controller, software and test-script revisions with the result. A passing check on one configuration does not approve a different station layout. If a test requires reopening the enclosure, reseating a connector or resetting the controller, record that intervention before comparing results.
Begin the RFQ with the unresolved allocation decision
You can start with an authorized existing panel photo or drawing, if available, the intended task and control locations, approximate quantity and the unresolved permission question. Mark missing information as unknown. A complete production drawing set is needed later for release, not as a condition for making the first inquiry.
For a medical-device HMI panel with controlled key zones and display or indicator windows, the next review can then identify:
- the role-and-station matrix, key IDs and which access decisions remain open;
- artwork, display area, active press areas and required feedback windows;
- housing support, edge and cleaning conditions;
- tail, connector view, contact map and buyer-specified electrical conditions;
- available samples, proposed acceptance arrangement and revision identifiers.
Ask the quotation to separate component construction and electrical inspection from controller behavior and the mounted task review. Baoshengda can support front-panel structure and sample evidence within the agreed scope. The device manufacturer retains responsibility for use-risk analysis, access control, treatment logic, alarms, regulatory work and final device validation.
Request a medical HMI role-and-station review with the information already available. Agree who will supply the mating housing, controller and software behavior before fixing the sample acceptance plan.
