Medical Equipment HMI Supplier Transfer: Turn a Panel Photo Into a First-Article RFQ

A panel photo is useful for identifying a medical-equipment HMI, but it is not enough to release a replacement supplier or approve a first article. Use the photo to build an open-item list, then recover controlled dimensions, window and key datums, circuit map, tail, connector, adhesive land, materials, cleaning exposure and revision history from drawings, a service sample and the receiving housing. Quote unknowns as unknowns. Approve the transfer only after the new sample passes dimensional comparison, electrical mapping, mounted interaction, cleaning and service-replacement checks against a named reference unit. This turns a visual match into a traceable supplier-transfer decision instead of a cosmetic guess.

On August 27, the Government of Canada announced investment in expanded advanced medical-device manufacturing capacity. The announcement describes a major scale-up in medical-device production. It does not identify a membrane HMI supplier, and it is not evidence that the named device uses a Baoshengda component. The sourcing lesson is broader: when manufacturing volume grows, an interface transfer needs controlled first-article evidence that purchasing, engineering, quality and service teams can all read.

Treat the installed photo as an index of questions

A straight-on photo can reveal the apparent outline, display window, visible key count, legend layout and approximate tail exit. An oblique service photo may also show the housing recess, edge condition or connector neighborhood. None of those views establishes a released dimension or an electrical definition.

Start by marking what the photo can support and what remains open. Do not scale the entire panel from one guessed feature. Lens distortion, viewing angle, protective film and rounded housing edges can shift apparent proportions. A key that looks centered may be offset from the underlying contact. A tail may disappear behind the enclosure before its first controlled bend or connector becomes visible.

The first transfer deliverable should be an evidence map with one owner and status for each open item. A photo starts that map. It does not close it.

Recover two masters, not one visual copy

A replacement HMI has at least two masters. The first is the physical master: outline, window, key centers, embossing, adhesive land, circuit, tail, connector and housing relationship. The second is the functional master: which contact belongs to each key, when the controller accepts that input, what feedback appears and which device revision the behavior belongs to.

Rebuild the physical master from controlled drawings where available, then confirm it against a retained service sample and the receiving enclosure. Dimension critical features from stable housing datums. Record the reference corner, installed orientation and measurement method. If the old sample has stretched, lifted, discolored or shrunk, do not copy that condition into the new drawing. Use it as evidence of service history.

Rebuild the functional master with the equipment owner. Give every physical key a stable ID. Match that ID across the front artwork, circuit contact, connector pin, controller input and first-article script. Do not infer key behavior from an icon alone. A visible symbol may represent a navigation request, a parameter change, an acknowledgement request or an action available only in a controlled state.

Keep artwork and circuit revisions separate. The same front print can sit over different contact maps. A circuit can remain unchanged while a legend or language revision changes. The approved tuple must name both.

Make the old-to-new comparison measurable

A first article should be compared with a defined reference, not judged by placing two parts side by side and asking whether they look close. Use a comparison fixture, optical overlay or datum template that exposes registration differences without hiding the parts.

For the front surface, check the complete die-cut outline, window border, key centers, indicator apertures if present, embossing, print registration, color under agreed lighting and surface finish. Measure from the same reference datums on both parts. If appearance is critical, specify the light source, background, viewing angle and master used for approval.

For the rear structure, inspect the spacer and adhesive pattern, vent path if the design has one, tail exit, first-bend keepout, stiffener, exposed contacts or connector housing. Confirm that the adhesive does not cover a housing gap, screw head, coating step or unsupported edge. A transfer can match the face while changing a hidden adhesive or tail feature that controls service life.

Record every accepted difference. “Equivalent” is not a measurable disposition. A deviation record should state the feature, old evidence, new proposal, reason, affected tests, responsible approver and the exact revisions covered.

Preserve interaction during the supplier change

A medical-equipment interface is not approved because every key produces continuity. The mounted sample must preserve the intended user action and feedback relationship for the named device configuration.

Install the first article in a representative housing with the real support beneath each active zone. Exercise each key in normal, unavailable and repeated-input conditions defined by the equipment team. Confirm contact response, tactile feel where specified, display or indicator visibility and controller feedback. Include gloved use only when the application and validation owner require it. Do not add a glove test to imply a clinical environment that was never specified.

Pay attention to blocked actions. If a key request is not accepted in one device state, the complete system should give the user the intended feedback. The membrane HMI supplier can verify the physical input and agreed indicator circuit. The equipment owner controls the state logic, message, alarm strategy and safety response.

Also test unintended combinations that the system owner considers relevant: short and long presses, two keys together, repeated presses, stuck contact, disconnected tail and reconnection. The goal is not to make the component supplier approve the device logic. The goal is to prove that the transferred panel feeds the released logic through the correct physical and electrical interface.

Use a first-article sequence that exposes transfer risk

A useful transfer sequence moves from low-cost evidence to installed evidence.

**Geometry review.** Compare the new drawing with the controlled housing and reference sample. Close the outline, feature datums, tail exit, adhesive land and connector access before production-intent tooling.

**Print and construction proof.** Review opaque and transparent regions, window border, colors, texture, embossing, layer stack, adhesive and circuit revision. Confirm which properties are provisional and which are production-intent.

**Electrical first article.** Check every contact, common line, resistance or contact limit, LED circuit if included, connector pin and cable orientation against the released map. Inspect the tail under a controlled broad bend and after mating.

**Mounted interaction sample.** Install the panel with the intended surface preparation and assembly pressure. Verify supported key feel, window registration, indicator alignment, edge contact, complete tail route, connector access and the equipment owner's state-action script.

**Cleaning and service trial.** Apply the named cleaning method to a production-intent sample. Inspect print, window, surface and edges. Then have an authorized technician remove and replace the panel through the intended access path. Repeat critical dimensional, electrical and interaction checks after replacement.

This sequence gives purchasing comparable evidence. It also prevents a long durability test from consuming time on a panel whose window or pin map was wrong from the start.

Control the hidden tail and connector handoff

The tail is often the least visible part of a photo and one of the most consequential parts of a supplier transfer. Freeze its exit coordinate, conductor side, length, width, first-bend keepout, allowed routing plane, stiffener, contact pitch, exposed-contact length or connector part, pin-one orientation and mating component.

Measure the route with the enclosure fully assembled, not only with the service cover open. The tail should not crease at the panel edge, rub a sharp slot, pull the connector, cross a moving joint or become trapped during closure. If the service process requires disconnecting the HMI, document tool access and the approved grip point. Do not let a technician pull on printed conductors because the connector is inaccessible.

A supplier proposal to change a connector or stiffener may be reasonable, but it is not a cosmetic substitution. It can affect insertion, retention, pin mapping, strain, assembly time and service stock. Route it through controlled approval and repeat the affected mating and interaction checks.

Keep component, device and regulatory responsibilities separate

A membrane HMI supplier can manufacture the graphic overlay, window, tactile or non-tactile key stack, spacer, adhesive geometry, printed circuit or FPC, tail, stiffener, connector and agreed indicator features. The supplier can inspect dimensions, print registration, appearance, continuity, contact behavior, tail geometry and connector assembly against released inputs. It can support component samples and mounted-fit evidence when the buyer supplies representative hardware and acceptance rules.

The supplier does not define the medical indication, clinical workflow, alarm strategy, controller software, risk controls, protective architecture, sterilization method, regulatory submission or completed-device validation. It cannot confirm device safety from a panel photo, and it cannot approve a state-action sequence that the equipment owner has not released.

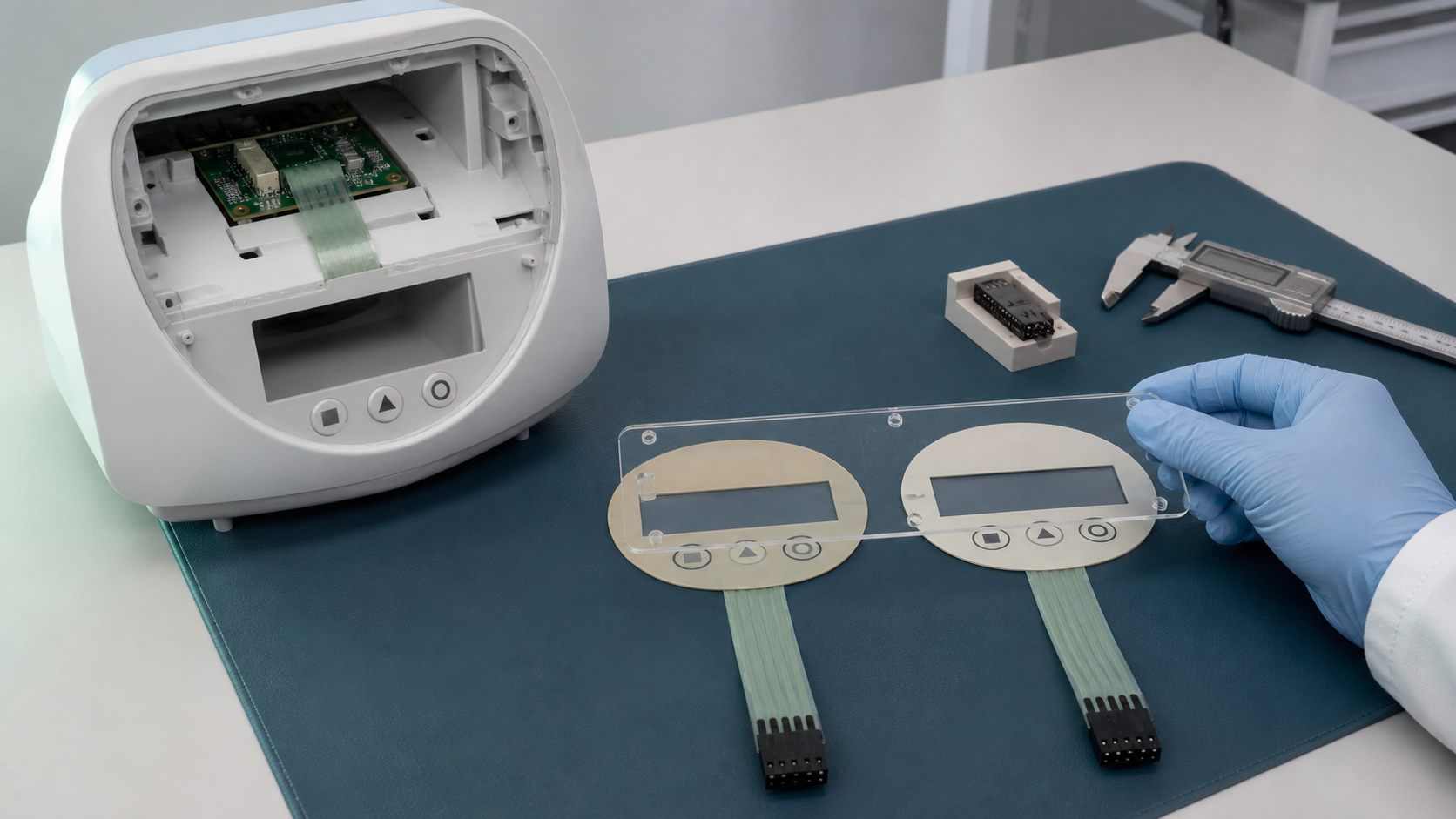

The Canadian manufacturing announcement is market context only. It does not connect the named project to this component, image or supplier. The generated cover is an engineering scene, not a customer factory or field record.

Send an RFQ pack that survives first-article review

For a custom medical-device HMI with controlled keys, window, tail and connector, send one revision-controlled package containing:

• device class and use environment stated only to the level needed for component review;
• front and rear photos approved for supplier use, with confidential and third-party information removed;
• controlled front artwork, overall outline, window, key centers, embossing and indicator apertures;
• housing drawing with reference datums, recess, support land, slot, surface finish, fasteners and installed orientation;
• layer stack, film, texture, window requirements, adhesive land and cleaning inputs;
• circuit map, electrical limits, key IDs, common lines, indicator circuit and connector pinout;
• tail exit, conductor side, first-bend keepout, length, stiffener, connector and mating part;
• reference-sample identity and the exact artwork, circuit, housing, controller and device revision tuple;
• old-to-new comparison method, allowed deviations and named approval owners;
• geometry, electrical, mounted interaction, cleaning and service-replacement acceptance records;
• prototype quantity, production range, packaging, traceability and change-notification requirements.

Submit the package through the Request Quote page. The quotation can then separate confirmed construction, open reconstruction work, tooling, first-article evidence and excluded device-level responsibilities. That is a safer commercial basis than asking a new supplier to copy a panel from one photograph.
