Medical Device HMI Quotation: Turn Posture Data into a Physical Key Layout

A posture reading describes one condition, not the control panel. An original study published on August 13, 2026 measured concept-stage in vitro diagnostic sample loading and found a mean 99th percentile neck flexion of 52.53 degrees in the primary near-sagittal subgroup; every participant in that subgroup exceeded the 45-degree screening threshold. That signal says the panel and loading position may need revision, but it does not tell the membrane switch supplier where START, STOP, navigation keys, display window or tail exit belong. Convert the study output into a physical key layout before asking for a quotation.

What the August 13 study can and cannot tell the panel supplier

Monocular Markerless Motion Capture for Concept-Stage Human-Factors Evaluation of an IVD Sample-Loading Unit was published on August 13, 2026. The researchers used a low-fidelity bench, interviews with seven engineers, task analysis and 25 design students as proxy operators. OpenCap-derived trajectories produced sagittal-plane joint angles and RULA-oriented screening indicators. In the primary near-sagittal subgroup of 14 people, the mean raw 99th percentile of neck flexion was 52.53 degrees plus or minus 7.55 degrees, and all 14 exceeded the 45-degree threshold.

The study is careful about its limits. It used no concurrent reference measurement system, so the reported angles are screening estimates rather than validated absolute values. It also states that the workflow does not replace usability validation with intended clinical users and an engineering prototype. Treat the result as a design trigger: if repeated reaching and viewing make the operator bend the neck, change the mounting height, window position or task sequence, then translate that change into the physical panel.

Turn posture and task sequence into physical key coordinates

Start with the operator action, not the artwork. Write the sample-loading sequence in the order a real user performs it: open or present the sample, read a status, confirm, start, monitor and finish. Mark which controls are used during that sequence and which controls are only used during setup, service or recovery.

Then assign each action to a physical zone:

• panel mounting height and face angle;
• display-window center and the line of sight from the normal operating position;
• key grouping, key spacing and the reach path for each step;
• key target size when the user wears gloves;
• tactile or non-tactile behavior for the controls used most often;
• separate placement for start, stop, cancel, door or emergency-related actions.

A screen mockup can place a confirm key close to a start key because the screen has no actuation travel. A physical metal-dome key needs enough separation and dome choice to avoid accidental double presses and to remain identifiable by feel when the operator is watching the sample instead of the panel.

Use a layout decision table before sending the RFQ

The table below converts study signals into physical questions and quotation evidence. It is a review tool, not a universal pass and fail standard.

Do not let one person change the screen mockup while another changes the membrane-switch drawing. The layout table, artwork, dome layer, tail pin map and connector drawing must share one controlled revision package.

Check the window, key feedback and cleaning path

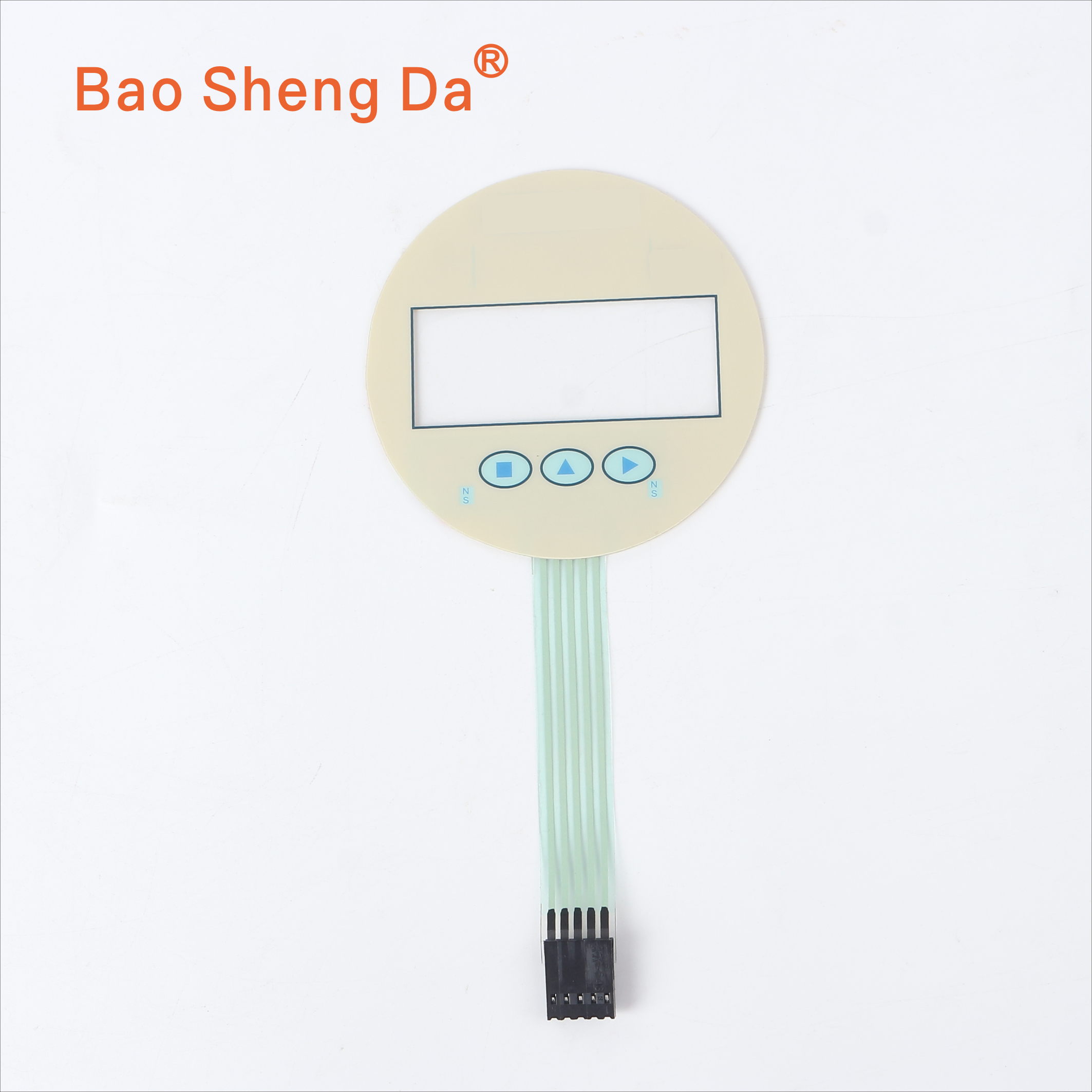

The blank display window is more than an opening. Confirm its outer dimensions, corner radius, center coordinate, required viewing angle and the position of any screen bezel or mounting step around it. If the panel is tilted to reduce neck flexion, the window and printed legends may need a matching layout rather than a straight copy of the old horizontal artwork.

For the key row, decide whether the buyer wants a thin membrane switch, a metal-dome tactile feel, or another construction. A fixed physical key can help a gloved operator confirm a command without looking away, but the actuator travel and key spacing must be tested in the real housing. For a medical or laboratory device, also define the cleaning sequence, cleaning agents, wipe direction and how often the front face is cleaned. These details affect overlay choice, adhesive, sealing and the edge around the tail exit. A medical device HMI product page review is more useful after those inputs are frozen.

Fix the tail and connector before freezing artwork

The tail is easy to miss in a posture discussion because the study measures the operator, not the electronics. The supplier still needs the tail exit point, length, service loop, permitted bend radius, stiffener and connector orientation. If the panel moves down or tilts to improve neck posture, the old tail route may no longer reach the board.

A panel can pass a flat electrical check and still fail after the enclosure closes if the tail is pinched by a rib, pulled at the connector, or forced into a tighter bend than the drawing allows. Add the tail route to the revised housing view and confirm the pin map before quotation. If the connector is on the PCB side, send its part number, pitch, pin count and contact direction when available.

Supplier boundary and limitations

The cited study is original human-factors research. It is not a Baoshengda test, a medical usability approval, a clinical safety finding, or evidence that any panel layout is safe. Baoshengda can review the membrane switch construction, key and dome layout, overlay, display window, tail geometry, connector, cleaning inputs and physical sample evidence for an agreed design. The buyer remains responsible for the complete medical device, intended-user validation, safety analysis, clinical or regulatory requirements, equipment-level testing and final approval.

Do not copy the 45-degree threshold into a component specification. It was a screening criterion in the study, not a performance limit for the panel.

Medical HMI posture-led RFQ checklist

Send these items before requesting a firm prototype plan:

• measured posture, reach or task-sequence concern and the intended operator position;
• panel outline, datum and mounting face with all key and window coordinates;
• function list with the exact sample-loading sequence and control priorities;
• key construction, actuator feel, target size and glove requirement;
• display-window outline, center, viewing angle and bezel or mounting constraints;
• cleaning agents, wipe direction and expected cleaning frequency;
• tail exit, service loop, bend route, stiffener and connector or pin map;
• mounted sample test plan with the intended user actions and pass or fail limits;
• prototype quantity, production estimate and controlled revision numbers.

When the posture findings are reduced to those physical inputs, send the drawing package to the medical device HMI page and request a quote.
