Medical Alarm Panel Design: Separate Acknowledge, Silence and Reset

Do not put acknowledge, silence and reset behind one ambiguous medical alarm key. Acknowledge records that an operator has seen an event. Silence changes the audible output for a defined period or condition. Reset clears a latched state only when the device logic permits it. These actions need separate names, state rules and feedback before the medical HMI artwork is approved. Color can help locate an alarm, but it cannot define what a press will do.

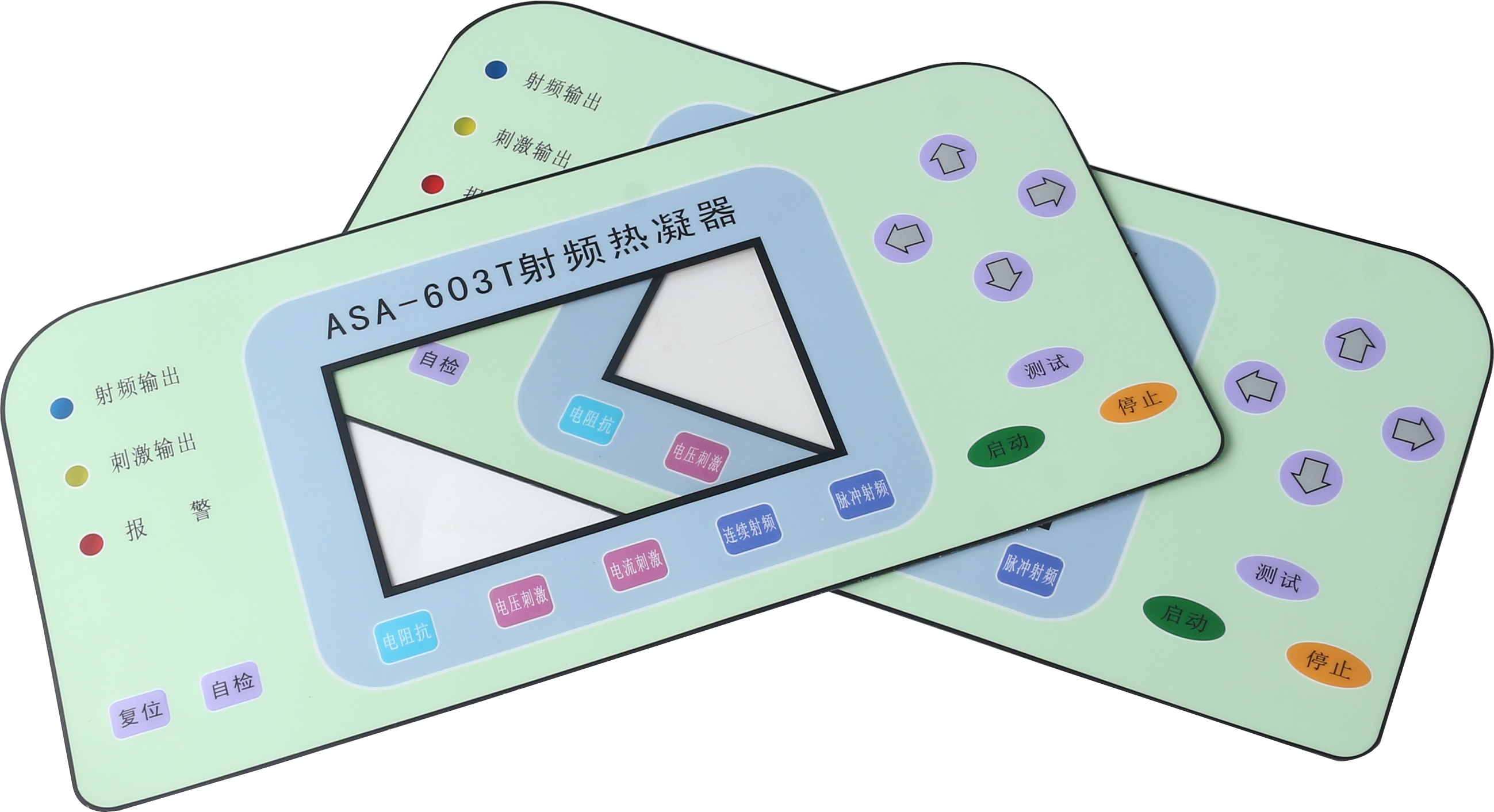

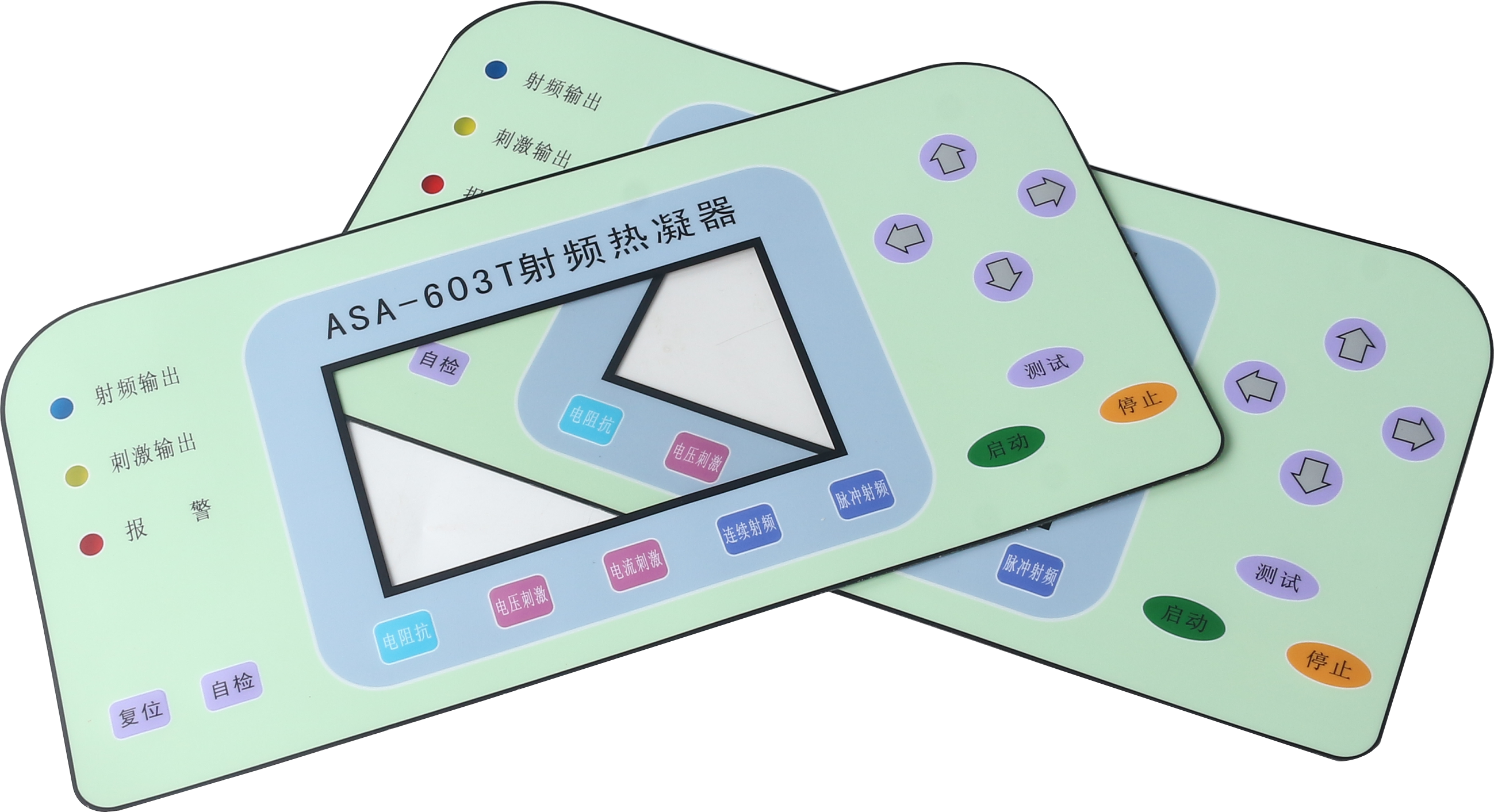

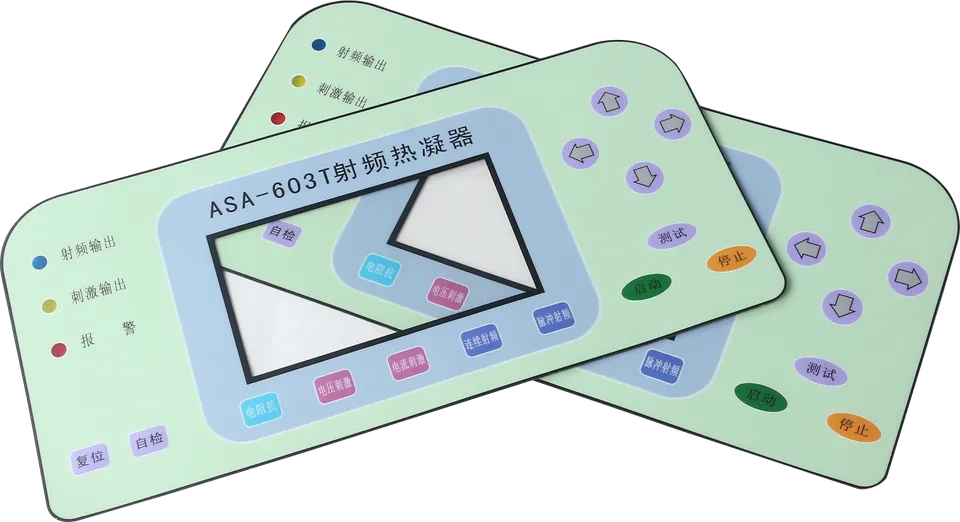

Start from actions, not from colored key shapes

Write the alarm workflow as verbs before choosing icons or colors. Identify who may acknowledge an event, who may silence it, what ends the silence period and what must be true before reset becomes available. If a test key activates a lamp or sound check, keep that action separate from a clinical reset.

A physical membrane key can provide a fixed location and tactile response, but the host device owns the alarm state. The artwork should show that boundary. A red lamp may indicate priority, while the adjacent key should carry an action label that remains truthful in every allowed state.

Use the medical device HMI engineering page to align key groups, windows and artwork datums with the device-state table before the circuit is released.

What the August 19 human-factors study reports

Exploring alarm fatigue among clinical nurses through a human factors engineering framework: a descriptive qualitative study was published on August 19, 2026 in Frontiers in Public Health. The researchers interviewed 15 clinical nurses and five nurse managers. Device-related factors reported in the study included inaccurate alarm levels, indistinguishable alarm sounds and limited operability, alongside personal and work-environment factors.

The study did not test a Baoshengda panel or prescribe a keypad layout. It also does not show that a new overlay will solve alarm fatigue. Its useful product consequence is that operability belongs inside the alarm-management system. The physical interface should make distinct actions and states easier to identify, while the equipment owner controls the alarm algorithm, sound, escalation and clinical validation.

Give each control one documented transition

Use a transition table before artwork review. The entries below are examples of questions to answer, not a universal medical-device alarm standard.

Do not reuse one icon for two transitions. A bell symbol can mean alarm, sound, silence or notification depending on the product. Add a fixed text label or a controlled legend that is understood by the intended operators.

The same identifiers should appear in the front artwork, circuit drawing, firmware I/O list and verification record. If the artwork calls a key K4 Acknowledge while firmware calls the same input Reset, the sample can pass continuity and still fail the workflow.

Test operability in the mounted and cleanable assembly

Key spacing and tactile feel change after the panel is bonded to the bezel. A loose overlay cannot prove that an operator wearing gloves can locate the correct key, that the backing support is even or that cleaning fluid stays away from the edge and display window.

Run the intended sequence with the production-intent housing. Trigger each alarm state through an approved simulator or equipment method. Press the correct action, a neighboring key and an action that should be blocked. Record the host response, lamp state, sound state and time-limited behavior. Repeat under the specified lighting, glove and cleaning conditions.

Check key legends after repeated wiping with the buyer's named cleaning agent. Review the adhesive landing around display windows and key domes. Confirm that the tail exits without crossing a sharp housing feature and that the connector pin map still matches every named action.

Supplier boundary and limitations

Baoshengda can review the medical membrane-switch construction, graphic overlay, key and dome positions, indicator and display windows, adhesive land, tail geometry, connector and physical sample evidence for an agreed design. The equipment owner remains responsible for clinical alarm priority, software logic, audible behavior, operator permissions, risk management, cleaning validation, regulatory requirements and final device approval.

The cited qualitative study is current human-factors evidence, not a component test, clinical performance claim or customer case. Its interview findings should guide questions, not become unverified numeric limits in a keypad specification.

Medical alarm HMI drawing and RFQ checklist

Send one controlled package containing:

• alarm priorities, source conditions and latching rules;
• acknowledge, silence, reset, test, cancel and service transitions;
• operator roles and blocked-action behavior;
• front artwork with key, lamp and display-window datums;
• tactile or non-tactile construction and target key feel;
• colors, legends, backlight or dead-front requirements;
• cleaning agents, wipe method, glove condition and viewing distance;
• adhesive landing, bezel section and support behind every key;
• tail exit, pin map, connector and contact orientation;
• simulator or mounted-device acceptance sequence;
• prototype quantity, production estimate and revision identifiers.

When the state table and artwork use the same identifiers, send the medical HMI package for sample and quotation review. That lets the supplier build the physical interface against named actions instead of interpreting an alarm icon.
