Infusion Pump HMI After a Drop: Compare Touch, Physical-Key and Hybrid Sample Evidence

A physical key is not an automatic fix for an infusion-pump touch fault after a drop. Before approving a new medical HMI sample, separate the impact load path from three input questions: did the touch region generate an unintended input, did each physical key close only its assigned circuit, and did the mounted flex tail and connector deliver those signals without strain or cross-triggering? Compare touchscreen, physical-key and hybrid fronts against the same controlled housing, drop condition and input log. Quote a medical device HMI only after the buyer has defined which functions belong to each input type and which device-level risks remain with the equipment manufacturer.

A current FDA record defines the problem, not the component answer

The FDA medical-device recall database has a record for an Ivenix Infusion System correction, last updated August 28, 2026. The record describes a condition in which unintended touch inputs may register after a unit has been dropped or severely jarred. It tells healthcare providers to remove a dropped or severely jarred unit from service, even when damage is not visible.

That record is current and important, but it does not say that a membrane switch, a graphic overlay or a particular front-panel layer caused the issue. It also does not prove that adding a physical key would correct the device. For a component buyer, the useful lesson is narrower: a visible front can look intact while the mechanical support, touch stack, connector, controller or mounted interface has changed. The RFQ should therefore ask for evidence that distinguishes the input architecture from the complete medical-device risk control.

Do not copy the reported device, branding or geometry into a new drawing. Use the public record only to frame the verification question, then test the buyer's own approved enclosure and interface design.

Compare the three front-interface options with one evidence table

The right option follows the task and risk allocation. A frequently used numeric entry area may suit touch input. A command that must be found by feel may justify a tactile key. A hybrid front may reduce menu depth, but it also adds boundaries between window, overlay, key zones, tail conductors and controller logic. None of the three architectures removes the need for device-level validation.

Inspect the impact load path before changing the artwork

Start with the equipment owner's defined impact or handling condition. Record the contact point, orientation, support surface and whether the enclosure was powered or unpowered. Do not recreate a field drop casually on an active medical device. The component supplier needs a controlled mechanical condition and a representative housing, not a verbal statement that the unit was knocked over.

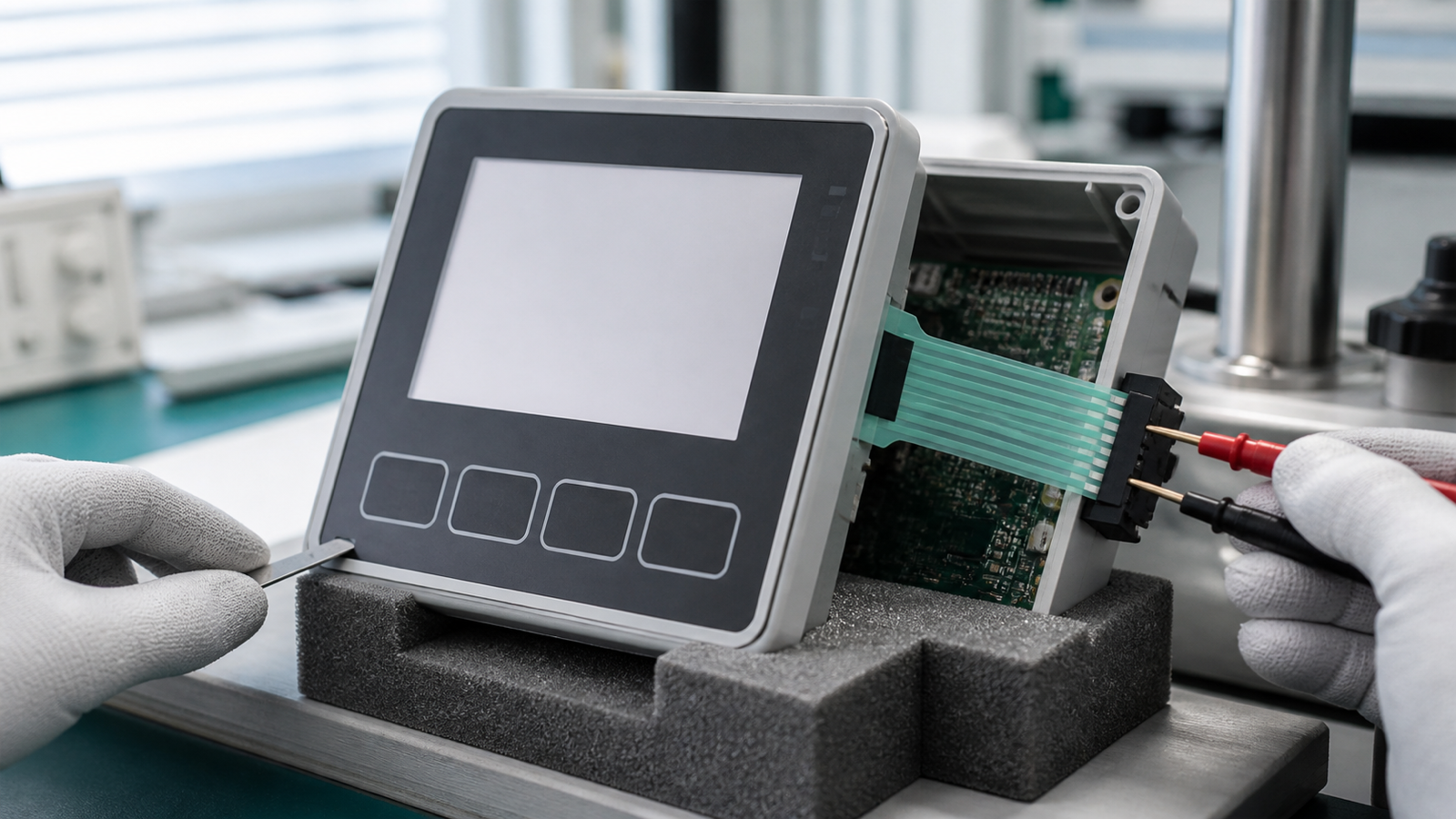

Inspect the bezel, window ledge, ribs, bosses, adhesive land and fasteners. Measure any new gap between the overlay and housing. Check whether a corner load can bow the display window, preload a key zone or pull the flex tail. A front film can remain visually smooth while the support underneath shifts. If the fault appears only after assembly, the mounted stack is part of the problem definition.

The drawing should identify the intended load path. Mark supported and unsupported regions, the distance from the enclosure edge to the active touch area, key dome centers, adhesive interruptions, gasket compression zones, fastener torque ownership and tail exit. When the buyer changes housing material or wall thickness, repeat the mounted check rather than assuming the same overlay or switch behaves identically.

Define touchscreen evidence without treating the overlay as the sensor

A graphic overlay may provide the printed face, viewing window, surface texture and adhesive boundary. The touch sensor, display, controller and software may be separate parts. The RFQ must state which layers the supplier is being asked to manufacture. A clear window film cannot be approved as though it were a complete touch system.

For the touch region, retain a coordinate log before and after the defined impact exposure. Include intended touches, edge touches, no-touch intervals and simultaneous contact with nearby physical keys. Record the mounted stack, window air gap or optical bonding boundary, grounding scheme owned by the system team, connector seating and any visible housing displacement. Test with the approved cleaning condition if cleaning chemistry and moisture are relevant, but do not substitute a cleaning test for the impact check.

If unintended inputs appear, isolate whether they follow the touch sensor, connector, controller channel, housing pressure or software state. A new overlay should not be quoted as a cure until the overlay's own dimensions, adhesive or window support are supported by evidence.

Define physical-key evidence beyond one successful press

A physical key sample needs more than a tactile click. Using the released circuit and pin map, measure the open state, pressed state and release for every key. Repeat the suspect key at the loose component, mounted panel and controller input. Confirm that one press changes one intended input and does not disturb the touch channel or another key.

Record key travel, actuation consistency, dome or spacer construction, backing support and the effect of housing clamp load. Inspect the full flex tail for a sharp bend, pull, pinch or change in insertion depth. Verify the connector orientation and retention after the controlled mechanical exposure. If the loose switch passes but the mounted key becomes intermittent, quote the mounting stack and support correction rather than replacing the film blindly.

Physical keys are valuable when their task is clearly defined. They do not become a validated backup merely because they are separate from the screen. The equipment manufacturer must define what happens when touch input and key input disagree, arrive together or remain active longer than expected.

Treat a hybrid front as two inputs sharing one mechanical system

A hybrid HMI can place touch entry, display information and physical controls on one front. This may help task flow, but it creates shared mechanical and electrical interfaces. The display window and key array may use the same overlay. The tail may carry key circuits beside indicator or shielding conductors. A distorted bezel can affect both zones even when only one symptom is reported.

Build an input matrix for the mounted sample. Test each physical key with no screen contact, representative touch points with no key press, and defined simultaneous actions. Include no-input dwell time after the impact condition. Record which controller receives each signal and where debounce, filtering or state permission is implemented. Keep software and alarm behavior out of the component defect claim unless the system evidence traces the fault to the supplied circuit.

Do not describe the hybrid front as redundant unless the device's risk analysis, architecture and validation establish redundancy. Two visible controls can still share a connector, controller, power rail or mechanical support. The component supplier can build and test the released interface; it cannot approve complete pump behavior.

Approve the sample in four controlled stages

First, approve the loose front component. Check perimeter, window, key registration, print, surface, adhesive boundary, tail, connector and circuit continuity. Compare every characteristic with the controlled drawing.

Second, approve the mounted but unpowered assembly. Inspect bezel support, edge gaps, gasket or adhesive compression, fastener condition, tail bend and connector access. Use a representative enclosure, not a flat plate that hides the real support geometry.

Third, run the equipment owner's defined handling or impact sequence on the non-clinical engineering sample. Reinspect the mounting datums and repeat the touch, no-touch, key and connector measurements. Photograph only the generic engineering evidence that can be shared with the supplier; do not transmit patient data, customer branding or confidential device geometry that is outside component scope.

Fourth, let the medical-device manufacturer perform the integrated functional and risk-control validation. Keep this record separate from the component supplier's dimensional, cosmetic and electrical acceptance report. A passing front-panel sample is not approval of dosage, alarm handling, therapy or clinical use.

Send an RFQ that assigns each unknown to an owner

Before using the Request Quote page, prepare:

• the controlled front artwork and dimensioned perimeter with mounting datums;
• the display and touch window, active touch boundary and edge keep-out;
• the physical key zones, tactile requirement and key-to-net table;
• the complete layer stack, adhesive or gasket pattern and housing support section;
• the full flex-tail geometry, exit direction, bend area, connector and pin assignment;
• the defined drop, jar or handling condition used for the engineering sample;
• before-and-after edge-gap, continuity, no-touch and controller-input results;
• the touch-only, key-only and simultaneous-input matrix for a hybrid design;
• the cleaning condition if it is in component scope, kept separate from impact evidence;
• the required quantity, revision, golden-sample status and service-spare requirement;
• the owner for enclosure mechanics, touch electronics, controller logic and medical-device risk validation;
• the loose, mounted, post-impact and integrated acceptance stages.

This package lets a supplier quote a defined physical interface rather than an assumed cure for a device-level symptom. It also gives the buyer a defensible answer when the correct decision is to keep the existing input architecture and repair the housing, connector, controller or validation plan instead.
