Industrial HMI Layout: Task Time Should Separate Critical Keys from Routine Navigation

A sharper task-time estimate is not a key placement. The August 12 study integrated a cognitive task model with MTM-1 motion-time standards and reduced trial-level error from 257.4 to 127.4 ms. That result says reach, prehension and cognitive sequence vary with the task and distance. It does not say where START, STOP, CONFIRM, ALARM or navigation keys belong on a physical panel. Map the task sequence into physical key zones before freezing artwork.

What the task-time study adds

Integrating QN-MHP With MTM-1: A Computational Architecture for Human Performance Prediction in Industrial Tasks was published on August 12, 2026. The researchers replaced the motor-execution layer of the Queueing Network-Model Human Processor with MTM-1 and validated the combined architecture against an open-source prehension dataset. The dataset covered 51 conditions, four object sets and reach distances from 170 to 470 mm. Condition-level root mean square error fell from 234.6 to 73.1 ms, and bias moved from -226.8 to -37.6 ms.

The study is a task-time model, not an HMI test. It does not examine a Baoshengda panel, an installed industrial workstation, glove use, alarm handling or equipment safety. The useful warning is narrower: a better time estimate separates physical reach from cognitive processing, so a panel should not be laid out from one average cycle time or one idealized reach path.

Map the task sequence into physical key zones

Start with the actual work order, not the screen layout. Mark every command the operator uses from part preparation through setup, run, inspection and recovery. Separate commands that repeat in every cycle from commands used once during setup or service.

Then assign each command to a physical zone:

• panel height and datum relative to the normal operator position;
• the reach path from the last handled object to the next command;
• high-frequency keys and their target size and spacing;
• critical start, stop, confirm and alarm positions;
• routine navigation keys used only for screens or parameter changes;
• the direction of the next glance, especially where a display status must confirm a key press;
• glove, oil, debris or cleaning conditions at the workstation.

An average task time can hide one short critical step. A stop command may take less than a second, but it must be reachable without crossing a row of frequently pressed adjustment keys. A flat screen can place confirm next to a menu option without consequence. A physical key needs enough spacing, actuation force and color or shape difference to remain identifiable when the operator is looking at the process instead of the panel.

Use a task-flow decision table

The table converts study signals into physical questions and quotation evidence. It is a review tool, not a universal pass and fail standard.

Do not let one person change the screen prototype while another changes the membrane-switch drawing. The task map, key coordinates, dome positions, tail pins and artwork revision must share one controlled package.

Keep critical commands away from routine navigation

A common failure is to place STOP or CONFIRM beside a navigation key because both appear in the same screen flow. The operator may press the wrong one during a distraction, a glove change, or a recovery action. Review the industrial automation HMI page after the command hierarchy is fixed.

For safety or cycle-critical commands, ask whether tactile feedback matters. A metal-dome or embossed key can help the operator confirm a press without watching the screen. A non-tactile flat key may be acceptable for routine menu actions but weaker for a command that must be located quickly. Color is useful, but it should not be the only difference if the workstation has variable lighting or users with different color perception.

Let the tail follow the final reach path

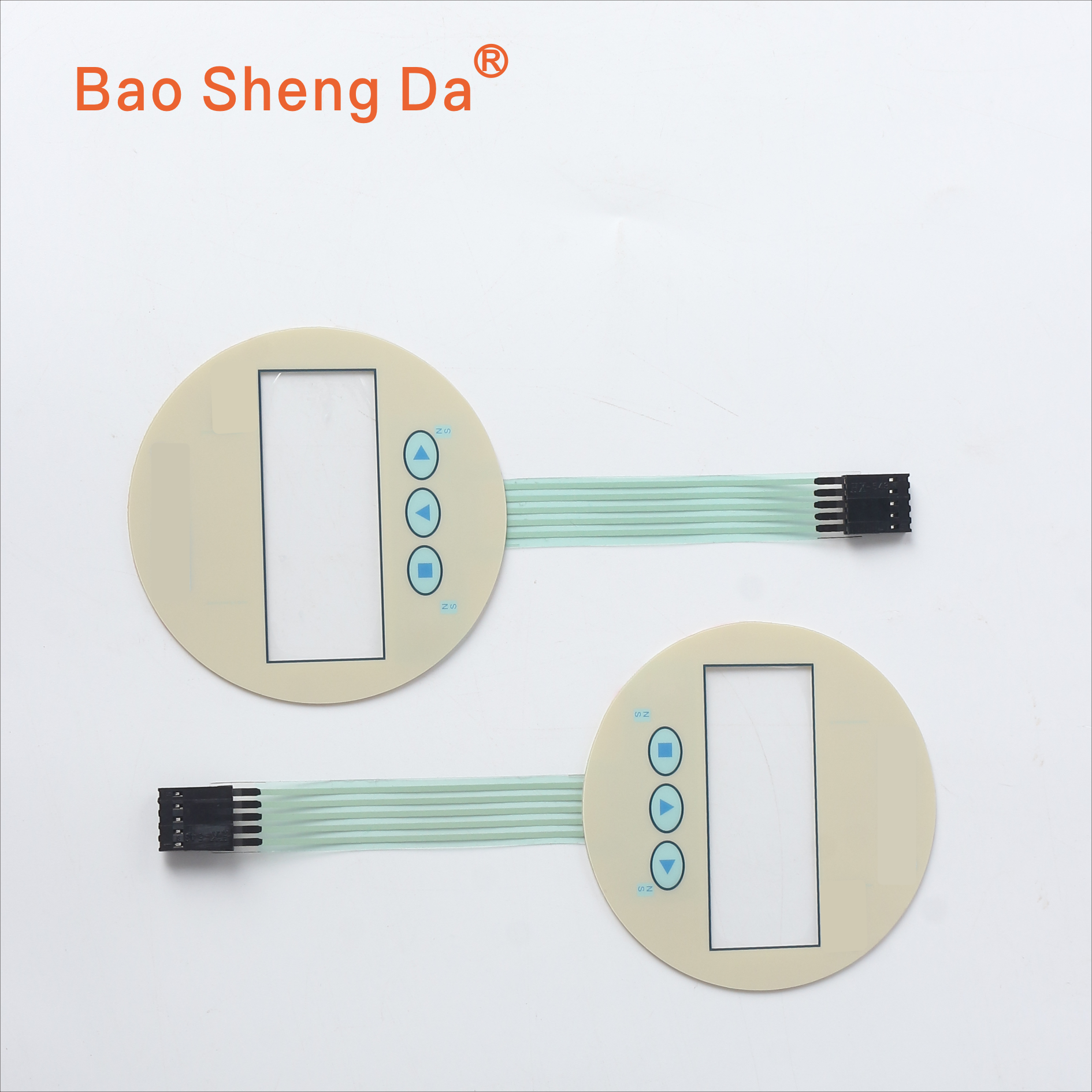

Moving a key group also changes the tail route. The panel may shift left or right, the connector may move to the other side of the enclosure, and the service loop may cross a new rib or cable path. The cover image shows two mirrored control panels with tail exits in opposite directions, which is the kind of handedness a workstation revision can create.

Confirm these inputs before the artwork is frozen:

• tail exit point relative to the panel datum;
• total tail length and service loop;
• permitted bend radius and first bend location;
• stiffener area if the tail enters a connector;
• connector pitch, pin count, contact direction and mating angle;
• any sharp edge, hinge, cover or moving part along the route.

A panel can pass a bench test and still fail after mounting if the final reach path moves the panel and forces the tail into a tighter bend than the drawing allowed.

Test the mounted task, not only the loose keypad

Use a representative housing, the production-intent mounting height, the real glove or hand condition, and the actual task order. Do not copy the study error values into a product acceptance limit. The buyer should define pass or fail from misses, unintended key presses, recovery time, status confusion and physical interference at the workstation.

The mounted sequence should include the most frequent cycle, one changeover or setup path, one stop or recovery action, repeated connector insertion if the panel is serviced, and visual inspection after the enclosure closes. Record the retained sample, the test sequence and any revisions together.

Supplier boundary and limitations

The cited study is original task-time research. It is not a Baoshengda test, an ergonomic certification, a safety analysis or evidence that a workstation is acceptable. Baoshengda can review the membrane switch construction, key grouping, actuator feel, display window, tail geometry, connector, artwork and sample evidence for an agreed design. The buyer remains responsible for the complete workstation, operator workflow, safety logic, environmental conditions, functional validation and equipment-level approvals.

Do not copy the 127.4 ms or 73.1 ms values into a panel specification. They describe model validation in a research dataset, not production key response time.

Industrial HMI task-time RFQ checklist

Send these items before requesting a firm prototype plan:

• task-sequence map with command frequency and reach directions;
• panel outline, datum, mounting height and mounting face;
• key coordinates, grouping, target size and spacing;
• critical command list with required tactile, color or status feedback;
• display or LED positions needed after each key action;
• glove, lighting, cleaning and operating environment;
• tail exit, service loop, bend route, stiffener and connector or pin map;
• mounted sample test plan with the intended task and pass or fail limits;
• prototype quantity, production estimate and controlled revision numbers.

When the task flow is reduced to those physical inputs, send the drawing package to the industrial automation HMI page and request a quote.
