Home-Use Medical HMI Sample Approval: Test the Mounted Panel

Do not approve a home-use medical HMI from a loose panel under office lighting. Mount the sample in the real enclosure, place it at the intended height and viewing distance, and test it under the room lighting, cleaning method, hand condition and power states that users will actually encounter. The approval package should show whether the display window remains readable, keys remain distinguishable, the overlay stays supported, and the tail and connector remain protected after installation. A front-panel supplier can build and document those component details, but the device manufacturer still owns system usability, risk management and clinical or regulatory validation.

Why mounted room-condition evidence is timely

A systematic review published online on August 10, 2026 examined risks and usability challenges for medical devices used in homes. The authors reviewed 628 titles and included 55 studies. They organized the evidence across three domains: the user, the use environment and the user interface. Only six of the included studies addressed all three domains together.

The paper is not a Baoshengda study and it does not specify a membrane switch, overlay or HMI supplier. Its procurement consequence is still concrete. A medical interface cannot be approved as an isolated artwork and key-feel sample if room lighting, device placement, cleaning, user reach and the assembled enclosure can change how the front panel is seen and operated.

This article turns that current evidence into a component-level sample plan. It does not claim that a front-panel test alone proves a home medical device is safe or usable.

Define the home-use conditions before the supplier builds the sample

Start the HMI brief with the room and user conditions, not with a list of available key shapes. A supplier needs enough context to build a representative front interface and mounting mockup.

• Where will the device sit: bedside table, floor stand, wall, cart or handheld enclosure?
• What is the normal viewing distance and angle?
• Will the user operate it while seated, lying down or standing?
• Which room-light states matter: daylight, a dim bedroom, a bedside lamp or glare from a window?
• Will hands be dry, damp, gloved, weak or affected by limited dexterity?
• Which cleaner, wipe and cleaning frequency will contact the overlay?
• Can a cable, blanket, tray or enclosure edge obstruct the panel?
• What should the interface show during startup, normal operation, a recoverable error and power recovery?

These are not decorative application notes. They affect window transmission, legend size, key spacing, embossing, surface finish, adhesive selection, tail direction and the support structure behind each key.

Use a room-condition matrix instead of one normal-state photo

A sample report should cover the conditions that can change the physical interface. One well-lit front photo does not show whether the panel remains understandable at the bedside or after repeated cleaning.

The matrix should reference the drawing revision and sample serial or batch. That keeps a later artwork or enclosure change from being approved against the wrong evidence.

Mount the panel before approving key feel and window appearance

Loose-sample approval hides several common problems. A key can feel crisp on a flat bench but become softer near an unsupported enclosure opening. A display window can look clear before the bezel compresses one edge. A perimeter adhesive can appear flat before the real housing texture, recess depth or screw load is introduced.

For a mounted review, check these points together:

• full adhesive contact around the perimeter and around display openings;
• housing flatness and support behind every key zone;
• bezel or recess clearance around the overlay edge;
• display active area, printed border and housing opening alignment;
• key response at the center, edge, corner and window-side positions;
• tail exit direction, rear bend, connector access and strain relief;
• appearance before and after the enclosure is opened for service.

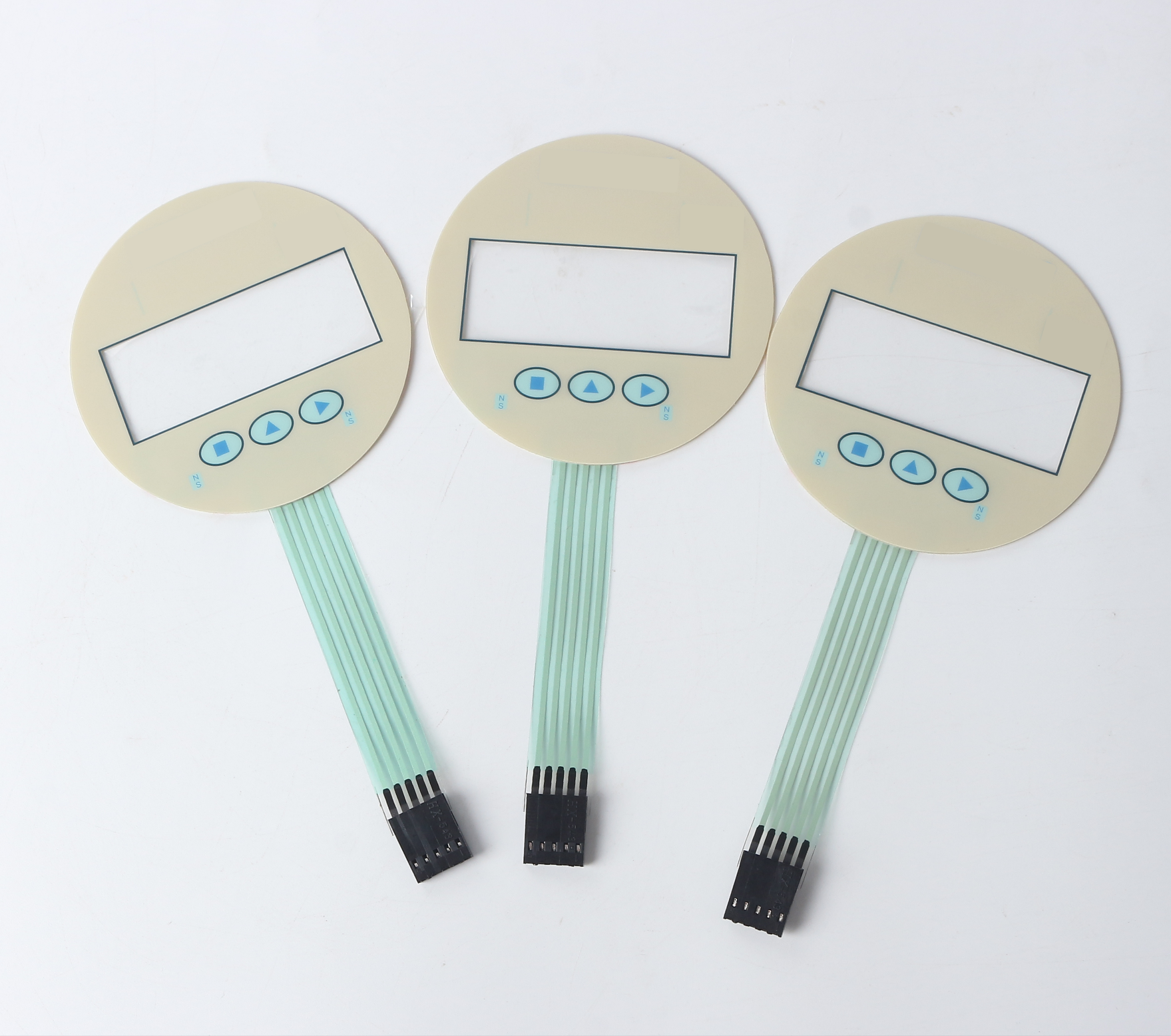

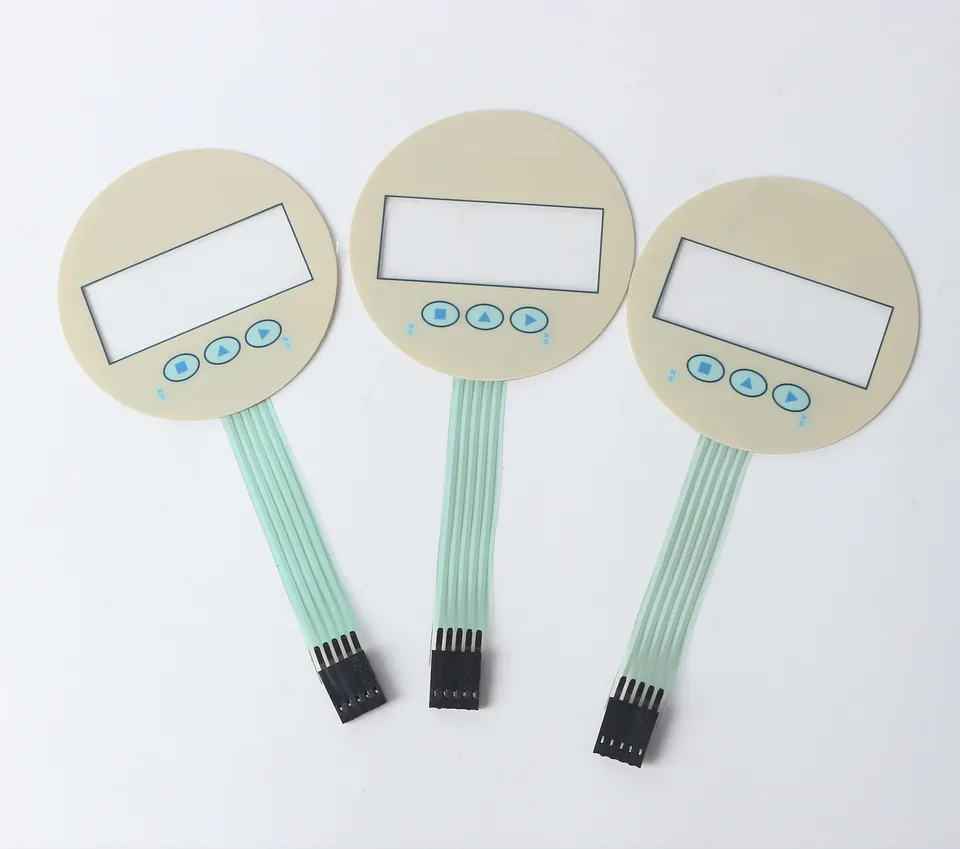

If the project uses a low-profile membrane switch, the actual spacer, dome, adhesive, overlay and flex-tail stack should be present. Replacing any of those layers with a visual dummy can invalidate the key-feel or edge-seal result.

Test readability where the device will actually be viewed

Readability is a stack-up result. Printed legend contrast, window tint, display brightness, bezel shadow, viewing angle and room light all contribute. Review the complete mounted interface from the expected user positions rather than looking straight down at it on a table.

Record the closest, normal and farthest useful viewing distances. Check whether status and action labels remain distinct when the display is on, off and dimmed. If a dead-front effect is required, approve both the hidden and illuminated states. A symbol that is attractive in the artwork can become ambiguous after a tinted window or diffuser is added.

Do not rely on color alone for important differences. Position, shape, wording, spacing and tactile distinction can provide additional cues. The device team should decide which states require those cues; the front-panel drawing should show how they will be manufactured.

Include cleaning and repeated contact in sample approval

Home-use equipment may be wiped by patients, caregivers or service staff with different habits. The RFQ should name the cleaner or at least the chemical family, contact time and expected cycle count. A generic request for a cleanable panel is too vague.

After the defined wipe cycle, inspect printed legends, clear windows, embossed keys, surface gloss, edge lift and adhesive migration. Repeat the key map after cleaning and after the panel returns to room temperature. If liquid can remain near an edge or recess, inspect the tail-exit side and rear connector area rather than judging the front alone.

Cleaning evidence is component evidence. It does not establish a disinfection claim unless the device manufacturer has defined and validated that claim.

Keep the front-panel supplier boundary explicit

Baoshengda can review and manufacture component-level interfaces such as graphic overlays, display windows, tactile membrane-switch keys, backlit legends, adhesive stacks and flex-tail circuits. The medical-device HMI page shows the closest product scope.

The device manufacturer or system integrator owns intended use, user research, alarm behavior, software states, electrical and functional safety, risk controls, cleaning claims, human-factors validation, regulatory submissions and clinical performance. The supplier needs enough of that context to avoid building the wrong physical interface, but receiving a mounted panel sample does not transfer system responsibility.

Put the boundary in the RFQ and sample report. It prevents an appearance approval from being mistaken for device-level usability approval.

RFQ checklist for a home-use medical HMI mounted sample

Send the following information with the quotation request:

• front artwork, mechanical outline and current drawing revision;
• intended room, device placement and user viewing positions;
• enclosure material, recess, bezel, adhesive land and support geometry;
• display active area, window transmission and border requirements;
• key functions, spacing, force, travel, embossing and tactile distinctions;
• normal, startup, error, disabled, power-recovery and backlight states;
• cleaner, wipe method, contact time and expected cycle count;
• tail direction, connector, pin map, bend route and service clearance;
• mounted sample quantity and representative housing or mockup;
• room-light, reach, cleaning and assembly acceptance matrix;
• photo, measurement and exception-report requirements;
• supplier, integrator and device-level validation responsibilities.

When the drawing, housing information and condition matrix are ready, send them through the Request Quote page. The goal of the first sample is not to make a loose panel look finished. It is to prove that the physical interface remains readable, reachable, cleanable and mechanically supported after it becomes part of the intended enclosure.
