Home-Use Medical Device Controls: Select Physical Keys Before Sample Approval

For a home-use medical device, keep a physical key only when a patient or caregiver must find it quickly, repeat it reliably or use it without navigating a screen. Put clinical decisions, rarely changed limits and privileged service functions behind the qualified system workflow. Before sample approval, freeze who may use each control, the states in which it works, the feedback after a valid or blocked press, and the mounted evidence for reach, glare, cleaning, tail routing and connector retention. The FDA's August 25 READI-Home update highlights devices intended for patients and caregivers in homes and community settings, which makes this use sequence a practical sourcing input rather than a styling preference.

Select controls from the user's moment, not the feature list

A feature list encourages every function to become a button. A home-use sequence usually argues for fewer, clearer controls. Start with the moments when a patient or caregiver has to act, then decide whether a dedicated physical input reduces navigation, ambiguity or delayed response.

The FDA update is context for home users and use environments. It is not evidence that a particular participating device uses a membrane switch, and it does not approve any specific keypad architecture. The equipment developer still owns the use specification, risk analysis, human-factors work and regulatory evidence.

Make a blocked press understandable

A sample often passes when every key is tested in its allowed state. Home use exposes a harder question: what happens when the right-looking key is pressed at the wrong time?

Create a state-response sheet with one row for every physical control. Name the permitted users, allowed states, blocked states, controller action, feedback and next recovery step. If a session key is unavailable during sensor setup, the device should give the user the intended response rather than appearing broken or accepting the request late. If an acknowledgement key is held or pressed twice, record whether the controller ignores the second input, repeats an action or requires another confirmation.

The membrane contact can provide a repeatable electrical request. It cannot decide whether the user is authorized, whether a treatment condition is safe or whether a warning may be cleared. Those decisions remain in the equipment architecture and qualified workflow.

Use the same stable key IDs in the front artwork, circuit map, state-response sheet and verification script. A mismatch between labels such as key 2, middle key and a connector pin invites test errors when the artwork or PCB changes.

Test the mounted device where reach and light compete

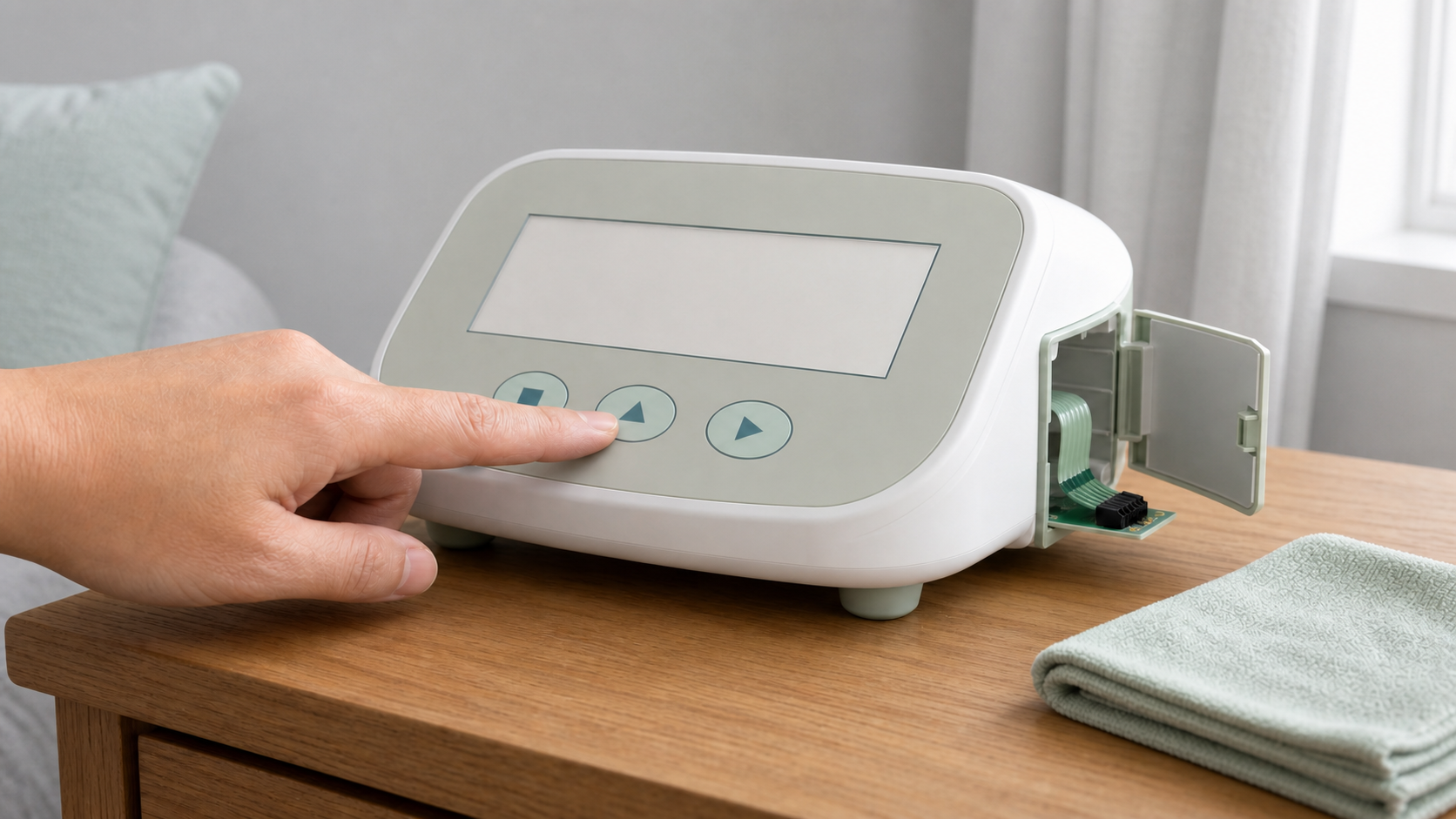

A loose panel on a bright bench cannot answer a home-use question. Install the sample on a production-intent or representative enclosure, at the real angle and height, with the intended display behind the window. Then observe the task from realistic seated, standing and caregiver positions.

Check whether the user can find the required key without covering the display, moving the device or bracing it with the other hand. Record the force, travel or tactile distinction required by the specification, but do not treat a supplier's generic force value as proof of usability. The enclosure support, dome or contact construction, overlay thickness and user's finger angle all affect the mounted experience.

Repeat the sequence in daytime window light, shaded room light and the device's intended low-light condition. Inspect glare on the window, contrast between key zones, reflections from a glossy surface and whether a status indicator remains distinguishable from printed artwork. If the design relies on a backlight or indicator, test the difficult state, not only the brightest one.

Treat cleaning as an interaction, not a material slogan

A wipe-clean requirement is incomplete. The buyer should name the cleaning agent or agent family, cloth type, frequency, dwell, edge exposure and whether the device is energized during the procedure. Also define what the user may touch immediately after cleaning.

Cleaning can change more than appearance. Liquid can gather at a window edge, key boundary or housing step. Repeated wiping can polish a matte surface, lift an unsupported corner or move contamination toward the tail exit. A wet cloth can trigger an unintended contact if keys are active during cleaning. The controller may need a defined cleaning state or lockout, but that logic belongs to the system owner.

For sample approval, inspect print, gloss, window clarity, edge condition, tactile response and electrical behavior before and after the agreed wipe sequence. Test the complete mounted edge and housing joint rather than presenting a flat film coupon as proof for the assembled device. Do not convert a component wipe result into a sterilization, biocompatibility, ingress or full-device cleaning claim.

Close the flexible tail before enclosure approval

The front panel can look finished while its hidden electrical path remains provisional. Freeze the tail exit, conductor side, first-bend keepout, bend radius supplied by the design owner, finished length, stiffener, connector or exposed-contact definition, mating orientation and strain relief.

Use a rear view or section of the enclosure to show how the tail reaches the PCB without crossing a screw boss, sharp rib, battery door, speaker path, moving latch or hot component. The tail needs enough controlled slack for assembly and service, but not a loose loop that can be pinched when the housing closes. If the enclosure has a removable battery or service cover, prove that opening and closing it does not pull the connector or crease the tail.

Approve connector identity with a connector-side pin view, mating part and pin-one convention. Contact count alone is not enough. A mirrored pinout can pass a visual check and fail as soon as it is mated to the intended board.

After enclosure closure, repeat continuity and every allowed and blocked key response. This catches damage or preload that a flat electrical test cannot reveal.

Build a sample record that survives revision changes

Do not finish with one broad sample-approved stamp. Use a layered record so a later change can be evaluated without guessing what the original approval covered.

**Interaction record.** Identify the user role, home-use moment, key, allowed and blocked states, feedback and recovery result.

**Mounted physical record.** Identify the overlay, circuit, enclosure, display, adhesive or gasket interface, tail, connector, PCB and assembly revisions.

**Environmental-use record.** Identify the lighting, cleaning method, device orientation, stabilization time and acceptance observations.

**Electrical record.** Identify the circuit map, connector pinout, controller or test fixture, software revision and measured component checks.

**Open-item record.** List every assumption that has not been closed, its owner and the evidence needed before production release.

When artwork, enclosure support, adhesive geometry, connector, PCB, firmware or cleaning instruction changes, the equipment owner can use these records to decide which checks must be repeated. The component supplier should not silently widen an approval from one documented configuration to every future revision.

Keep the supplier boundary visible

A medical-device HMI supplier can manufacture the graphic overlay, display window, tactile or non-tactile key stack, spacer, printed circuit or FPC, adhesive geometry, tail, stiffener, connector and agreed indicators. The supplier can inspect dimensions, print registration, appearance, continuity, contact behavior, tail geometry and connector assembly against controlled drawings. It can also support component samples and agreed material or wipe observations.

The device manufacturer and qualified system owners retain responsibility for intended use, user roles, clinical workflow, risk management, alarm strategy, treatment or diagnostic logic, software, cybersecurity, wireless communication, electrical safety, EMC, cleaning and disinfection instructions, biocompatibility, complete-device ingress performance, regulatory submissions and final validation.

A passing membrane-switch continuity test does not prove that a home user can complete the task safely. A successful mounted task on one enclosure and software revision does not automatically approve another. Put those limits in the quotation and sample report.

Send an RFQ pack around one home-use sequence

For a custom medical-device HMI with physical keys, a display window and a controlled flex-tail interface, send one revision-controlled package that includes:

• intended use, installation location and the patient, caregiver and technician roles relevant to the interface;
• one end-to-end home-use sequence with prepared, active, blocked, pause, recovery and assistance states;
• a key and state-response sheet with allowed inputs, feedback, blocked behavior and recovery ownership;
• front artwork, stable key IDs, tactile requirements, surface finish, window and indicator locations;
• viewing distance, angle, daytime, shaded and low-light conditions;
• cleaning agent or family, cloth, frequency, dwell, energized state and post-clean acceptance checks;
• panel outline, enclosure recess, rigid key support, adhesive land, gasket relationship and edge conditions;
• circuit map, electrical limits supplied by the buyer, tail exit, first-bend keepout, finished length, stiffener and strain relief;
• exact connector, mating part, connector-side pinout, latch direction and assembly access;
• mounted sample stages, fixtures, controller and software revisions, pass criteria and open-item owners;
• prototype quantity, expected annual quantity range, traceability, packaging and change-notification requirements.

Use the Request Quote page to send that controlled package. Ask the quotation to separate component construction and inspection from the home-use, system and regulatory evidence retained by the device owner.
