EV Charger Service Keypad Replacement: Freeze Power-Module Status Boundaries

Do not approve an EV charger service keypad as a replacement across 40 kW and 80 kW power-module generations from a front photo or continuity report. Freeze a module-revision-to-HMI matrix that identifies every visible service state, permitted key, acknowledgement, connector pin, panel revision and mounted swap result. A CharIN member update published August 26 introduces new 40 kW and 80 kW charging modules for public stations, commercial sites, highway stations, charging hubs and fleet depots. The news is about power conversion, not membrane panels. Its purchasing consequence is that a charger OEM should control the boundary between changing module or service behavior and the outdoor physical interface before requesting a common replacement keypad.

Why a module generation creates a keypad replacement question

A charger family may share a cabinet shape while its power module, controller firmware, service vocabulary and diagnostic sequence change. That does not automatically mean the physical keypad must change. It also does not prove that an older keypad is interchangeable.

The CharIN page says the 40 kW module is intended for public stations and commercial sites, while the 80 kW module is aimed at ultra-fast or megawatt charging in settings including highway stations, commercial hubs and fleet depots. Those are power-module applications. The source does not describe the charger front panel, its connector or its ingress protection. A component buyer should use the update as a revision-control trigger, not as evidence that any particular keypad construction is already qualified.

Before asking for a common spare, identify which charger cabinet and controller revisions use each module generation. Then decide whether the service interface only sends stable navigation contacts or whether key meanings, indicator windows, service-state names or acknowledgement behavior change with the system revision. A quote without this map can price an electrically correct part that is operationally wrong for half the installed fleet.

Create a module-to-panel release matrix

Build the matrix from controlled records, not memory or photographs. Give every charger configuration a stable identifier. Put the power-module revision in one column, but do not make it the only key. Controller firmware, display board, harness, cabinet and regional configuration may also determine whether one keypad is valid.

Mark an unknown entry as open. Do not fill it with `same as old` unless a controlled drawing or mounted comparison proves it. This is especially important when a replacement supplier receives only a used sample. Wear, adhesive residue, repaired tails and aftermarket connectors can make the sample a poor master.

Separate service states from physical key circuits

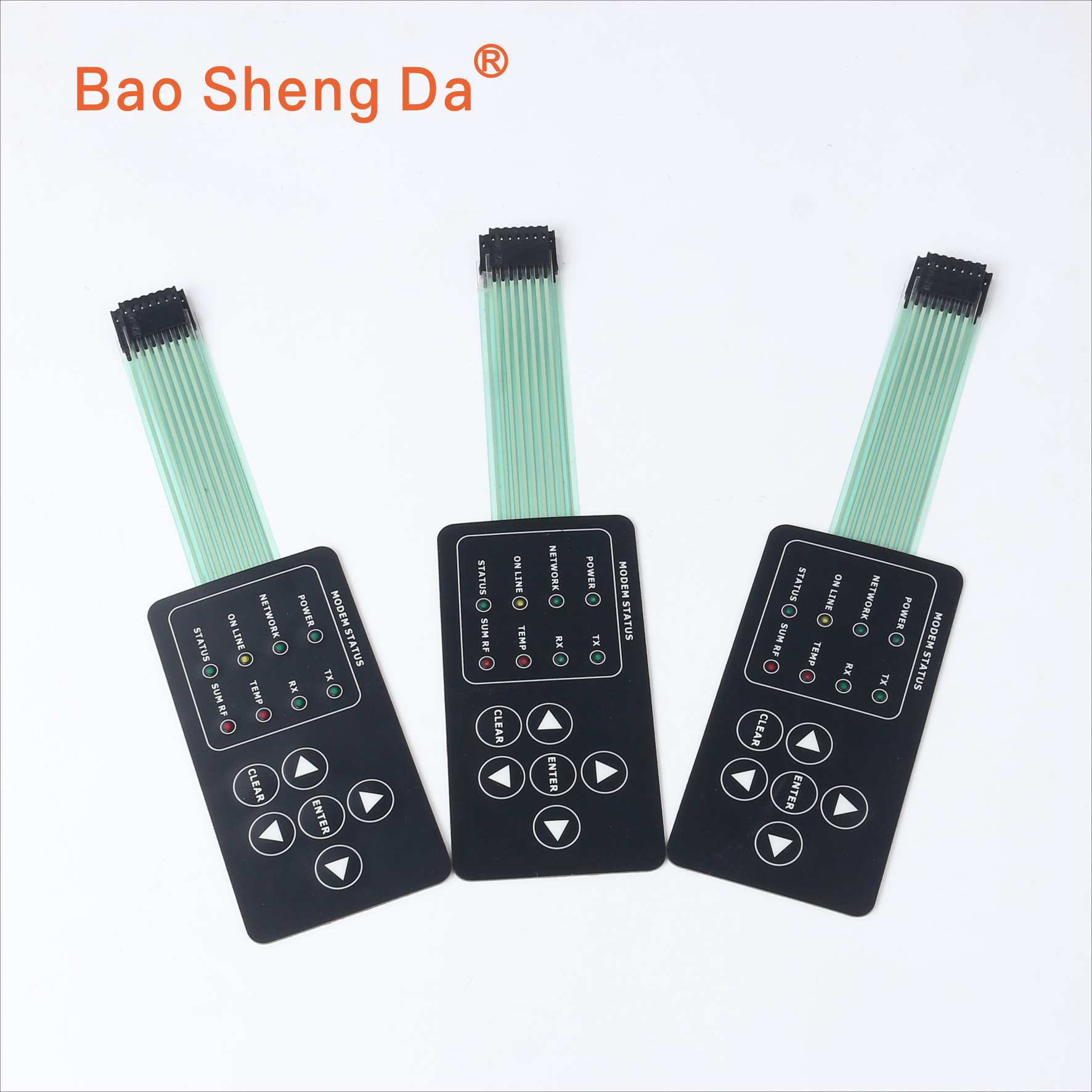

The physical interface and the charging control system have different responsibilities. A membrane keypad may provide fixed contacts, legends, light windows, a flexible tail and a connector. The charger controller decides what an input means in each state, whether it is accepted and what feedback follows. The power module performs power-conversion functions. These layers must be connected by evidence without being treated as one component.

For each key, list the front legend, key ID, matrix coordinate or dedicated circuit, connector pin, active electrical condition, allowed controller states and visible acknowledgement. If the same arrow key is reused for menu navigation and service setup, state both roles and the access rule. If a key is ignored in a charging state, record that result rather than calling the sample faulty.

Indicators need the same discipline. A printed word beside a light window does not prove which controller state drives it. Define the light source, color, polarity, viewing condition and state owner supplied by the buyer. Where the status is presented on a separate display, control the window opening, dead border, optical stack and viewing area without asking the membrane-panel supplier to author the diagnostic message.

Avoid expanding a supplier-replacement project into an unverified redesign. If the old artwork contains ambiguous service labels, the buyer should issue a controlled revision with translations, abbreviations and software references approved by the charger owner. A replacement supplier should not silently improve terminology and create a mixed fleet.

Run four mounted replacement scenarios

A loose-part continuity report is necessary incoming evidence, but it cannot prove enclosure fit, controller interpretation or field-replacement behavior. Use an authorized charger test setup with the high-voltage and energy hazards controlled by the charger owner. Record panel, harness, controller, firmware, cabinet and module revisions for every run.

1. **Known-good baseline.** Install the currently approved keypad. Record the connector orientation, idle indication, service-menu access and intended response for each test input. This establishes the reference instead of assuming the old part is perfect.

2. **New-panel cold installation.** Fit the replacement to the actual enclosure or a controlled production-equivalent fixture. Check outline, adhesive landing, key support, tail bend, strain relief, connector seating and startup state before exercising controls.

3. **Permitted and blocked actions.** Present the agreed charger states and verify both accepted and intentionally ignored key requests. Record the controller acknowledgement separately from electrical contact closure. Confirm that status windows or display openings remain readable under the specified viewing conditions.

4. **Cross-revision swap and rollback.** Repeat the installation on every charger configuration claimed by the common-spare quote. If a state, pin or fit result differs, stop, reinstall the known-good part and retain the replacement as revision-limited rather than forcing fleet-wide approval.

After each scenario, inspect edge lift, key feel, tail movement, connector latch and any evidence of enclosure interference. If outdoor exposure is in scope, the charger owner should run its defined installed sealing, environmental and electrical tests. Do not convert a flat component test into an unsupported cabinet IP claim.

Define supplier scope before a common-spare quote

A membrane-interface supplier can manufacture and inspect the graphic overlay, key zones, embossing where specified, tactile stack, spacer, adhesive geometry, printed circuit, tail, stiffener, connector and defined indicator or backlight features. The supplier can report dimensions, print registration, appearance, continuity, contact behavior, tail geometry, connector assembly and other agreed component-level checks.

The supplier does not select or validate the 40 kW or 80 kW power module, charging protocol, power electronics, firmware, diagnostic logic, safety architecture, high-voltage isolation, EMC strategy, cabinet ingress protection, field-service procedure or final charger certification. It also cannot declare two charger revisions interoperable from identical artwork. Those decisions remain with the charger OEM, system integrator and their authorized engineering, quality, safety and regulatory functions.

State this boundary in the quotation and sample plan. A useful quote separates defined production scope, open engineering inputs, buyer-supplied fixtures, sample quantity and the exact configuration range to be approved. It should also state whether the part is a direct replacement, a revision-limited alternative or a candidate common spare pending mounted tests.

RFQ package for an outdoor charger service keypad

For a water-resistant custom membrane switch and outdoor keypad supplier-replacement review, send one controlled package:

• old and proposed front artwork with stable IDs for every key, legend, indicator and display window;
• charger model, cabinet, market and build ranges covered by the quotation;
• 40 kW, 80 kW or other power-module identifiers only as system revision references, plus the controller and firmware revisions that actually govern the interface;
• service-state and key-permission matrix, including accepted, blocked, acknowledgement and escalation behavior;
• circuit or contact map with connector-side pin numbering, mating-part definition, polarity and unused positions;
• panel outline, enclosure recess, rigid support, adhesive landing, edge clearance, gasket relationship and installed orientation;
• tail exit, first-bend keepout, stiffener, connector, latch direction, strain relief and service access;
• film, finish, color standard, legend tolerance, tactile target, indicator or backlight inputs and expected viewing conditions;
• actual temperature, moisture, UV, cleaner, glove and field-service conditions without assigning an unsupported rating;
• baseline, cold-installation, allowed or blocked action, cross-revision swap and rollback acceptance records;
• prototype quantity, annual quantity range, packaging, traceability, change-control and approval-revision requirements.

Photographs help orientation, but controlled drawings and connector views should govern the quote. Remove customer names, serial numbers and unrelated cabinet details before sharing. When the matrix, drawings and mounted test plan are ready, submit them through the Request Quote page so the supplier can price the known component scope and list unresolved system inputs separately.
