Separate Cleaning Robot Membrane Keypads from the Wet-Service Zone

A professional floor-cleaning robot should keep its service membrane keypad out of the uncontrolled path used for dirty-water handling, detergent refill and hose work. The keypad still needs to be easy to reach for setup, recovery and maintenance, but convenience does not justify placing its edges, tail slot or connector where routine fluid work can reach them. Start by mapping the wet-service zone on the enclosure, then place the control component and its cable route outside that map.

This buyer problem is tied to current deployment, not a forecast. The International Federation of Robotics reported in its World Robotics 2025 service-robot release that professional cleaning robots were the third-largest professional service-robot application in its 2024 supplier sample. Reported demand rose 34%, with more than 25,000 units sold. IFR also states that the figures are sample data rather than a projection for the whole industry. More deployed cleaning robots create a practical service-parts question: how should a compact control keypad remain accessible without becoming part of the fluid path?

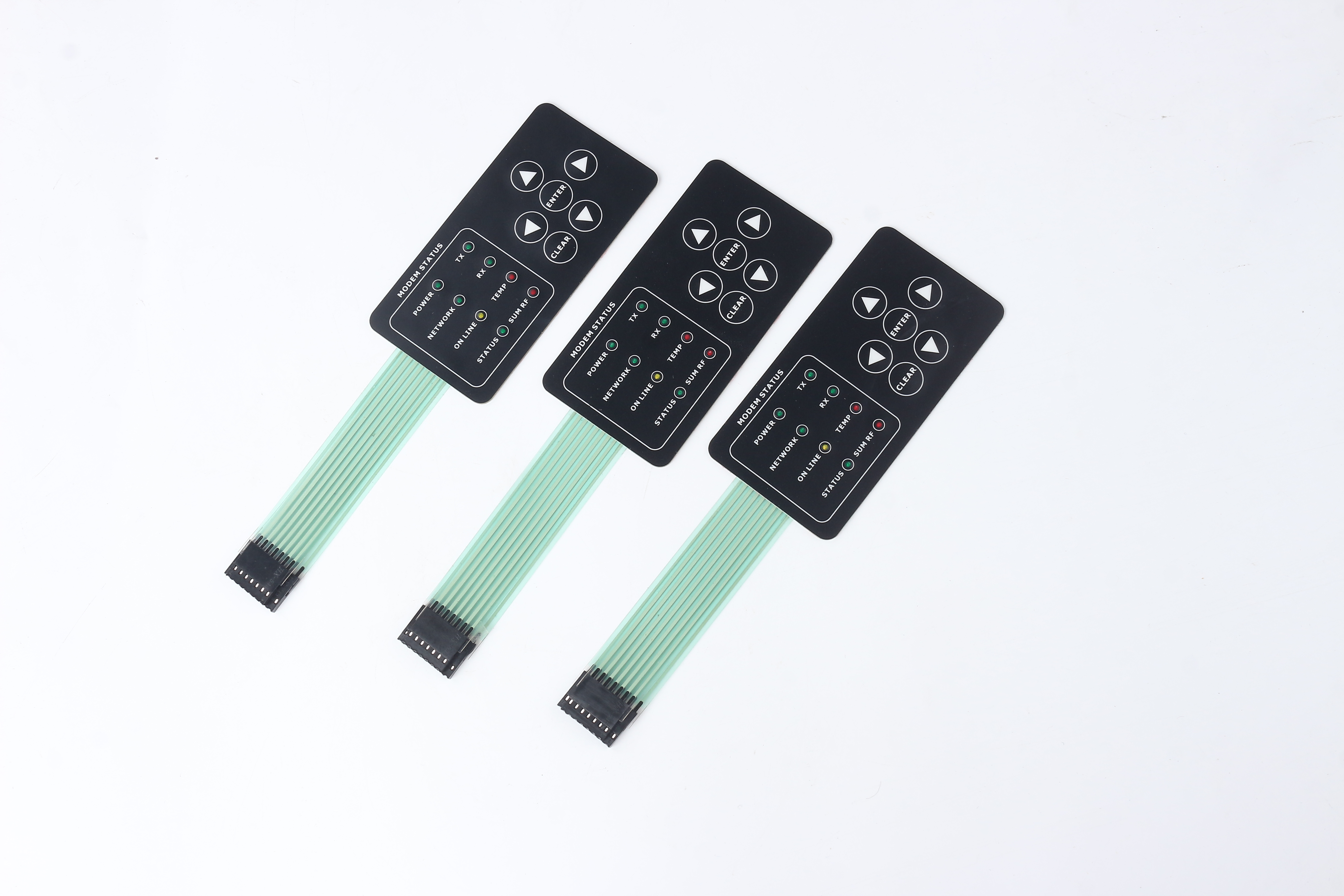

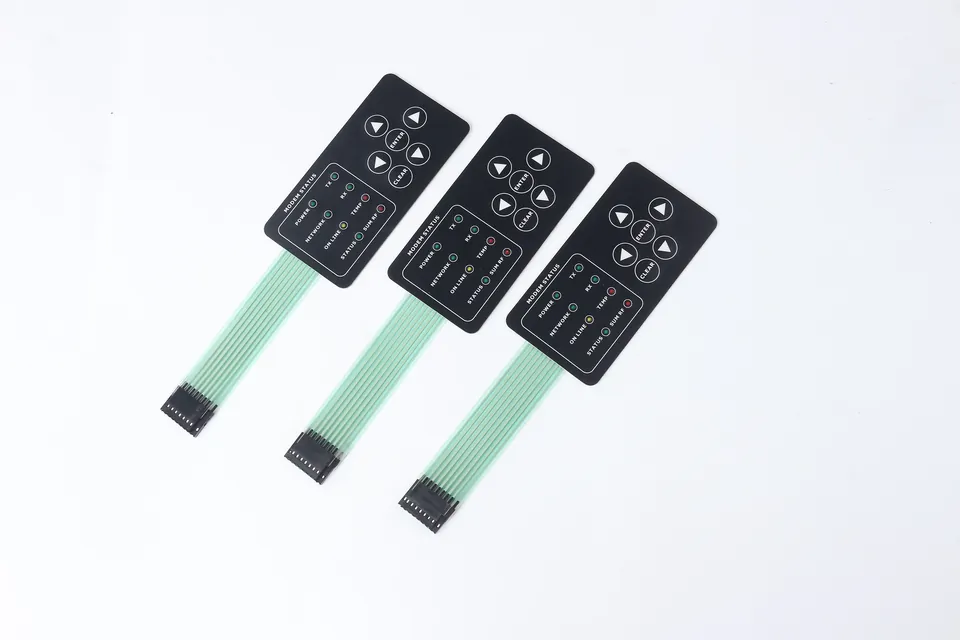

Baoshengda can review a custom membrane switch component with dedicated key zones, indicator windows, flex-tail routing, connector planning and mounted-sample evidence. The robot maker remains responsible for the enclosure, fluid management, safety logic and final machine validation.

Map the wet-service zone before placing the keypad

Mark the work operators perform when the robot is not cleaning. Typical tasks include removing a dirty-water tank, refilling detergent, rinsing a filter, wiping the deck and opening a maintenance door. Draw the likely drip and splash routes for those actions on the housing model. Do not assume that a front-facing panel stays dry simply because the robot operates indoors.

The keypad perimeter, tail exit and service connector should sit outside those routes where possible. If the only available surface is near a tank or hose, the enclosure design needs a controlled barrier, drainage direction and enough flat land for the keypad adhesive. A narrow decorative border is not the same as a sealing land. The supplier needs the actual mounting surface and edge clearance, not only the front artwork.

One common failure is a panel that passes a loose-sample electrical check but lifts at the lower edge after repeated wiping. Once the edge opens, liquid or cleaning residue can reach the spacer or tail slot. That is an assembly and housing problem as much as a film choice.

Give dedicated keys only to service actions that need them

A service panel does not need to copy the touchscreen menu. Reserve physical keys for actions that a technician must find quickly, use with gloves or confirm when the main display is unavailable. Reset, acknowledge, manual direction, pump or brush service mode and a guarded recovery command may deserve separate zones. Configuration pages and infrequent text entry can remain on the display or a connected service tool.

Separate active commands from status indicators. A row of indicator windows beside a directional key group is easier to interpret than a mixed field where lights and keys share the same visual shape. For commands that can start motion, change fluid flow or release a mechanism, the OEM should decide whether a keypad input is permitted at all and what additional control logic is required. A membrane keypad is an input component, not a substitute for the robot's safety system.

The tradeoff is panel size versus operator certainty. More dedicated keys reduce menu steps, but they expand the printed surface, add switch circuits and increase the edge length that must be mounted well. Fewer keys simplify the component, but may push routine service work into a slow or fragile screen workflow.

Choose one front panel or a separate service module

A single front control panel can combine display windows, status legends and service keys on one bonded surface. This route reduces separate openings and keeps the interface visually consistent. It also means one damaged area may require replacement of the full panel, and the tail must serve every function from one location.

A separate service membrane keypad can sit behind a maintenance door or on a higher, drier housing face. It can be replaced independently and positioned close to the technician's work. The extra module adds a connector, a cable route, mounting land and another part number. If the door moves, the tail cannot cross a hinge or be pinched by a latch.

Choose between the two layouts from the actual service sequence. Show where the technician stands, which door is open, which tank is removed and whether the keypad must be operated while a wet component is exposed. A clean rendering of the robot exterior will not answer those questions.

Route the flexible tail away from fluid and moving hardware

The membrane switch tail should leave the panel without folding at the bonded edge. Give it a gradual route to the PCB or connector and keep it clear of tank rails, door hinges, wheel guards, hose clips and screw bosses. State the connector pitch, pin count, contact side and mating direction in the drawing package.

Connector access creates another tradeoff. A short tail keeps loose material out of the enclosure, but may force the assembler to mate the connector in a narrow pocket. A longer tail improves access, yet needs a controlled fold or retainer so it cannot rub on a sharp rib or fall into a service opening. If a technician will unplug the keypad during repair, leave enough handling length and define where fingers or a tool can reach the latch.

The tail slot should not become a drainage opening into the electronics bay. Show the slot, local barrier and cable path in the same enclosure section. A supplier cannot infer that geometry from the front-panel outline.

Test the mounted panel during cleaning and maintenance

Review the first sample on the real housing or a representative fixture. Operate the keys with the expected gloves, check indicator visibility under service lighting and confirm that the panel edge stays supported while the operator presses near a corner. Then repeat the maintenance actions that bring fluid or cleaning material near the enclosure.

Record the wipe liquid or detergent used, contact location and dwell time rather than asking only for a generic waterproof claim. Inspect the keypad edge, printed legends, window areas, tail exit and connector compartment after the agreed exposure. Test the input response again after the assembly returns to its normal orientation.

A limitation belongs in the approval record: a bonded membrane keypad can provide a clean, low-profile control surface, but it does not make the complete robot enclosure waterproof. Housing flatness, drainage, joints, fasteners, doors and cable penetrations remain part of the system-level result.

Send two views with the RFQ

Send one front view that marks status windows, active keys, inactive artwork and the outer profile. Add one enclosure section that shows the mounting land, keypad edge, tail exit, connector location, nearby tank or hose, moving hardware and the wet-service boundary. These two views prevent the quotation from becoming a cosmetic overlay estimate.

Include the key-function list, expected glove use, cleaning liquid, housing material, surface texture, tail length, connector part or pitch, sample quantity, production estimate and the evidence the first sample must provide. If the project replaces an existing panel, identify the observed problem, such as edge lift, damaged tail, unreadable status, accidental command or poor connector access.

When those files are ready, submit the front artwork, enclosure section, service sequence and quantity through Baoshengda's Request Quote page. The next useful decision is specific: choose the keypad location and tail route that remain accessible after the tank, hose and maintenance door are all placed in their real service positions.
